HDMI: Splitters

HDMI Splitter 4K@60Hz, HDCP 2.2

The FireFold 4K HDMI Splitter allows you to send HDMI signal to two different HDMI displays or monitors simultaneously using the same signal source such a Blue-ray, computer or any other HDMI enabled device.

Note: The 1x8 variant contains EDID switches.

What is EDID? Extended Display Identification Data (EDID) is a metadata standard that lets display devices like monitors, televisions, and projectors communicate their capabilities to the video source. When using HDMI, the EDID from your television tells the video source what the dimensions of the screen are.

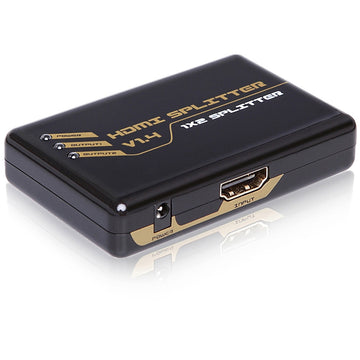

Quest HDMI 1X2 Splitter, 4K2K, HDCP1.4

Quest offers HDMI 1 X 2 and 1 X 4 Splitters with speeds of up to 10.2 Gbps.

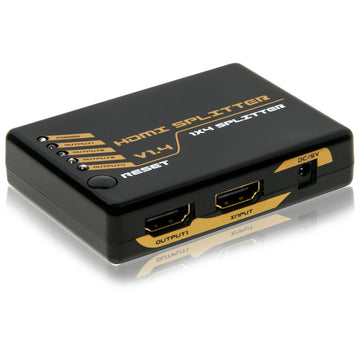

Quest HDMI 1X4 Splitter, 4K2K, HDCP1.4

Quest offers HDMI 1 X 2 and 1 X 4 Splitters with speeds of up to 10.2 Gbps.

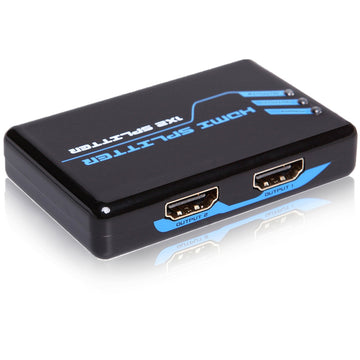

Quest HDMI V2.0 Splitter 4K2K@60HZ HDCP2.2

Quest offers HDMI 1 X 2 and 1 X 4 Splitters with speeds of up to 18GBps. With support for Ultra HD (4K@60Hz) the HDMI splitter ensures astonishing picture quality.

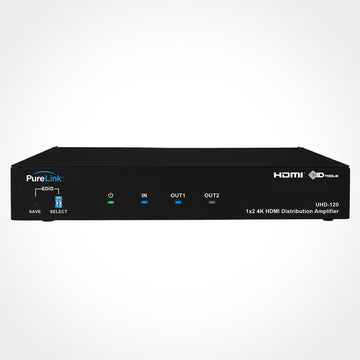

The PureLink UHD-120 1x2 Ultra HD/4K HDMI Distribution Amplifier splits an HDMI signal to send it simultaneously to two separate displays. It supports resolutions up to 1080p and 4Kx2K Ultra HD and is HDCP compliant. Built-in equalization and reclocking ensure optimal signal quality.

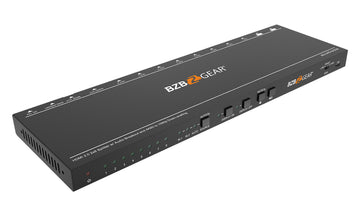

The BG-UHD-DA2X8 HDMI splitter connects two HDMI video sources with up to eight HDMI displays. A simple source control toggles between the two inputs. It works with resolutions up to 4K@60fps with 4:4:4: chroma subsampling and full surround sound. Stereo RCA and Toslink outputs provide de-embedded audio for external audio systems. The thoughtful inclusion of a volume control allows you to easily adjust the output signal. HDMI 2.0 and HDCP 2.2 compatibility ensure trouble free compatibility with connected devices.

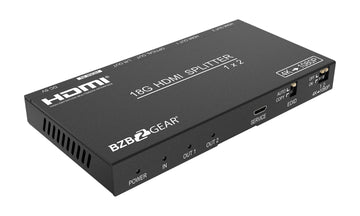

The BG-DA-1X2AS is an HDMI 2.0 splitter designed to route one 4K signal to two displays. It supports resolutions up to 4K@60Hz (4:4:4) with HDCP 2.2. This product also extracts HDMI audio to simultaneous optical and 3.5mm analog audio outputs. It features a 4K to 1080P downscaling function which is selectable per output, enabling a 4K signal to be converted for display on a 1080P monitor. Programmable EDID settings provide a stable HDMI connection.

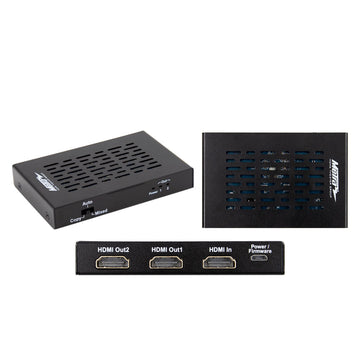

Metra HDMI 2.0 Splitter

The Metra HDMI splitter with built-in scaling provides the ability to take any standard resolution and downscale it to match each of the connected displays (up to 2), simultaneously. For example, show 4K@60Hz content on a 4K display while also showing the same content scaled down on a 1080p display. Unlike traditional splitters, this built-in scaling allows legacy devices to work with newer higher resolution displays in the system, without automatically defaulting to the lowest resolution. Video quality on newer TVs is no longer sacrificed by having an older model in the mix.

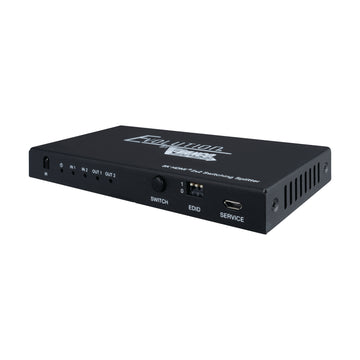

8K HDMI 2×2 Switching Splitter, EVSP8K22

The Evolution by Vanco EVSP8K22 HDMI Splitter with 8K HDR pass-through, splits one source at a time to two displays. With two HDMI inputs, two 8K sources can be switched and split at the same time. Supports video resolutions up to 8K@60Hz and 4K@120Hz over 4 channels of 10Gbps FRL for 40Gbps bandwidth. Features advanced EDID management and automatically adjusts for EQ based on the HDMI cables connected. Includes an IR remote for control with the option of front panel switching. Able to be used either as a splitter or a switcher, and is a great solution for gaming, video conferencing, education, and more!

*To maintain 8K resolution, both displays must have 8K resolution capability as the splitter does not downscale on individual outputs.

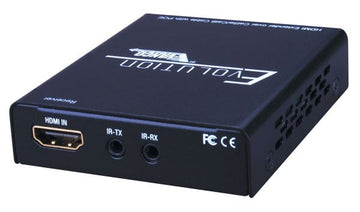

HDMI® POE Receiver

The Evolution by Vanco EVRX2006 HDMI Receiver over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and PoE receives high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable. Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing the Receiver to be powered without the use of a power supply. No EDID or EQ adjustments are necessary as the unit automatically adjusts for compatibility and gain. This receiver also features a newly redesigned slim and compact chassis for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats, and is HDCP compliant. In addition, bi-directional IR pass-through allows for source or display control. The EVRX2006 works with Evolution Series Splitters, Matrix Selector Switches and Extender Transmitters over Cat5e/Cat6 that have POE functionality.

Tech Support Tips:

• With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility

• Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit

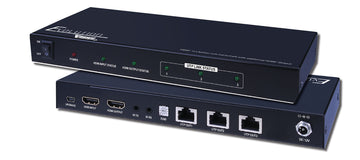

HDMI® 1×3 Splitter over Cat5e/Cat6 Cable

The Evolution EVSP1013 is a HDMI splitter that allows for 1 HDMI input to be split and sent to 4 different displays. The 3-UTP output ports can connect to the EVRX2006 POE receiver (sold Separately) over Cat5e/6 cable to transmit 1080p60 video with audio and control up to 50m. The single HDMI output can be used for a local display or cascaded into another splitter for an even larger distribution system. It supports 20k - 60K wideband bi-direction IR communication and dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks. It also provides power over the Cat5e/6 so that the EVRX2006 do not require a power supply.

Compatible Receiver: EVRX2006

Tech Support Tips:

• With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility

• Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit

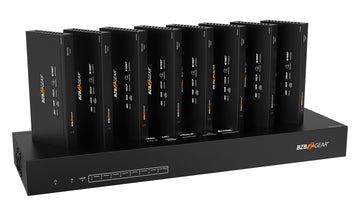

BZBGEAR 1X8 4K 18Gbps UHD HDMI HDBaset Splitter

The BG-UDA-E18 is a 1x8 4K HDBaseT splitter/extender kit. Supporting resolutions up to 4K@60Hz, users can extend HDMI sources over category 6 cabling at distances up to 390 feet, or up to 490 feet at 1080P@60Hz with the included HDBaseT extenders. With the ability to connect to one local and eight remote displays, this unit is ideally suited for use in restaurants, sports bars, retail spaces, and auditoriums.

Connectivity and Features

The BG-UDA-E18 supports a maximum resolution of 4K@60Hz 4:4:4. Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x, the transmitter offers EDID management to eliminate HDMI connection problems. The transmitter is equipped with an HDMI loop out connection for connection to a local display. One digital coax and one analog audio phoenix connector provide audio extraction from the source for connection to an external sound system.

Each receiver features Power over Ethernet, eliminating the need for a power supply at the display-end and enabling a clean installation. Each receiver has a 3.5mm stereo output for connection to a local sound source. The slim design of the receivers helps them fit behind the displays, and each one is equipped with RS-232 passthrough and bi-directional IR passthrough for integration with control systems.

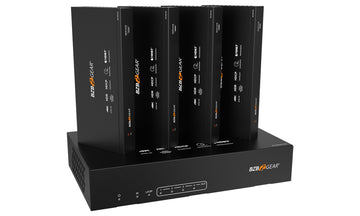

BZBGEAR 1X4 4K 18Gbps UHD HDMI HDBaset Splitter

The BG-UDA-E14 is a 1x4 4K HDBaseT splitter/extender kit. Supporting resolutions up to 4K@60Hz, users can extend HDMI sources over category 6 cabling at distances up to 390 feet, or up to 490 feet at 1080P@60Hz with the included HDBaseT extenders. With the ability to connect to one local and four remote displays, this unit is ideally suited for use in restaurants, sports bars, retail spaces, and auditoriums.

Connectivity and Features

The BG-UDA-E14 supports a maximum resolution of 4K@60Hz 4:4:4. Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x, the transmitter offers EDID management to eliminate HDMI connection problems. The transmitter is equipped with an HDMI loop out connection for connection to a local display. One digital coax and one analog audio phoenix connector provide audio extraction from the source for connection to an external sound system.

Each receiver features Power over Ethernet, eliminating the need for a power supply at the display-end and enabling a clean installation. Each receiver has a 3.5mm stereo output for connection to a local sound source. The slim design of the receivers helps them fit behind the displays, and each one is equipped with RS-232 passthrough and bi-directional IR passthrough for integration with control systems.

The BG-UHD-DA1X16 can distribute one HDMI input to sixteen HDMI outputs. The splitter supports 4K signals up to 4K@60Hz 4:4:4, HDR 10, Dolby Vision and features advanced EDID management option using 4-pin DIP switch on the front panel of the unit. It also supports downscaling so a 4K video input can automatically be down scaled to a 1080p output when connecting a display that only supports resolution up to 1080p. Stereo analog L/R audio output is provided for audio de-embedding from HDMI input and the splitter supports CEC and RS232 control.

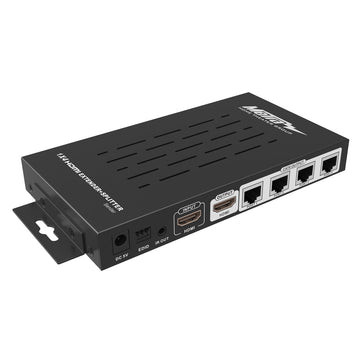

Metra 1 X 4 HDMI® Splitter Extender

Supporting 1080P over category cable, the Metra Home Theater CS-1X4HDSPLEXT is a great way to share ah HDMI based source to 4 displays with category cable wiring.

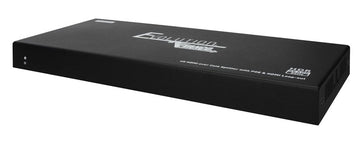

Evolution 4K HDR 1×4 HDMI Splitter over Cat6 Cable

The EV4K7014 is an HDMI splitter that allows one HDMI input to be split and sent to up to five displays simultaneously. With four outputs over UTP, and one output over HDMI, the EV4K7014 allows for a local display connected, or to daisy chain additional units to gain more outputs. The EV4K7014 includes four receivers (EV4K7014-RX) as a kit, which are PoE, and do not require any power supplies at the display end. Extends 4K@60Hz 4:4:4 with HDR10 and IR control up to 230ft/70m over a single Cat6 cable. IR accessories are included to allow IR pass-through for controlling the source at each UTP display location. For splitting and distributing one single source to multiple displays, while extending over Cat6, the EV4K7014 is a great solution for any application with the ability to expand.

*NOTE - All specifications and ratings for the EV4K7014 have been tested and confirmed using Cat6 cabling. Cat6 or better is strongly recommended for optimum performance, achieving rated distance, and maximizing the resolution capabilities of this product. Cat5e is not recommended and may not achieve distance and/or resolution expectations.

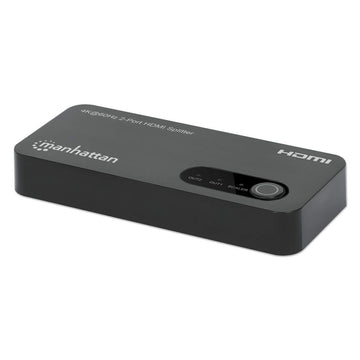

Manhattan 4K@60Hz 2-Port HDMI Splitter With Downscaling

Splits One HDMI Input to Two HDMI Outputs (1x2), 18G, EDID Switch for Downscaling, Black

4K 2-Port HDMI Splitter - Easily split a single HDMI audio/video signal across two HDMI displays in 4K60 UHD and HDR

The compact Manhattan 4K@60Hz 2-Port HDMI Splitter duplicates a signal from a single HDMI source to dual displays without distorting or degrading your video.

Flexible solution with downscaling from 4K to 1080p for many A/V Applications

Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, this 1x2 Splitter is a great choice for splitting and distributing a synchronous signal to two displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications. A smart EDID management switch on the unit can downscale a 4K input signal to Full HD (or lower), making installations with older displays hassle-free.

Easy installation and wide compatibility

Full compliance with HDMI 2.0 and HDCP 2.3 ensures that this 2-way Splitter can provide reliable performance. Quickly connect HDMI cables (not included) and the Micro-USB power cable to complete this affordable Ultra-High-Definition, 4K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@30Hz and 1080p displays ensures that it will work with any HDMI source or destination device. This 4K Splitter is perfect for digital signage applications, where equipment may vary throughout your site.

High-quality video

With transmission bandwidth up to 18 Gbps, this HDMI Splitter supports UHD resolutions up to 3840x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. Additional support for High-Dynamic Range (HDR) ensures that video content can be seen with enhanced brightness and superior contrasts.

Manhattan 4K 2-Port HDMI Splitter

4K@30Hz, AC Powered, Black

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays

The Manhattan 4K 2-Port HDMI Splitter with built-in booster streams a 4K HDMI signal from a single UHD source to up to two UHD displays.

Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, video conferencing, home theater, presentations and retail applications, the Manhattan 4K HDMI Splitter features a built-in booster for added signal strength. It’s a good choice for splitting and distributing a synchronous signal to multiple 4K HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio on additional displays in widely distributed applications.

Quality Construction and Easy Installation

Full compliance with HDMI, HDCP 1.4 and DVI 1.0 ensures that the Manhattan HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the AC power adapter, and this affordable UHD solution is complete — no software/hardware configuration or complicated settings required.

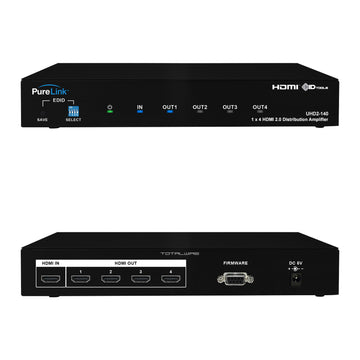

1×4 HDMI 2.0 Distribution Amplifier

The HDTools™ UHD2-140 HDMI 2.0 Distribution Amplifier provides a reliable Ultra HD/4K signal distribution solution with unique features to simplify and enhance integration. The UHD2-140 is designed to split a single HDMI input to four independent outputs providing complete 4K/60 (4:4:4) video distribution with support for HDR (High Dynamic Range) content and HDCP 2.2 compliance.

The UHD2-140 offers quick and easy plug-and-play installation for simplified operation without the need for programming or a control system. Using a dedicated IC chipset, the UHD2-140 features built-in equalization and re-clocking technology to distribute the highest quality video signals and Ultra HD content, making it ideal for use in home theater, presentation, and other multimedia applications.

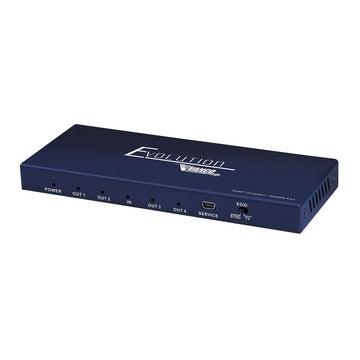

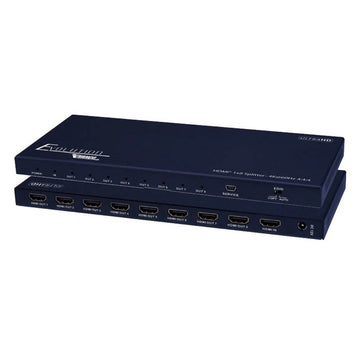

Evolution Premium 4K HDMI® Splitter

The Evolution by Vanco EVSP4K12, EVSP4K14 and EVSP4K18 with HDCP 2.2, 4K/60Hz, and 4:4:4 chroma capability, are the most up to date HDMI splitters that are compliant with HDCP 2.2 displays and sources. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple 4K displays to ensure the highest quality possible with the Evolution 4K HDMI Splitters!

Note: To achieve 4K video quality, all connected displays must be able to handle 4K resolution. Any lower resolution display connected, will affect the overall resolution the splitters output to all ports.

Evolution Premium 4K HDMI® Splitter

The Evolution by Vanco EVSP4K12, EVSP4K14 and EVSP4K18 with HDCP 2.2, 4K/60Hz, and 4:4:4 chroma capability, are the most up to date HDMI splitters that are compliant with HDCP 2.2 displays and sources. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple 4K displays to ensure the highest quality possible with the Evolution 4K HDMI Splitters!

Note: To achieve 4K video quality, all connected displays must be able to handle 4K resolution. Any lower resolution display connected, will affect the overall resolution the splitters output to all ports.

Evolution Premium 4K HDMI® Splitter

The Evolution by Vanco EVSP4K12, EVSP4K14 and EVSP4K18 with HDCP 2.2, 4K/60Hz, and 4:4:4 chroma capability, are the most up to date HDMI splitters that are compliant with HDCP 2.2 displays and sources. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple 4K displays to ensure the highest quality possible with the Evolution 4K HDMI Splitters!

Note: To achieve 4K video quality, all connected displays must be able to handle 4K resolution. Any lower resolution display connected, will affect the overall resolution the splitters output to all ports.

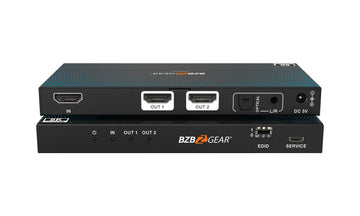

1x2 8K UHD HDMI 2.1 Splitter with Audio De-embedder (8K60 4K120 4:4:4 10bit VRR,FVA,ALLM support)

Introducing the BG-8K-DA12A, the 8K HDMI 1x2 Splitter that takes your viewing and gaming experience to the next level. With HDMI 2.1 and HDCP 2.3 compliance, this splitter supports the latest technologies for video and content protection, ensuring that your content is delivered with the highest quality.

For video enthusiasts, the BG-8K-DA12A supports a range of HDR formats, including HDR, HDR10, HDR10+, Dolby Vision, and HLG pass through. This allows you to enjoy a wider range of colors and contrast for a more immersive viewing experience.

Audio is just as important as video, and the BG-8K-DA12A has you covered with support of numerous and latest audio formats, ensuring that your audio is delivered with the highest quality and fidelity. You can also output audio through the optical and analog ports, giving you the flexibility to connect to a range of audio devices.

With advanced EDID management and audio de-embedding, the BG-8K-DA12A is designed to provide maximum flexibility and compatibility with a range of HDMI devices. Whether you're sharing a single HDMI source with two displays or need to split a signal for a presentation or event, this splitter provides high-quality video up to 8K resolution at 60Hz with 4:2:0 chroma subsampling, ensuring that your content is delivered with the highest quality and fidelity.

Finally, for gamers, the BG-8K-DA12A supports 4K resolution at 120Hz, providing the highest level of detail and fluidity for a smooth and immersive gaming experience. In addition, this splitter supports VRR, FVA, and ALLM, allowing you to enjoy smoother, more responsive gameplay on compatible devices. Whether you're playing competitively or just looking to get the most out of your favorite games, this splitter ensures that you can enjoy high-resolution graphics at high frame rates for the ultimate gaming experience.

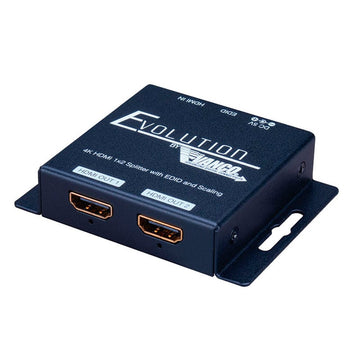

4K HDMI 1×2 Splitter with EDID and Scaling

The Evolution by Vanco EVSP12SC, EVSP14SC and EVSP18SC HDMI splitters with 4K, 4:4:4, and HDR pass-through, splits one source signal to multiple displays. These splitters are also able to downscale to 1080p, allowing 4K resolution to be maintained on other outputs. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. Take any 4K source and split the signal to multiple displays, while being able to connect both 4K and 1080p displays simultaneously, to ensure the highest quality possible resolution. A great solution for applications with a mix of 4K and 1080p displays!
