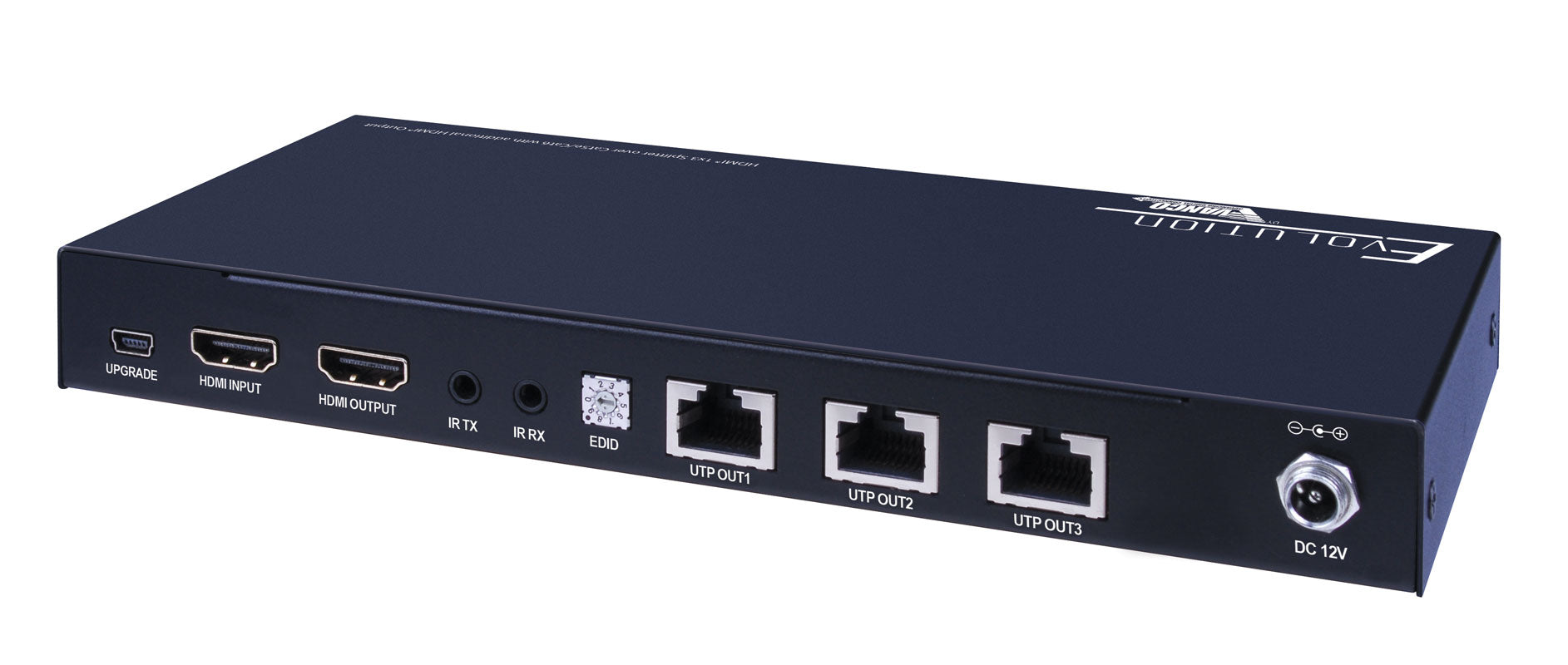

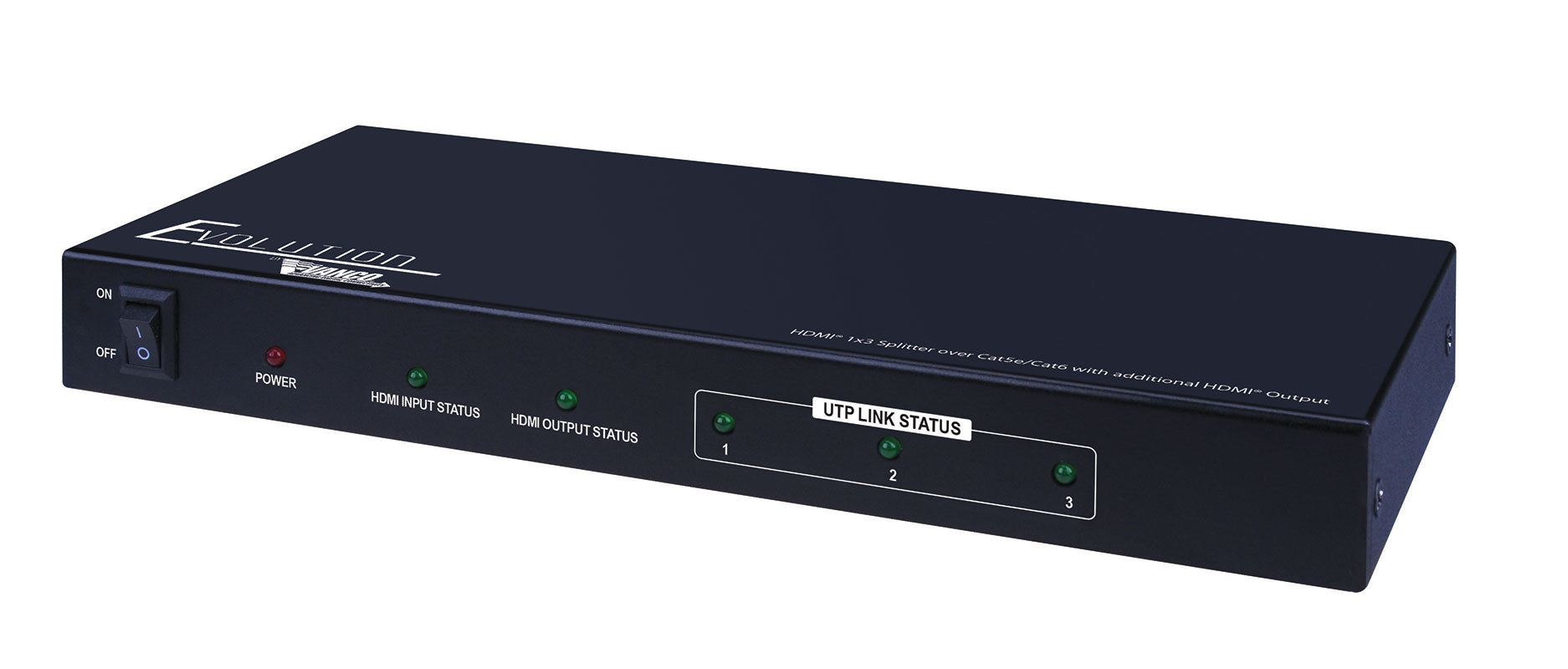

  • Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output
  • Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output
  • Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output
  • Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output

Evolution HDMI® 1×3 Splitter over Cat5e/Cat6 Cable with Additional HDMI® Output

SKU#: EVSP1013

UPC#: 741835105460

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

SKU#: EVSP1013

UPC#:741835105460
$319.99

SKU#: EVSP1013

UPC#:741835105460

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • HDMI® 1×3 Splitter over Cat5e/Cat6 Cable

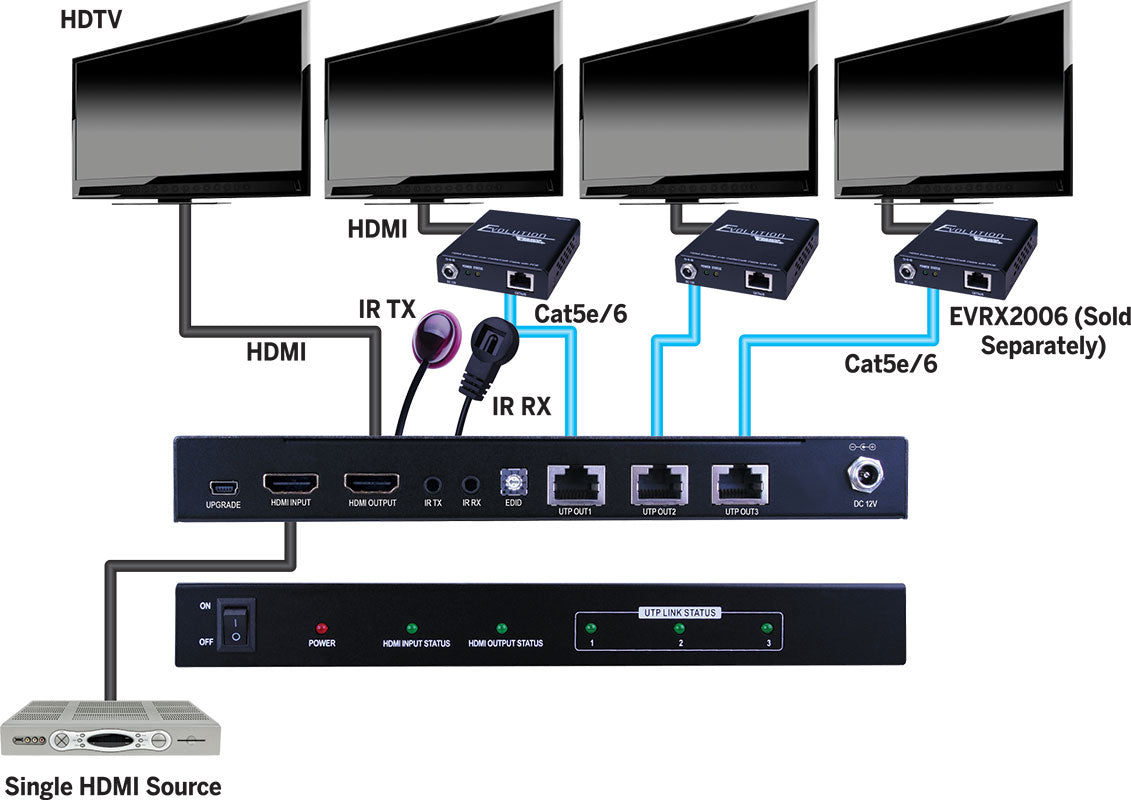

    The Evolution EVSP1013 is a HDMI splitter that allows for 1 HDMI input to be split and sent to 4 different displays. The 3-UTP output ports can connect to the EVRX2006 POE receiver (sold Separately) over Cat5e/6 cable to transmit 1080p60 video with audio and control up to 50m. The single HDMI output can be used for a local display or cascaded into another splitter for an even larger distribution system. It supports 20k - 60K wideband bi-direction IR communication and dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks. It also provides power over the Cat5e/6 so that the EVRX2006 do not require a power supply.

    Compatible Receiver: EVRX2006

    Tech Support Tips:

    • With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility
    • Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit
  • Features+
    • Allows for 1 HDMI input to be split and sent to 4 different displays
    • (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
    • Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
    • Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
    • Supports 20-60kHz wideband bi-direction IR communication
    • Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
    • Supports multiple audio formats including Dolby True HD- DTS-master- etc.
    • Supports all 3D Signal Formats
    • Supports manual or dynamic EDID management
    • HDCP 2.0 compatible
    • Dimensions: 8.1″ W x 1″ H x 3.5″ D
    • Patent No. 9,710,038 B1
  • Specs+
  • Package Contents+
    • EVSP1013 Splitter
    • (1) IR Blasters (TX)
    • (1) IR Receiver (RX)
    • (1) DC 12V 2A power supply
    • Product Manual
  • Reviews+
  • HDMI® 1×3 Splitter over Cat5e/Cat6 Cable

    The Evolution EVSP1013 is a HDMI splitter that allows for 1 HDMI input to be split and sent to 4 different displays. The 3-UTP output ports can connect to the EVRX2006 POE receiver (sold Separately) over Cat5e/6 cable to transmit 1080p60 video with audio and control up to 50m. The single HDMI output can be used for a local display or cascaded into another splitter for an even larger distribution system. It supports 20k - 60K wideband bi-direction IR communication and dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks. It also provides power over the Cat5e/6 so that the EVRX2006 do not require a power supply.

    Compatible Receiver: EVRX2006

    Tech Support Tips:

    • With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now “2nd Generation” versions of each of these products for improved compatibility
    • Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a “2nd Generation” splitter, a “2nd Generation” EVRX2006 receiver must be used. All “2nd Generation” Products are marked as such on the product and box. If no version or version number is listed, this would be a “1st Generation” unit
    • Allows for 1 HDMI input to be split and sent to 4 different displays
    • (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
    • Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
    • Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
    • Supports 20-60kHz wideband bi-direction IR communication
    • Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
    • Supports multiple audio formats including Dolby True HD- DTS-master- etc.
    • Supports all 3D Signal Formats
    • Supports manual or dynamic EDID management
    • HDCP 2.0 compatible
    • Dimensions: 8.1″ W x 1″ H x 3.5″ D
    • Patent No. 9,710,038 B1
    • EVSP1013 Splitter
    • (1) IR Blasters (TX)
    • (1) IR Receiver (RX)
    • (1) DC 12V 2A power supply
    • Product Manual
