Evolution 8K HDMI 2×2 Switching Splitter

SKU#: EVSP8K22

UPC#: 741835118446

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

SKU#: EVSP8K22

UPC#:741835118446
$233.99

SKU#: EVSP8K22

UPC#:741835118446

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • 8K HDMI 2×2 Switching Splitter, EVSP8K22

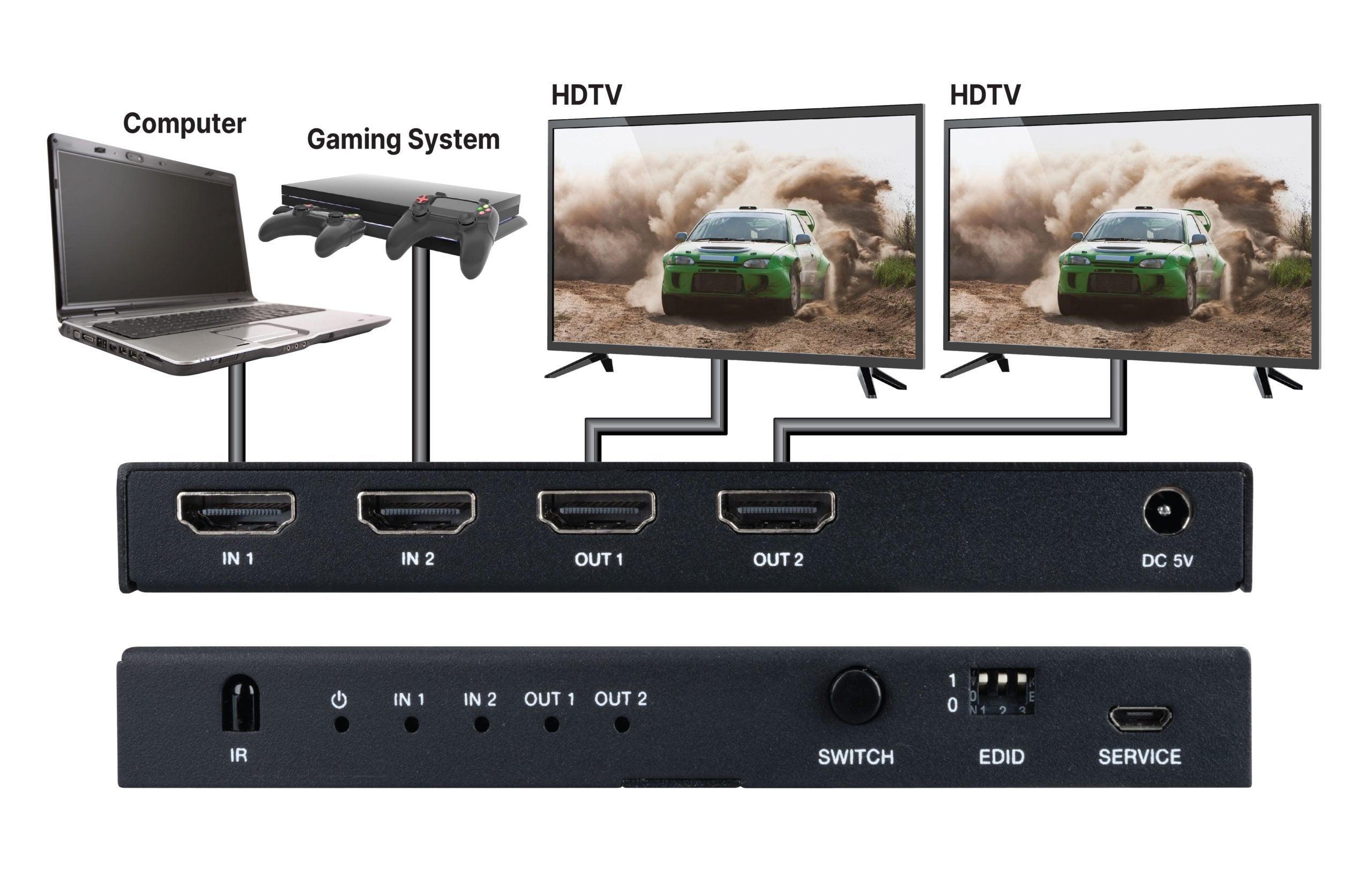

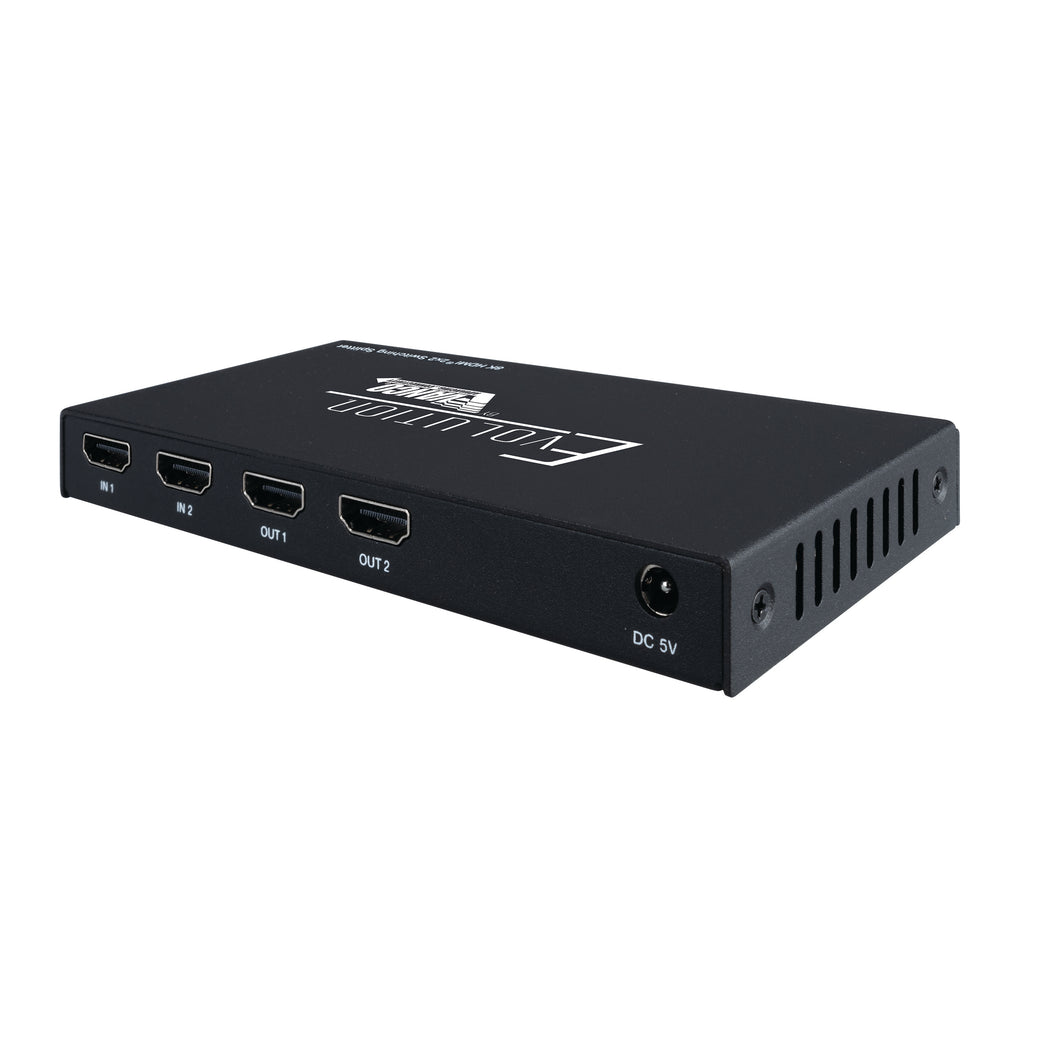

    The Evolution by Vanco EVSP8K22 HDMI Splitter with 8K HDR pass-through, splits one source at a time to two displays. With two HDMI inputs, two 8K sources can be switched and split at the same time. Supports video resolutions up to 8K@60Hz and 4K@120Hz over 4 channels of 10Gbps FRL for 40Gbps bandwidth. Features advanced EDID management and automatically adjusts for EQ based on the HDMI cables connected. Includes an IR remote for control with the option of front panel switching. Able to be used either as a splitter or a switcher, and is a great solution for gaming, video conferencing, education, and more!

    *To maintain 8K resolution, both displays must have 8K resolution capability as the splitter does not downscale on individual outputs.

  • Features+
    • Transmits audio and video from one of 2 HDMI inputs to 2 HDMI outputs, up to 8K resolution, without any loss of quality or resolution
    • Supports video resolutions up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
    • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
    • VRR, FVA, ALLM supported
    • HDMI 2.1 and HDCP 2.3 compliant
    • 40Gbps video bandwidth
    • HDMI audio formats include LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Built-in Equalizer with advanced manual EDID management
    • Controllable via included IR remote and/or front panel switching
    • Compact design for easy and flexible installation
    • Dimensions: 5.7” W x 2.6” D x .6” H (145mm x 68mm x 17mm)
  • Specs+
  • Package Contents+
    • (1) EVSP8K22 2×2 HDMI Switching Splitter

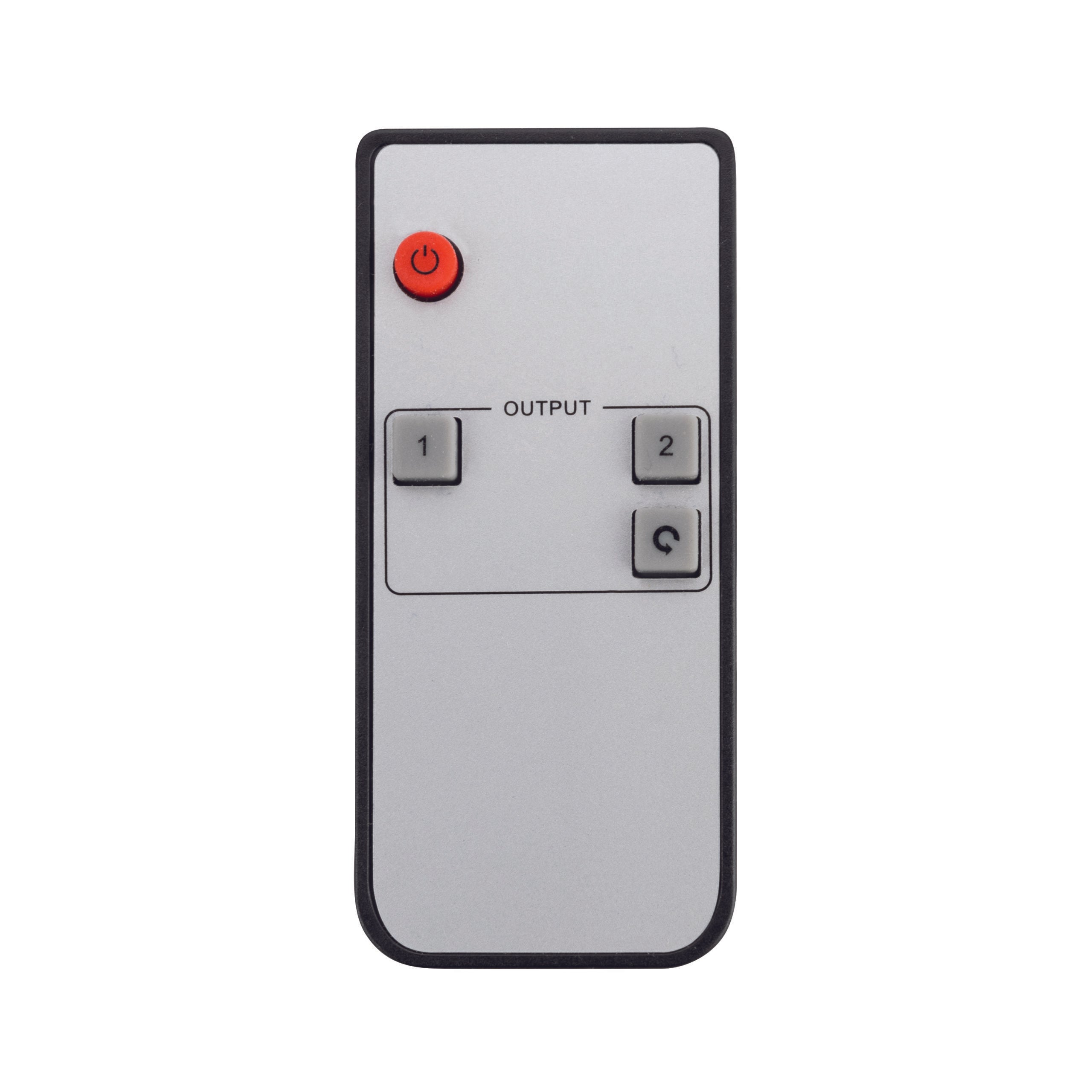

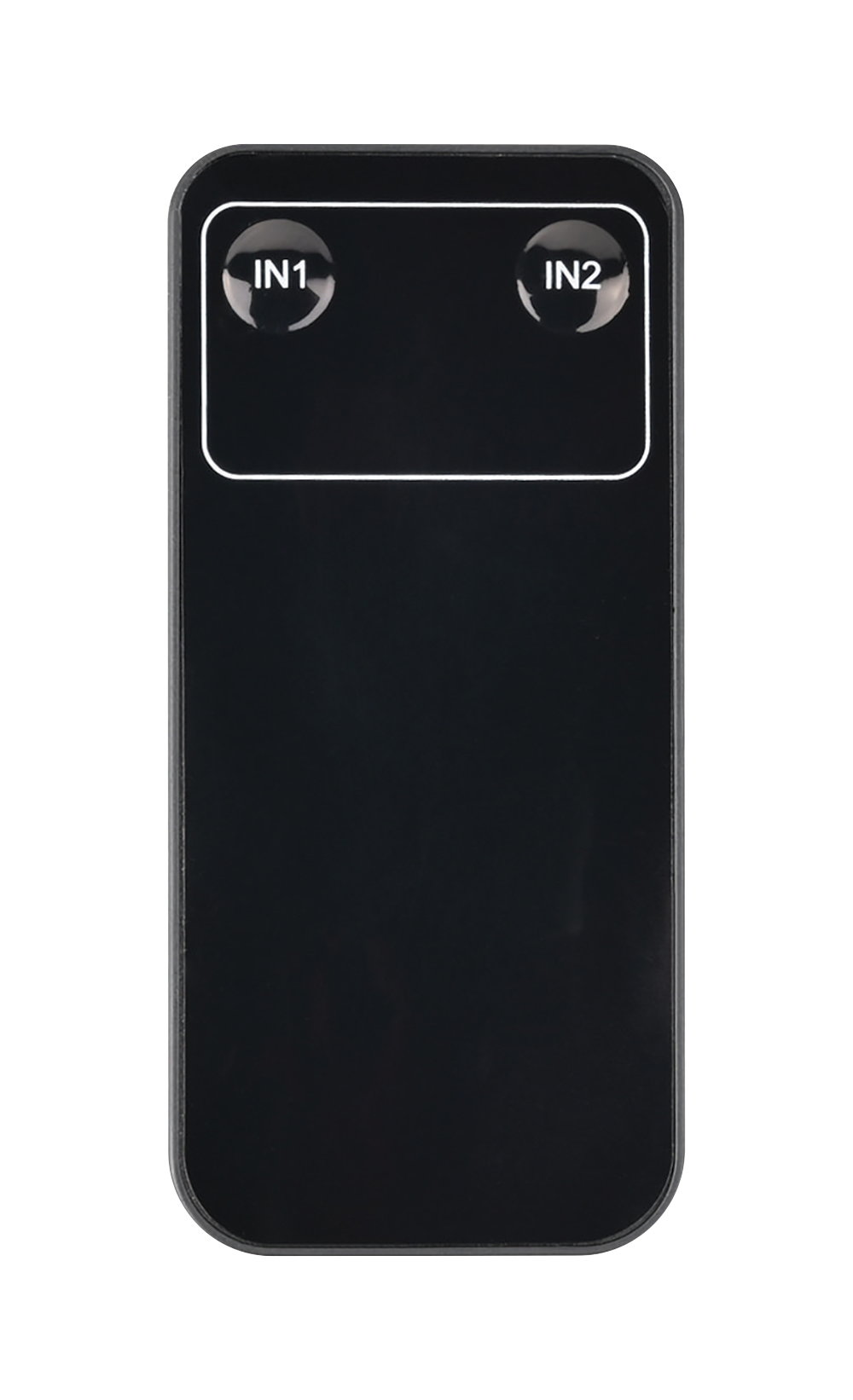

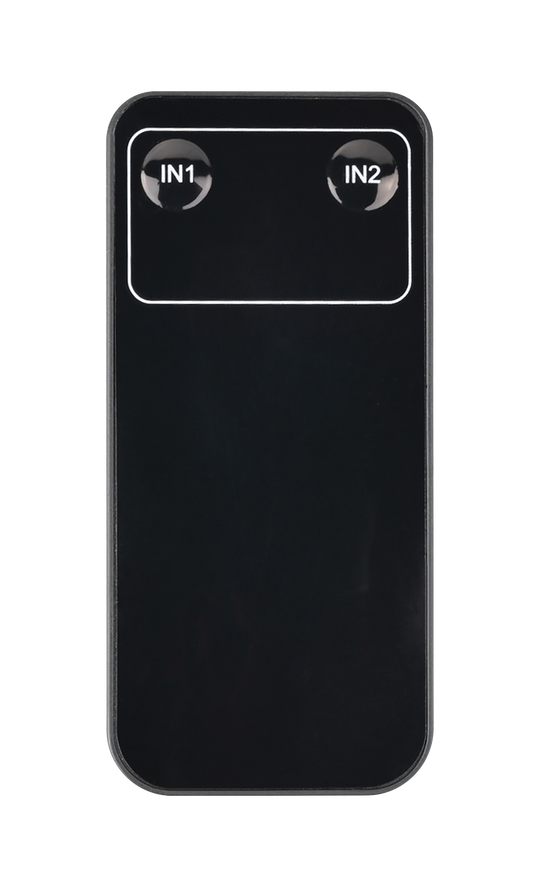

    • (1) IR Remote

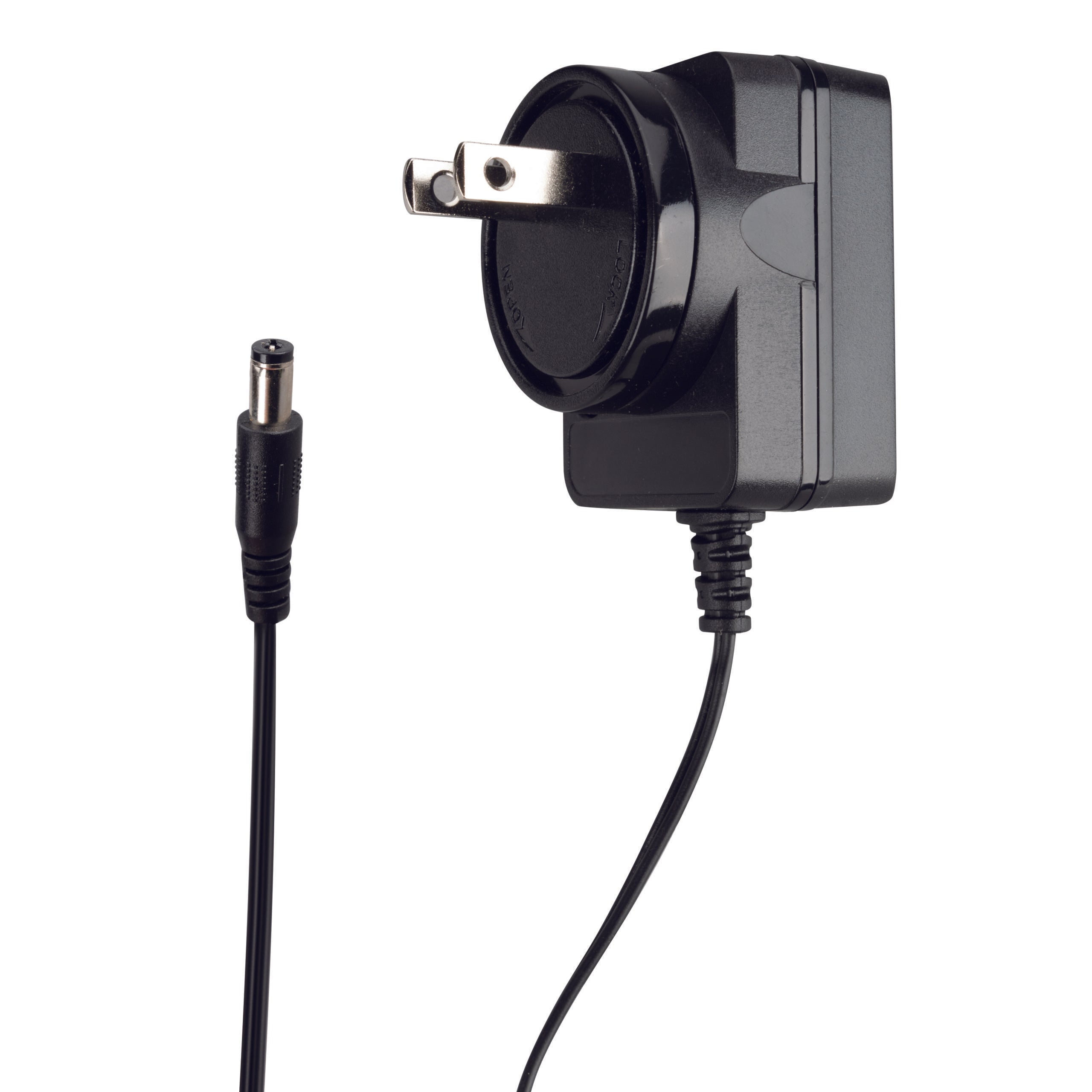

    • (1) 5V/2A Power Adapter
    • (1) Product Manual
  • Reviews+
  • 8K HDMI 2×2 Switching Splitter, EVSP8K22

    The Evolution by Vanco EVSP8K22 HDMI Splitter with 8K HDR pass-through, splits one source at a time to two displays. With two HDMI inputs, two 8K sources can be switched and split at the same time. Supports video resolutions up to 8K@60Hz and 4K@120Hz over 4 channels of 10Gbps FRL for 40Gbps bandwidth. Features advanced EDID management and automatically adjusts for EQ based on the HDMI cables connected. Includes an IR remote for control with the option of front panel switching. Able to be used either as a splitter or a switcher, and is a great solution for gaming, video conferencing, education, and more!

    *To maintain 8K resolution, both displays must have 8K resolution capability as the splitter does not downscale on individual outputs.

    • Transmits audio and video from one of 2 HDMI inputs to 2 HDMI outputs, up to 8K resolution, without any loss of quality or resolution
    • Supports video resolutions up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
    • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
    • VRR, FVA, ALLM supported
    • HDMI 2.1 and HDCP 2.3 compliant
    • 40Gbps video bandwidth
    • HDMI audio formats include LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Built-in Equalizer with advanced manual EDID management
    • Controllable via included IR remote and/or front panel switching
    • Compact design for easy and flexible installation
    • Dimensions: 5.7” W x 2.6” D x .6” H (145mm x 68mm x 17mm)
    • (1) EVSP8K22 2×2 HDMI Switching Splitter
    • (1) IR Remote
    • (1) 5V/2A Power Adapter
    • (1) Product Manual
