Cleerline 10G SFP+ Transceiver SM BiDi T:1330/R:1270nm, 20Km Max Reach
SKU#: SSF-SFP-SM10GBDB
UPC#:672975372576
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 20km on 9/125um SMF
- B:1330nm DFB Laser transmitter,1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature:
- Standard: 0 ~ 70 °C
- Specs+
- Reviews+
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 20km on 9/125um SMF
- B:1330nm DFB Laser transmitter,1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature:
- Standard: 0 ~ 70 °C

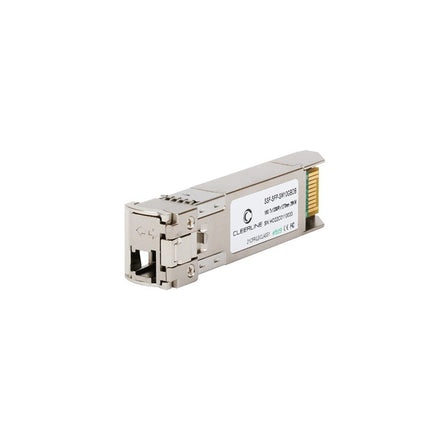

10G SFP+ Transceiver SM BiDi T:1330/R:1270nm, 20Km Max Reach
Cleerline™ Bi-directional (BiDi) 10G SFP+ transceivers are high-performance, cost-effective modules supporting 20 km transmission distance with single-mode fiber.
This SFP module accepts 1 LC connector and must be installed as a pair: SSF-SFP-SM10GBDA matched with SSF-SFPSM10GBDB.
These single-mode transceivers are small form factor pluggable modules for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. The SFP+ 20-pin connector allows hot plug capability.
Modules are designed for single-mode fiber and operate at a nominal wavelength of 1270nm or 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
10G SFP+ Transceiver SM BiDi T:1330/R:1270nm, 20Km Max Reach
Cleerline™ Bi-directional (BiDi) 10G SFP+ transceivers are high-performance, cost-effective modules supporting 20 km transmission distance with single-mode fiber.
This SFP module accepts 1 LC connector and must be installed as a pair: SSF-SFP-SM10GBDA matched with SSF-SFPSM10GBDB.
These single-mode transceivers are small form factor pluggable modules for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. The SFP+ 20-pin connector allows hot plug capability.
Modules are designed for single-mode fiber and operate at a nominal wavelength of 1270nm or 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
