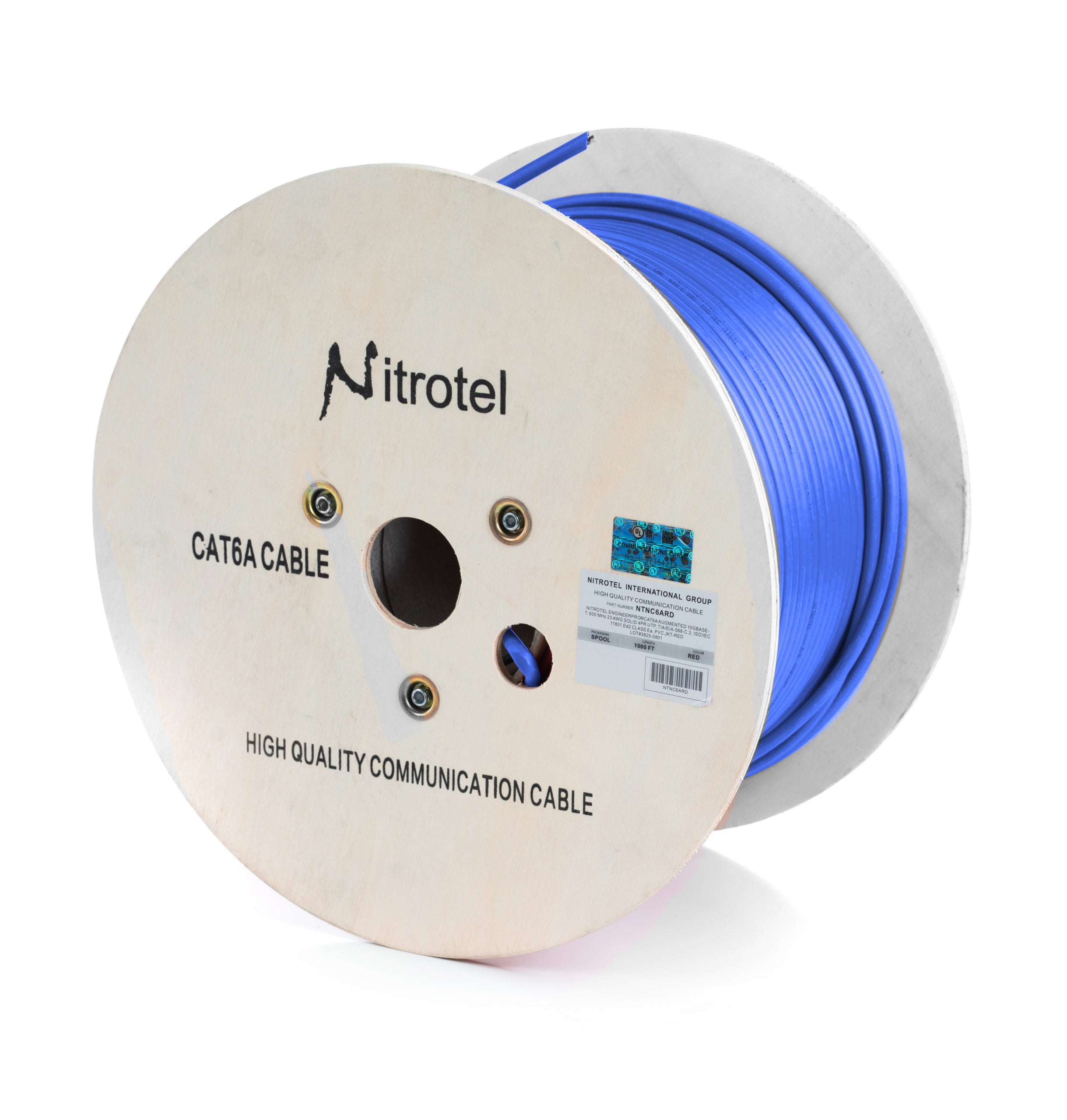

Nitrotel Cat6a 500MHz 24 AWG Solid 4PR CMR UTP 1000ft Spool

SKU#: NTNC6ABU

UPC#: 787790122906

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: NTNC6ABU

UPC#:787790122906
$196.99

SKU#: NTNC6ABU

UPC#:787790122906
Color:
Blue

SKU#: NTNC6ABU

UPC#: 787790122906

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

  • Description+
  • Nitrotel Cat6a 500MHz 24 AWG Solid 4PR CMR UTP 1000ft Spool

  • Features+
    • Meets or exceeds requirements of ANSI/TIA-568.2-D
    • Category 6A and ISO 11801 2nd Edition Class EA channel standards.
    • Meets or exceeds requirements of IEC 61156-5 Category 6A component standards.
    • Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE+ or PoE++ applications.
    • Third party tested to comply with ANSI/TIA/EIA-568.2-D
    • Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
    • Color Availability: Additional cable colors available.
    • UL Verified
  • Specs+
    • Impedance: 1-500MHz 100±15(Ohms). Rated Temperature: 75℃.
    • DC Resistance Unbalance(%): Max 2.5.
    • DC Resistance 20℃: 8.4(Ohms/100m).
    • Pair-to-Ground Capacitance Unbalance: 330(pF/100M).
    • Insulation Resistance: >5000MΩ*Km.
    • Dielectric strength: DC 2500V 2S.
    • SPEC SHEET
  • Reviews+
  • Nitrotel Cat6a 500MHz 24 AWG Solid 4PR CMR UTP 1000ft Spool

    • Meets or exceeds requirements of ANSI/TIA-568.2-D
    • Category 6A and ISO 11801 2nd Edition Class EA channel standards.
    • Meets or exceeds requirements of IEC 61156-5 Category 6A component standards.
    • Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE+ or PoE++ applications.
    • Third party tested to comply with ANSI/TIA/EIA-568.2-D
    • Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
    • Color Availability: Additional cable colors available.
    • UL Verified
    • Impedance: 1-500MHz 100±15(Ohms). Rated Temperature: 75℃.
    • DC Resistance Unbalance(%): Max 2.5.
    • DC Resistance 20℃: 8.4(Ohms/100m).
    • Pair-to-Ground Capacitance Unbalance: 330(pF/100M).
    • Insulation Resistance: >5000MΩ*Km.
    • Dielectric strength: DC 2500V 2S.
    • SPEC SHEET
