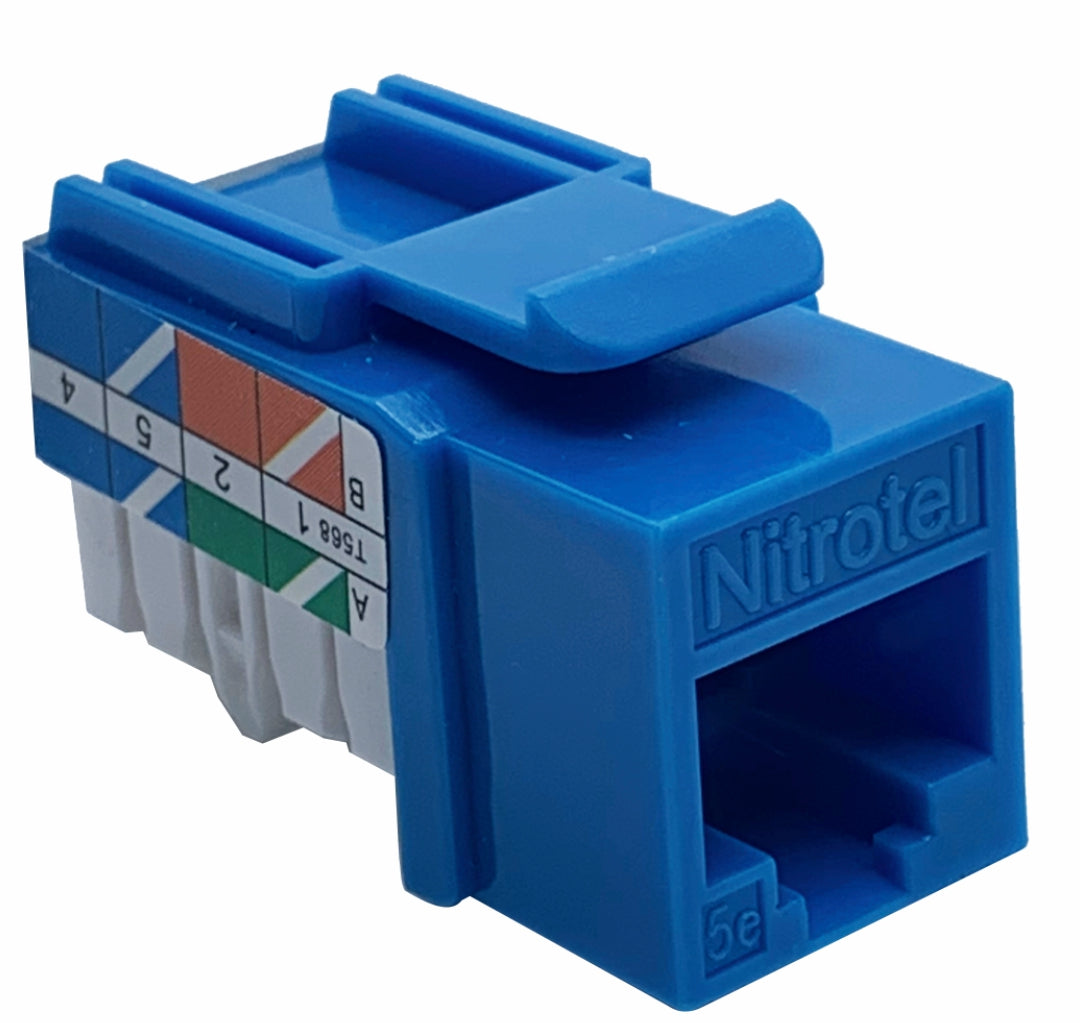

Nitrotel Cat5E RJ45 Keystone Jack Module, 90 Degrees – UTP

SKU#: NTKJ5EBUSL

UPC#: 787790094005

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: NTKJ5EBUSL

UPC#:787790094005
$1.79

SKU#: NTKJ5EBUSL

UPC#:787790094005
Color:
Blue

SKU#: NTKJ5EBUSL

UPC#: 787790094005

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

  • Description+
  • Nitrotel Cat5E RJ45 Keystone Jack Module, 90 Degrees – UTP

    Nitrotel Cat5E Keystone Jacks offer exceptional interconnection in 10/100/1000 Base-T Fast and Gigabit Ethernet applications. These component-rated keystone jacks work together with high speed cables, cores and panels to provide performance beyond proposed category 5E standards. Their compact design allows them to ?t into any conventional face plate, outlet box, or panel.

  • Features+
    • Backward compatible
    • Compliant with EIA/TIA-568.2-D Cat5E connecting hardware speci?cations
    • Dual-color coded labeling made for both 568A & 568B wiring schemes
    • Compact slim design ?ts into any conventional face plate, outlet box, or panel
    • UL 1863 approved
    • Patented Printed Circuit Board designed to meet Cat5E performances
    • Utilizes 90 degree industry standard 110 termination style
    • 50u” gold plated contacts.
    • Enhanced IDC termination towers reduce installation time and increased performance
  • Specs+
  • Performance: Specifications:
    Cat5e 100 MHz +
    Compliance Meets ANSI/TIA-568.2-D transmission performance specifications and ISO 11801 Class E channel and component requirements at swept frequencies up to 100 MHz.
    IDC: Specifications:
    Housing PC UL 94
    Type 110 Punchdown, 90 degrees
    Contact Construction Phosphor bronze with tin plated
    Operating Life 200 re-terminations (min.)
    Cabling 22-26 AWG, Stranded and Solid UTP cable
    Electrical: Specifications:
    Wiring for T568A or T568B
    Dielectric Withstand 1000 VAC RMS @ 60Hz
    Voltage/current 150 VDC @ 1.5A, max., > 100mW @ 500 Vdc
    RJ45 Connector: Specifications:
    Contact Construction Phosphor bronze, 50μ in. gold plating
    Insertion Life 750 insertions, min., @ < 0.2 dB of insertion loss
    Insertion Force 900 gms for 8 contacts
    Retention Strength 7,7 Kgs between Jack and Plug
    Housing High-impact thermoplastic, UL94V-0 rated
  • Reviews+
  • Nitrotel Cat5E RJ45 Keystone Jack Module, 90 Degrees – UTP

    Nitrotel Cat5E Keystone Jacks offer exceptional interconnection in 10/100/1000 Base-T Fast and Gigabit Ethernet applications. These component-rated keystone jacks work together with high speed cables, cores and panels to provide performance beyond proposed category 5E standards. Their compact design allows them to ?t into any conventional face plate, outlet box, or panel.

    • Backward compatible
    • Compliant with EIA/TIA-568.2-D Cat5E connecting hardware speci?cations
    • Dual-color coded labeling made for both 568A & 568B wiring schemes
    • Compact slim design ?ts into any conventional face plate, outlet box, or panel
    • UL 1863 approved
    • Patented Printed Circuit Board designed to meet Cat5E performances
    • Utilizes 90 degree industry standard 110 termination style
    • 50u” gold plated contacts.
    • Enhanced IDC termination towers reduce installation time and increased performance
    Performance: Specifications:
    Cat5e 100 MHz +
    Compliance Meets ANSI/TIA-568.2-D transmission performance specifications and ISO 11801 Class E channel and component requirements at swept frequencies up to 100 MHz.
    IDC: Specifications:
    Housing PC UL 94
    Type 110 Punchdown, 90 degrees
    Contact Construction Phosphor bronze with tin plated
    Operating Life 200 re-terminations (min.)
    Cabling 22-26 AWG, Stranded and Solid UTP cable
    Electrical: Specifications:
    Wiring for T568A or T568B
    Dielectric Withstand 1000 VAC RMS @ 60Hz
    Voltage/current 150 VDC @ 1.5A, max., > 100mW @ 500 Vdc
    RJ45 Connector: Specifications:
    Contact Construction Phosphor bronze, 50μ in. gold plating
    Insertion Life 750 insertions, min., @ < 0.2 dB of insertion loss
    Insertion Force 900 gms for 8 contacts
    Retention Strength 7,7 Kgs between Jack and Plug
    Housing High-impact thermoplastic, UL94V-0 rated
