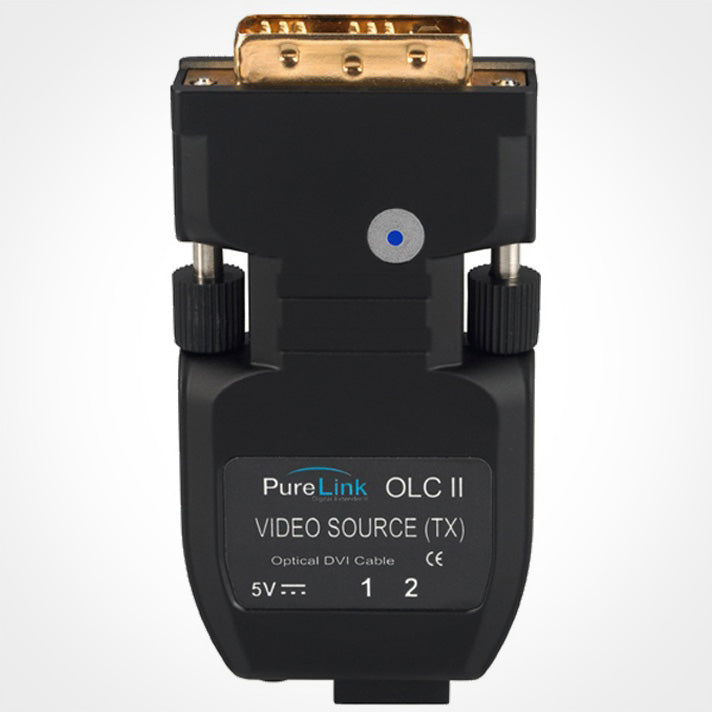

PureLink DVI to 2 LC Fiber Transmitter Unit

SKU#: OLC II Tx

UPC#: 817705021014

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: OLC II Tx

UPC#:817705021014
$759.00

SKU#: OLC II Tx

UPC#:817705021014

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • The PureLink OLC II Rx DVI to 2 LC Fiber Receiver Unit extends a 1080p DVI signal up to 6500ft using a single mode fiber optic cable. With the automatic EDID management, a separate DDC connection is not required, simplifying cable management. These detachable units also make it easy to run fiber cables through conduit or tight spaces before and after installation. The transmitter connects directly to the source device.

  • Features+
    • Extends 1080p Signal up to 6500ft over Single Mode Fiber Optic
    • Extends 1080p Signal up to 1640ft over Multimode Fiber Optic
    • Automatic EDID Management - Separate DDC Not Needed
    • Transmitter Only - Receiver Sold Separately
  • Specs+
    • Type of Fiber Optic Cable: 2 Strand 50/125 µm or 62.5/125 µm Multimode and Singlemode
    • Connectors: 2 Female LC
    • Operating Distance: Up to 6,600ft (2000m) Singlemode/Up to 1,650ft (500m) Multimode
    • Nominal Peak Wavelength: 850 nm (Multimode) 1310nm (Singlemode)
    • Transmission Power: -5 dBm, Typical (Multimode and Singlemode)
    • Maximum Receiver Sensitivity: -17 dBm, Typical (Singlemode), -11 dBm, Typical (Multimode)
    • Optical Loss Budget: 12 dB, Max (Singlemode), 8 dB, Max (Multimode)
    • Maximum Channel Data Rate: 1.65 Gbps per Color
    • Pixel Clock: 165 MHz
    • Supported Resolutions: Up to 1920x1200/1080p @ 60Hz single link (up to 6,600ft) Singlemode, Up to 1920x1200/1080p @ 60Hz single link (up to 1,650ft) Multimode
    • Formats: RGB & YCbCr Digital
    • Standard: DVI 1.0
    • Video Signal Type: Single Link DVI-D
    • Video Connector Type: Female DVI-D
    • Power Supply: External Adapter - Input 100-240 VAC, 50-60 Hz, Output 12VDC, 1A, 5W (Max)
    • Transmitter Power Consumption: 1W
    • Receiver Power Consumption: 1W
    • Cooling: Convection
    • Dimensions: 1.6 x 0.4 x 2.8"
  • Package Contents+
    • (1) OLC II Optical DVI Transmitter Unit
    • (1) DC Power Adapter
    • (1) User Manual
  • Reviews+
  • The PureLink OLC II Rx DVI to 2 LC Fiber Receiver Unit extends a 1080p DVI signal up to 6500ft using a single mode fiber optic cable. With the automatic EDID management, a separate DDC connection is not required, simplifying cable management. These detachable units also make it easy to run fiber cables through conduit or tight spaces before and after installation. The transmitter connects directly to the source device.

    • Extends 1080p Signal up to 6500ft over Single Mode Fiber Optic
    • Extends 1080p Signal up to 1640ft over Multimode Fiber Optic
    • Automatic EDID Management - Separate DDC Not Needed
    • Transmitter Only - Receiver Sold Separately
    • Type of Fiber Optic Cable: 2 Strand 50/125 µm or 62.5/125 µm Multimode and Singlemode
    • Connectors: 2 Female LC
    • Operating Distance: Up to 6,600ft (2000m) Singlemode/Up to 1,650ft (500m) Multimode
    • Nominal Peak Wavelength: 850 nm (Multimode) 1310nm (Singlemode)
    • Transmission Power: -5 dBm, Typical (Multimode and Singlemode)
    • Maximum Receiver Sensitivity: -17 dBm, Typical (Singlemode), -11 dBm, Typical (Multimode)
    • Optical Loss Budget: 12 dB, Max (Singlemode), 8 dB, Max (Multimode)
    • Maximum Channel Data Rate: 1.65 Gbps per Color
    • Pixel Clock: 165 MHz
    • Supported Resolutions: Up to 1920x1200/1080p @ 60Hz single link (up to 6,600ft) Singlemode, Up to 1920x1200/1080p @ 60Hz single link (up to 1,650ft) Multimode
    • Formats: RGB & YCbCr Digital
    • Standard: DVI 1.0
    • Video Signal Type: Single Link DVI-D
    • Video Connector Type: Female DVI-D
    • Power Supply: External Adapter - Input 100-240 VAC, 50-60 Hz, Output 12VDC, 1A, 5W (Max)
    • Transmitter Power Consumption: 1W
    • Receiver Power Consumption: 1W
    • Cooling: Convection
    • Dimensions: 1.6 x 0.4 x 2.8"
    • (1) OLC II Optical DVI Transmitter Unit
    • (1) DC Power Adapter
    • (1) User Manual
