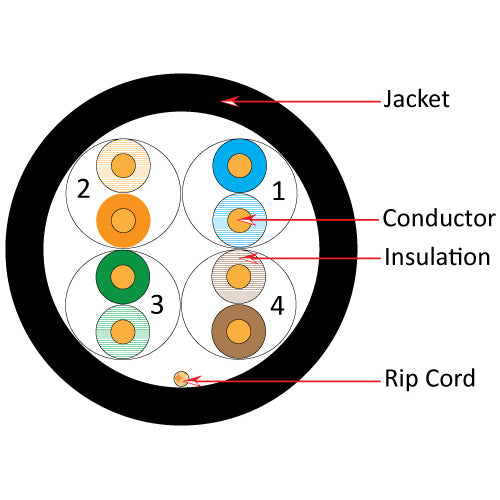

  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA Diagram
  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA
  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA
  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA
  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA
  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA
  • Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA

Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP Made in the USA

SKU#: CAT5E-1KPLN-USA-BLK

Regular price Our Price   $189.99

Sale   $175.74
Color:
Black
Blue
Gray
Green
Red
White

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Perfect for any networking application where Plenum Rated network cable is a requirement. FireFold's Cat5e Plenum Rated Bulk Cable is a must-have for any extensive networking installation. This cable is ideal for government installations that require USA Made products

Plenum (CMP) Rated PVC Jacket

Plenum rated Cat5E cable contains a flame retardant PVC jacket and is designed for cable runs being laid in spaces defined as "Air Plenums", this includes raised flooring systems, air handling ducts, etc. Plenum jackets produce less smoke than traditional PVC jackets.

Category 5

Considered the Industry Standard for most network installations, Category 5 (Cat5E, or Cat5) is a "twisted pair" network cable used for carrying data signals at speeds of up to 350MHz of Bandwidth.

Solid Cable Design

Designed for more straight-forward, simple installations, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line.

24 AWG

For this particular cable, the gauge is 24 AWG, which is a diameter of about 0.0201 Inches, or 0.511mm. 24AWG is the Industry Standard for any typical network cable installation. American Wire Guage (AWG) is the standardized gauging system for measuring wire sizes.

Pull-Through Design

Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason why our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.

Features+

Specs+

  • Conductor: 24 AWG Solid Bare Copper
  • Number of Conductors or Pairs: 4 Pair
  • Jacket Material: Low Smoke Flame Retardant Polyvinyl Chloride
  • Nominal Overall Cable Diameter: 0.185 inch (4.699 mm)
  • Approximate Cable Weight: 22 lb/1,000 ft.
  • Temperature Rating: Installation: 0°C to 50°C, Operation: -10°C to 60°C
  • Velocity of Propagation: 72%
  • Mutual Capacitance: 14 pF/ft Nominal
  • Capacitance Unbalance: 330 pF/ft Maximum
  • Maximum Conductor D.C.R.: 28.6Ω/1,000 ft
  • Maximum D.C.R. Unbalance: 5%
  • Maximum Delay Skew: 45.0ns/100m
  • Maximum Propagation Delay Skew: 5.7ns/100m
  • Characteristic Impedance: From 0.772 MHz — 100 MHz: 100 ± 15%, From 101 MHz — 250 MHz: 100 ± 22%; From 251 MHz—350 MHz: 100 ± 32%
  • Maximum Installing Tension: 25 lb
  • Minimum Bending Radius: 1.0 inch
  • Marking on Jacket: CAT5E CMP 24AWG FTP c(ETL) US FT6 350MHz ETL VERIFIED CAT5E TO TIA-568B.2 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
  • Certifications: RoHS Compliant, ETL Listed, ANSI/TIA/EIA 568C.2, ISO/IEC 11801, CMP Rated
  • PDF Download Spec Sheet
