Vertical Cable 1000ft Solid Plenum Cat5E Cable - 24AWG 350MHz CMP

SKU#: CAT5E-1KPLN-BLK

$189.99
Color:
Black
Blue
Gray
Green
Orange
Purple
Red
White
Yellow

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Real People in North Carolina

Lifetime Warranties

60 Day Money Back Guarantee

100% Secure Shopping

Authorize.Net Approved

Accredited Business

Accredited Business

Description+

Perfect for any networking application where Plenum Rated network cable is a requirement. FireFold's Cat5e Plenum Rated Bulk Cable is a must-have for any extensive networking installation.

Plenum (CMP) Rated PVC Jacket

Plenum rated Cat5E cable contains a flame retardant PVC jacket and is designed for cable runs being laid in spaces defined as "Air Plenums", this includes raised flooring systems, air handling ducts, etc. Plenum jackets produce less smoke than traditional PVC jackets.

Category 5

Considered the Industry Standard for most network installations, Category 5 (Cat5E, or Cat5) is a "twisted pair" network cable used for carrying data signals at speeds of up to 350MHz of Bandwidth.

Solid Cable Design

Designed for more straight-forward, simple installation, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line.

24 AWG

For this particular cable, the gauge is 24 AWG, which is a diameter of about 0.0201 Inches, or 0.511mm. 24AWG is the Industry Standard for any typical network cable installation. American Wire Gauge (AWG) is the standardized gauging system for measuring wire sizes.

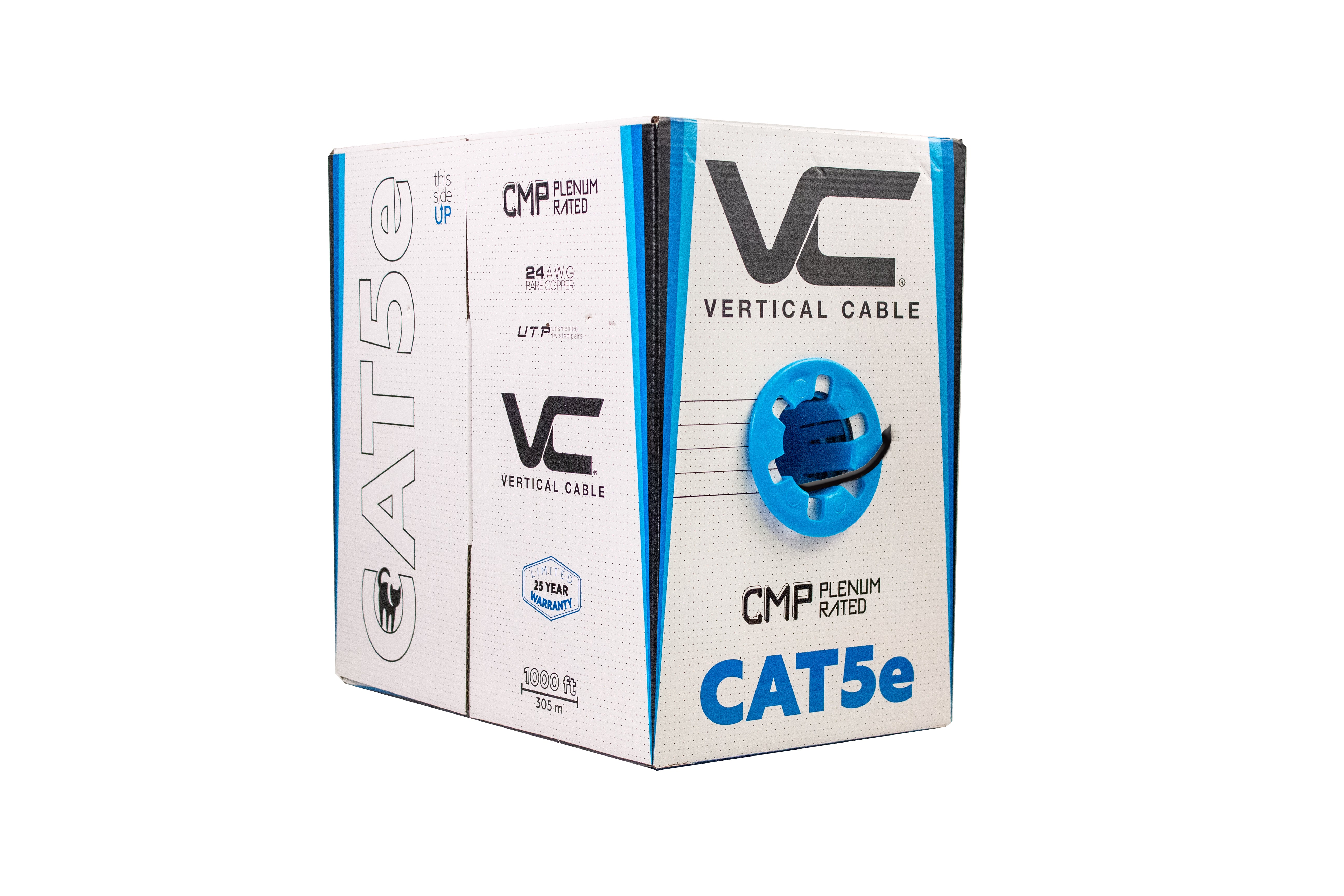

Pull-Through Design

Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.

Features+

  • High Performance Data Cable
  • Easily Identified Color-Striped Pairs
  • Specs+

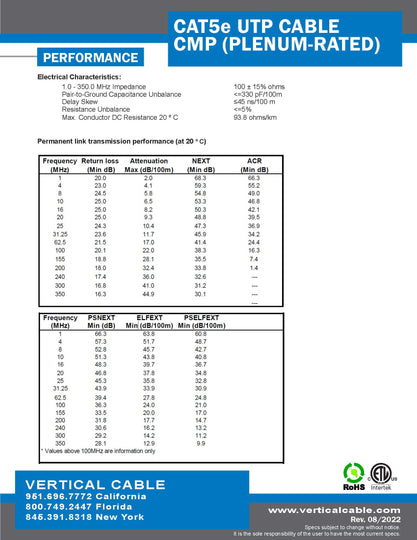

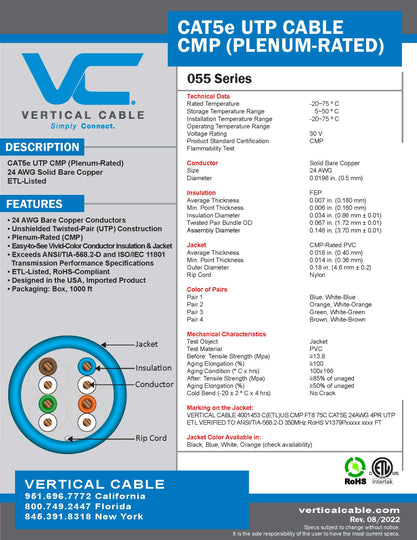

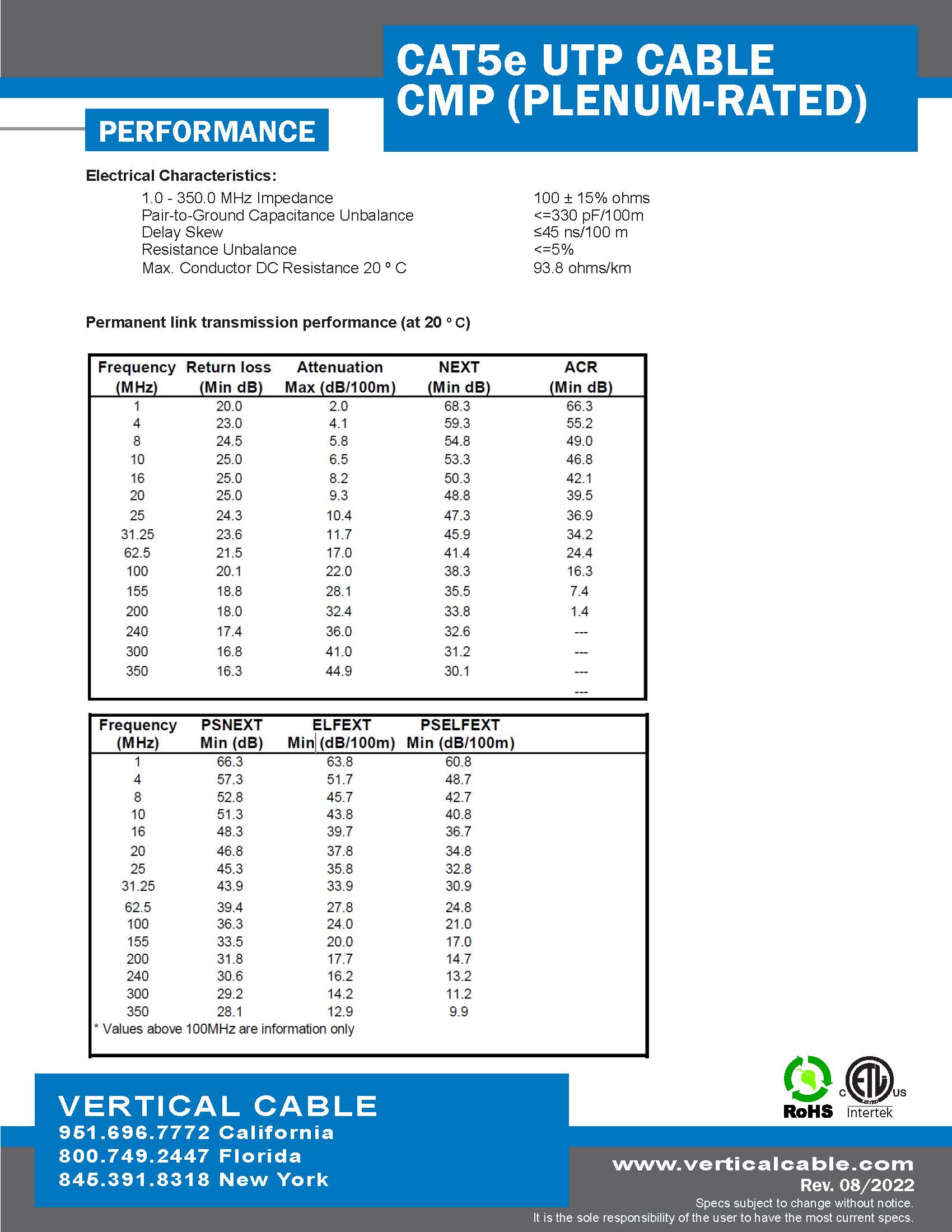

    Rated Temperature 75 ºC Rated Voltage 30V Product Standard Certification CMP Conductor Solid Bare Copper Conductor Size 24 AWG Solid Bare Copper Insulation FEP Insulation Thickness 0.20mm Jacket Material FR-PVC Jacket Outer Diameter 5.3mm Rip Cord Yes Color of Pairs Pair 1: Blue, White-Blue
    Pair 2: Orange, White-Orange
    Pair 3: Green, White-Green
    Pair 4: Brown, White-Brown Electrical Characteristics ANSI/TIA 568-B.2 Impedance 100Ω±15% Standards UL, cUL (E191267), ETL Verified to ANSI/TIA 568-B.2 Category 5e Marking on Jacket Vertical Cable E191267 (UL) c(UL) 4PR 24AWG CMP FT6 - ETL CAT5E VERIFIED to TIA/EIA 568-B.2 ROHS COMPLIANT V1395P8383 1000FT Certifications RoHS Compliant, TAA Compliant, CMP Rated

    Reviews+

    Perfect for any networking application where Plenum Rated network cable is a requirement. FireFold's Cat5e Plenum Rated Bulk Cable is a must-have for any extensive networking installation.

    Plenum (CMP) Rated PVC Jacket

    Plenum rated Cat5E cable contains a flame retardant PVC jacket and is designed for cable runs being laid in spaces defined as "Air Plenums", this includes raised flooring systems, air handling ducts, etc. Plenum jackets produce less smoke than traditional PVC jackets.

    Category 5

    Considered the Industry Standard for most network installations, Category 5 (Cat5E, or Cat5) is a "twisted pair" network cable used for carrying data signals at speeds of up to 350MHz of Bandwidth.

    Solid Cable Design

    Designed for more straight-forward, simple installation, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line.

    24 AWG

    For this particular cable, the gauge is 24 AWG, which is a diameter of about 0.0201 Inches, or 0.511mm. 24AWG is the Industry Standard for any typical network cable installation. American Wire Gauge (AWG) is the standardized gauging system for measuring wire sizes.

    Pull-Through Design

    Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.

  • High Performance Data Cable
  • Easily Identified Color-Striped Pairs
  • Rated Temperature 75 ºC Rated Voltage 30V Product Standard Certification CMP Conductor Solid Bare Copper Conductor Size 24 AWG Solid Bare Copper Insulation FEP Insulation Thickness 0.20mm Jacket Material FR-PVC Jacket Outer Diameter 5.3mm Rip Cord Yes Color of Pairs Pair 1: Blue, White-Blue
    Pair 2: Orange, White-Orange
    Pair 3: Green, White-Green
    Pair 4: Brown, White-Brown Electrical Characteristics ANSI/TIA 568-B.2 Impedance 100Ω±15% Standards UL, cUL (E191267), ETL Verified to ANSI/TIA 568-B.2 Category 5e Marking on Jacket Vertical Cable E191267 (UL) c(UL) 4PR 24AWG CMP FT6 - ETL CAT5E VERIFIED to TIA/EIA 568-B.2 ROHS COMPLIANT V1395P8383 1000FT Certifications RoHS Compliant, TAA Compliant, CMP Rated
