BZBGEAR Full HD Integrated SDI Fixed Wide Zoom Camera
SKU#: BG-BFS
UPC#:850009357724
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Superb High-definition Image: 1/2.8 inch high quality CMOS sensor delivers resolutions up to 19201080 with frame rates up to 60fps.
- 4x manual optical and 5x digital zoom with manual focus.
- Multi-Format Video Outputs: Multiple interfaces include 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
- Multiple Video Compression: Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps
- Multiple Network Protocol: Supports ONVIF, RTSP, RTMP protocols. RTMP push mode makes it easy to link streaming media servers (Wowza, FMS).
- Specs+
- Package Contents+
- BG-BFS Camera
- 12V/1A Power Supply
- Lens
- Wall/Ceiling Mount Bracket
- User Manual
- Reviews+
- Superb High-definition Image: 1/2.8 inch high quality CMOS sensor delivers resolutions up to 19201080 with frame rates up to 60fps.
- 4x manual optical and 5x digital zoom with manual focus.
- Multi-Format Video Outputs: Multiple interfaces include 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.
- Multiple Video Compression: Support H.264/H.264+ video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps
- Multiple Network Protocol: Supports ONVIF, RTSP, RTMP protocols. RTMP push mode makes it easy to link streaming media servers (Wowza, FMS).
- BG-BFS Camera
- 12V/1A Power Supply
- Lens
- Wall/Ceiling Mount Bracket
- User Manual
Note: this product has been discontinued and replaced by BG-B20SA.

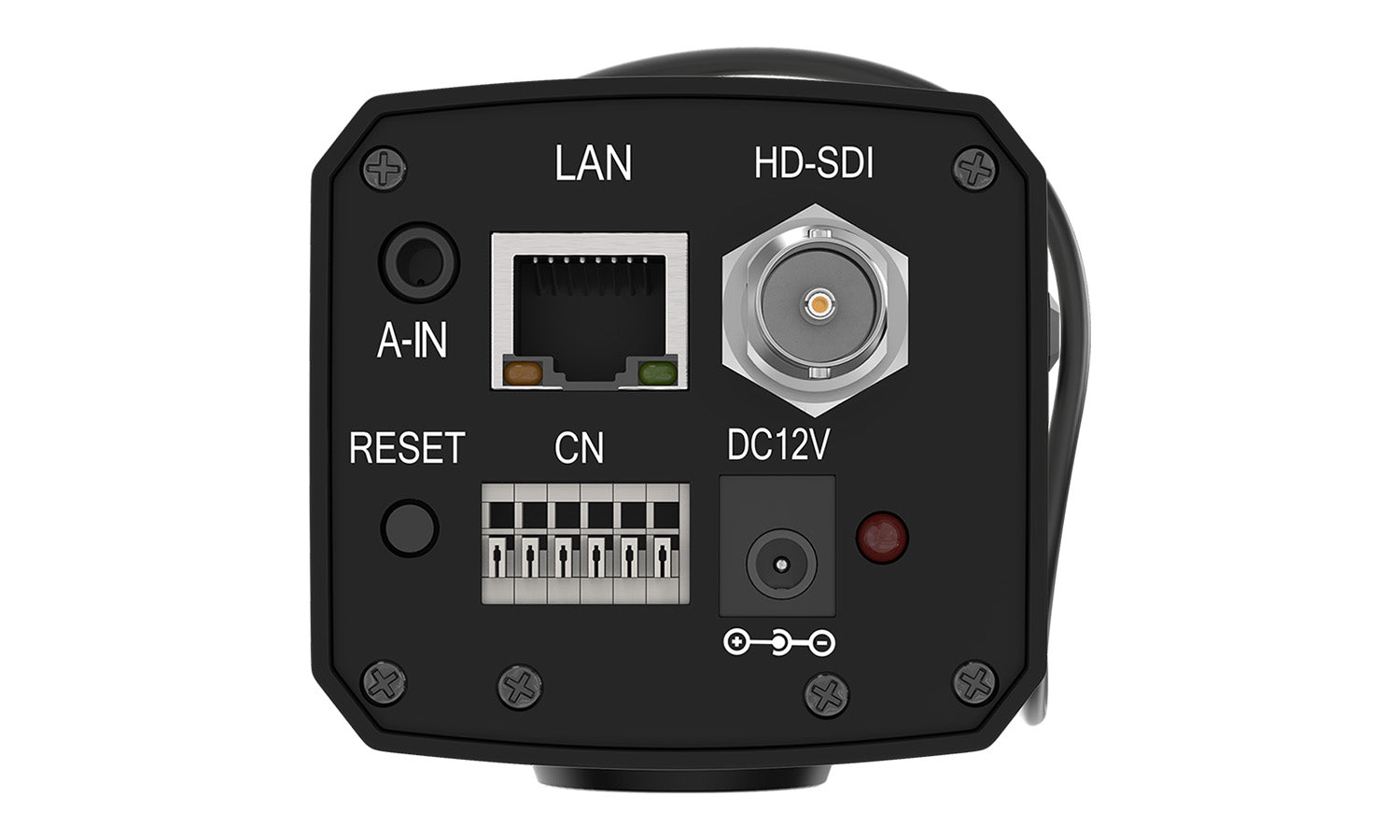

The BG-BFS features 1080P/60Hz imaging with manual 4X Zoom and a convenient form factor. It’s compact overall size makes it perfect for installations that require a clean, discreet appearance. Designed for fixed angle video monitoring, it is ideal for hallways, lobbies, interview rooms, and warehouses. SDI output means this camera can be retrofitted anywhere there is an existing coaxial wire. The external audio input and alarm interface make this camera ideally suited for controlled entry applications. It also features full streaming output and a WebGUI to access advanced camera settings via the LAN port. RS485 support allows remote control of iris functions.
| Camera Parameters | |
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels | 16:9, 2.07 megapixel |
| Video Format | 1080P60/50/30/25/59.94/29.97 1080I60/50/59.94 720P60/50/30/25 /59.94/29.97 |
| Auto Iris | DC driving mode |
| View Angle | 5.5°(tele)-54.7°(wide) |
| Zoom | 4x manual optical zoom |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto/Manual/One Push/ 3000K/ 4000K/5000K/6500K |
| Focus | Auto/Manual |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/Dynamic level adjustment |
| Video adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Input/output Interface | |
| Video Interfaces | 3G-SDI |
| Image Code Stream | Dual stream output |
| Video Compression Format | H.264, H.265 |
| Control Protocol | Protocol: VISCA / Pelco-D / Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
| HD IP Interface | 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port. |
| Network Protocol | RTSP,RTMP,ONVIF,GB/T28181 |
| Power Interface | HEC3800 power socket (DC12V) and Power over Ethernet (PoE) |
| Other Parameters | |
| Power Adaptor | AC110V-AC220V to DC12V/1A, POE power supply (optional) |
| Input Voltage | DC12V±10% |
| Input Current | 400mA(Max) |
| Consumption | 4.8W (Max) |
| Store Temperature | -10°C ~ +60°C |
| Store Humidity | 20% – 95% |
| Working Temperature | -10°C ~ +50°C |
| Working Humidity | 20%–80% |
| Dimension | 126.8mmX55mmX58.6mm |
| Weight | 0.5kg |
| Application | Indoor |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
Note: this product has been discontinued and replaced by BG-B20SA.
The BG-BFS features 1080P/60Hz imaging with manual 4X Zoom and a convenient form factor. It’s compact overall size makes it perfect for installations that require a clean, discreet appearance. Designed for fixed angle video monitoring, it is ideal for hallways, lobbies, interview rooms, and warehouses. SDI output means this camera can be retrofitted anywhere there is an existing coaxial wire. The external audio input and alarm interface make this camera ideally suited for controlled entry applications. It also features full streaming output and a WebGUI to access advanced camera settings via the LAN port. RS485 support allows remote control of iris functions.
| Camera Parameters | |
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels | 16:9, 2.07 megapixel |
| Video Format | 1080P60/50/30/25/59.94/29.97 1080I60/50/59.94 720P60/50/30/25 /59.94/29.97 |
| Auto Iris | DC driving mode |
| View Angle | 5.5°(tele)-54.7°(wide) |
| Zoom | 4x manual optical zoom |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto/Manual/One Push/ 3000K/ 4000K/5000K/6500K |
| Focus | Auto/Manual |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/Dynamic level adjustment |
| Video adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Input/output Interface | |
| Video Interfaces | 3G-SDI |
| Image Code Stream | Dual stream output |
| Video Compression Format | H.264, H.265 |
| Control Protocol | Protocol: VISCA / Pelco-D / Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
| HD IP Interface | 100M IP port (10/100BASE-TX), Support Visca protocol control through IP port. |
| Network Protocol | RTSP,RTMP,ONVIF,GB/T28181 |
| Power Interface | HEC3800 power socket (DC12V) and Power over Ethernet (PoE) |
| Other Parameters | |
| Power Adaptor | AC110V-AC220V to DC12V/1A, POE power supply (optional) |
| Input Voltage | DC12V±10% |
| Input Current | 400mA(Max) |
| Consumption | 4.8W (Max) |
| Store Temperature | -10°C ~ +60°C |
| Store Humidity | 20% – 95% |
| Working Temperature | -10°C ~ +50°C |
| Working Humidity | 20%–80% |
| Dimension | 126.8mmX55mmX58.6mm |
| Weight | 0.5kg |
| Application | Indoor |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
