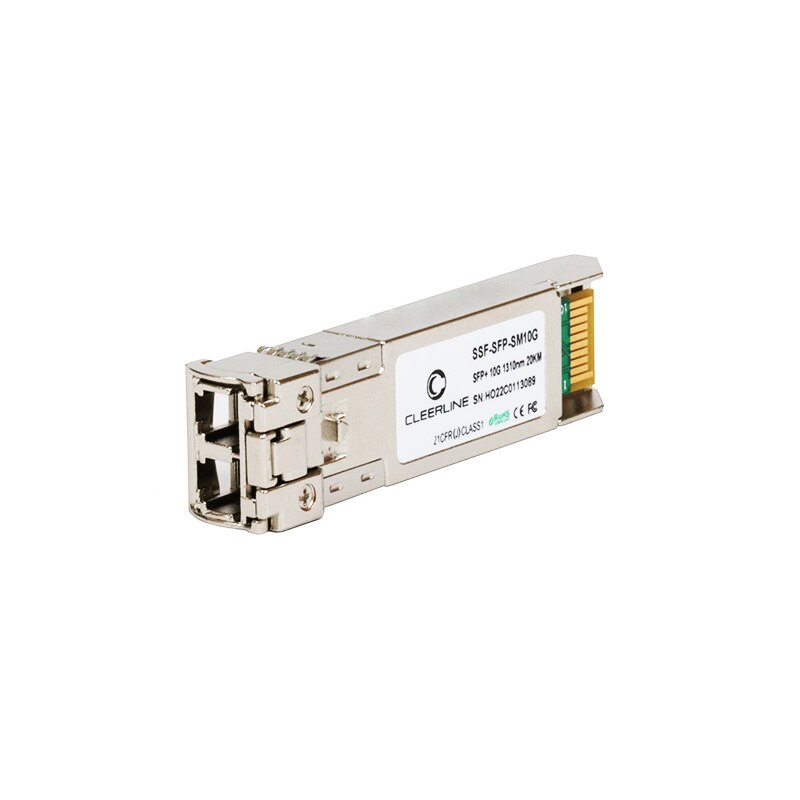

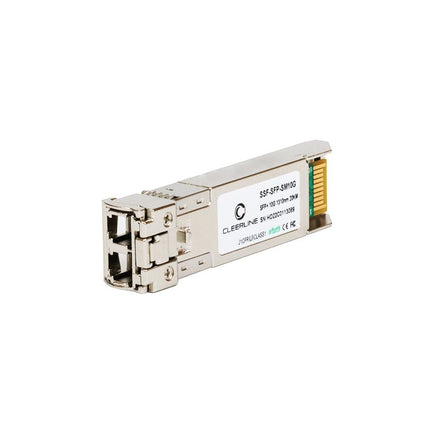

Cleerline 10G SFP+ Transceiver SM, 20Km
SKU#: SSF-SFP-SM10G
UPC#:672975372552
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- This SFP accepts 2 LC connectors.
- Optical interface compliant to IEEE 802.3ae 10GBASE-LR
- Compliance: MSA SFF-8431, RoHS
- Hot Pluggable
- 1310nm DFB transmitter, PIN photo-detector
- Applicable for 20km SMF connection
- Operating case temperature: 0 to 70°C
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allows customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- Specs+
- Reviews+
- This SFP accepts 2 LC connectors.
- Optical interface compliant to IEEE 802.3ae 10GBASE-LR
- Compliance: MSA SFF-8431, RoHS
- Hot Pluggable
- 1310nm DFB transmitter, PIN photo-detector
- Applicable for 20km SMF connection
- Operating case temperature: 0 to 70°C
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allows customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
10G SFP+ Transceiver SM, 20Km
Cleerline™ SSF-SFP-SM10G is a high-performance 10G SFP+ transceiver designed for long-range data transmission over single-mode fibers. Operating at a wavelength of 1310nm, this transceiver supports distances up to 20 kilometers, making it ideal for applications requiring extended reach. The SSF-SFP-SM10G is compliant with the 10GBASE-LR standard and features a line rate of 10.3125Gbps, ensuring reliable and efficient data communication.
This SFP+ transceiver utilizes a 1310nm DFB transmitter and PIN photodetector, providing low power consumption and superior EMI performance with its all-metal housing. It is hot-pluggable, allowing for easy installation and maintenance. The module supports advanced digital diagnostics, enabling real-time monitoring of received optical power, laser bias current, and optical output power. The electrical interface is compliant with SFI specifications, ensuring compatibility with a wide range of networking equipment.
The SSF-SFP-SM10G is ideal for various applications, including 10GBASE-LR at 10.3125Gbps and 10GBASE-LW at 9.953Gbps. It is suitable for long-range data communication in enterprise networks, data centers, and high-speed storage area networks (SANs). The transceiver's robust design and compliance with industry standards make it a cost-effective solution for enhancing network infrastructure and supporting high-density port configurations.
10G SFP+ Transceiver SM, 20Km
Cleerline™ SSF-SFP-SM10G is a high-performance 10G SFP+ transceiver designed for long-range data transmission over single-mode fibers. Operating at a wavelength of 1310nm, this transceiver supports distances up to 20 kilometers, making it ideal for applications requiring extended reach. The SSF-SFP-SM10G is compliant with the 10GBASE-LR standard and features a line rate of 10.3125Gbps, ensuring reliable and efficient data communication.
This SFP+ transceiver utilizes a 1310nm DFB transmitter and PIN photodetector, providing low power consumption and superior EMI performance with its all-metal housing. It is hot-pluggable, allowing for easy installation and maintenance. The module supports advanced digital diagnostics, enabling real-time monitoring of received optical power, laser bias current, and optical output power. The electrical interface is compliant with SFI specifications, ensuring compatibility with a wide range of networking equipment.
The SSF-SFP-SM10G is ideal for various applications, including 10GBASE-LR at 10.3125Gbps and 10GBASE-LW at 9.953Gbps. It is suitable for long-range data communication in enterprise networks, data centers, and high-speed storage area networks (SANs). The transceiver's robust design and compliance with industry standards make it a cost-effective solution for enhancing network infrastructure and supporting high-density port configurations.
×
