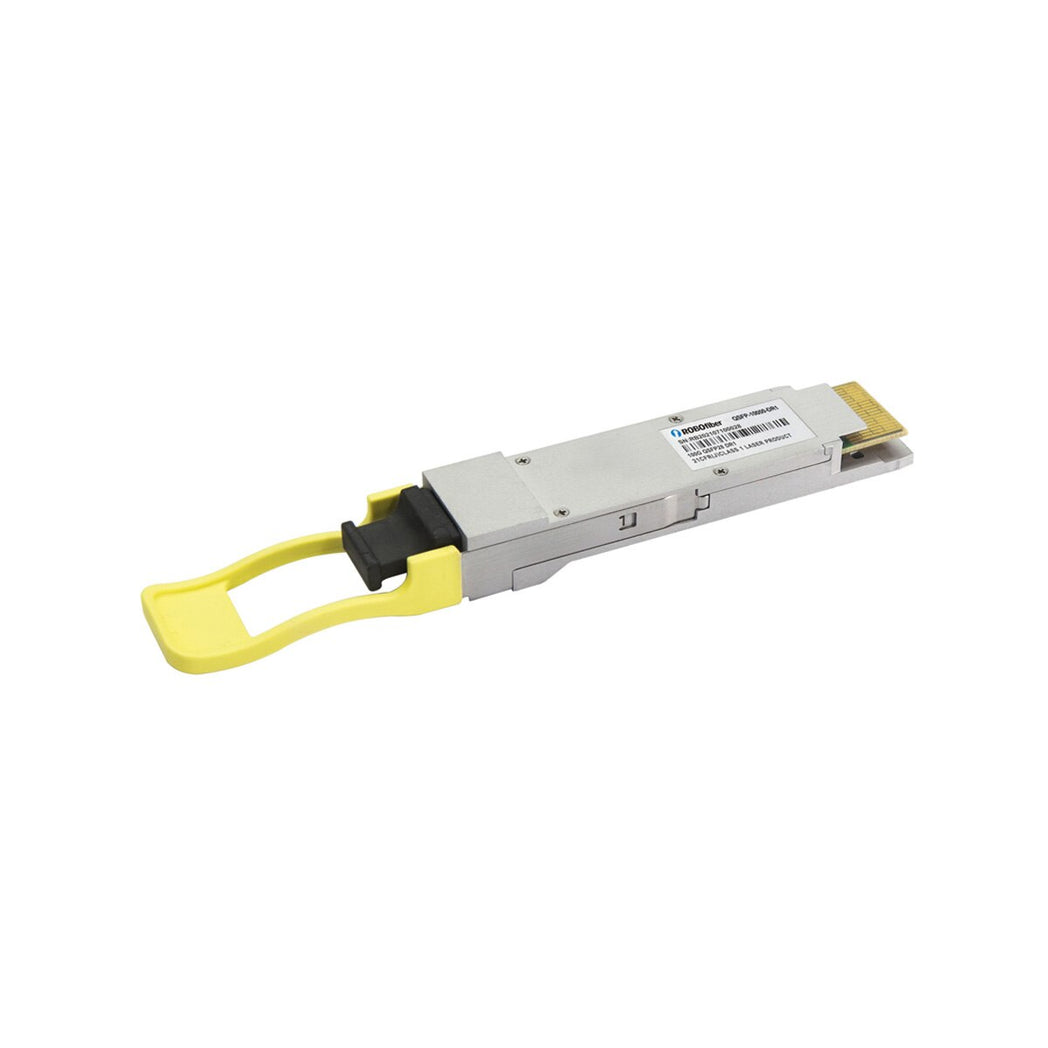

Cleerline 100G QSFP28 DR1 Optical Transceiver, SM, Single Lambda 1310nm, 500m Reach, Dual LC
SKU#: SSF-QSFP-100GDR1
UPC#:658580645519
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- QSFP28 MSA compliant
- Supports 53.125Gbaud
- 100G Lambda MSA 100G-DR specification compliant
- Up to 500m transmission on single-mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70°C
- 4x25G electrical interface (OIF CEI-28G- VSR)
- Maximum power consumption 4W
- Accepts LC duplex connectors
- RoHS compliant
- Specs+
- Reviews+
- QSFP28 MSA compliant
- Supports 53.125Gbaud
- 100G Lambda MSA 100G-DR specification compliant
- Up to 500m transmission on single-mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70°C
- 4x25G electrical interface (OIF CEI-28G- VSR)
- Maximum power consumption 4W
- Accepts LC duplex connectors
- RoHS compliant
100G QSFP28 DR1 Optical Transceiver, SM, Single Lambda 1310nm, 500m Reach, Dual LC
Cleerline™ SSF-QSFP-100GDR1 is a 100G QSFP28 DR1 Single Lambda Optical Transceiver designed for 500-meter optical communication applications. It operates at a 50Gbaud data rate on a 1310nm wavelength and includes an EML driver integrated into the DSP with a cooled EML. This transceiver converts 4x25Gbps NRZ signals into a single 50Gbaud PAM4 signal using a DSP-based gearbox, making it compliant with IEEE 802.3cd and QSFP28 MSA standards. The module supports a maximum power consumption of 4.0W and includes a dual LC optical connector.
Built to withstand harsh conditions, with an operating temperature range of 0 to 70°C and humidity tolerance up to 85%. It provides a single +3.3V power supply, with power supply pins VccTx and VccRx internally connected. The transceiver features real-time digital diagnostic monitoring and meets RoHS compliance standards. It is ideal for data center interconnects, 100G Ethernet, and enterprise networking applications, providing high-speed, reliable optical communication over single-mode fiber up to 500 meters.
100G QSFP28 DR1 Optical Transceiver, SM, Single Lambda 1310nm, 500m Reach, Dual LC
Cleerline™ SSF-QSFP-100GDR1 is a 100G QSFP28 DR1 Single Lambda Optical Transceiver designed for 500-meter optical communication applications. It operates at a 50Gbaud data rate on a 1310nm wavelength and includes an EML driver integrated into the DSP with a cooled EML. This transceiver converts 4x25Gbps NRZ signals into a single 50Gbaud PAM4 signal using a DSP-based gearbox, making it compliant with IEEE 802.3cd and QSFP28 MSA standards. The module supports a maximum power consumption of 4.0W and includes a dual LC optical connector.
Built to withstand harsh conditions, with an operating temperature range of 0 to 70°C and humidity tolerance up to 85%. It provides a single +3.3V power supply, with power supply pins VccTx and VccRx internally connected. The transceiver features real-time digital diagnostic monitoring and meets RoHS compliance standards. It is ideal for data center interconnects, 100G Ethernet, and enterprise networking applications, providing high-speed, reliable optical communication over single-mode fiber up to 500 meters.
