Evolution HDMI over IP Transmitter/Receiver

Evolution HDMI over IP Transmitter/Receiver

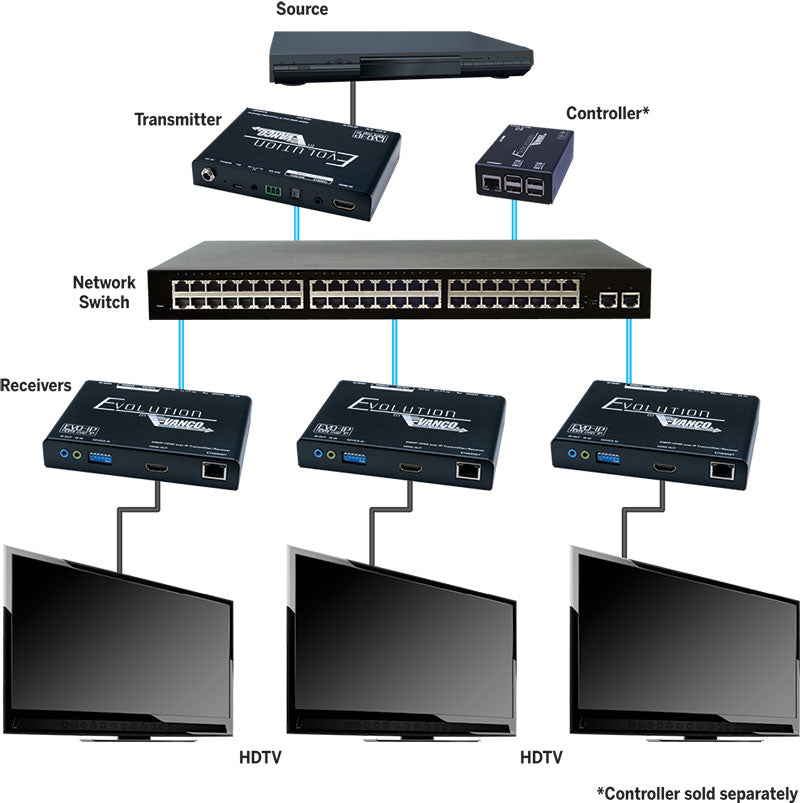

The Evolution by Vanco EVOIPLITE HDMI over IP Transmitter/Receiver is a complete audio, video, and control product over ethernet system. As a whole, the system has the ability to send multiple sources to multiple displays along with IR and RS232 pass-through, analog and digital audio breakout in TX mode, video up to 1080P@60Hz, with POE up to 100m when connected to a POE enabled switch off of a single Cat6 cable. This one single unit can be set to transmit or receive signals. When connected to a network with internet, the EVO-IP Cloud allows for additional features such as scheduling events or maintenance, remote monitoring of a system including remote diagnostics and troubleshooting, as well as voice control capabilities with Alexa! With an IP-less installation option as well as any new sources/displays being discovered automatically within the system, the EVO-IP HDMI over IP system is the fast, easy, and cost effective solution for both residential and commercial installations.

• HDMI over IP unit that can be set to transmit or receive
• Supports 1080p@60Hz
• System can support over multiple transceivers
• HDCP 1.4 Compliant
• POE or can be powered using provided power supply
• Manual dip switch configurable for a truly IP-Less installation
• Easy GUI automatically detects new devices in the system
• iOS and Android app available
• Customizable labels and names of sources and displays
• Setup through the GUI can be done without a computer even being on site
• Analog and Digital audio breakouts
• Dynamic EDID
• IR and RS232 Pass-through
• Supports Protocol: IP, TCP, UDP, RTP, IPv4, DHCP, HTTP, IGMP, ICMP, MULTICAST, UNICAST
• Bitstream rate of up to 15Mbps
• Latency: 720P (190-240ms), 1080P (380-430ms)
• Connects to the cloud to schedule events or to troubleshoot a situation remotely (opportunity for recurring revenue)
• Able to be controlled with Alexa for voice controlled switching

HDMI Compliance ...................................................... HDMI
HDCP Compliance........................................................Yes
Video Bandwidth .........................................................Single-link 225MHz [6.75Gbps}
Video Support .............................................................Up to 1080p@60Hz
HDMI over UTP transmission [24-bit] .............................Full HD (1080p)-100m(330ft) [CAT.X]
Audio Support ........................................................... Stereo Digital Audio
Input TMDS signal...................................................... 1.2 Volts [peak-to-peak]
Input DDC signal ....................................................... 5 Volts [peak-to-peak, TTL]
ESD Protection .......................................................... [1] Human body model — ±19kV [air-gap discharge]
& ±12kV [contact discharge]; [2] Core chipset — ±8kV
PCB Stack-up ............................................................ 4-layer board [impedance control — differential
100Ω; single 50Ω]
IR Pass-thru.............................................................. Yes (RX to TX)
RS-232 .................................................................... Yes

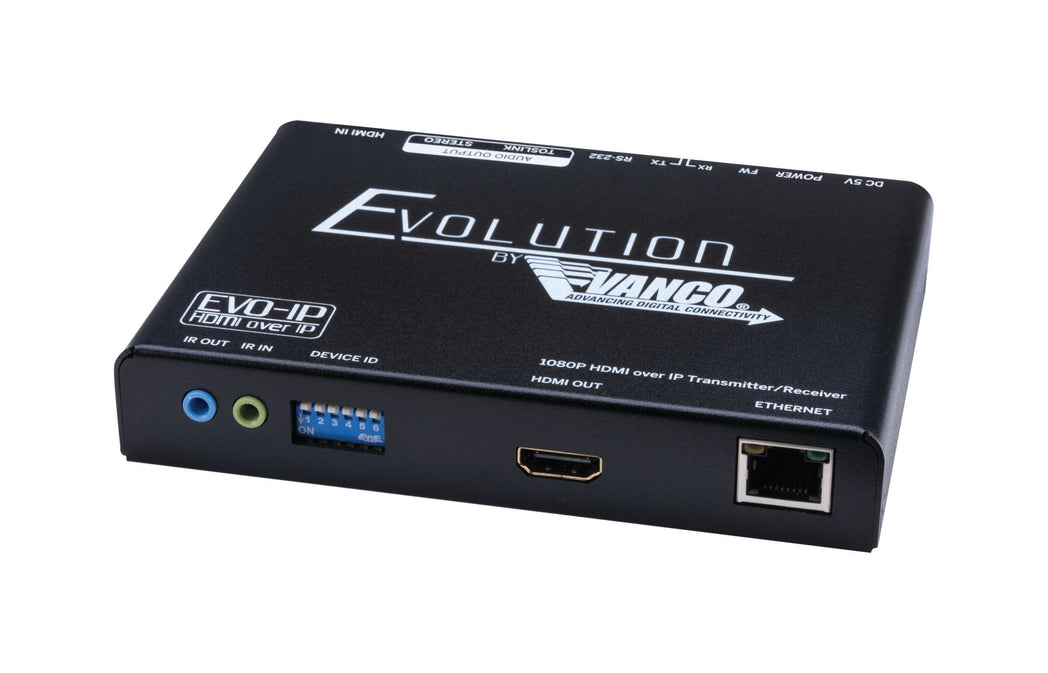

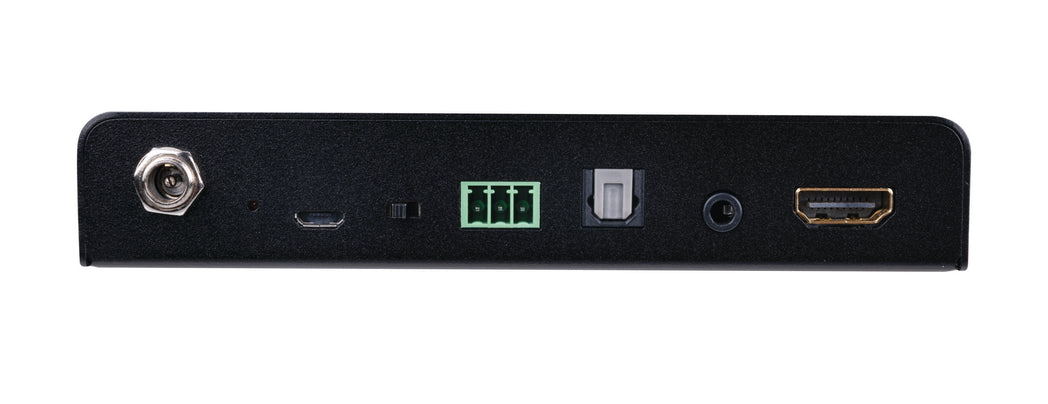

I/O Connector............................................................ 2x HDMI + 1x RJ-45 + 3x 3.5mm + 1x TOSLink + 1x
RS-232(terminal block)
HDMI Source Control ................................................. Controllable via IR pass-through from RX to TX with
IR extenders
IR Remote Control ..................................................... Electro-optical characteristics: ∏ = 25° / Carrier
frequency: 20-60kHz
HDMI Connector........................................................ Type A [19-pin female]
RJ45 Connector ........................................................ WE/SS 8P8C with 2 LED indicators
3.5mm Connector...................................................... IR blaster, IR Receiver, & Stereo out
Housing .................................................................... Metal enclosure
Dimension................................................................. 5.2” W x 0.8” H x 3.8” D
Weight ..................................................................... 0.8 lbs
Fixedness.................................................................. Wall-mounting case with screws
Power Supply ............................................................ 5V 2A
Power Consumption ................................................... 6 Watts (max)
Operation Temperature............................................... 0~40°C [32~104°F]
Storage Temperature ................................................. -20~60°C [-4~140°F]
Relative Humidity....................................................... 20~90% RH [no condensation]

• EVOIPLITE HDMI over IP Transmitter/Receiver
• (1) IR Transmitter
• (1) IR Receiver
• 5V 2A Power Supply
• Set of mounting ears/screws
• Product Manual
