- Description+
- Features+
- USB Data Transfer: There are multiple USB standards based on release date of new USB technologies.
- Distance: Extends USB 2.0 signal up to 264 feet.
- USB 2.0: 480Mb/s transfer speed.
- Plug and Play: No drivers needed.
- USB Hub: Share connection with up to four devices.
- Specs+
- Package Contents+
- 1x BG-USB-MR80
- 1x 5V power adapter
- 1x User Manual
- Reviews+
- USB Data Transfer: There are multiple USB standards based on release date of new USB technologies.
- Distance: Extends USB 2.0 signal up to 264 feet.
- USB 2.0: 480Mb/s transfer speed.
- Plug and Play: No drivers needed.
- USB Hub: Share connection with up to four devices.
- 1x BG-USB-MR80
- 1x 5V power adapter
- 1x User Manual

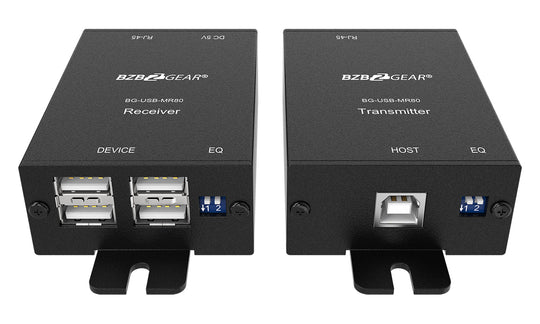

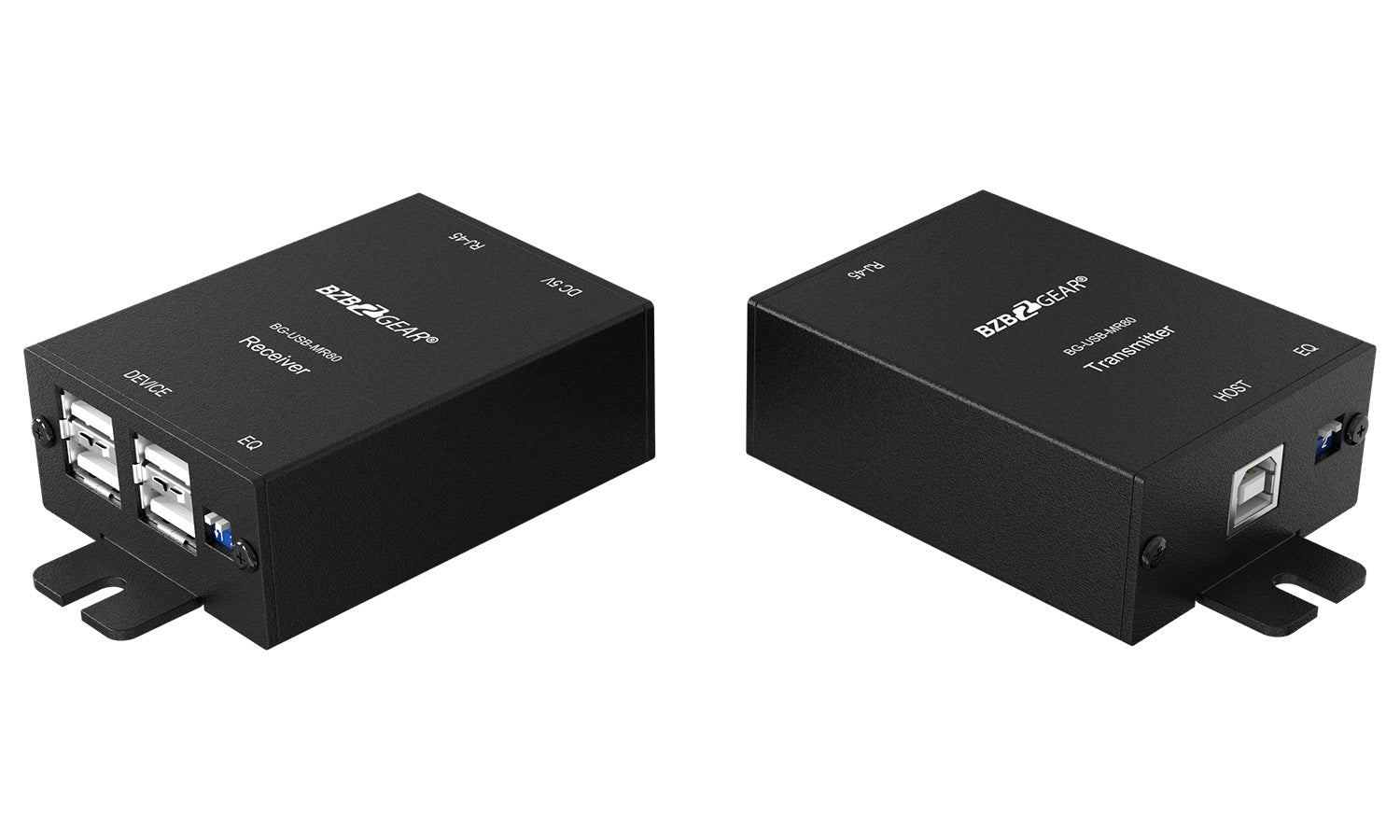

The BG-USB-MR80 USB 2.0 Extender over Single Cat.X allows USB devices to be extended at distances up to 80 meters (264 feet). This unit consists of two devices - transmitter and receiver.

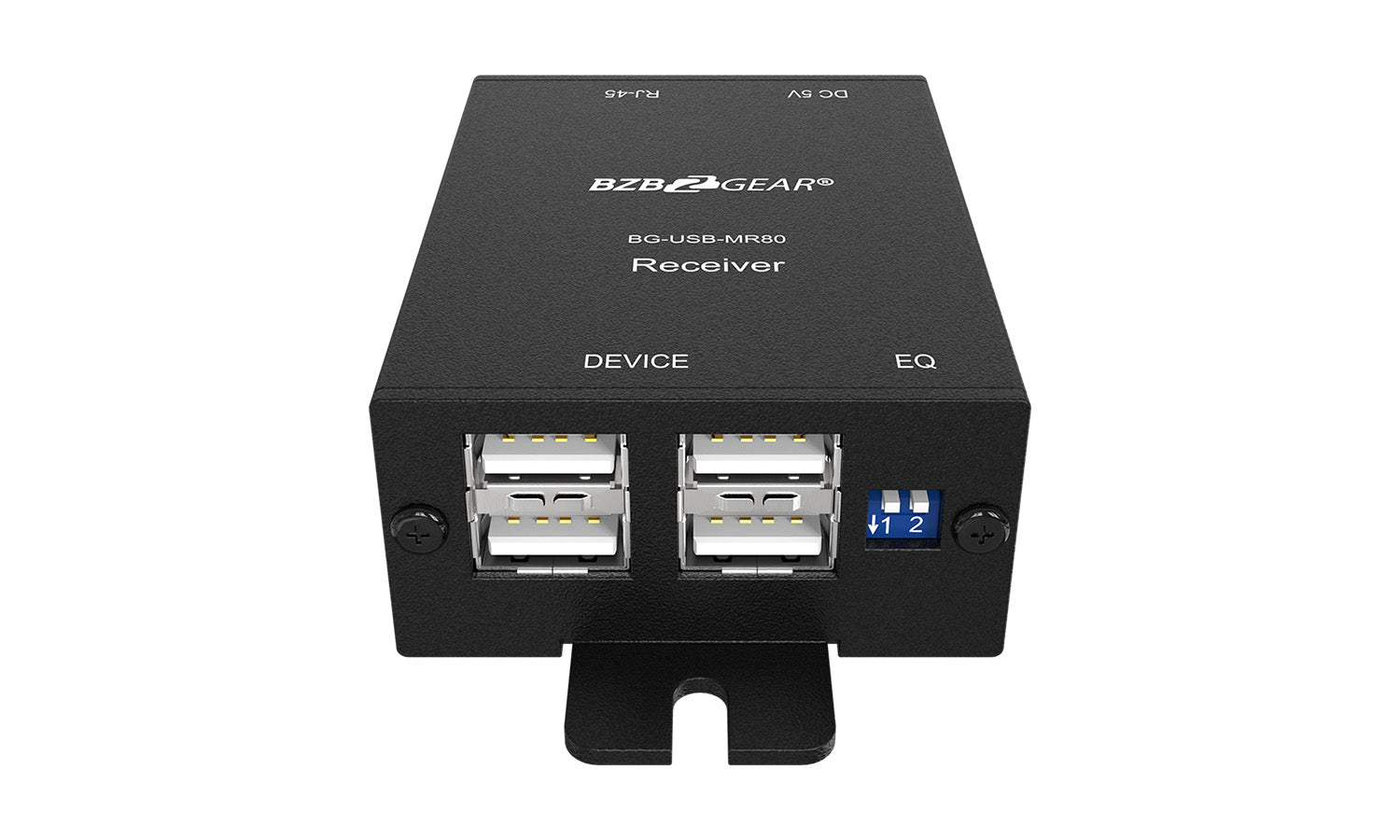

The transmitter is located at the computer while the receiver connects to peripheral devices such as printers, cameras, storage devices, and more. The receiver features a 4-port USB hub to allow connection for multiple devices. When you need a reliable, long-range solution for USB 2.0 connectivity look no further!
| Technical | TX | RX | |
| Role of usage | Transmitter [TX] | Receiver [RX] | |
| USB compliance | USB 2.0 high speed compliant | ||
| Bandwidth | Up to 480 Mbit/s | ||
| USB over UTP transmission | Up to 264feet (80 meters) | ||
| Signal Equalization | 2-pin dip switch at TX & RX | ||
| ESD protection | [1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge] [2] Core chipset — ±8kV | ||
| PCB Stack-up | 4-layer board [impedance control — differential 100W; single 50W] | ||

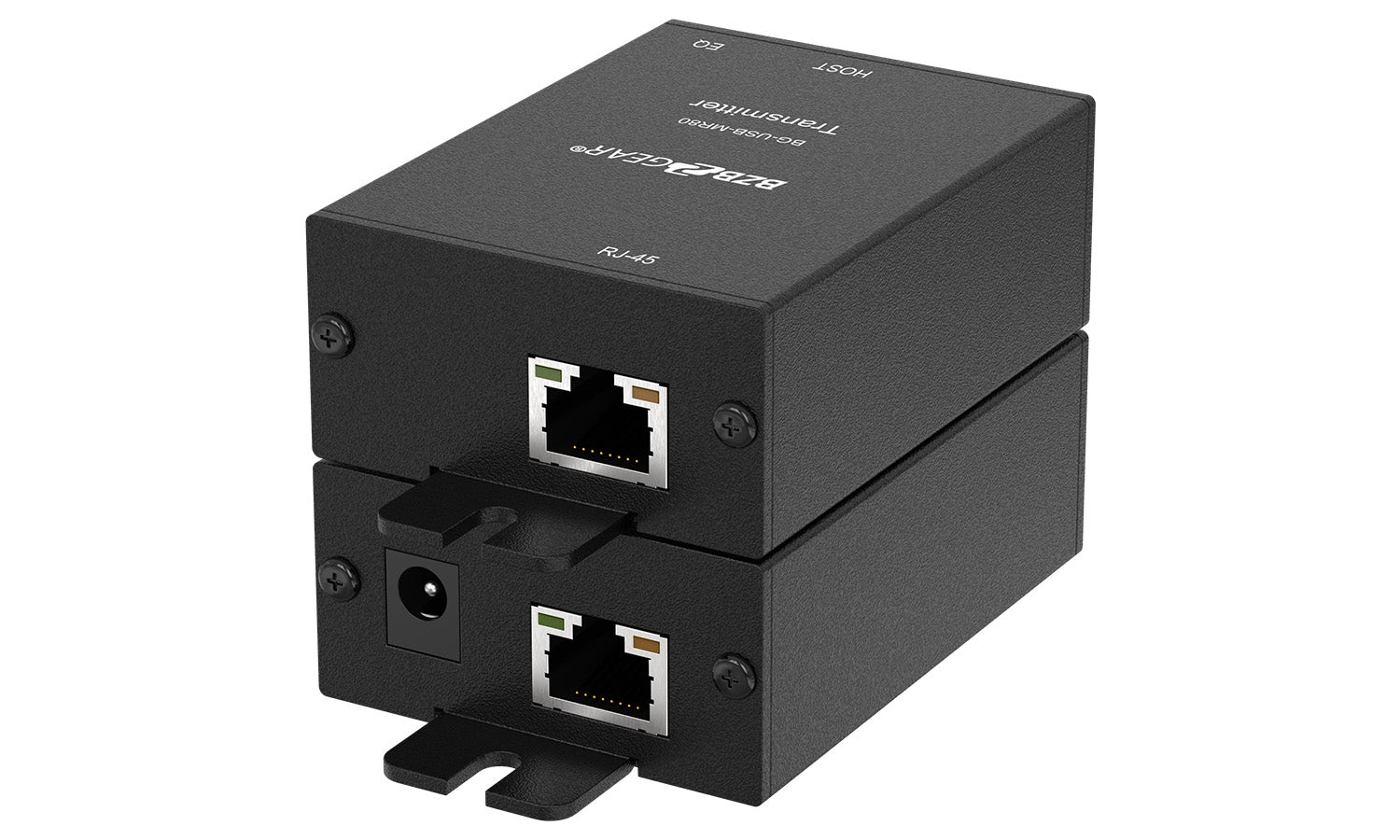

| Input | 1x USB(Type B) | 1x RJ-45 | |
| Output | 1x RJ-45 | 4x USB(Type A) | |
| USB connector | USB 2.0 Type A & B (High-Speed USB) | ||
| RJ-45 connector | WE/SS 8P8C with 2 LED indicators | ||
| Dip Switch | Signal level equalization | Signal level equalization | |
| Mechanical | |||
| Housing | Metal case | ||
| Dimensions [L x W x H] | Model | 97 x 54 x 27mm[3.8" x 2.1" x 1"] | 97 x 54 x 27mm[3.8" x 2.1" x 1"] |
| Package | 264 x 170 x 77mm[10.3" x 6.7" x 3"] | ||
| Carton | 430 x 358 x 291mm[1'4" x 1'2" x 11.5"] | ||
| Weight | Model | 108g[3.8oz] | 99g[3.5oz] |
| Package | 226g[8oz] | 217g[7.6oz] | |
| Power supply | Via USB | 5V 2A DC | |
| Power consumption | 2 Watts [max] | 4 Watts [max] | |
| Operation temperature | 0~40°C [32~104°F] | ||
| Storage temperature | -20~60°C [-4~140°F] | ||
| Relative humidity | 20~90% RH [no condensation] | ||
