BZBGEAR USB 2.0 Extender Over a Single Cat.X Cable up to 330ft

SKU#: BG-USB-LR100

UPC#: 850009357755

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-USB-LR100

UPC#:850009357755
$199.00

SKU#: BG-USB-LR100

UPC#:850009357755

SKU#: BG-USB-LR100

UPC#: 850009357755

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+

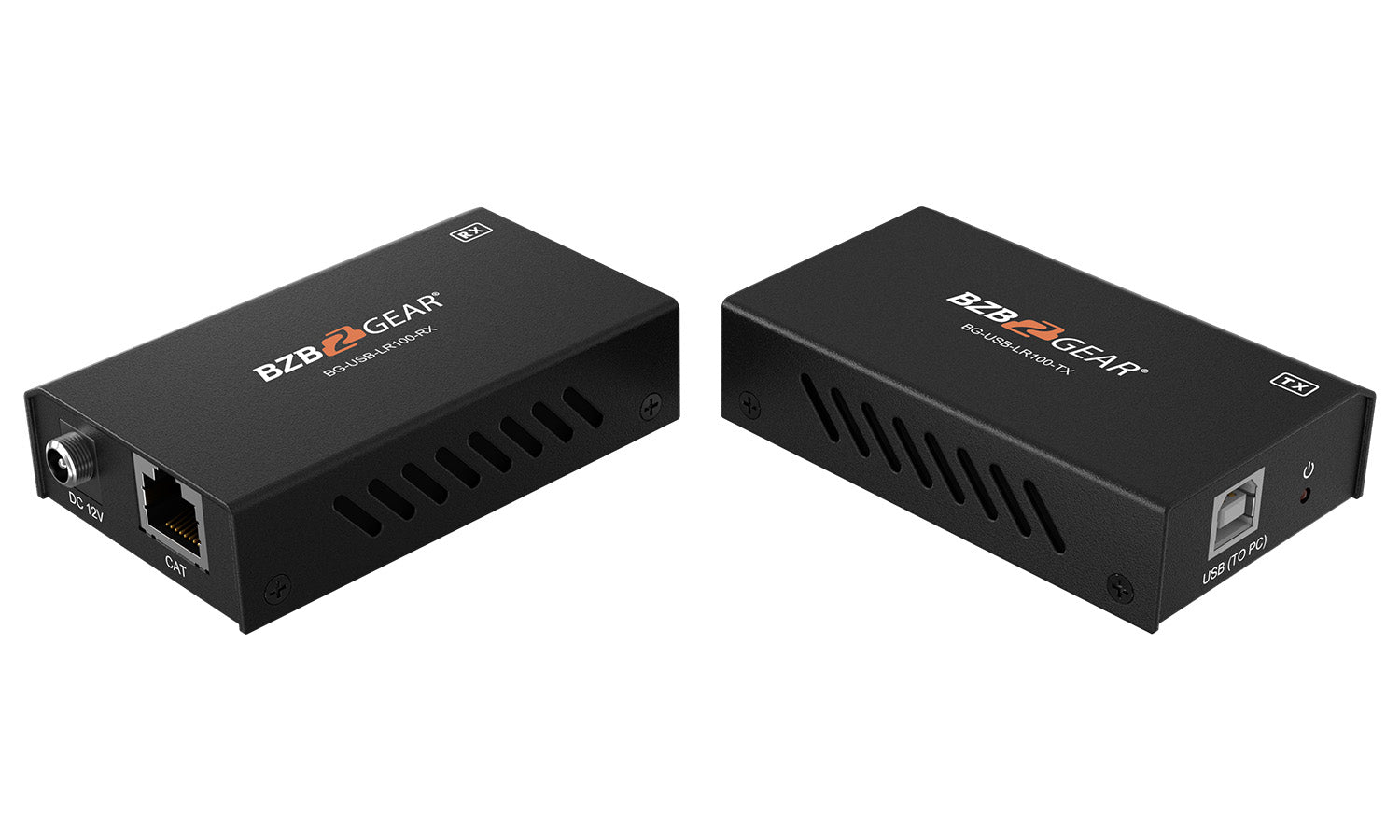

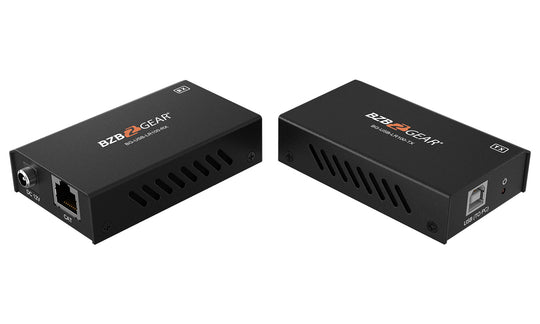

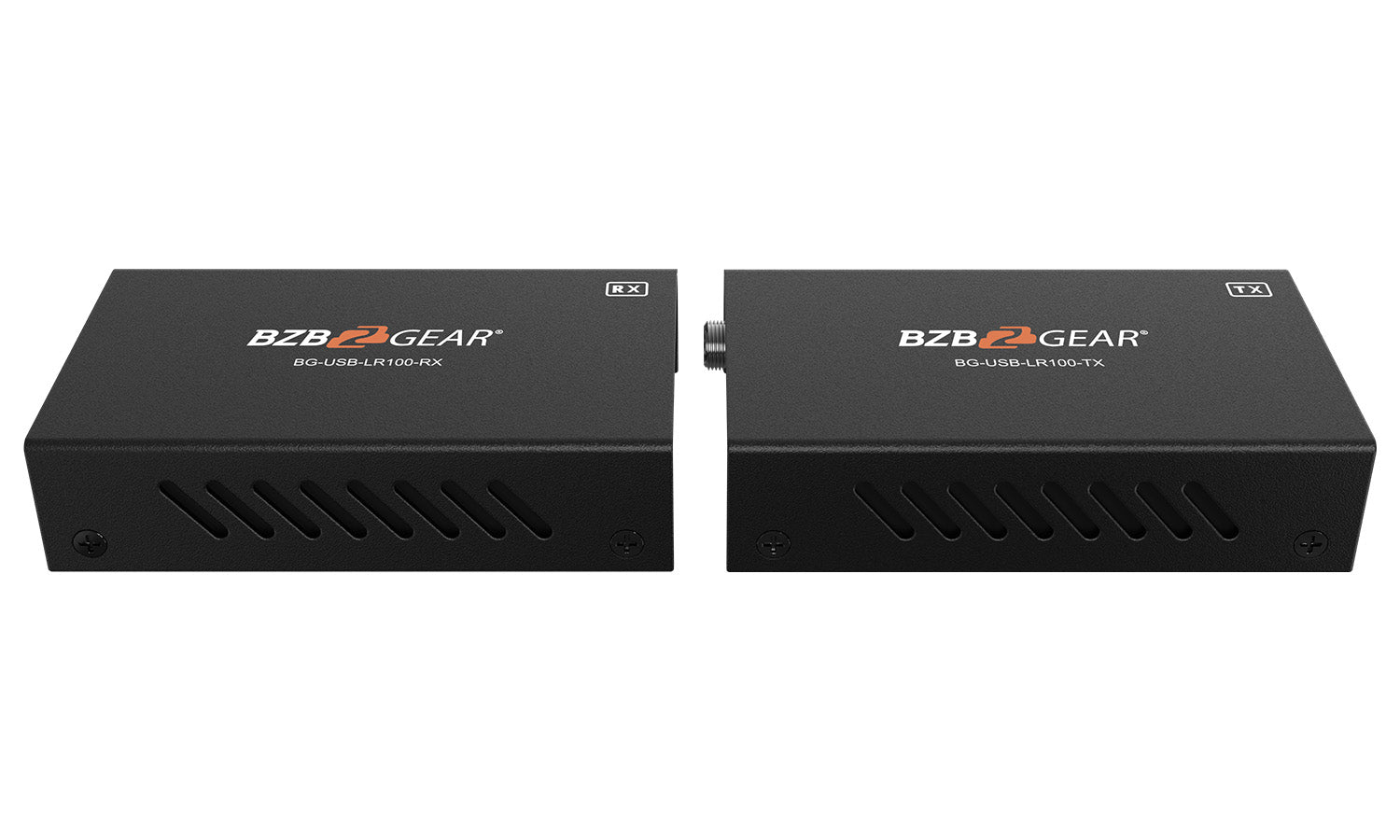

  • The BG-USB-LR100 USB 2.0 Extender over Single Cat.X allows USB devices to be extended at distances up to 100 meters (328 feet). This unit consists of two devices - transmitter and receiver.
    The transmitter is located at the computer while the receiver connects to peripheral devices such as printers, cameras, storage devices, and more. The receiver features a 2-port USB hub to allow connection for multiple devices. When you need a reliable, long-range solution for USB 2.0 connectivity look no further!

  • Features+
    • Supports USB 2.0 protocol, transmission rate up to 480Mbps
    • Supports extend distance up to 100 meters / 328ft via CAT 5e/6 cable
    • Supports one USB-B port input in transmitter
    • Supports two USB 2.0 ports output in receiver
    • Supports power over Cat5e/6/7 function, it means that either transmitter or receiver is connnected powered supply by 12V/1A power adapter, the other doesn’t need power supply
  • Specs+
  • Technical
    USB protocol USB 2.0
    Transmission rate Up to 480Mbps
    Transmission distance 100M (328ft)
    ESD Protection Human-body Model?±8kV (Air-gap discharge),
    ±4kV (Contact discharge)
    Connections
    Transmitter Input port: 1xUSB [USB-B, female]
    Output port: 1xCAT [RJ45, female]

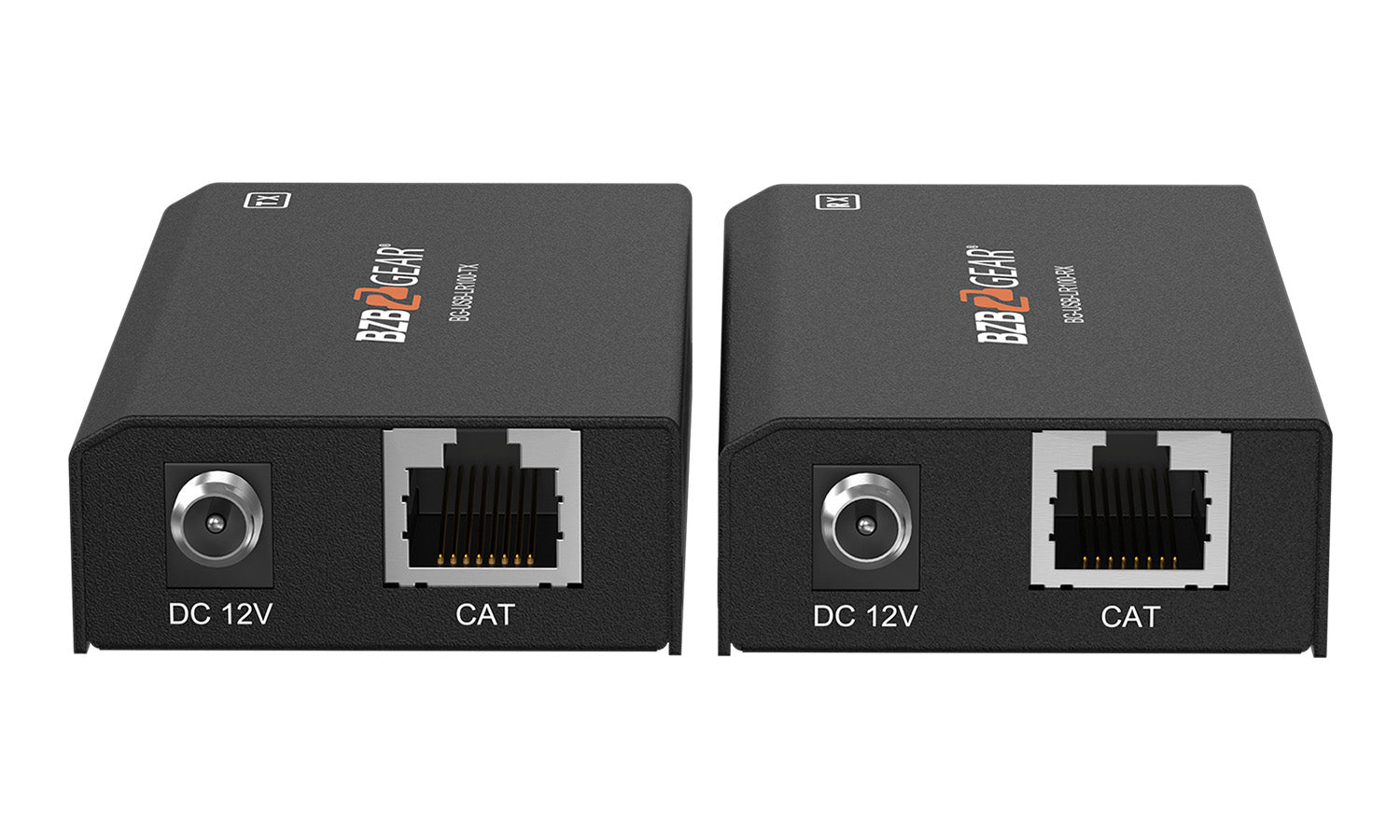

    Receiver Input port: 1xCAT [RJ45, female]

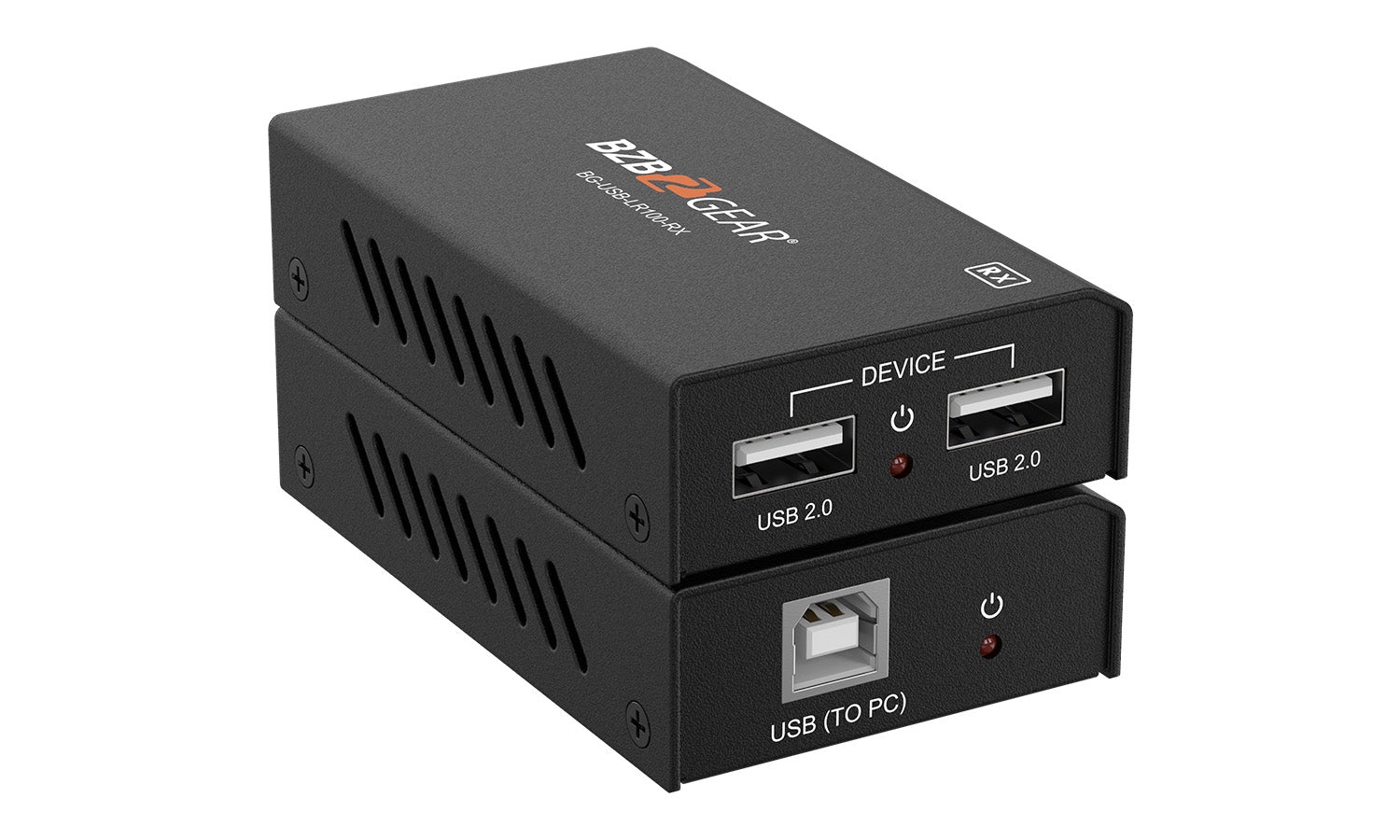

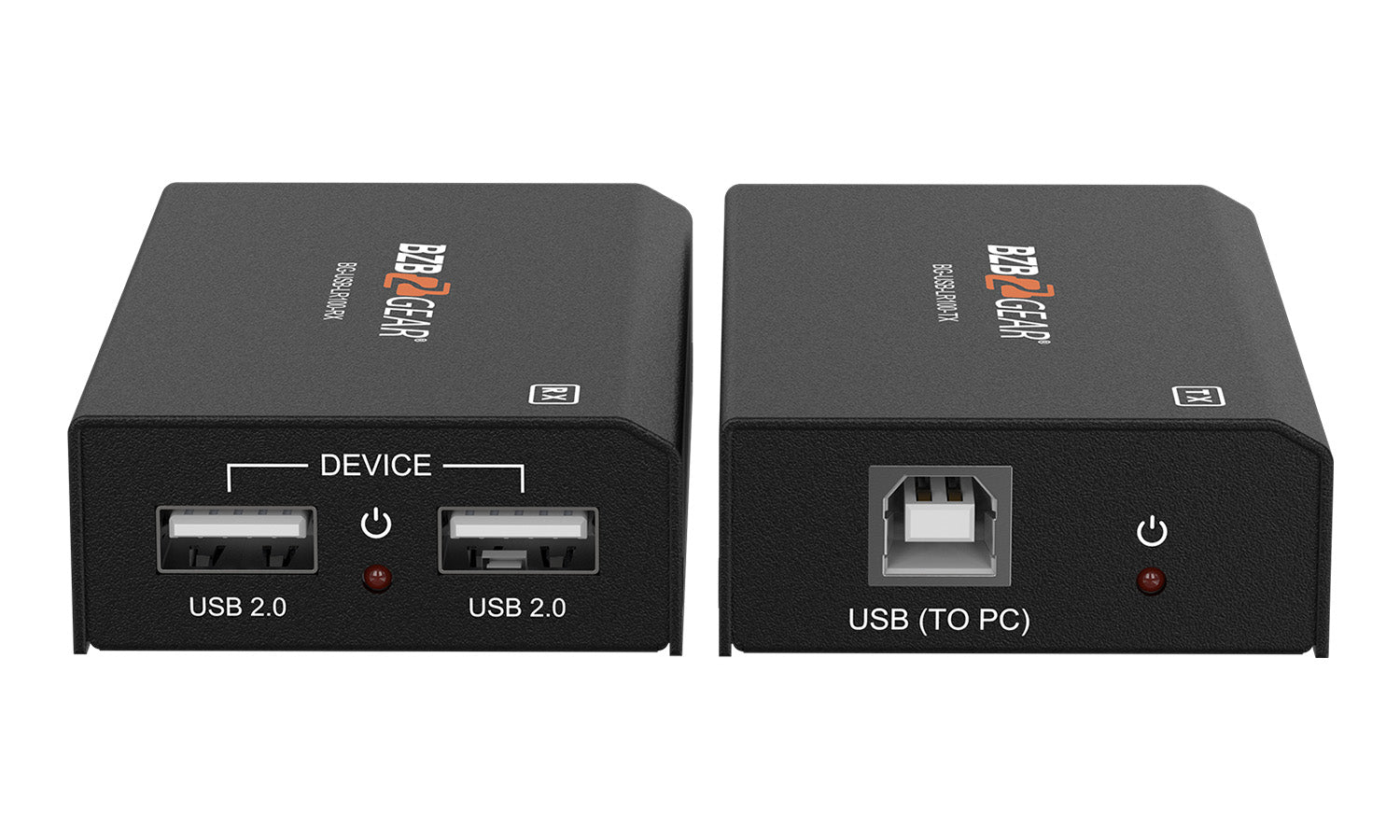

    Output port: 2xUSB [USB-A, female]
    Mechanical
    Housing Metal Enclosure
    Color Black
    Dimensions Transmitter / Receiver: 82mm (W) x 49mm (D) x 20mm (H)
    Weight Transmitter / Receiver: 100g
    Power Supply Input: AC100~240V 50/60Hz, Output: DC 12V/1A
    Power Consumption Transmitter: 1.3W, Receiver: 2.3W
    Operating
    Temperature
    0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity 20~90% RH (non-condensing)
  • Package Contents+
    • 1x USB 2.0 Extender (Transmitter)
    • 1x USB 2.0 Extender (Receiver)
    • 1x USB cable (USB-B male head to USB-A male head, one meter)
    • 1x 12V/1A Locking Power Adapter
    • 1x User Manual
  • Reviews+
  • The BG-USB-LR100 USB 2.0 Extender over Single Cat.X allows USB devices to be extended at distances up to 100 meters (328 feet). This unit consists of two devices - transmitter and receiver.
    The transmitter is located at the computer while the receiver connects to peripheral devices such as printers, cameras, storage devices, and more. The receiver features a 2-port USB hub to allow connection for multiple devices. When you need a reliable, long-range solution for USB 2.0 connectivity look no further!

    • Supports USB 2.0 protocol, transmission rate up to 480Mbps
    • Supports extend distance up to 100 meters / 328ft via CAT 5e/6 cable
    • Supports one USB-B port input in transmitter
    • Supports two USB 2.0 ports output in receiver
    • Supports power over Cat5e/6/7 function, it means that either transmitter or receiver is connnected powered supply by 12V/1A power adapter, the other doesn’t need power supply
    Technical
    USB protocol USB 2.0
    Transmission rate Up to 480Mbps
    Transmission distance 100M (328ft)
    ESD Protection Human-body Model?±8kV (Air-gap discharge),
    ±4kV (Contact discharge)
    Connections
    Transmitter Input port: 1xUSB [USB-B, female]
    Output port: 1xCAT [RJ45, female]
    Receiver Input port: 1xCAT [RJ45, female]
    Output port: 2xUSB [USB-A, female]
    Mechanical
    Housing Metal Enclosure
    Color Black
    Dimensions Transmitter / Receiver: 82mm (W) x 49mm (D) x 20mm (H)
    Weight Transmitter / Receiver: 100g
    Power Supply Input: AC100~240V 50/60Hz, Output: DC 12V/1A
    Power Consumption Transmitter: 1.3W, Receiver: 2.3W
    Operating
    Temperature
    0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity 20~90% RH (non-condensing)
    • 1x USB 2.0 Extender (Transmitter)
    • 1x USB 2.0 Extender (Receiver)
    • 1x USB cable (USB-B male head to USB-A male head, one meter)
    • 1x 12V/1A Locking Power Adapter
    • 1x User Manual
