Vertical Cable 107-1236WH6S500 500ft RG6 Standard Shield Coaxial Cable, White

SKU#: 107-1236WH6S500

UPC#:845643012313

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

SKU#: 107-1236WH6S500

UPC#:845643012313
$45.67

SKU#: 107-1236WH6S500

UPC#:845643012313

SKU#: 107-1236WH6S500

UPC#:845643012313

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

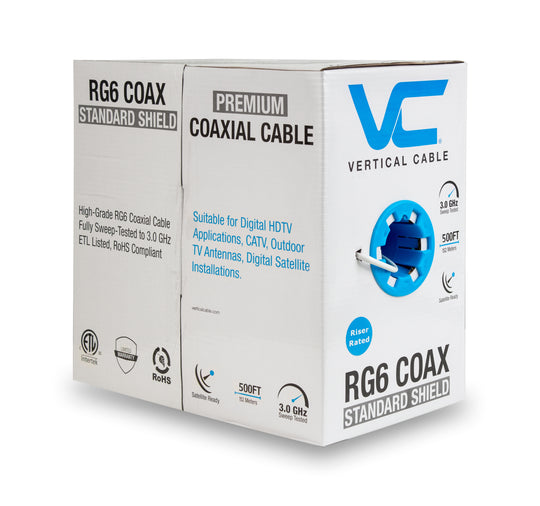

Vertical Cable 500ft RG6 Standard Shield Coaxial Cable

Vertical Cable 107-1236WH6S500 RG6 Standard Shield Coaxial Cable comes in a convenient 500ft pull box. It is designed for digital HDTV, CATV, and digital satellite installations. This cable features an aluminum foil shield with a 60% aluminum braid on a solid 18AWG copper clad steel conductor with a white PVC jacket. Sequential foot markings on the jacket make measurement quick and easy.

Features+

  • Designed for Digital HDTV

Specs+

  • Inner Conductor: 18AWG Solid Copper Clad Steel (φ1.024±0.10mm)
  • Insulation: 1.52mm White Foamed PE (φ4.57±0.10mm)
  • First Shield: Aluminum/PET-Foil Bonded
  • Second Shield: Aluminum Wire Braid
  • Jacket: 0.62mm White PVC (6.9±0.15mm)
  • Conductor DC Resistance: ≤120Ω/km
  • Nominal Capacitance: 52±2pF/m
  • Impedance: 75±3 Ohms
  • Sparker Test: 3000VAC
  • Velocity of Propagation: 85%
  • Return Loss: (5~470MHz)≥25dB

Package Contents+

  • (1) 500ft Pull Box RG6 Standard Shield Cable

Reviews+

Vertical Cable 500ft RG6 Standard Shield Coaxial Cable

Vertical Cable 107-1236WH6S500 RG6 Standard Shield Coaxial Cable comes in a convenient 500ft pull box. It is designed for digital HDTV, CATV, and digital satellite installations. This cable features an aluminum foil shield with a 60% aluminum braid on a solid 18AWG copper clad steel conductor with a white PVC jacket. Sequential foot markings on the jacket make measurement quick and easy.

  • Designed for Digital HDTV
  • Inner Conductor: 18AWG Solid Copper Clad Steel (φ1.024±0.10mm)
  • Insulation: 1.52mm White Foamed PE (φ4.57±0.10mm)
  • First Shield: Aluminum/PET-Foil Bonded
  • Second Shield: Aluminum Wire Braid
  • Jacket: 0.62mm White PVC (6.9±0.15mm)
  • Conductor DC Resistance: ≤120Ω/km
  • Nominal Capacitance: 52±2pF/m
  • Impedance: 75±3 Ohms
  • Sparker Test: 3000VAC
  • Velocity of Propagation: 85%
  • Return Loss: (5~470MHz)≥25dB
  • (1) 500ft Pull Box RG6 Standard Shield Cable
