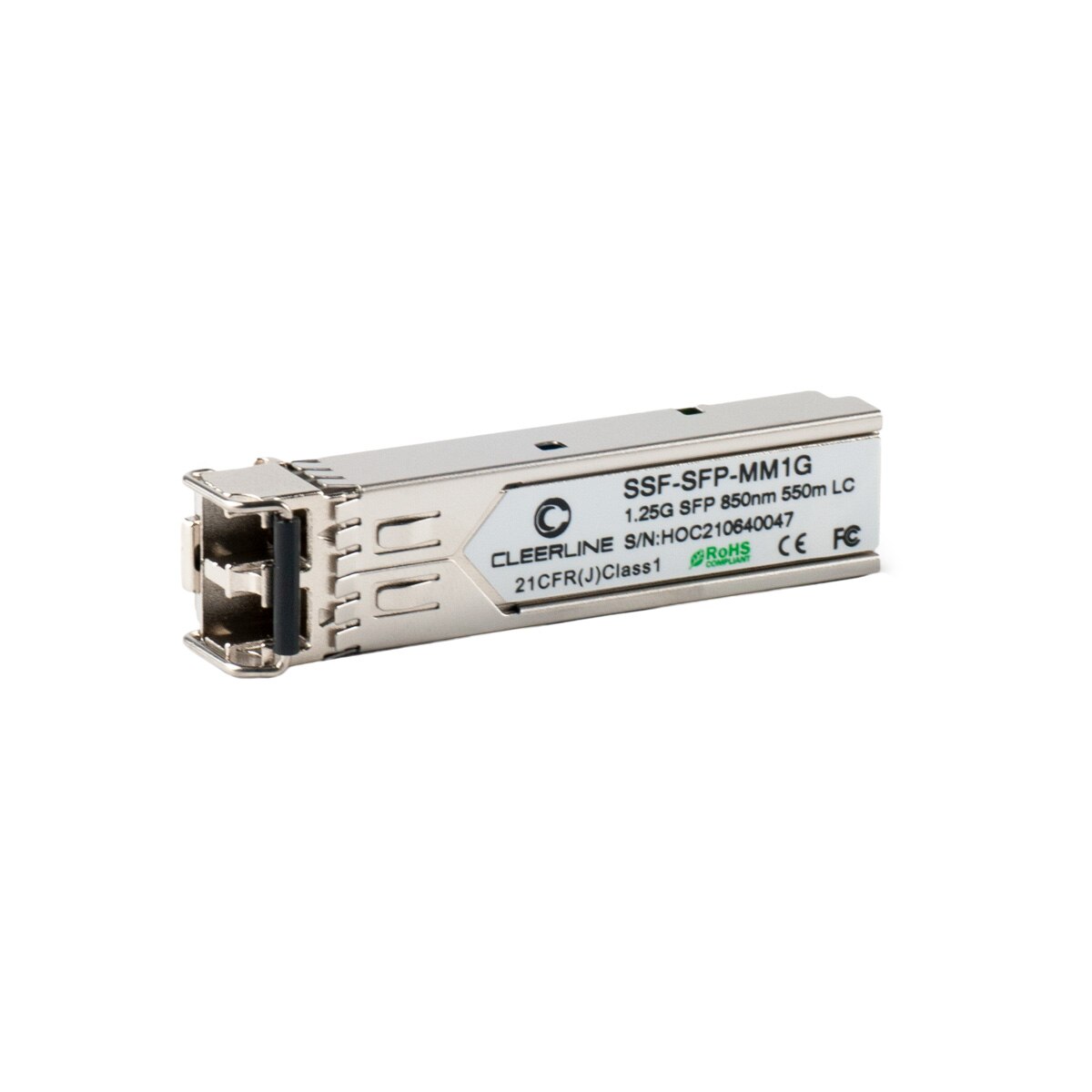

Cleerline 1.25G SFP Transceiver MM, 550m
SKU#: SSF-SFP-MM1G
UPC#:672975372507
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- This SFP accepts 2 LC connectors.
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring:
- Internal Calibration or External Calibration
- 550m transmission with 50/125μm MMF
- 275m transmission with 62.5/125μm MMF
- Compliant with RoHS
- +3.3V single power supply
- Operating case temperature: -20 to 85° C
- Specs+
- Reviews+
- This SFP accepts 2 LC connectors.
- Data-rate of 1.25Gbps operation
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring:
- Internal Calibration or External Calibration
- 550m transmission with 50/125μm MMF
- 275m transmission with 62.5/125μm MMF
- Compliant with RoHS
- +3.3V single power supply
- Operating case temperature: -20 to 85° C
1.25G SFP Transceiver MM, 550m
Cleerline™ SSF-SFP-MM1G transceiver is a high-performance, cost-effective module supporting data-rates of 1.25Gbps and 550m transmission distance with multimode fiber.
This SFP uses the 1000Base-SX standard, popular for short range connections.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers follow the industry standards of the SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards.
1.25G SFP Transceiver MM, 550m
Cleerline™ SSF-SFP-MM1G transceiver is a high-performance, cost-effective module supporting data-rates of 1.25Gbps and 550m transmission distance with multimode fiber.
This SFP uses the 1000Base-SX standard, popular for short range connections.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers follow the industry standards of the SFP Multi-Source Agreement (MSA) and SFF-8472, making them directly interchangeable with any networking device following industry standards.
×
