Tenda Gigabit High PoE Injector POE30G-AT
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Specs+
- IEEE802.3? IEEE802.3u ?IEEE802.3ab?IEEE802.3af? IEEE802.3at
- PWR, PoE
- 1*10/100/1000 Base-T Ethernet Port(Data/PoE)
- 1*10/100/1000 Base-T Ethernet Port(Data)
- Recommended: CAT5/5e UTP or better
- 132.3mm*60mm*33mm
- ESD:
- Air discharge: ±10kV
- Contact discharge: ±8kV
- Store-and-forward
- 1000Mbps
- Single port: AF: 15.4W, AT: 30W
- Whole device: 30W
- 30W
- 100?240V AC 50/60Hz
- 51V/0.8A DC?Power Adapter Output?
- Desktop mounting: support
- Operating Temperature: 0?~45?
- Storage Temperature: -40?~70?
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- FCC?CE ?RoHS?UL
- Reviews+
- IEEE802.3? IEEE802.3u ?IEEE802.3ab?IEEE802.3af? IEEE802.3at
- PWR, PoE
- 1*10/100/1000 Base-T Ethernet Port(Data/PoE)
- 1*10/100/1000 Base-T Ethernet Port(Data)
- Recommended: CAT5/5e UTP or better
- 132.3mm*60mm*33mm
- ESD:
- Air discharge: ±10kV
- Contact discharge: ±8kV
- Store-and-forward
- 1000Mbps
- Single port: AF: 15.4W, AT: 30W
- Whole device: 30W
- 30W
- 100?240V AC 50/60Hz
- 51V/0.8A DC?Power Adapter Output?
- Desktop mounting: support
- Operating Temperature: 0?~45?
- Storage Temperature: -40?~70?
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- FCC?CE ?RoHS?UL

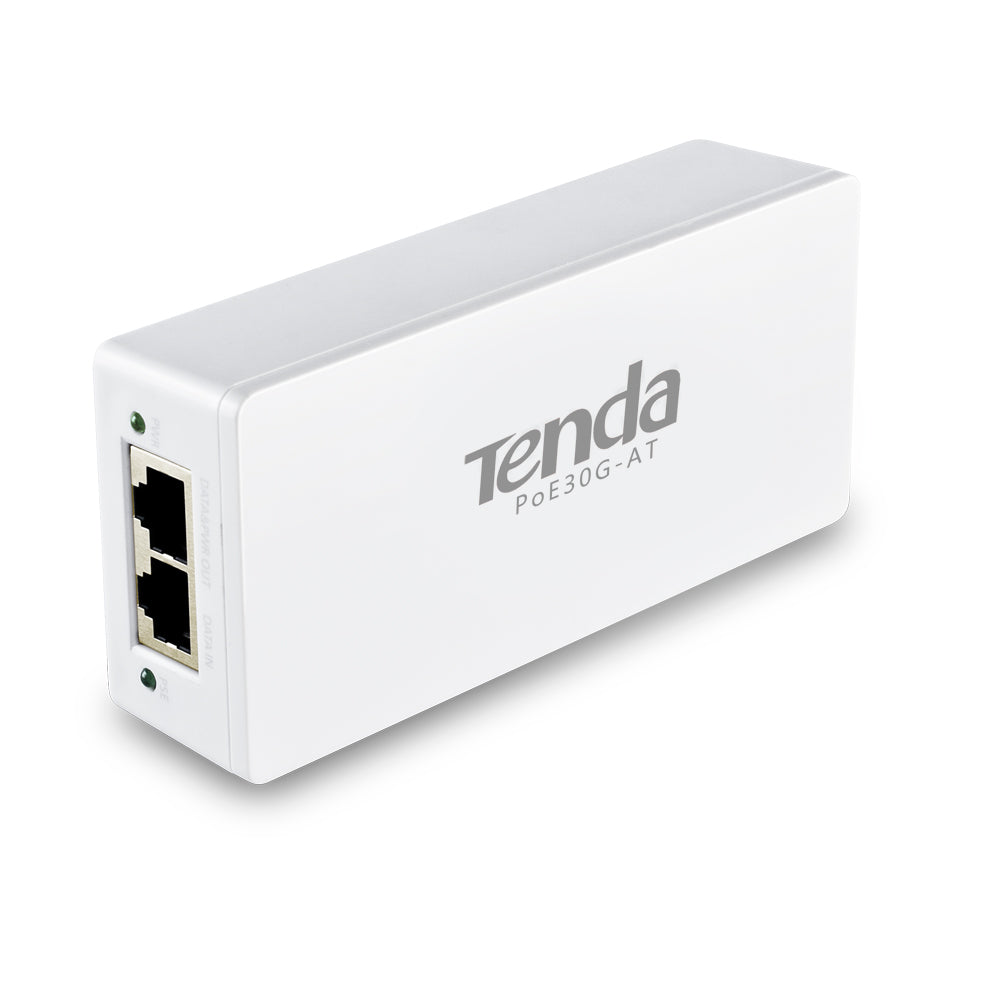

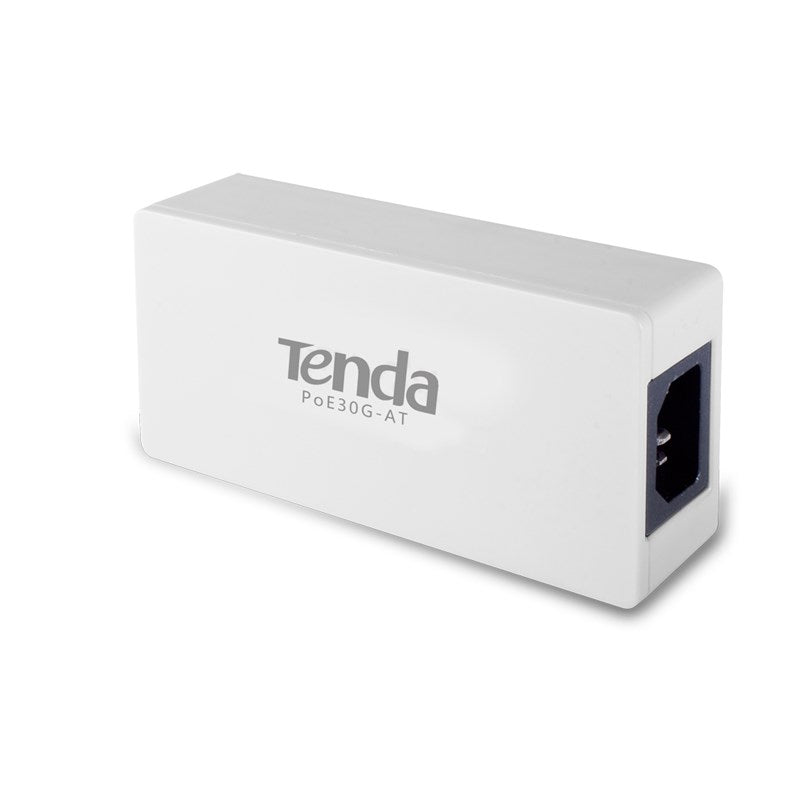

Tenda Gigabit High PoE Injector POE30G-AT
The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.
PoE Performance
PoE ports supports IEEE802.3at and IEEE802.3af standard Supports AT high power(30W)
Power supply distance extension
The standard cat’s power distance can be extended to 100 meters. The device can extend the range of PoE power over long distances, and simplify the deployment of power lines so that PD equipment can supply power.
Gigabit blazing-fast delivery
10/100M/1000Mbps autosensing RJ45 port provides fast data delivery, supports wire speed forwarding and MDI/MDIX, plug and play.
Stable performance
Adopts new chips solution, brings new performance experience, powerful data transfer and power
Network standards
LED indicators
Interfaces
Transmission media
Dimensions(L*W*H)
Level of protection
Forwarding mode
Transmission Rate
PoE budget
Power consumption
Input voltage
Mounting
Environment
Certificates
Tenda Gigabit High PoE Injector POE30G-AT
The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.
PoE Performance
PoE ports supports IEEE802.3at and IEEE802.3af standard Supports AT high power(30W)
Power supply distance extension
The standard cat’s power distance can be extended to 100 meters. The device can extend the range of PoE power over long distances, and simplify the deployment of power lines so that PD equipment can supply power.
Gigabit blazing-fast delivery
10/100M/1000Mbps autosensing RJ45 port provides fast data delivery, supports wire speed forwarding and MDI/MDIX, plug and play.
Stable performance
Adopts new chips solution, brings new performance experience, powerful data transfer and power
