Manhattan VGA Cat5/5e/6 Extender, 177344
SKU#: 177344
UPC#:766623177344
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Easily extends VGA and audio signals using Cat5/5e/6 cables for longer distance transmissions
- Helps provide more convenient placements from a single source to another display
- Supports VGA resolutions up to 1920 x 1200
- Delivers a sharp, clear signal with Gain and Peak adjustments
- Easy installation — no software required
- Three-Year Warranty
- Specs+
- Package Contents+
- VGA Cat5/5e/6 Extender
- Power adapters and instructions
- Reviews+
- Easily extends VGA and audio signals using Cat5/5e/6 cables for longer distance transmissions
- Helps provide more convenient placements from a single source to another display
- Supports VGA resolutions up to 1920 x 1200
- Delivers a sharp, clear signal with Gain and Peak adjustments
- Easy installation — no software required
- Three-Year Warranty
- VGA Cat5/5e/6 Extender
- Power adapters and instructions

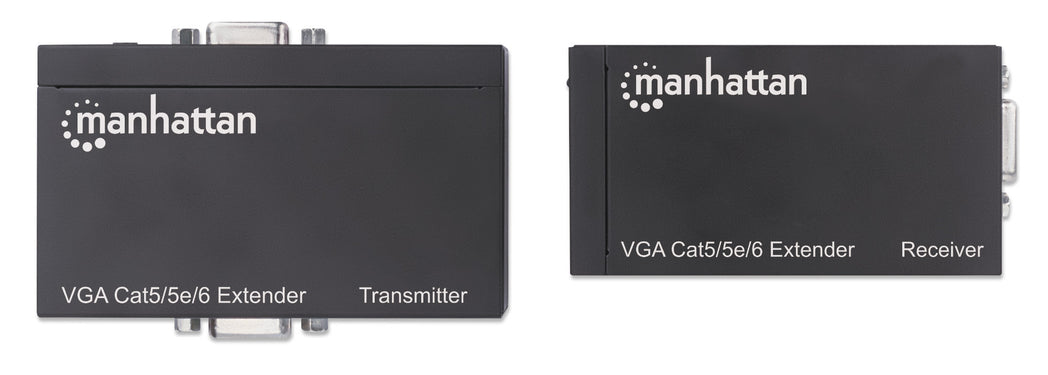

Manhattan VGA Cat5, Cat5e & Cat6 Extender
Extends video and audio signals up to 300 m (984 ft.)
Easily distribute a single VGA audio and video signal to another location.
The Manhattan VGA Cat5/5e/6 Extender helps lengthen VGA and audio signals from a single source to remote locations using Cat5/5e/6 cables.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan VGA Cat5/5e/6 Extender allows the remote placement of a display and speaker set from a single desktop or notebook computer source 300 m (984 ft.) away. Manual Gain and Peak adjustments help fine-tune images for optimum signal clarity. Easy to install and readily available, Cat5e or Cat6 twisted-pair cables when combined with the Manhattan VGA Cat5/5e/6 Extender help provide additional protection from external interference over longer distances and customized lengths without signal degradation.
Quality Construction and Easy Installation
Quickly connect Cat5e or Cat6 cables (not included) and the power supplies without software or hardware configuration or complicated settings to complete an affordable VGA distributed signal solution.
Standards and Certifications
- CE
- FCC
General
- Extends transmission range up to 300 m
- Supports up to 1920 x 1200 resolution and VGA, SVGA, Multisync signal types

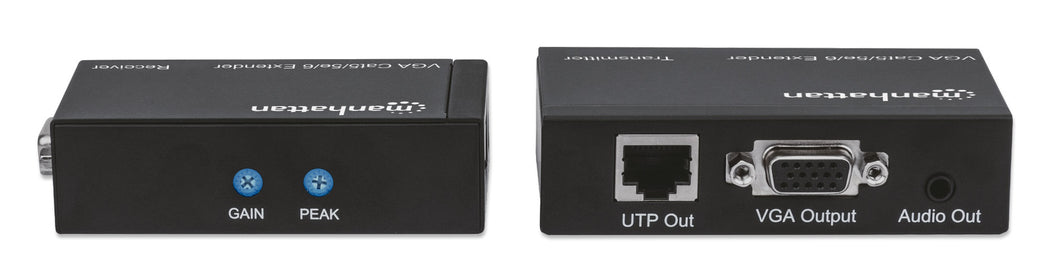

- Manual Gain and Peak adjustments (receiver)
- Pair of 5VDC / 2A power adapters included

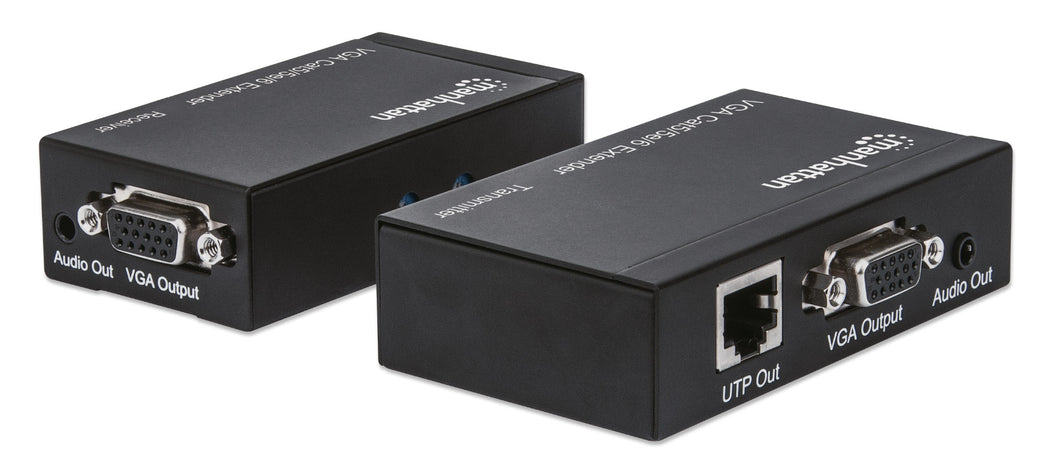

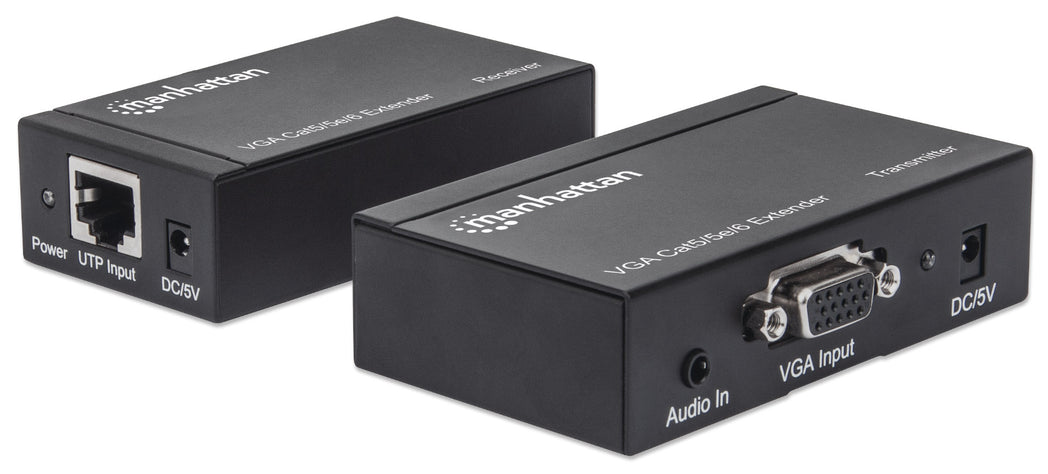

Connections (Receiver)
- HD15 female (out)
- RJ45 female (in)
- 2 3.5mm stereo jacks (audio out)
- 5VDC power jack

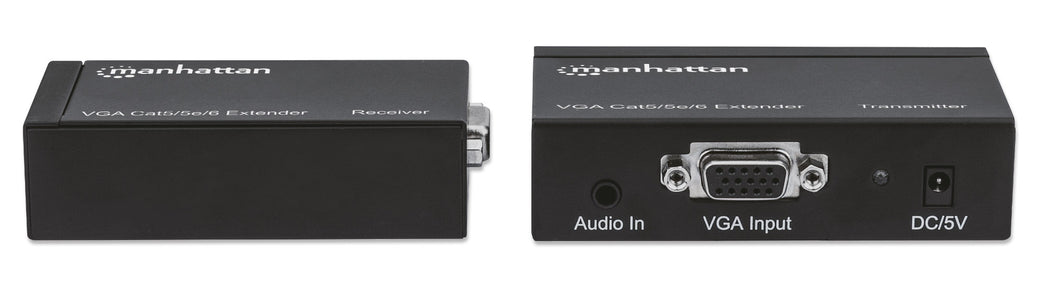

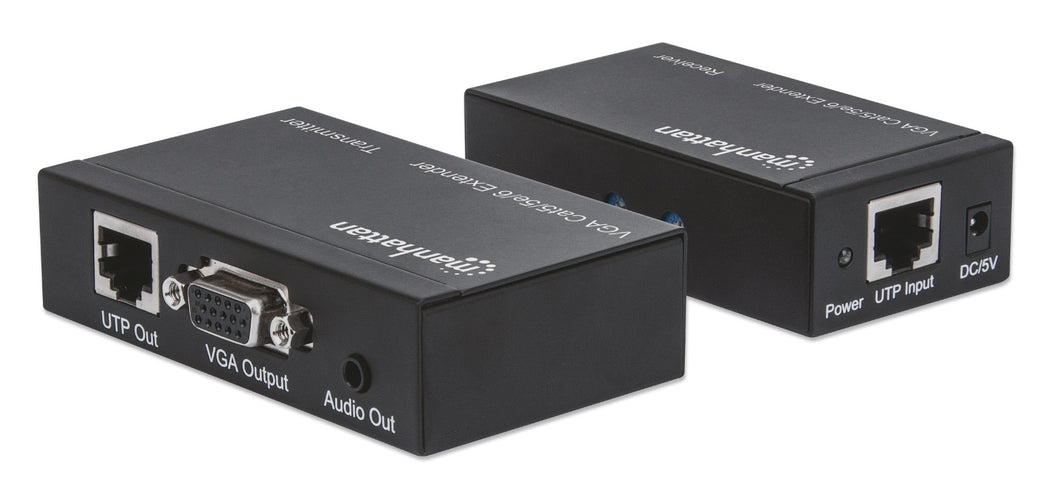

Connections (Transmitter)
- HD15 female (out)
- HD15 female (in)
- 2 3.5mm stereo ports (in/out)
- RJ45 (output)
- 5VDC power jack
Video Signal
- Signal type: VGA
- Input voltage: 0.5 V p-p / 2.0 V p-p (minimum/maximum)
- I/O impedance: 75 Ω
Resolution and Range
- 640 x 480 300 m
- 800 x 600 300 m
- 1024 x 768 200 m
- 1280 x 720 200 m
- 1280 x 768 200 m
- 1280 x 960 200 m
- 1280 x 1024 200 m
- 1600 x 900 100 m
- 1600 x 1200 100 m
- 1920 x 1080 100 m
- 1920 x 1200 10 m
Physical (Receiver and Transmitter)
- Dimensions, receiver: 81.5 x 43 x 23 mm (3.2 x 1.7 x 0.9 in.)
- Weight, receiver: 108 g (3.8 oz.)
- Dimensions, transmitter: 100 x 65 x 25 mm (3.9 x 2.5 x 1 in.)
- Weight, transmitter: 208 g (7.3 oz.)
- Housing: metal
