Intellinet Gigabit Ultra PoE Splitter with USB-C Output, 561693
SKU#: 561693
UPC#:766623561693Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from an IEEE 802.3bt/at/af PoE connection
- Delivers Gigabit Ethernet to an RJ45-equipped device
- PoE power budget of 45 W with 60 W power input through IEEE 802.3bt connection
- PoE power budget of 23 W through IEEE 802.3at connection and 12 W through IEEE 802.3af connection
- Saves time and money by delivering data and power via existing network cables
- Overload, overcurrent and overheat protection
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Fully NDAA-compliant
- Three-year warranty
- Specs+
- Package Contents+
- Gigabit Ultra PoE Splitter with USB-C Output
- Instructions
- Reviews+
- Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from an IEEE 802.3bt/at/af PoE connection
- Delivers Gigabit Ethernet to an RJ45-equipped device
- PoE power budget of 45 W with 60 W power input through IEEE 802.3bt connection
- PoE power budget of 23 W through IEEE 802.3at connection and 12 W through IEEE 802.3af connection
- Saves time and money by delivering data and power via existing network cables
- Overload, overcurrent and overheat protection
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Fully NDAA-compliant
- Three-year warranty
- Gigabit Ultra PoE Splitter with USB-C Output
- Instructions

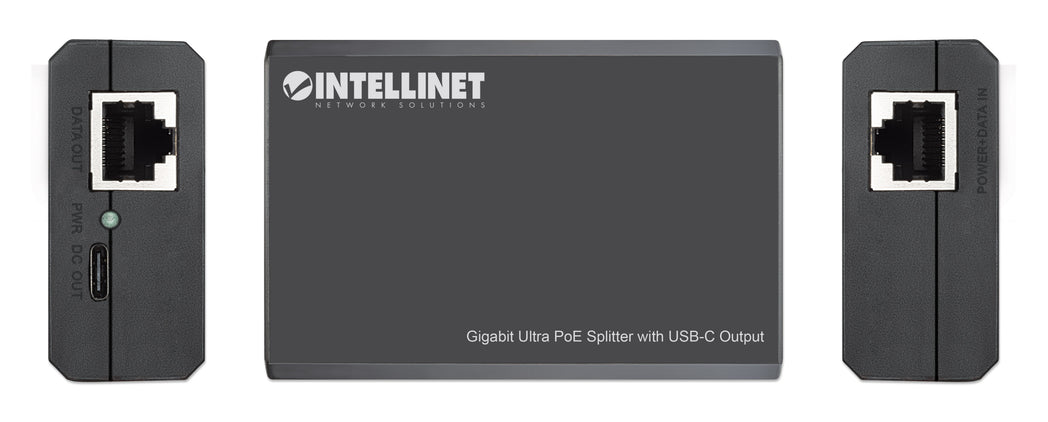

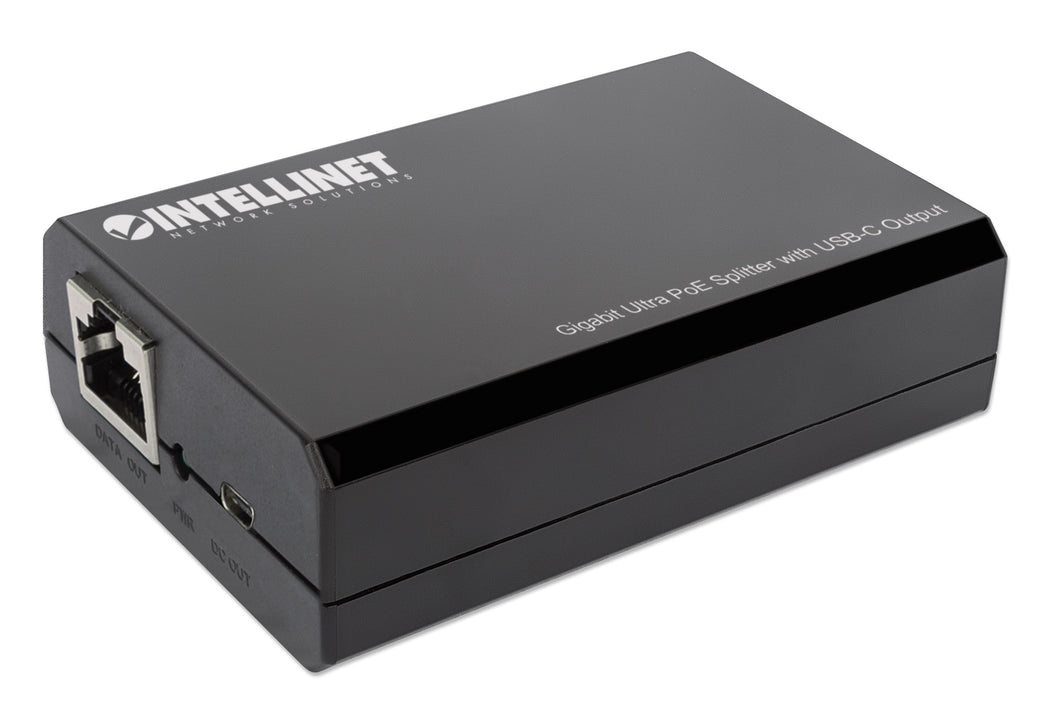

Intellinet Gigabit Ultra PoE Splitter with USB-C Output
Note: This product has been discontinued.
IEEE 802.3bt (PoE++ / 4PPoE) Compliant, RJ45 In and Out Ports, Up to 45 W USB-C Output Port, Plastic Housing
Power over Ethernet Splitter - Get up to 45 W USB-C power and deliver Gigabit speeds to an RJ45 device

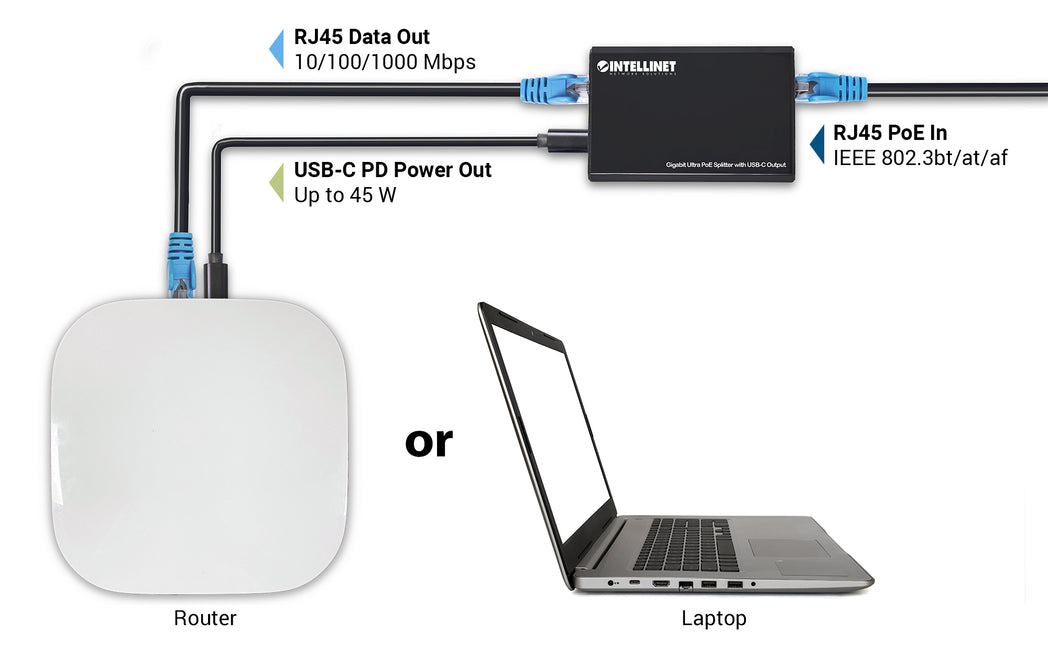

Use your existing PoE network connection to charge a USB-C powered device such as a notebook, Macbook Pro®, Ultrabook™ or tablet with this Gigabit Ultra PoE Splitter from Intellinet Network Solutions. Connected via a single RJ45 network cable to an IEEE 802.3bt-compliant PoE injector or PoE switch, this PoE++ Splitter (4PPoE) separates the Ethernet connection from the power coming through the cable and outputs them into separate ports for USB-C Power Delivery (PD) up to 45 W and Gigabit Ethernet. For maximum safety, it offers overload, overcurrent and overheat protection while being backward compatible with IEEE 802.3at and IEEE 802.3af, so the Ultra PoE Splitter can support any PoE connection
Standards
- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (High-Power PoE+ Power over Ethernet)
- IEEE 802.3bt (Ultra PoE++/4PPoE Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
General
- Media support:
- 10Base-T Cat5e UTP/STP RJ45, 8 pin
- 100Base-TX Cat5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
- Ports:

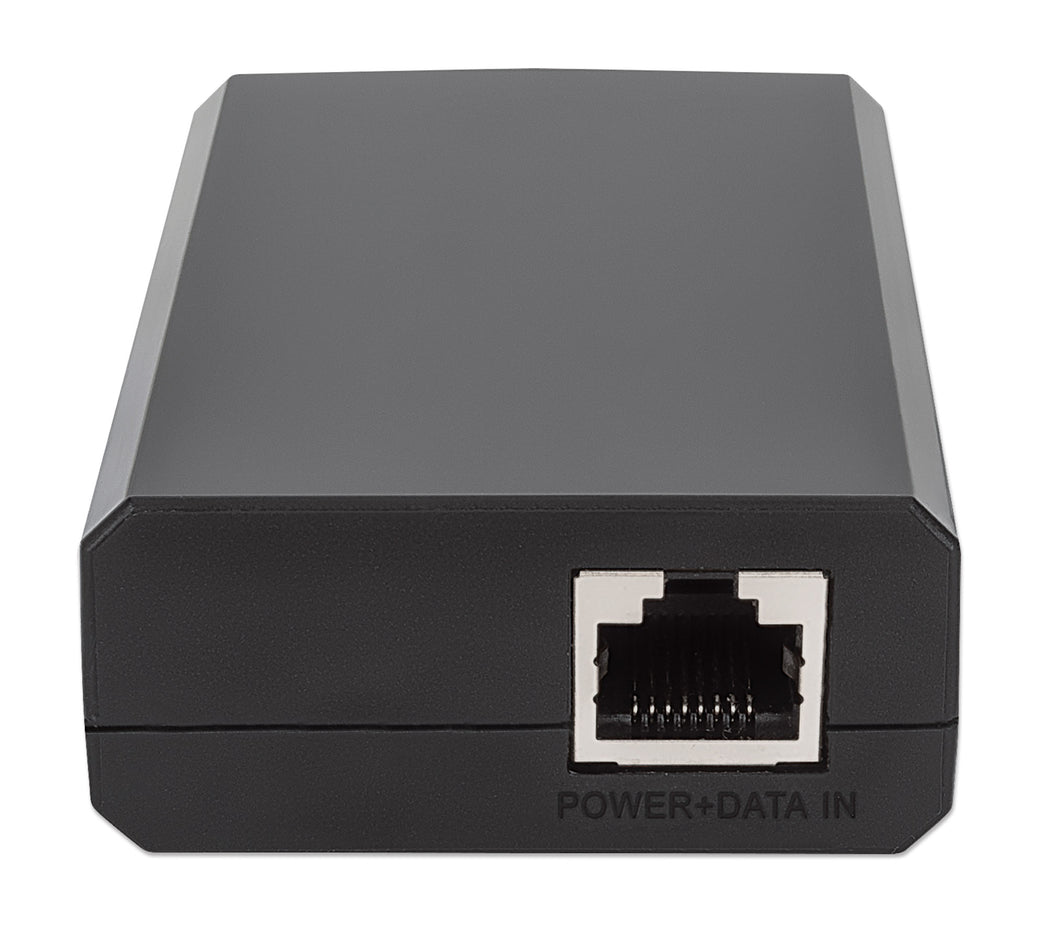

- One RJ45 10/100/1000 Mbps PoE input port

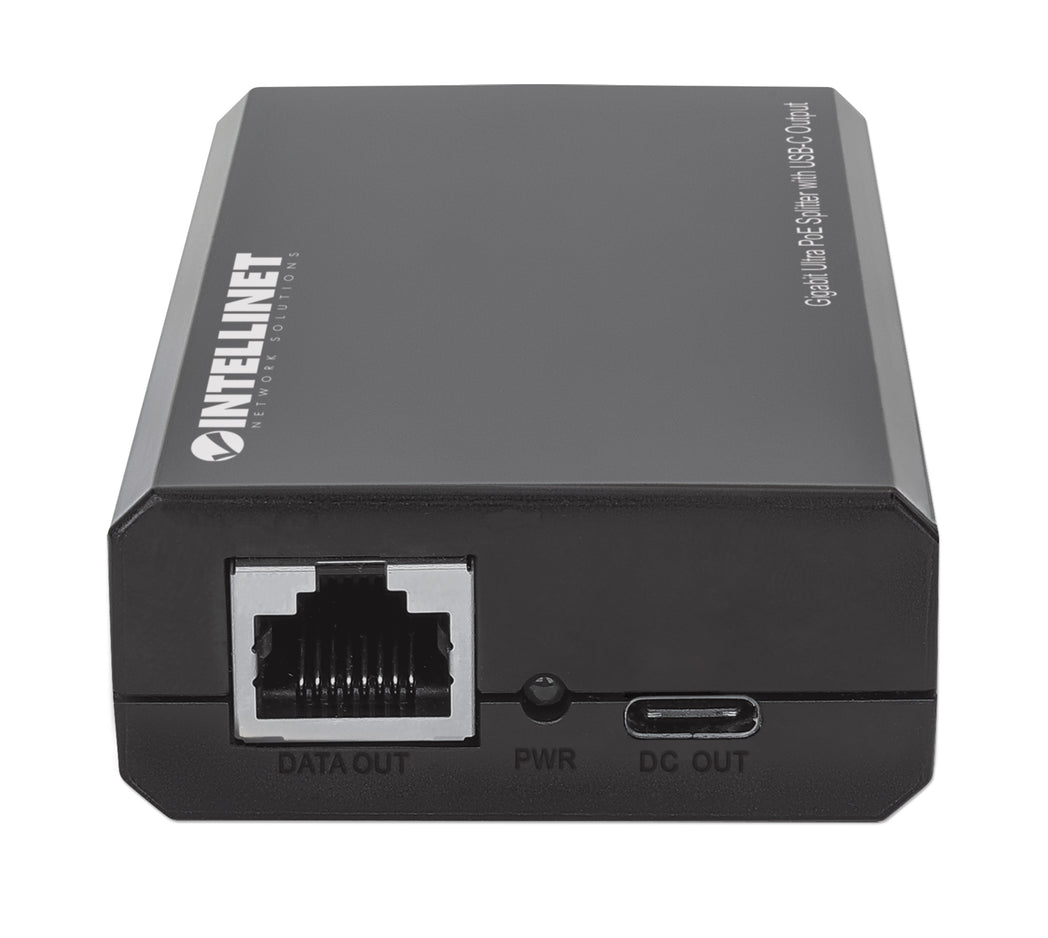

- One RJ45 10/100/1000 Mbps output port
- One USB-C DC power output port
- Certifications: FCC Class B, CE, RoHS, UKCA, NDAA
Power
- Max. USB-C Power Delivery (PD) output power - 45 W:
- 5 V / 3 A
- 9 V / 3 A
- 12 V / 3 A
- 15 V / 3 A
- 20 V / 2.25 A
- Input power: IEEE 802.3bt/at/af compliant PSE, 51.0 W max., 36.0 - 57.0 VDC
Protection Characteristics
- Short-circuit (SCP) with auto-recovery mode
- Overvoltage (OVP) with auto-recovery mode
- Overcurrent (OCP) — current limit: 150% (max)
- Over-temperature (OTP)
Environmental
- Plastic housing
- Dimensions: 80 x 54 x 24 mm (3.14 x 2.13 x 0.94 in.)
- Weight: 170 g (0.37 lbs.)
- Operating temperature: 0 - 40°C (32 - 104°F)
- Storage temperature: -20 - 70°C (-4 - 158°F)
- Operating humidity: 5 - 95% RH, non-condensing
