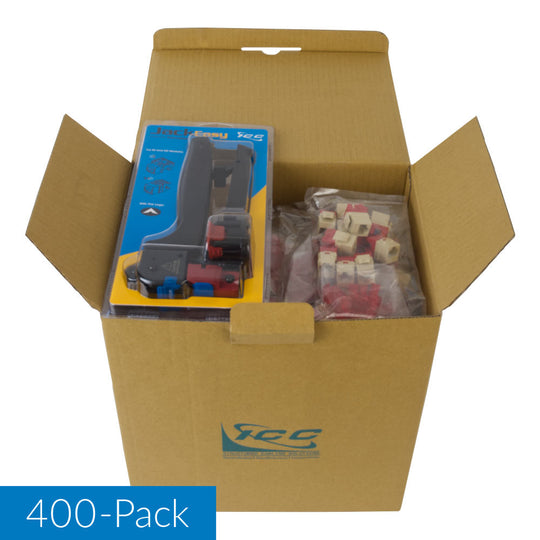

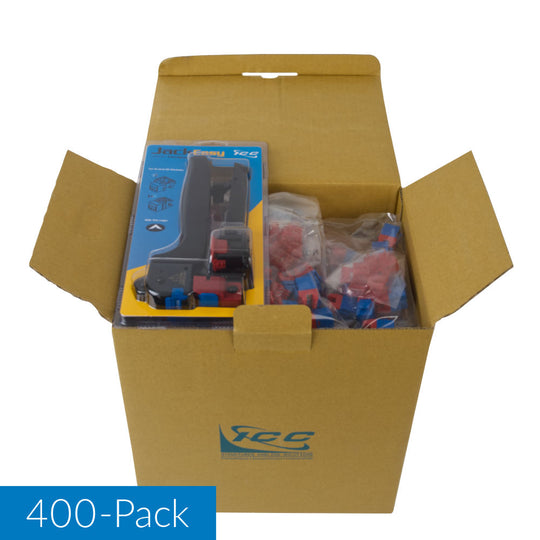

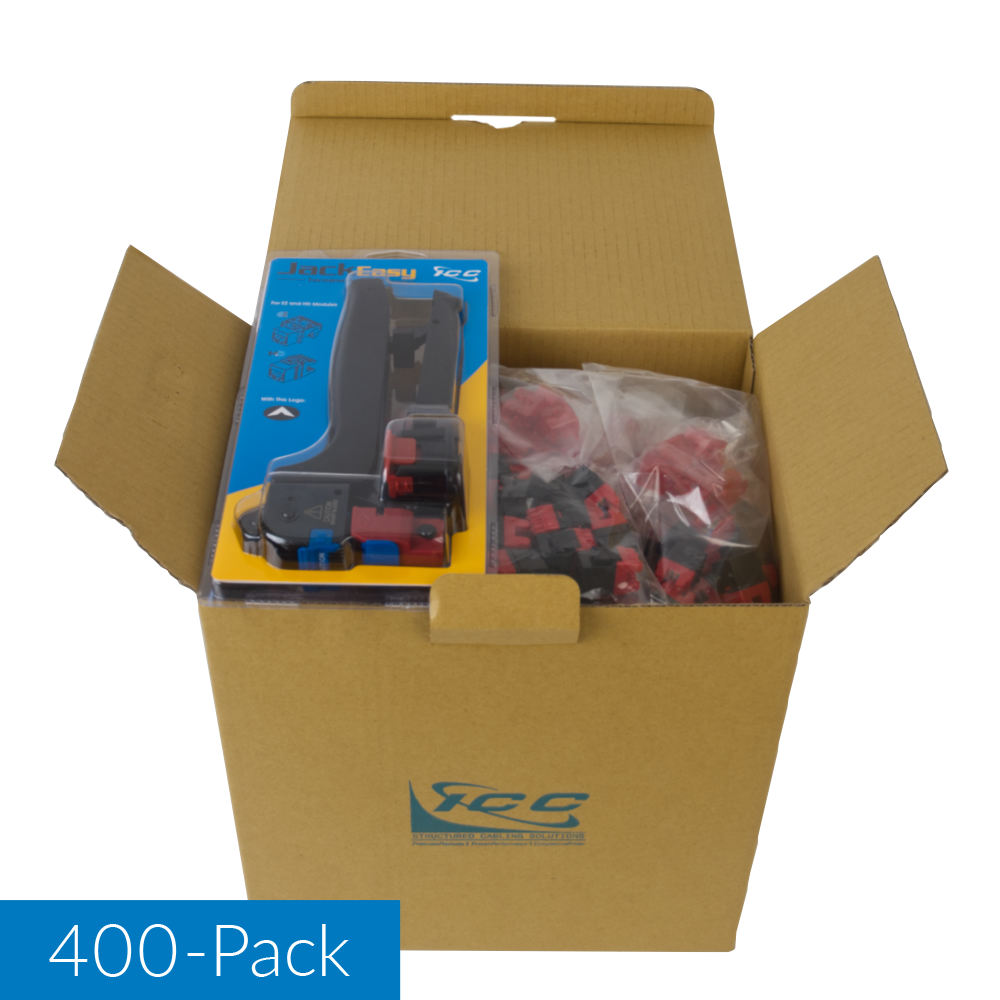

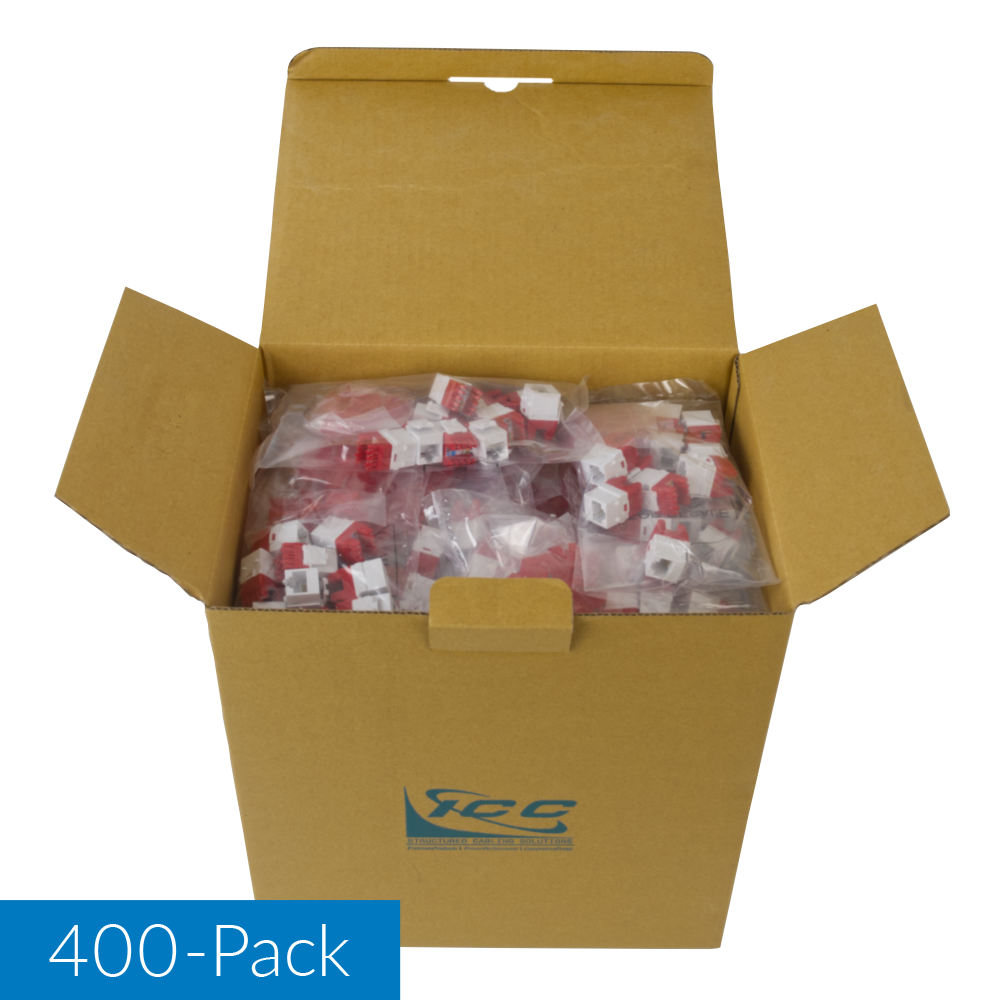

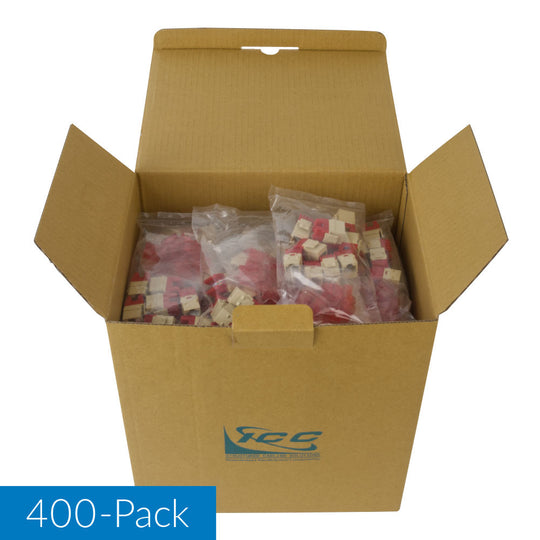

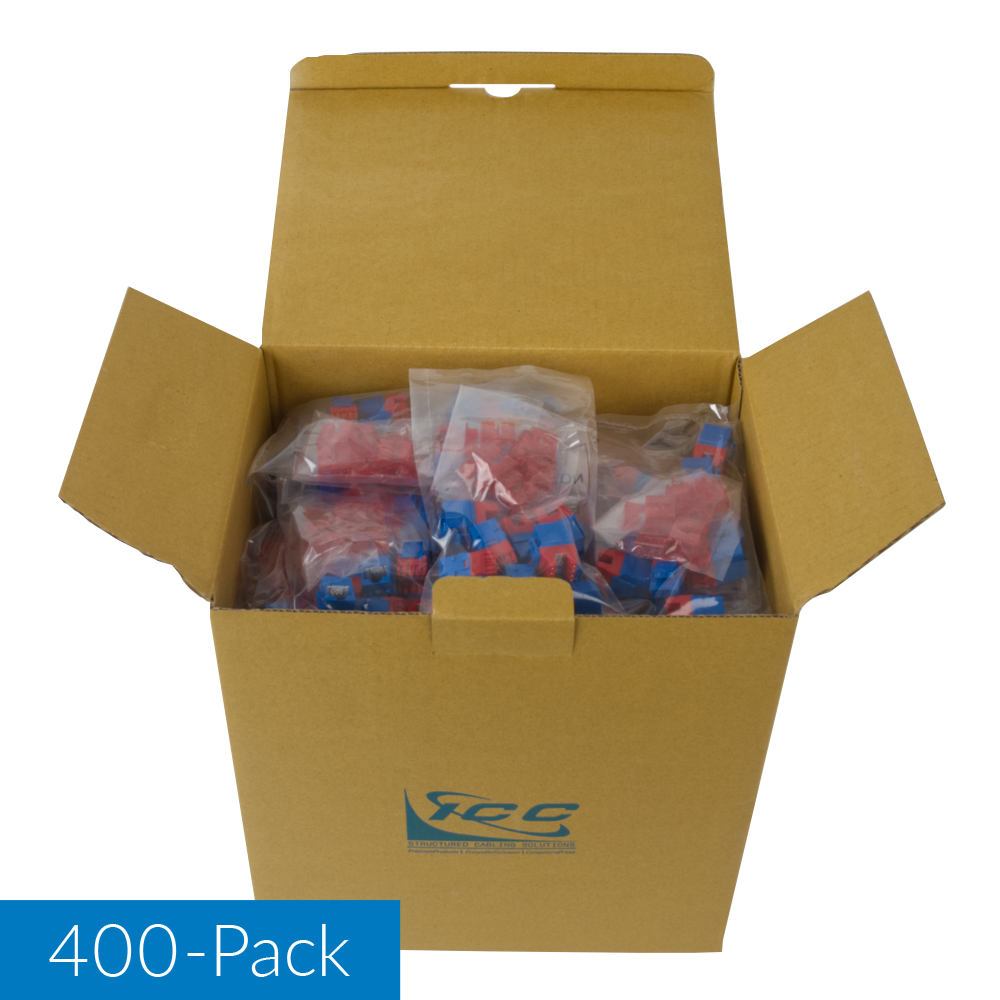

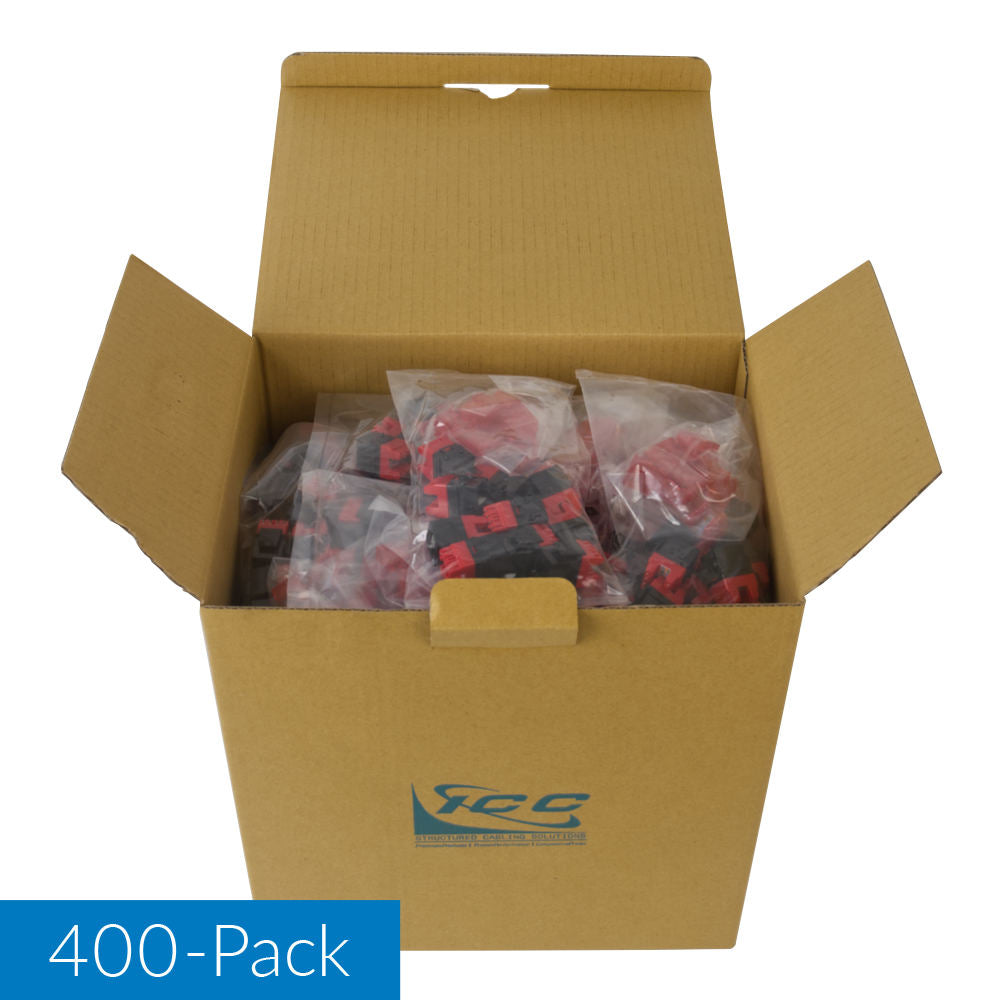

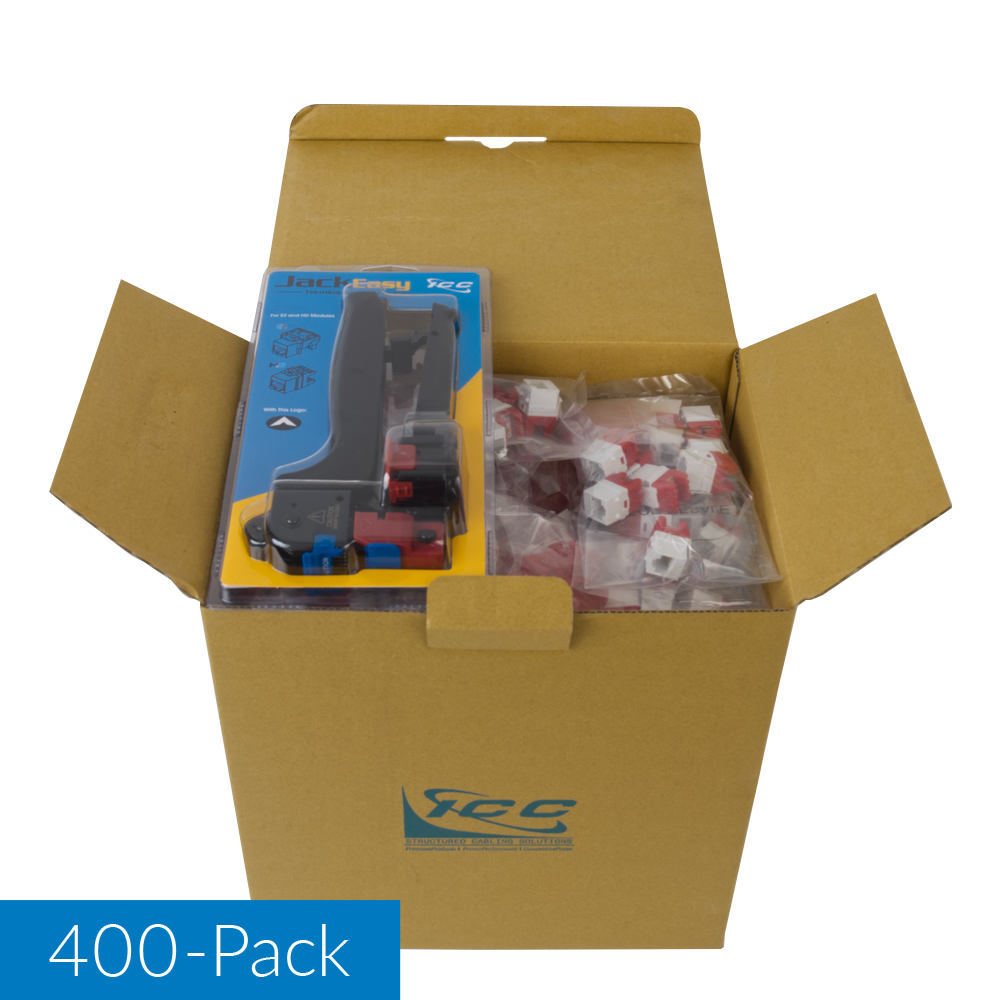

ICC Cat6 RJ45 Keystone Jack for HD Style, 400 Pack

SKU#: IC107F6RBK

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: IC107F6RBK

UPC#:
$1,012.98

SKU#: IC107F6RBK

UPC#:
Packaging:
Color:
Black
Blue
Ivory
White

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+

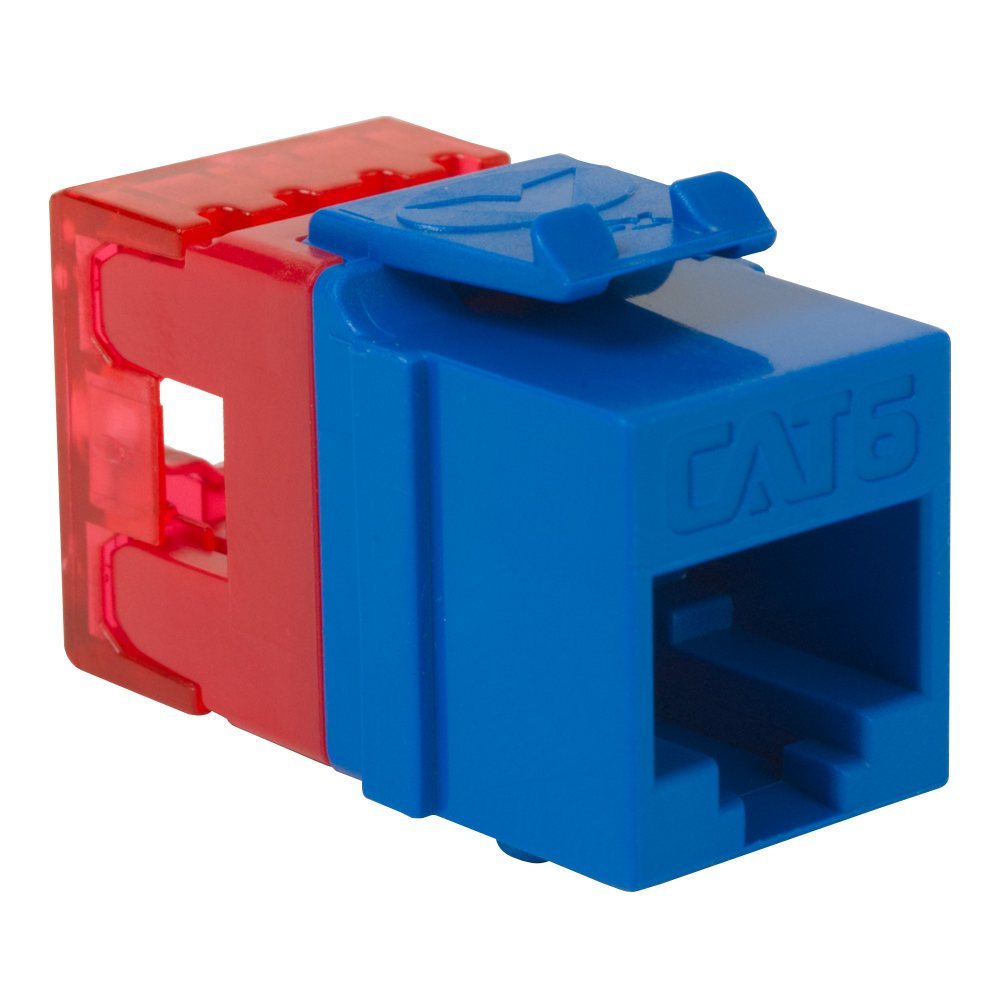

  • ICC Cat6 RJ45 Keystone Jack for HD Style - UL 1863 Compliant

    CAT6 High Density (HD) Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The Category 6 HD design offers a smaller rear footprint maximizing space in confined work areas.

  • Features+
    • CAT6 rated connectors provide excellent performance for data networks.
    • PCB technology provides maximum performance and superior signal quality.
    • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
    • Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements.
    • Designed with rear split back 110 IDC reducing termination time.
    • Terminate with 110 punch down tool or JackEasy Termination Tool.
    • Reduced rear footprint allows for greater connectivity density.
    • Provides for more port configurations in a smaller area.
    • Includes an integrated TIA-568A/B color wiring diagram.
    • Backward compatible with all lower rated category components.
    • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
    • Used with Category 6 patch cords.
    • Exceeds ANSI/TIA-568-C requirements for permanent performances.
    • UL 1863 Compliant.
  • Specs+
  • Material:

    • Termination Cap: PC, UL 94V-0
    • Housing: ABS, UL 94V-0

    Electrical:

    • Current Rating: 1.5 amps
    • Insulation Resistance: 500 mohms min
    • Contact Resistance: 20 mohms max
    • DC Resistance: 0.1-ohm max

    Mechanical:

    • Plug Insertion Life: 750 cycles min
    • Plug and Jack Contact Force: 100 grams min
    • Using FCC approved plug
    • Plug Retention Force: 30 lbs min
    • Temperature: -40° to 150° F (-40° to 68° C)

    Physicals:

    • Jack Wiring: 50 Micro Inches of Gold over 100 Micro Inches of Nickel
    • Connector: Insulation Displacement Connection (IDC)
    • Accepts 22-24 AWG Solid Wire

    Color:

    • Color: Transparent Red
    • Color: XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, & YL-Yellow
  • Reviews+
  • ICC Cat6 RJ45 Keystone Jack for HD Style - UL 1863 Compliant

    CAT6 High Density (HD) Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The Category 6 HD design offers a smaller rear footprint maximizing space in confined work areas.

    • CAT6 rated connectors provide excellent performance for data networks.
    • PCB technology provides maximum performance and superior signal quality.
    • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
    • Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements.
    • Designed with rear split back 110 IDC reducing termination time.
    • Terminate with 110 punch down tool or JackEasy Termination Tool.
    • Reduced rear footprint allows for greater connectivity density.
    • Provides for more port configurations in a smaller area.
    • Includes an integrated TIA-568A/B color wiring diagram.
    • Backward compatible with all lower rated category components.
    • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
    • Used with Category 6 patch cords.
    • Exceeds ANSI/TIA-568-C requirements for permanent performances.
    • UL 1863 Compliant.

    Material:

    • Termination Cap: PC, UL 94V-0
    • Housing: ABS, UL 94V-0

    Electrical:

    • Current Rating: 1.5 amps
    • Insulation Resistance: 500 mohms min
    • Contact Resistance: 20 mohms max
    • DC Resistance: 0.1-ohm max

    Mechanical:

    • Plug Insertion Life: 750 cycles min
    • Plug and Jack Contact Force: 100 grams min
    • Using FCC approved plug
    • Plug Retention Force: 30 lbs min
    • Temperature: -40° to 150° F (-40° to 68° C)

    Physicals:

    • Jack Wiring: 50 Micro Inches of Gold over 100 Micro Inches of Nickel
    • Connector: Insulation Displacement Connection (IDC)
    • Accepts 22-24 AWG Solid Wire

    Color:

    • Color: Transparent Red
    • Color: XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, & YL-Yellow
