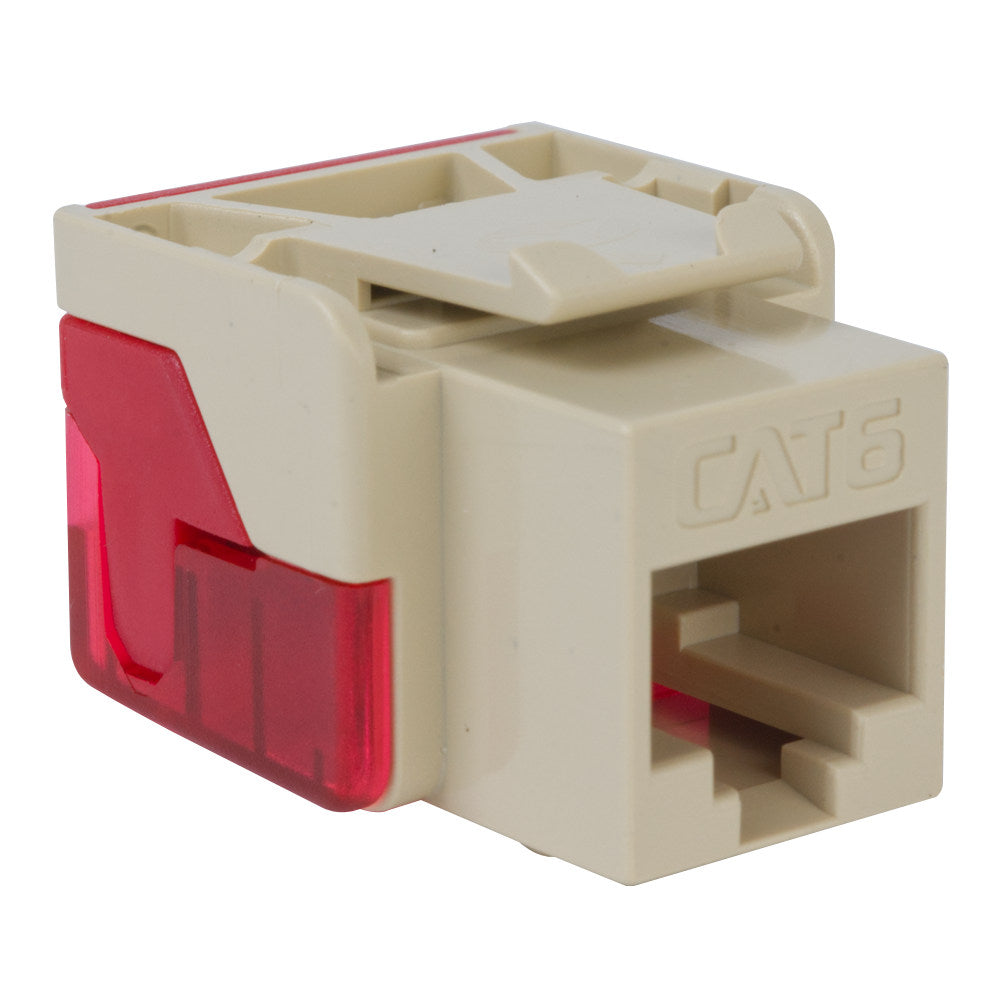

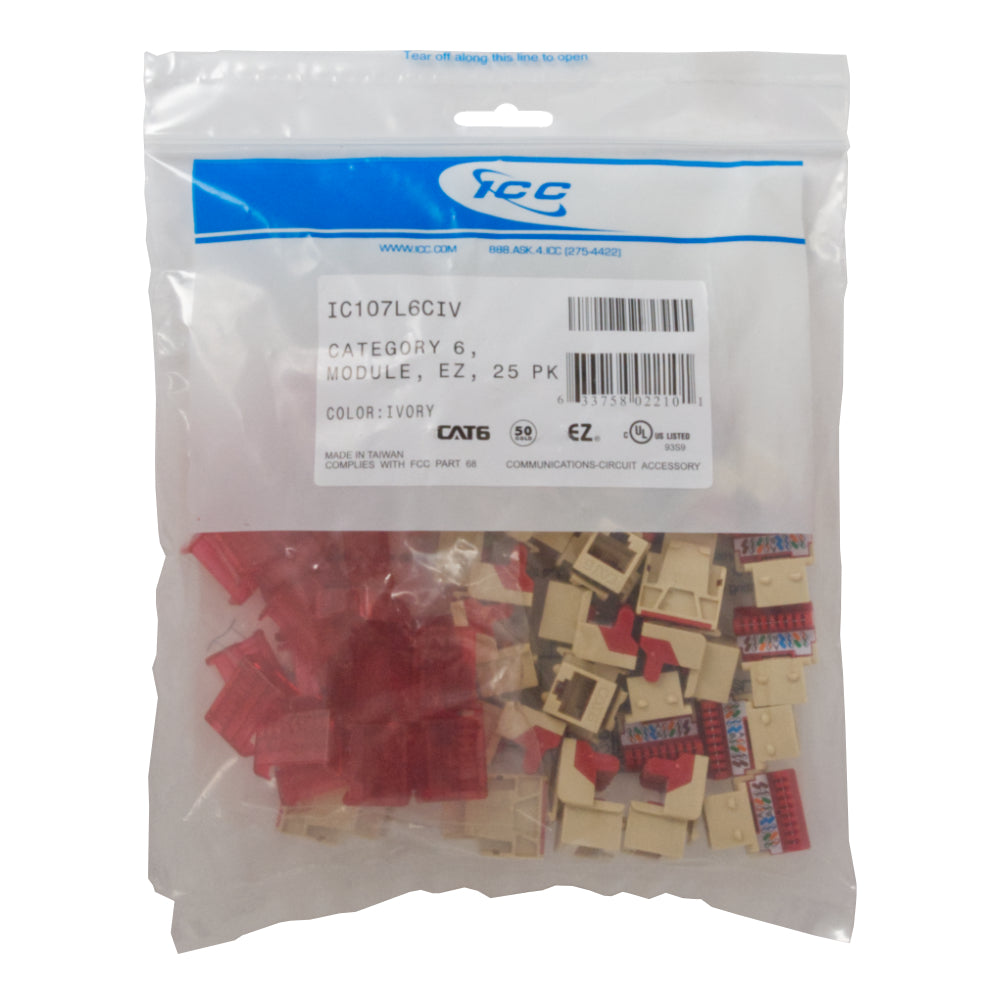

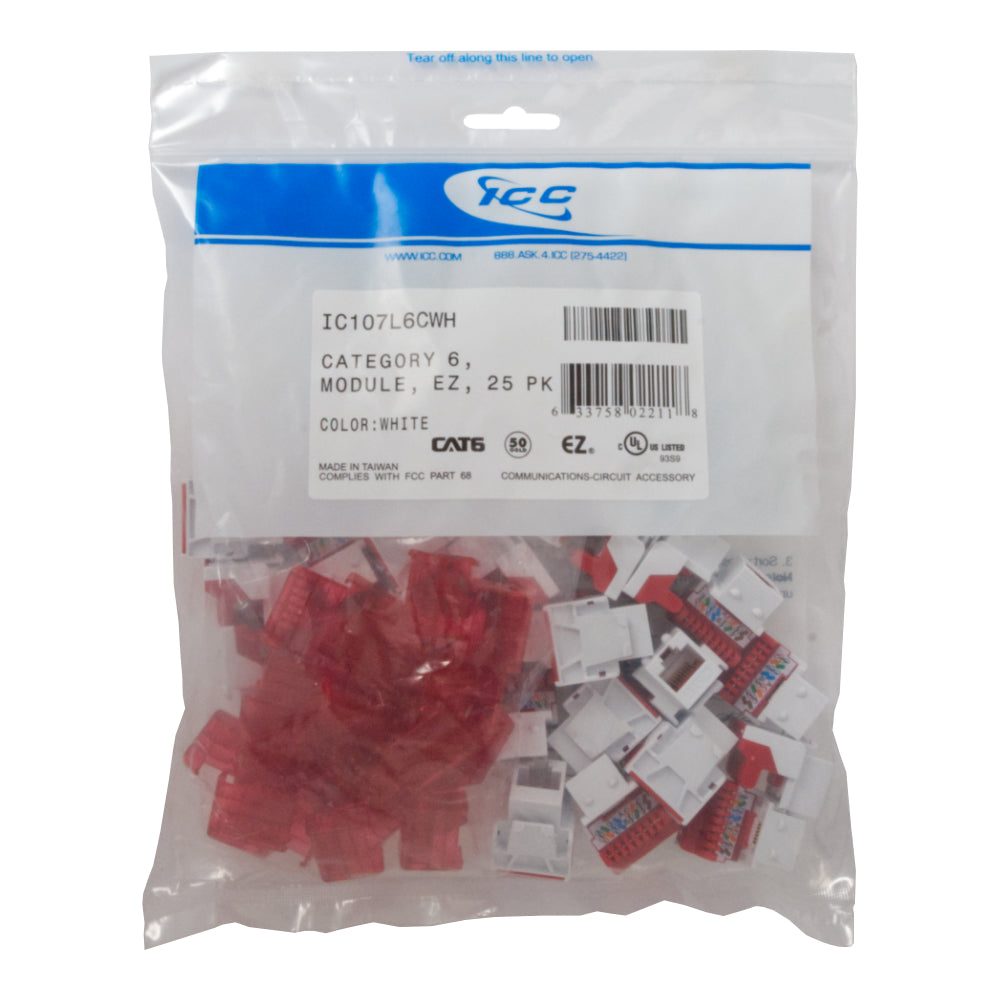

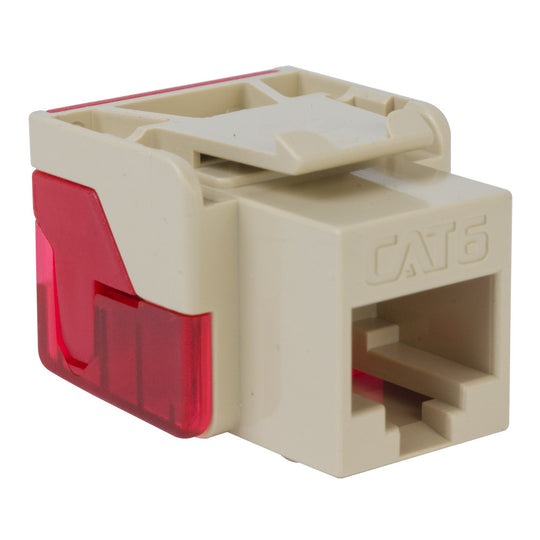

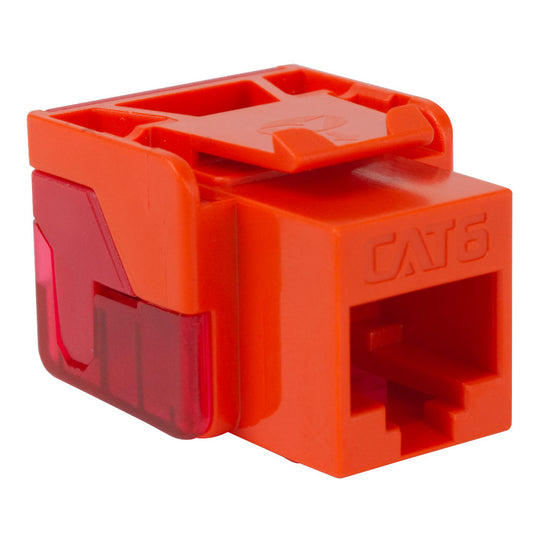

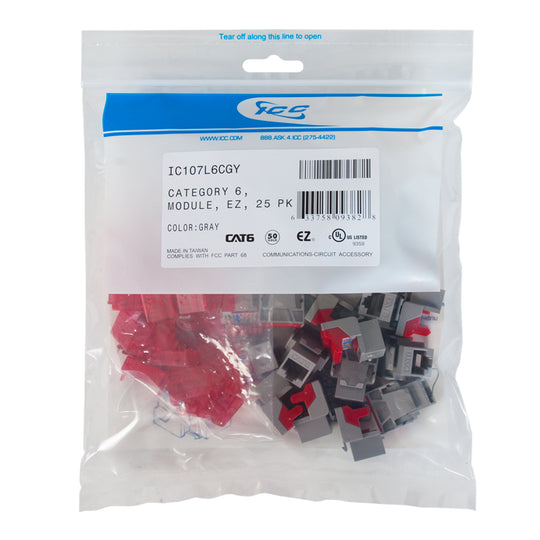

ICC Cat6 EZ Modular Keystone Jack 25 Pack

SKU#: IC107L6CBL

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Regular price Our Price   $71.99

Sale   $61.19
Color:
Blue
White

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

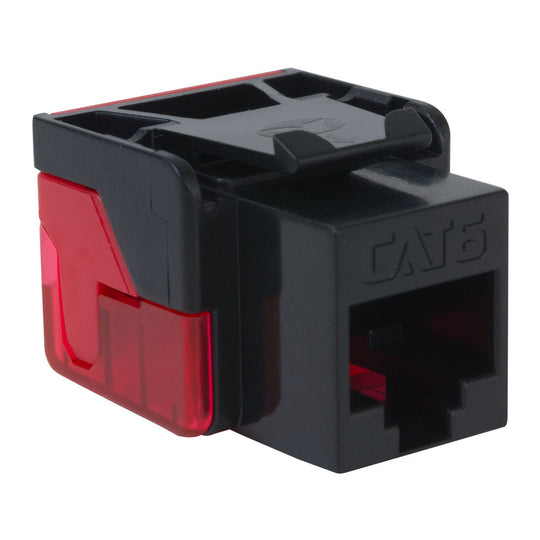

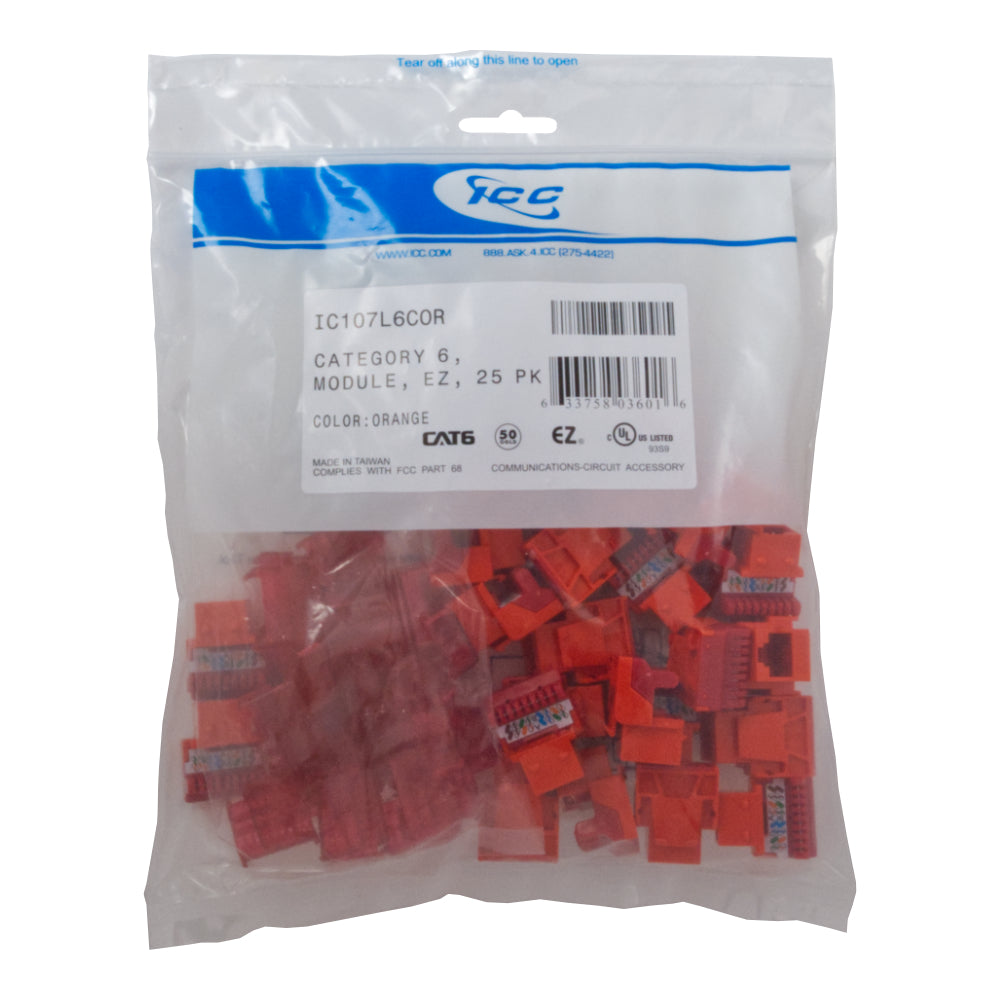

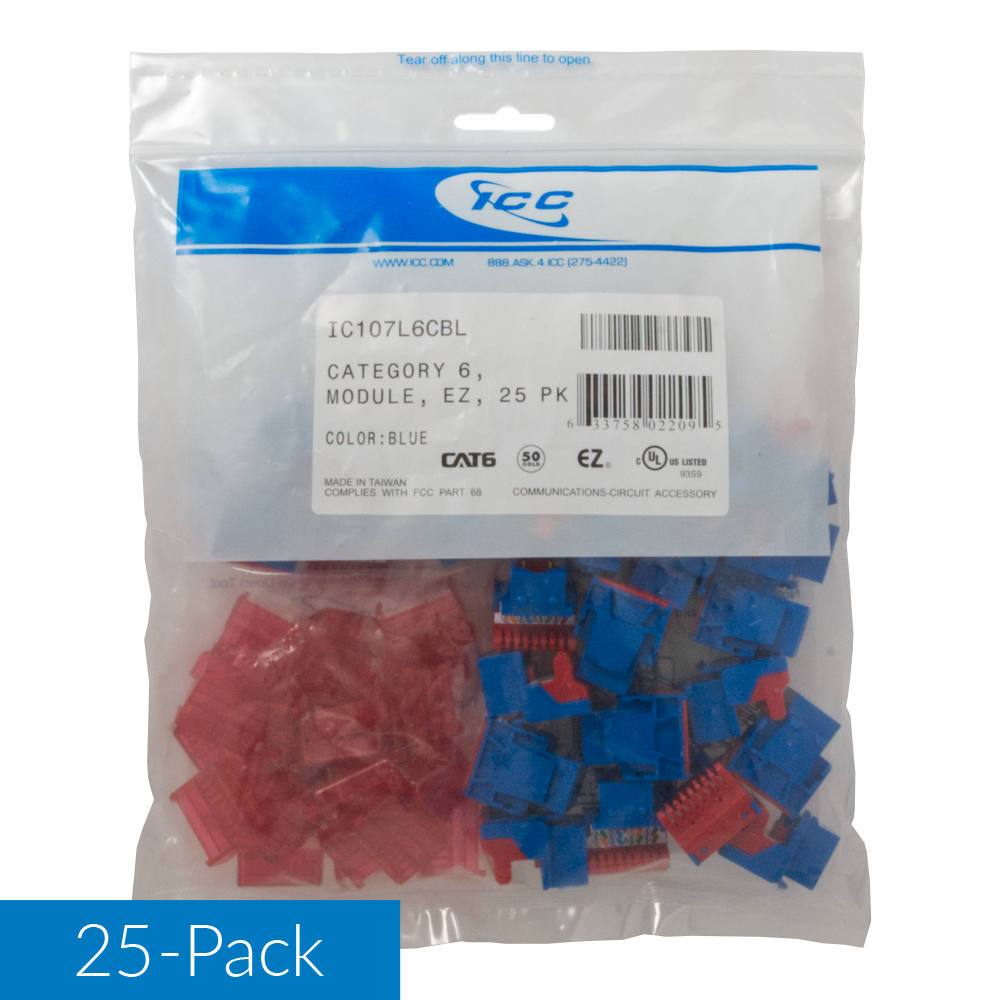

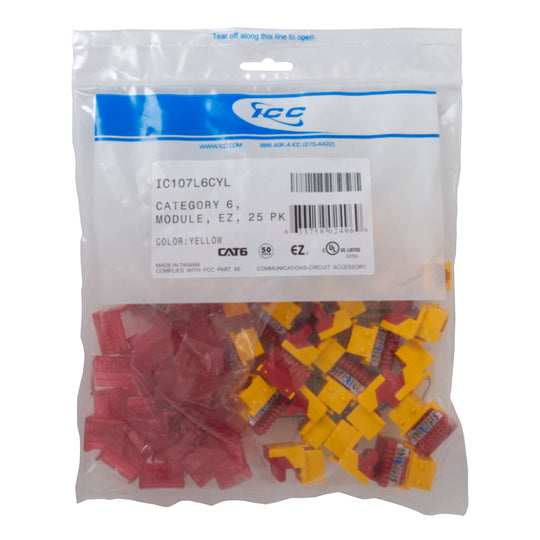

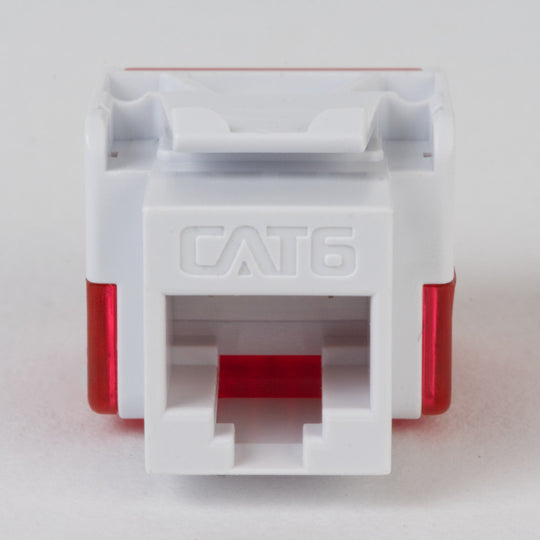

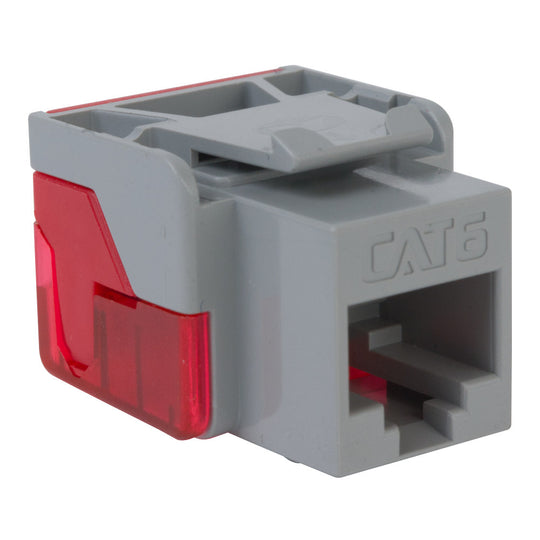

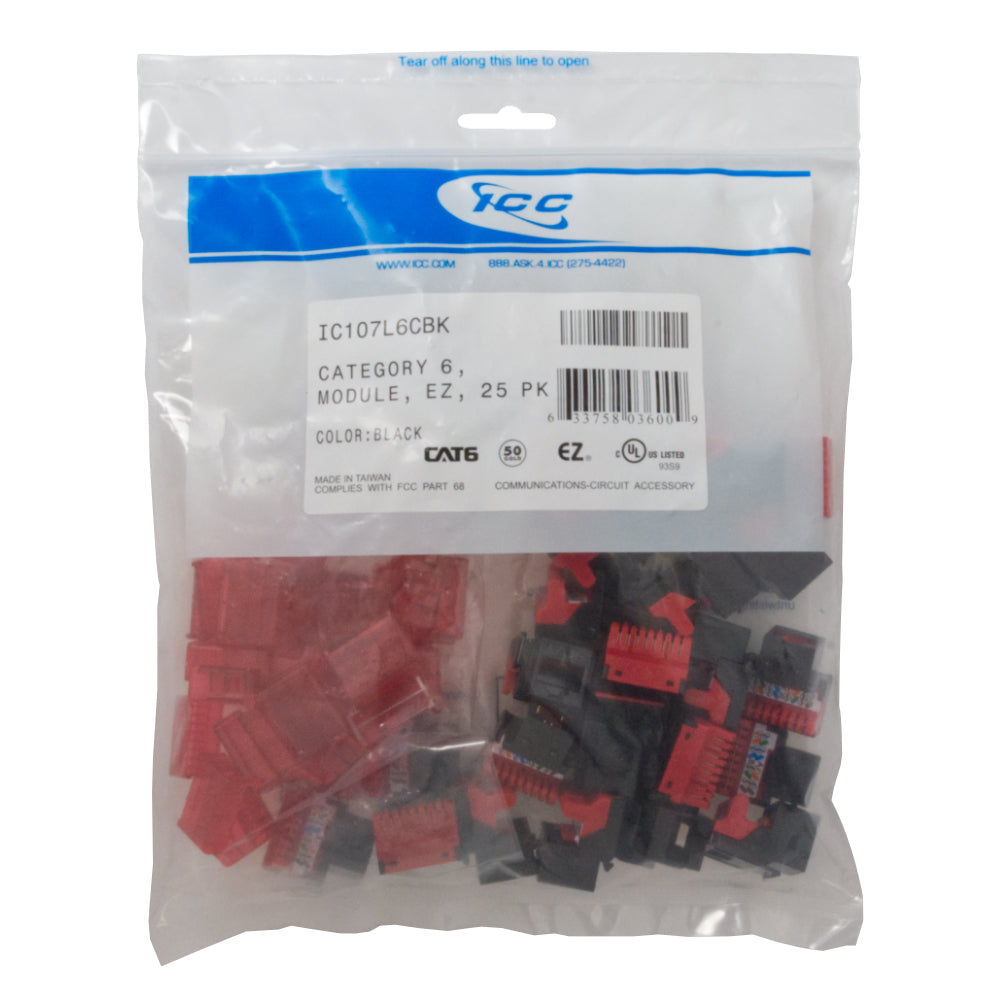

The ICC IC107L6C Cat6 EZ Modular Keystone Jack 25 Pack comes with 25 8-position, 8-conductor (8P8C) modular connectors. It provides outstanding performance and reliability and supports up to Gigabit Ethernet applications. These keystone jacks are easy to terminate, simplifying installation and reducing work time.

Features+

  • CAT6 rated connectors provide excellent performance.
  • Data networks requiring max speed and bandwidth.
  • PCB technology provides maximum performance and superior signal quality.
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.

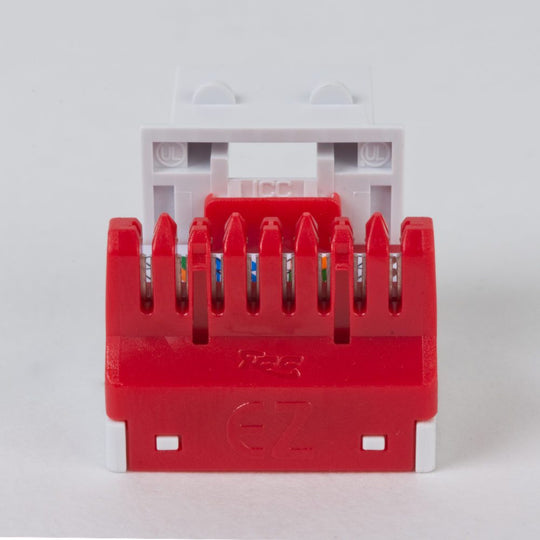

  • Designed with in-line 110 IDC, in-sequence termination reducing termination time.
  • Terminate with 110 punch down tool or JackEasy Termination Tool.

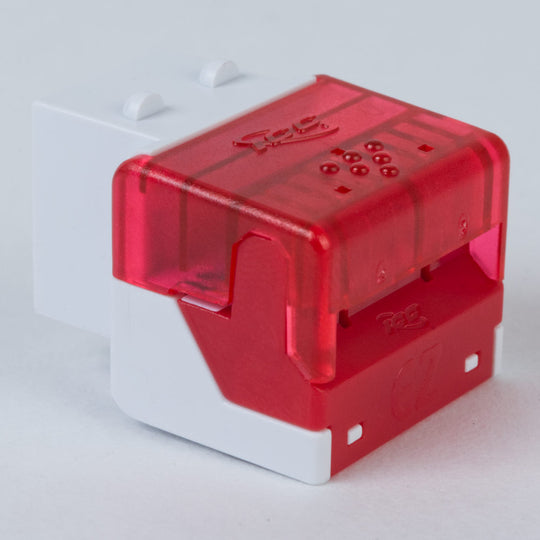

  • One piece termination cap allows for a quick and easy termination.

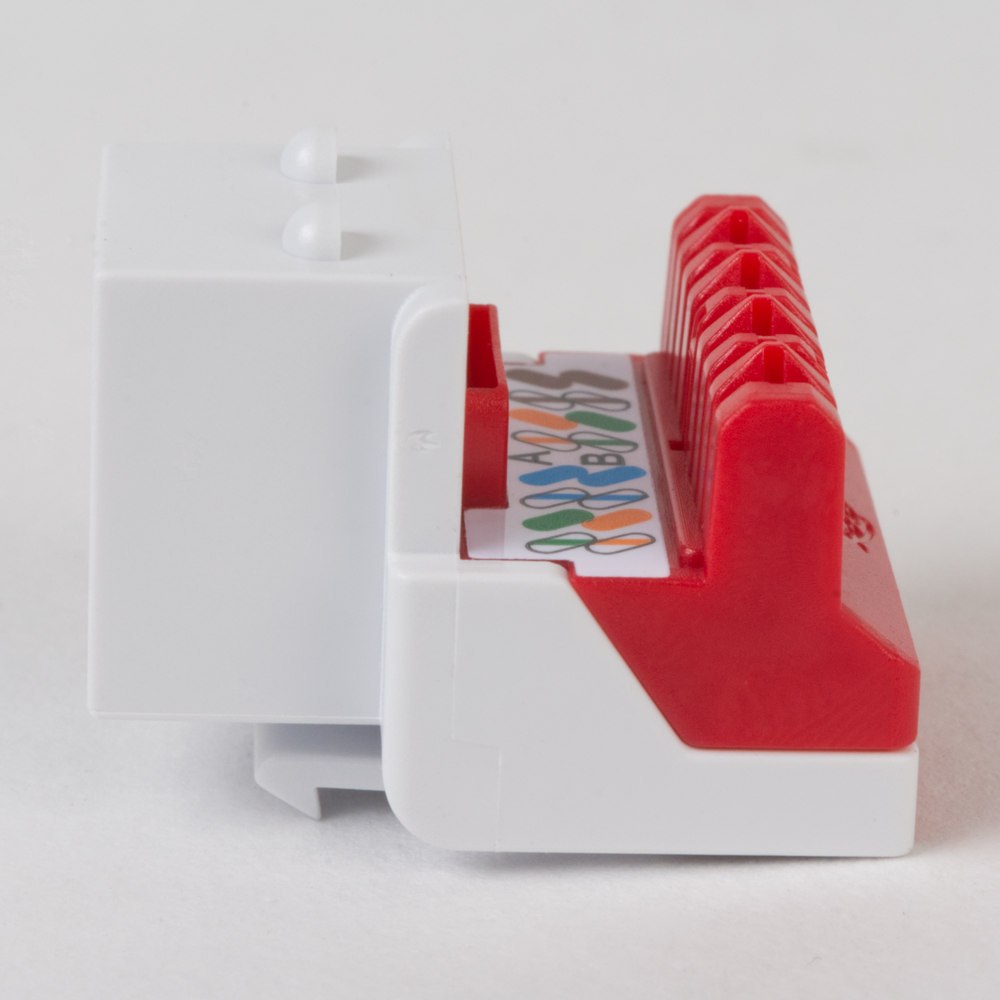

  • Includes an integrated TIA-568A/B color wiring diagram.
  • Backward compatible with all lower rated category components.
  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • Used with ICC Category 6 patch cords.
  • Exceeds ANSI/TIA-568-C requirements for permanent performances.
  • UL 1863 Compliant.

Specs+

  • Current Rating: 1.5 Amps
  • Insulation Resistance: 500 mOhms Min
  • Contact Resistance: 20 mOhms Max
  • DC Resistance: 0.1 ohms Max
  • Exceeds Category 5E Connecting Hardware Requirements
  • Plug Insertion Life: 750 Cycles Min
  • Plug and Jack Contact Force: 100 Grams Min Using FCC Approved Plug
  • Plug Retention Force: 30 lbs Min
  • Temperature: -40°F to 150°F (-40°C to 68°C)
  • Housing: ABS, UL 94V-0
  • Jack Wiring: 50 Micro Inches Gold over 100 Micro Inches Nickel
  • Connector: Insulation Displacement Connector (IDC)
  • Accepts 22-24 AWG Solid Wire
  • Termination Cap Material: PC, UL 94V-0
  • UL Listed
  • INSTALLATION MANUAL
  • SPEC SHEET
