ICC Cat5E EZ Modular Keystone Jack 25 Pack

SKU#: IC107E5CBL

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

$49.49
Color:
Blue
White

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

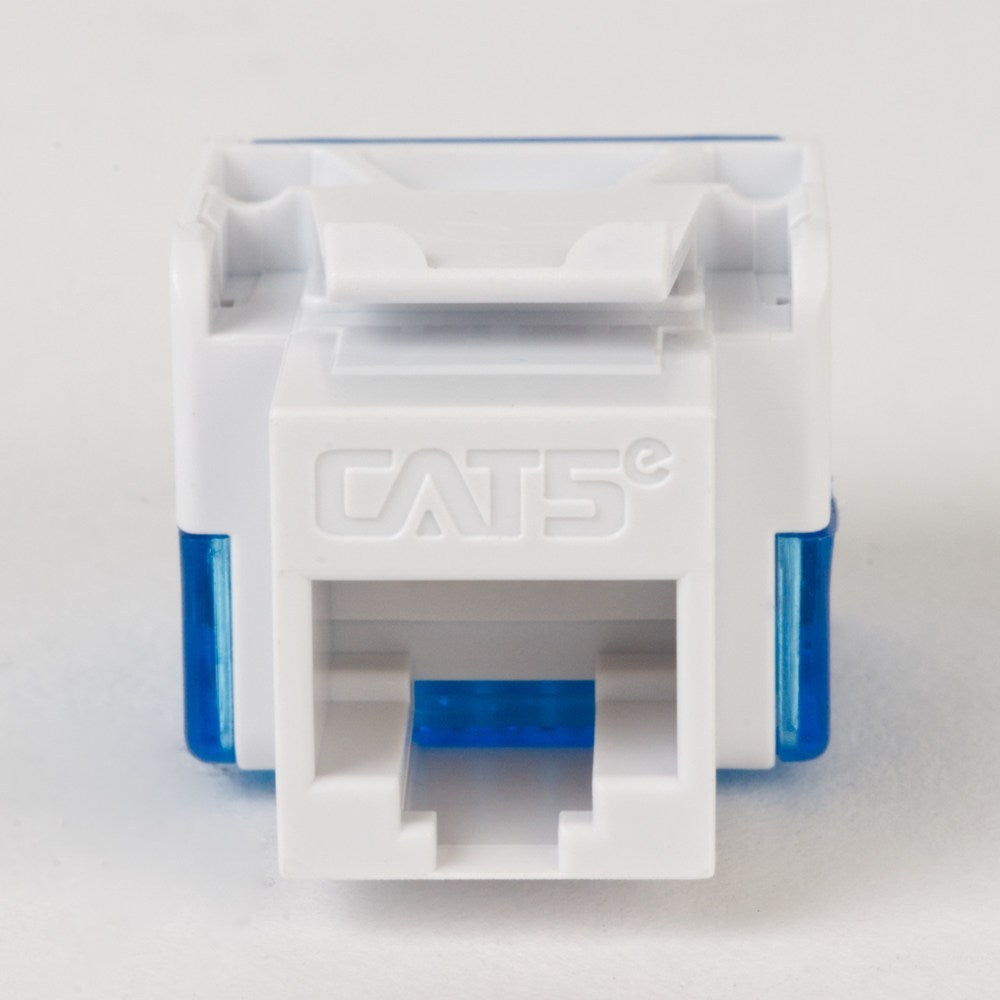

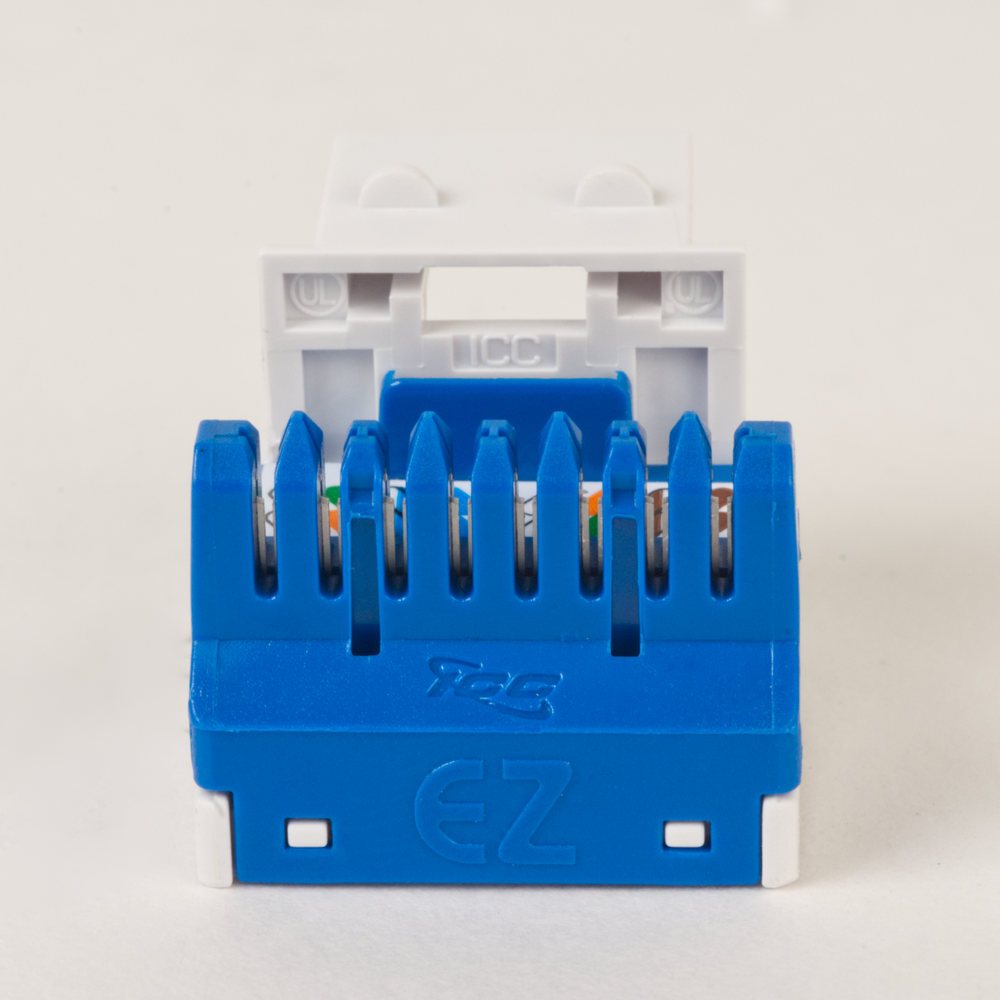

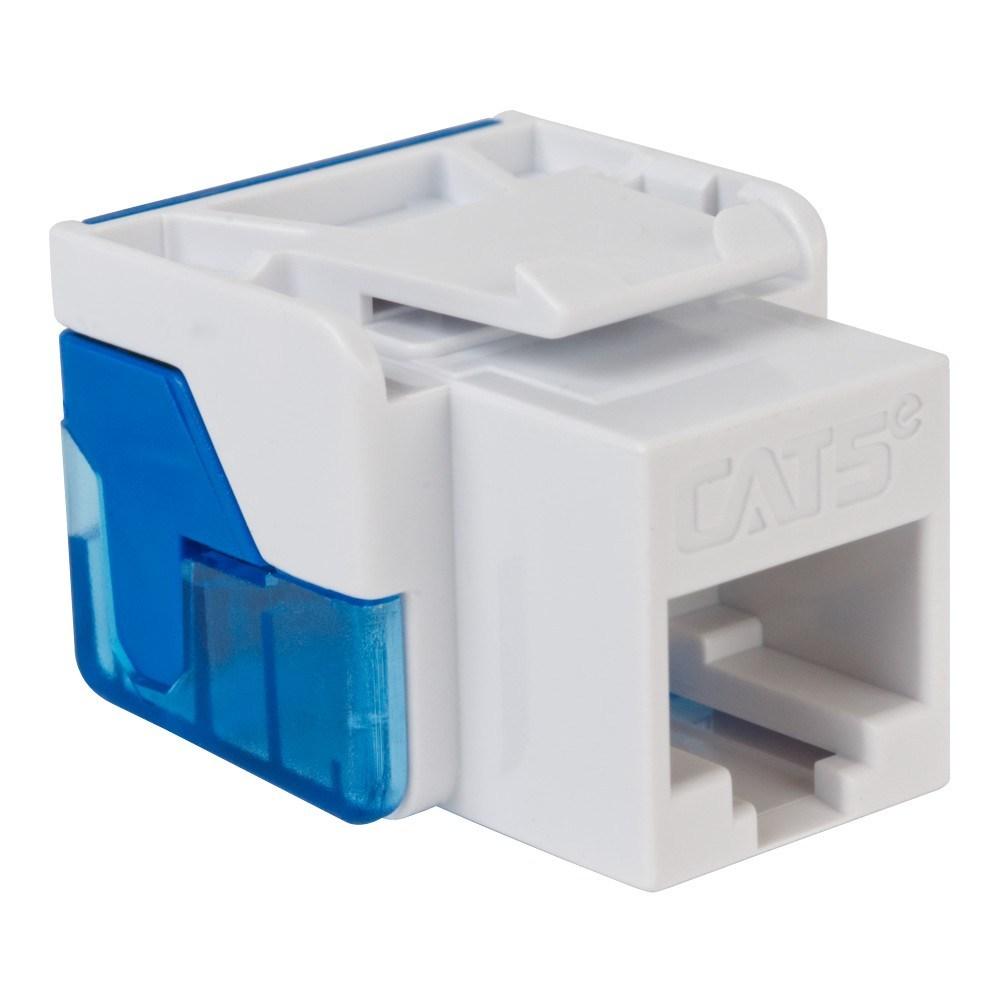

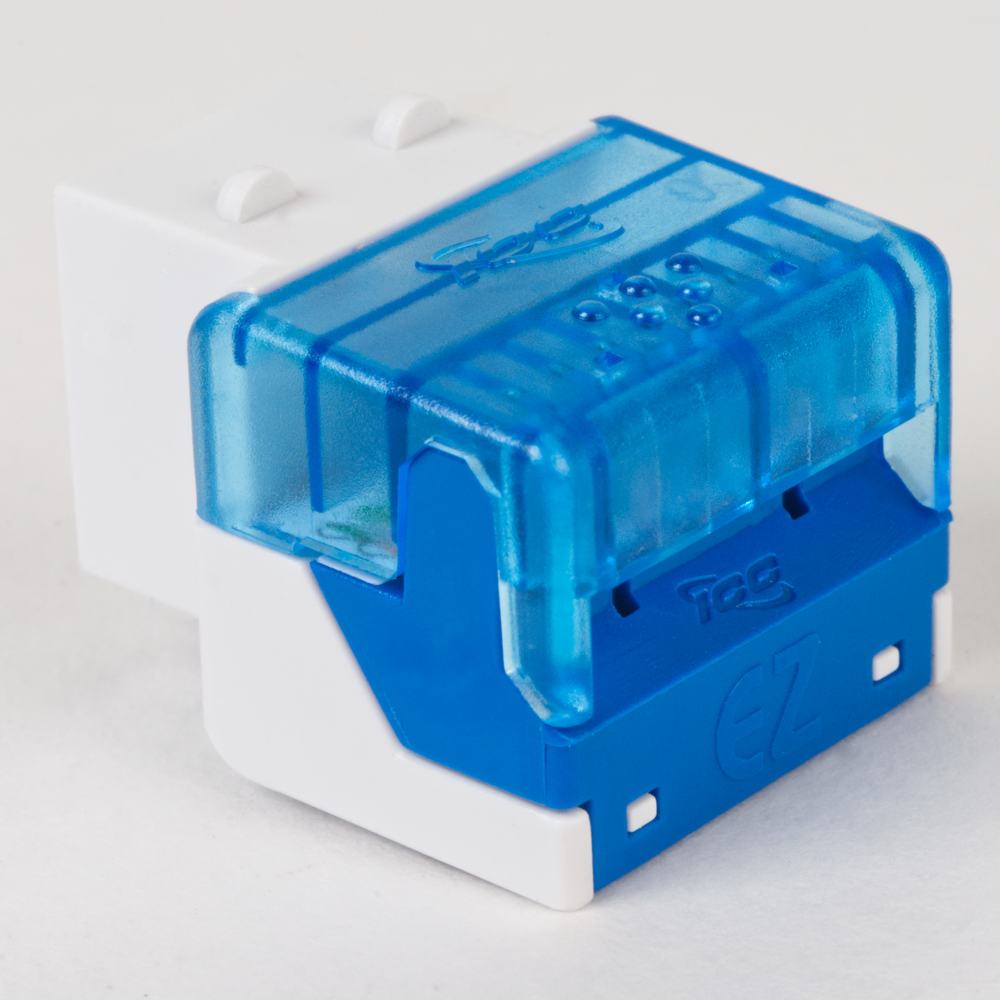

The ICC IC107E5C Cat5E EZ Modular Keystone Jack 25 Pack consists of 25 8-position, 8-conductor (8P8C) connector jacks in blue. These modular jacks are designed to provide outstanding performance in data networks that require maximum speed and bandwidth. They come packaged in a resealable bag with an area for labeling to keep them organized and separate from other jacks.

Features+

  • Provides Excellent Performance for Data Networks Requiring Maximum Speed & Bandwidth
  • PCB Technology Provides Maximum Performance & Superior Signal Quality
  • Enhanced Crosstalk Cancellation Reduces Return Loss & Improves Performance by Rejecting Noise & Unwanted Signals
  • Includes Integrated TIA568-A/B Color Wiring Diagram
  • Backwards Compatible with All Lower Rated Category Components

Specs+

  • Electrical Current Rating: 1.5 Amps
  • Insulation Resistance: 500 mOhms Min
  • Contact Resistance: 20 mOhms Max
  • DC Resistance: 0.1 Ohm Max
  • Transmission Performance Exceeds Category 5E Connecting Hardware Requirements Specified in TIA/EIA-568-B.2 When Used with Compatible Horizontal Cable
  • Plug Insertion Life: 750 Cycles Min
  • Plug and Jack Contact Force: 100 Grams Min Using FCC Approved Plug
  • Plug Retention Force: 30 lbs Min
  • Temperature: -40°F to 150°F (-40° to 68°C)
  • Housing: High Impact Flame Retardant Plastic, UL 94V-0
  • Jack Wiring: 50 Micro Inches of Gold over 100 Micro Inches of Nickel
  • Connector: Insulation Displacement Connector (IDC)
  • Accepts 22-24 AWG Solid Wire
  • UL Listed
  • INSTALLATION MANUAL
  • SPEC SHEET

Package Contents+

  • (25) Cat5E EZ Modular Connectors
  • (25) Wire Caps
  • (1) Packaging Bag
