  • Chief Proximity® Extra-Large In-Wall Storage Box with 6-Receptacles and Lever Lock™
  • Chief Proximity® Extra-Large In-Wall Storage Box with 6-Receptacles and Lever Lock™

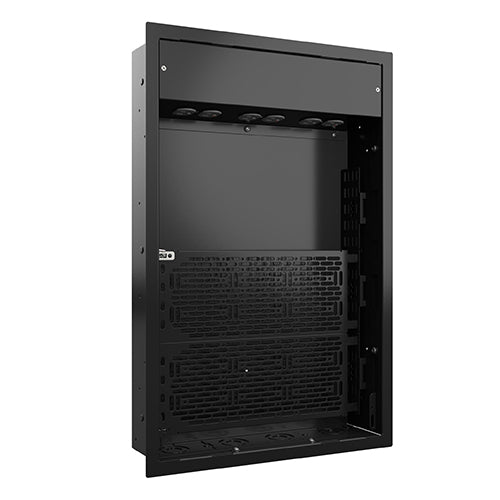

Chief Proximity® Extra-Large In-Wall Storage Box with 6-Receptacles and Lever Lock™

SKU#: PAC527LFBP6

UPC#: 841872174501

60 Day Money Back Guarantee

100% Secure Shopping

10-year-warranty10

10 Year Warranty

SKU#: PAC527LFBP6

UPC#:841872174501
$1,052.00

SKU#: PAC527LFBP6

UPC#:841872174501
Color:
Black

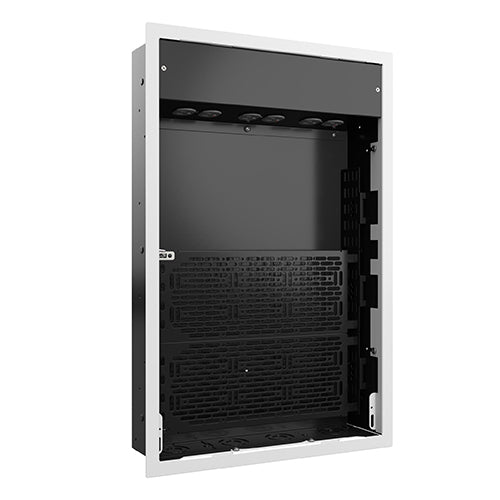

White

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • The new PAC527LFBP6 now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFBP6 also includes a paintable black flange to blend into any space aesthetics.

    Includes a high-performance, dual gang housing, isolated ground, 6-receptacle outlets featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

  • Features+
    • Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
    • Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
    • Pre- and post-construction installation options
    • Knockouts for single gang outlets and 1 ¼”, 1", and ½" conduit
    • Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
    • Patented universal hole pattern simplifies mounting of small devices
    • Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
    • Paintable black flange to blend in any environment
    • Allows for AV devices to be mounted in advance before terminating cables on site
    • PACL2 plate can be snapped in half to create two smaller sections
    • Printable backplane template for planning purposes
    • For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
    • Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment

    Filter and Surge Protected Receptacles

    • Non-volatile spike protection with LED power indicator
    • Non-sacrificial multi-stage technology
    • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
    • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can
    • cause gear degradation and downtime
    • Line filter reduces common and differential mode noise by up to 40 dB
    • Rated for 125 VAC, 60 Hz, 15 A
    • 1875 watt maximum
    • Ferrite toroid based EMI Filter
    • Withstand rating of 240 VAC continuous without damage or loss of protection
  • Specs+
    • Certifications: UL Listed
    • Color: Black
    • Notes: Six NEMA 5-15R Isolated Ground Receptacles, Green LED Status Indicator
    • Overall Dimensions: (H x W x D)For 3.5" stud bays: 14.25 x 22 x 3.9” (362 x 559 x 99 mm) - For 2.5” stud bays: 14.25 x 22 x 3” (362 x 559 x 76 mm)
    • Power Note: 622 Joule MOV Energy Rating, Type 3 Surge Protective Device (SPD). Power Consumption: < 0.5 W
    • Power Requirements: 125 VAC, 60 Hz, 15 A
    • Temperature Range: 30° F to 104° F?
    • Weight Capacity: In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg)
    • SPEC SHEET
  • Reviews+
  • The new PAC527LFBP6 now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFBP6 also includes a paintable black flange to blend into any space aesthetics.

    Includes a high-performance, dual gang housing, isolated ground, 6-receptacle outlets featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

    • Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
    • Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
    • Pre- and post-construction installation options
    • Knockouts for single gang outlets and 1 ¼”, 1", and ½" conduit
    • Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
    • Patented universal hole pattern simplifies mounting of small devices
    • Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
    • Paintable black flange to blend in any environment
    • Allows for AV devices to be mounted in advance before terminating cables on site
    • PACL2 plate can be snapped in half to create two smaller sections
    • Printable backplane template for planning purposes
    • For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
    • Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology Equipment

    Filter and Surge Protected Receptacles

    • Non-volatile spike protection with LED power indicator
    • Non-sacrificial multi-stage technology
    • Non-current limiting design passes full power on a regular circuit; redundant protection circuits
    • Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can
    • cause gear degradation and downtime
    • Line filter reduces common and differential mode noise by up to 40 dB
    • Rated for 125 VAC, 60 Hz, 15 A
    • 1875 watt maximum
    • Ferrite toroid based EMI Filter
    • Withstand rating of 240 VAC continuous without damage or loss of protection
    • Certifications: UL Listed
    • Color: Black
    • Notes: Six NEMA 5-15R Isolated Ground Receptacles, Green LED Status Indicator
    • Overall Dimensions: (H x W x D)For 3.5" stud bays: 14.25 x 22 x 3.9” (362 x 559 x 99 mm) - For 2.5” stud bays: 14.25 x 22 x 3” (362 x 559 x 76 mm)
    • Power Note: 622 Joule MOV Energy Rating, Type 3 Surge Protective Device (SPD). Power Consumption: < 0.5 W
    • Power Requirements: 125 VAC, 60 Hz, 15 A
    • Temperature Range: 30° F to 104° F?
    • Weight Capacity: In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg)
    • SPEC SHEET
