ADDER View RDX 5000IP Rack Tray - 19" & KVM Switch

SKU#: RD1916QIP-US

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: RD1916QIP-US

UPC#:
$3,467.50

SKU#: RD1916QIP-US

UPC#:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+

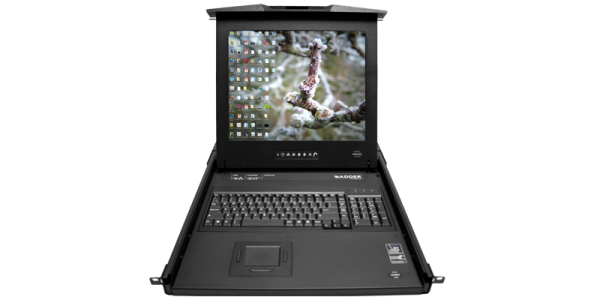

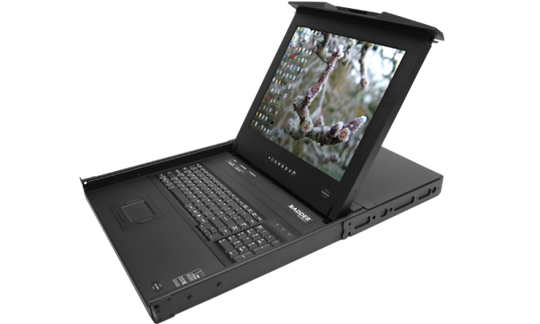

  • ADDER View RDX 5000IP Rack Tray with 19" & KVM Switch

    ADDER View RDX 5000IP Rack Tray with 19" Samsung screen including integrated AVX5016IP KVM switch. The ADDER View RDX 5000IP is the complete server room solution with local and remote management.

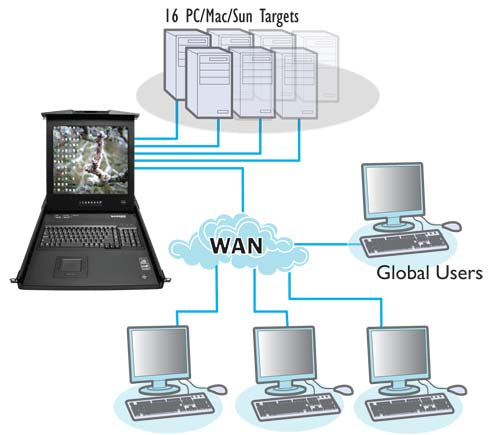

    The 1U keyboard tray is available in most keyboard language layouts and features a premium quality Samsung SXGA 1280 x1024 TFT LCD panel with touch pad control and advanced OSD for device selection. Control 16 computers directly from the tray together with 4 secure IP users. Expand to support up to 256 computers using CATx 5000 switches.

    Using ADDER's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.

    Note: This product is only compatible with other Adder branded products

  • Features+
  • 4 simultaneous IP users
    Enables 4 simultaneous global users to connect via IP to any of the 16 connected computers.

    Multi-platform capability and connectivity
    USB/PS2/SUN and serial connectivity on any type of server platform.

    Serial console server (SCS)
    ADDER View RDX can also be used as a serial console simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to command line interface (CLI) devices as well as console access to network switches.

    LDAP integration plus ADDER.Net management software
    Automating the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.

    RS232 port
    Integrated RS232 gives you the ability to control other external devices such as power management devices.

    Configuration and extension
    The ADDER View RDX 5000 enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. A CATx5000 can be cascaded from the unit to enable control of 256 computers from 64 IP users.

    Ecopulse circuitry
    Ecopulse powers down unnecessary circuits when not required reducing power requirements. Over the life of the product this will save significant power.

    Encryption and authentication
    The enterprise grade integrated KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.

    Intelligent video thresholding
    ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for any computer or KVM switch so that video displays are refreshed with optimum immediacy - while "screen junk" is kept to an absolute minimum.

    Flexible screen scaling
    ADDER solutions provide point-and-click screen scaling, so that users can quickly accommodate target devices running any size display with any aspect ratio. ADDER solutions also allow users to easily override scaling if and when they require unscaled pixel-to-pixel mapping.

  • Specs+
  • Video Modes
    Support for standard PC, Sun and Mac video modes.

    Hardware compatibility
    Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).

    OS compatibility
    Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

    Extendable platform
    Cascade a CATxIP 5000 to extend the system to 256 computers and 64 global IP users.

    Connections

    • CATx computer connections: all RJ45 style. 10/100 auto-sensing Ethernet network port: RJ45. Power connection: Locking 3 pin connector (12V DC, 5A).
    • RS232 triggered power switching and syncing: DB9 plug.


    Physical design

    • Compact 1U high metal case construction for rack mounting
    • Width: 589mm/17.4", Height: 44mm/1.76", Depth: 650mm/25.6".
    • Weight: RD1716QIPxx 15kg/33lbs, RD1916QIPxx 17Kg/37lbs.


    Power supply

    • Mains adaptor with IEC style power lead (included).
    • Input: 100-240VAC 0.5A 50-60Hz
    • Output: 12VDC 5A


    Operating temperature
    0 - 35 Deg C

    Approvals
    CE, FCC

    Additional Accessories

    • CAM: Computer Access Modules:
    • CATX-PS2 (PS/2 only)
    • CATX-USB (USB only)
    • CATX-SUNA (Sun plus audio)
    • CATX-CONSOLE (Terminal server)
  • Package Contents+
  • 0
  • Reviews+
  • ADDER View RDX 5000IP Rack Tray with 19" & KVM Switch

    ADDER View RDX 5000IP Rack Tray with 19" Samsung screen including integrated AVX5016IP KVM switch. The ADDER View RDX 5000IP is the complete server room solution with local and remote management.

    The 1U keyboard tray is available in most keyboard language layouts and features a premium quality Samsung SXGA 1280 x1024 TFT LCD panel with touch pad control and advanced OSD for device selection. Control 16 computers directly from the tray together with 4 secure IP users. Expand to support up to 256 computers using CATx 5000 switches.

    Using ADDER's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.

    Note: This product is only compatible with other Adder branded products

    4 simultaneous IP users
    Enables 4 simultaneous global users to connect via IP to any of the 16 connected computers.

    Multi-platform capability and connectivity
    USB/PS2/SUN and serial connectivity on any type of server platform.

    Serial console server (SCS)
    ADDER View RDX can also be used as a serial console simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to command line interface (CLI) devices as well as console access to network switches.

    LDAP integration plus ADDER.Net management software
    Automating the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.

    RS232 port
    Integrated RS232 gives you the ability to control other external devices such as power management devices.

    Configuration and extension
    The ADDER View RDX 5000 enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. A CATx5000 can be cascaded from the unit to enable control of 256 computers from 64 IP users.

    Ecopulse circuitry
    Ecopulse powers down unnecessary circuits when not required reducing power requirements. Over the life of the product this will save significant power.

    Encryption and authentication
    The enterprise grade integrated KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.

    Intelligent video thresholding
    ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for any computer or KVM switch so that video displays are refreshed with optimum immediacy - while "screen junk" is kept to an absolute minimum.

    Flexible screen scaling
    ADDER solutions provide point-and-click screen scaling, so that users can quickly accommodate target devices running any size display with any aspect ratio. ADDER solutions also allow users to easily override scaling if and when they require unscaled pixel-to-pixel mapping.

    Video Modes
    Support for standard PC, Sun and Mac video modes.

    Hardware compatibility
    Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).

    OS compatibility
    Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

    Extendable platform
    Cascade a CATxIP 5000 to extend the system to 256 computers and 64 global IP users.

    Connections

    • CATx computer connections: all RJ45 style. 10/100 auto-sensing Ethernet network port: RJ45. Power connection: Locking 3 pin connector (12V DC, 5A).
    • RS232 triggered power switching and syncing: DB9 plug.


    Physical design

    • Compact 1U high metal case construction for rack mounting
    • Width: 589mm/17.4", Height: 44mm/1.76", Depth: 650mm/25.6".
    • Weight: RD1716QIPxx 15kg/33lbs, RD1916QIPxx 17Kg/37lbs.


    Power supply

    • Mains adaptor with IEC style power lead (included).
    • Input: 100-240VAC 0.5A 50-60Hz
    • Output: 12VDC 5A


    Operating temperature
    0 - 35 Deg C

    Approvals
    CE, FCC

    Additional Accessories

    • CAM: Computer Access Modules:
    • CATX-PS2 (PS/2 only)
    • CATX-USB (USB only)
    • CATX-SUNA (Sun plus audio)
    • CATX-CONSOLE (Terminal server)
