Vertical Cable 500ft RG6 Standard Shield Coaxial Cable - Black
SKU#: 107-1235BK6S500
UPC#:845643012320
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
-
Cable TV (CATV) Installations: Delivers strong signal transmission for residential and commercial setups.
-
Satellite Systems: Supports high-frequency signal distribution.
-
Broadband Networks: Ensures stable internet and data transmission.
-
Security Systems: Reliable for CCTV and surveillance applications.
- Home Theater & AV Systems: Provides interference-free audio and video connectivity.
- Features+
- High-Grade RG6 Coaxial Cable
- Fully Sweep-Tested to 3000MHz
- 18AWG Solid Copper-Clad Steel
- PVC, CM/CL2 Rated Jacket
- ETL, RoHS Compliant
- Supplied in 500ft Pull Box
- Suitable for Digital HDTV Applications, CATV and Digital Satellite Installations
- Specs+

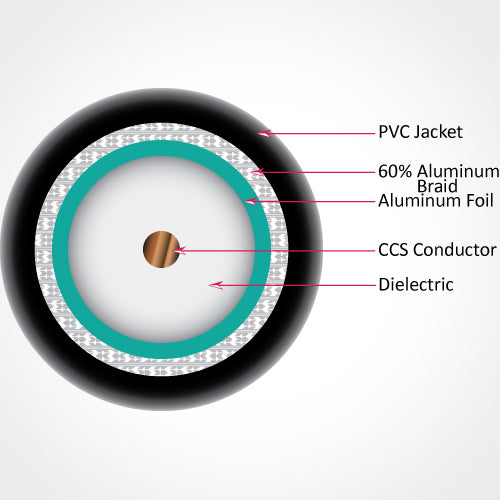

- Inner Conductor: 18AWG Solid Copper Clad Steel (φ1.024±0.10mm)
- Insulation: 1.52mm White Foamed PE (φ4.57±0.10mm)
- First Shield: Aluminum/PET-Foil Bonded
- Second Shield: Aluminum Wire Braid
- Jacket: 0.62mm Black PVC (6.9±0.15mm)
- Conductor DC Resistance: ≤120Ω/km
- Nominal Capacitance: 52±2pF/m
- Impedance: 75±3 Ohms
- Sparker Test: 3000VAC
- Velocity of Propagation: 85%
- Return Loss: (5~470MHz)≥25dB
- SPEC SHEET
- Package Contents+
- (1) 500ft Pull Box RG6 Standard Shield Cable
- Reviews+
-
Cable TV (CATV) Installations: Delivers strong signal transmission for residential and commercial setups.
-
Satellite Systems: Supports high-frequency signal distribution.
-
Broadband Networks: Ensures stable internet and data transmission.
-
Security Systems: Reliable for CCTV and surveillance applications.
- Home Theater & AV Systems: Provides interference-free audio and video connectivity.
- High-Grade RG6 Coaxial Cable
- Fully Sweep-Tested to 3000MHz
- 18AWG Solid Copper-Clad Steel
- PVC, CM/CL2 Rated Jacket
- ETL, RoHS Compliant
- Supplied in 500ft Pull Box
- Suitable for Digital HDTV Applications, CATV and Digital Satellite Installations
- Inner Conductor: 18AWG Solid Copper Clad Steel (φ1.024±0.10mm)
- Insulation: 1.52mm White Foamed PE (φ4.57±0.10mm)
- First Shield: Aluminum/PET-Foil Bonded
- Second Shield: Aluminum Wire Braid
- Jacket: 0.62mm Black PVC (6.9±0.15mm)
- Conductor DC Resistance: ≤120Ω/km
- Nominal Capacitance: 52±2pF/m
- Impedance: 75±3 Ohms
- Sparker Test: 3000VAC
- Velocity of Propagation: 85%
- Return Loss: (5~470MHz)≥25dB
- SPEC SHEET
- (1) 500ft Pull Box RG6 Standard Shield Cable
Vertical Cable RG6 Standard Shield Coaxial Cable
Vertical Cable 107-1235BK6S500 RG6 Standard Shield Coaxial Cable comes in a convenient 500ft pull box. It is designed for digital HDTV, CATV, and digital satellite installations. This cable features a aluminum foil shield with a 60% aluminum braid on a solid 18AWG copper clad steel conductor with a black PVC jacket. Sequential foot markings on the jacket make measurement quick and easy.
Applications
When it comes to versatile applications, the RG6 Coaxial Cable truly stands out. Here are the primary uses where this coaxial cable shines:
Recommended Tools For 107-1235BK6S500 Coaxial Cable
For the best results when working with the 107-1235BK6S500 Coaxial Cable, we recommend using high-quality tools designed for precision and efficiency. These tools will help ensure a secure, professional-grade installation:
078-1018 Compression Tool – Ensures fast and precise terminations of RCA, BNC, RG59, and RG6 connectors for reliable, professional-grade cable installations.
078-1022 Universal Cable Stripper – Simplifies cable preparation by stripping insulation cleanly and accurately for quick and efficient installations.
078-1256 Coaxial Stripper – Ensures precise and efficient stripping for RG59 and RG6 cables.
Vertical Cable RG6 Standard Shield Coaxial Cable
Vertical Cable 107-1235BK6S500 RG6 Standard Shield Coaxial Cable comes in a convenient 500ft pull box. It is designed for digital HDTV, CATV, and digital satellite installations. This cable features a aluminum foil shield with a 60% aluminum braid on a solid 18AWG copper clad steel conductor with a black PVC jacket. Sequential foot markings on the jacket make measurement quick and easy.
Applications
When it comes to versatile applications, the RG6 Coaxial Cable truly stands out. Here are the primary uses where this coaxial cable shines:
Recommended Tools For 107-1235BK6S500 Coaxial Cable
For the best results when working with the 107-1235BK6S500 Coaxial Cable, we recommend using high-quality tools designed for precision and efficiency. These tools will help ensure a secure, professional-grade installation:
078-1018 Compression Tool – Ensures fast and precise terminations of RCA, BNC, RG59, and RG6 connectors for reliable, professional-grade cable installations.
078-1022 Universal Cable Stripper – Simplifies cable preparation by stripping insulation cleanly and accurately for quick and efficient installations.
078-1256 Coaxial Stripper – Ensures precise and efficient stripping for RG59 and RG6 cables.
