Vertical Cable 12 Port Cat5E Mini Patch Panel - 110 Type

SKU#: 041-370M

UPC#:845643003694

60 Day Money Back Guarantee

100% Secure Shopping

15-year-warranty15

15 Year Warranty

SKU#: 041-370M

UPC#:845643003694
$26.99

SKU#: 041-370M

UPC#:845643003694

SKU#: 041-370M

UPC#:845643003694

60 Day Money Back Guarantee

100% Secure Shopping

15-year-warranty15

15 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Tiny But Powerful

Vertical Cable's Cat5E Patch Panel is designed to provide amazing performance and cable management. Each Cat5E Patch Panel comes with 110-type termination while meeting and exceeding EIA/TIA TSB-40 Cat5E connecting hardware specifications.

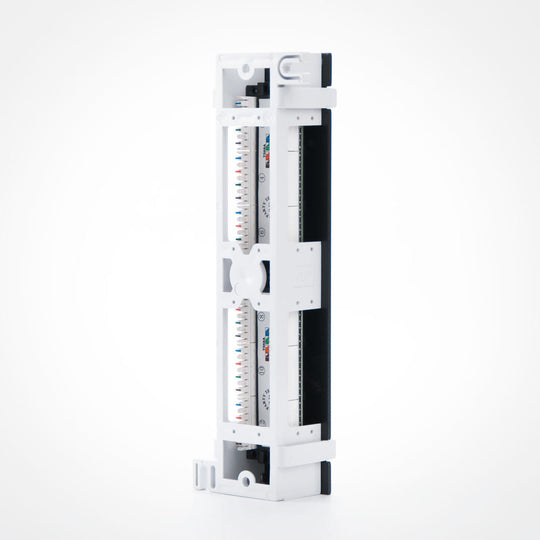

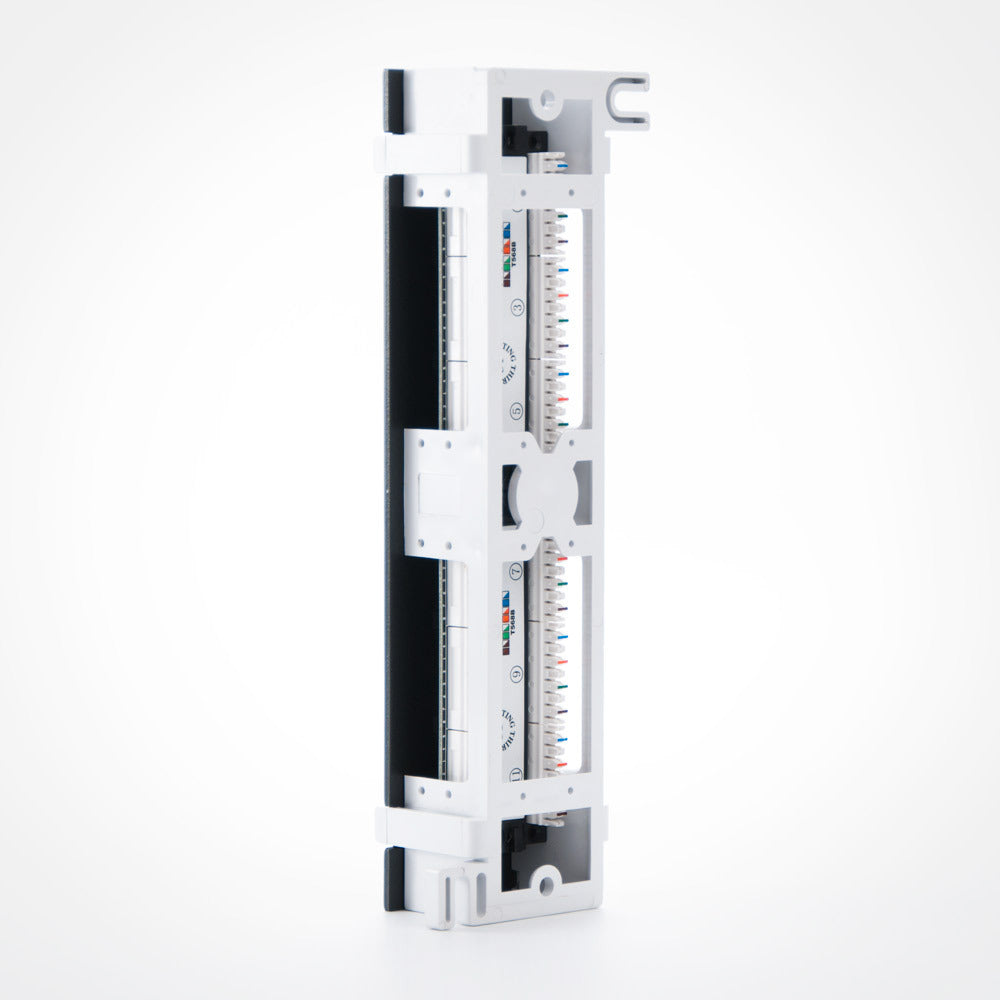

This is one of our mini patch panels. Compared to the regular patch panel, this patch bay weighs in at under a pound. It comes with its own mounting bracket, allowing you to easily get this IT patch panel up, out of the way, and ready to go.

Simple to Use

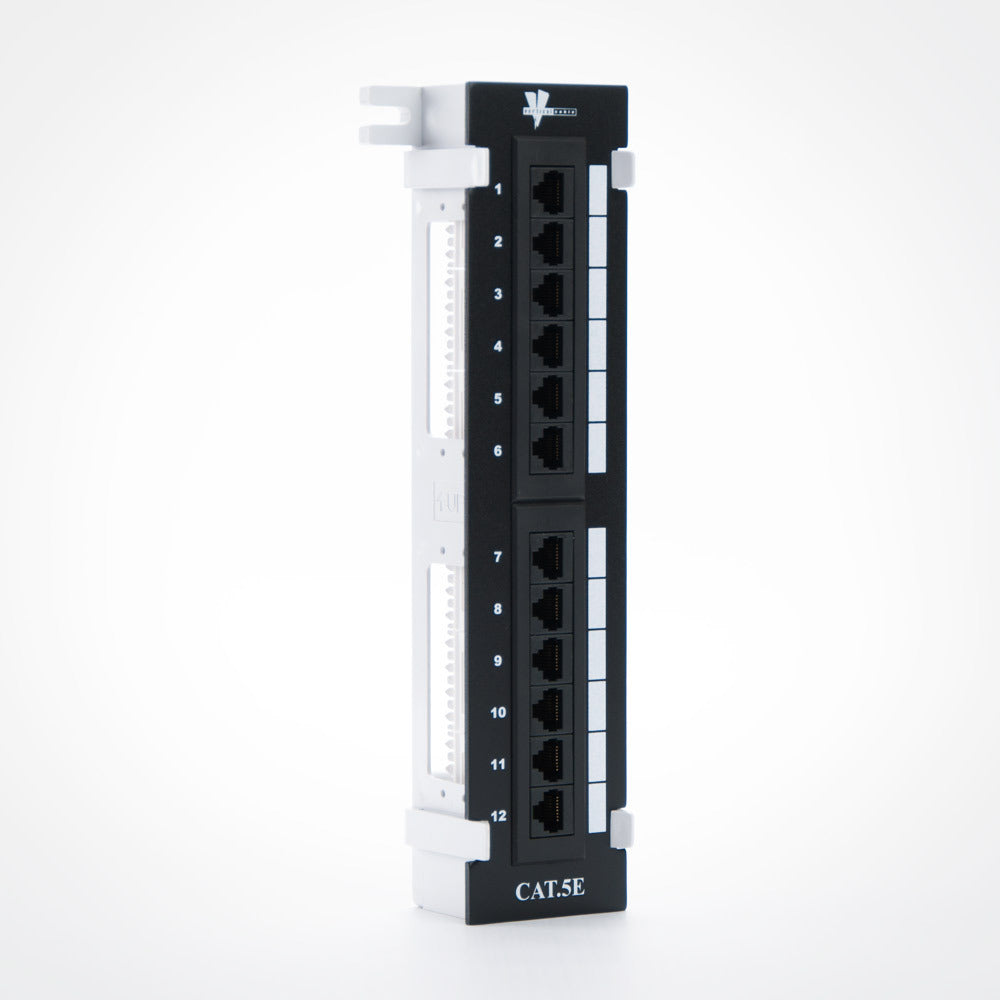

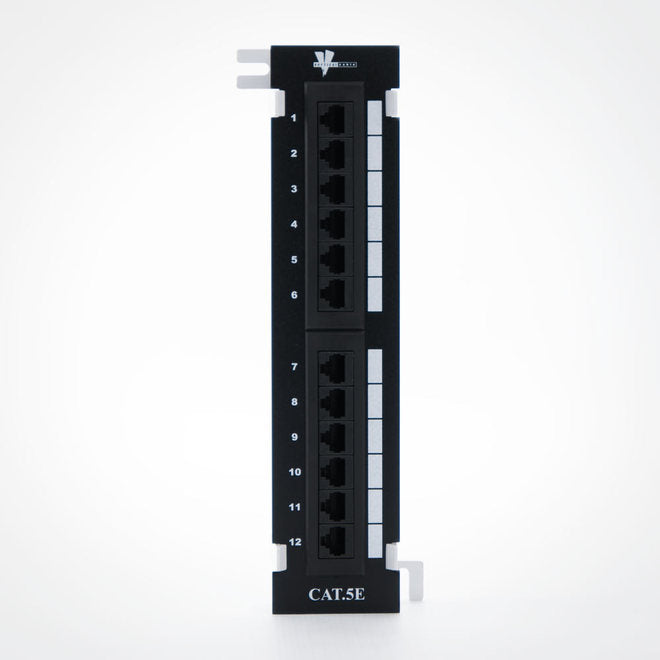

Besides the 110 termination that this network patch panel offers, there are 12 individual Cat5E ports on the front side. Once you get your cables terminated on the one side, you just plug and go on the other. This is a very quick and easy solution for being able to swap out devices at any time. Plus, with numbered ports, you can easily keep track of what is plugged in where for better organization.

These IT patch panels are able to handle wire diameters of 22AWG to 26AWG, so you should be able to easily find wires to fit.

Compacted Perfection

Each patch bay is a high-density panel design. The actual physical dimensions of this product are 10 inches by 2.25 inches by 1.75 inches, giving you plenty of space to work with after you get it set up.

These network panels meet TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specifications, so they are up to the latest standards. UL certified, they have been also tested to the highest standard for safety.



Features+

  • Space-saving High Density Design

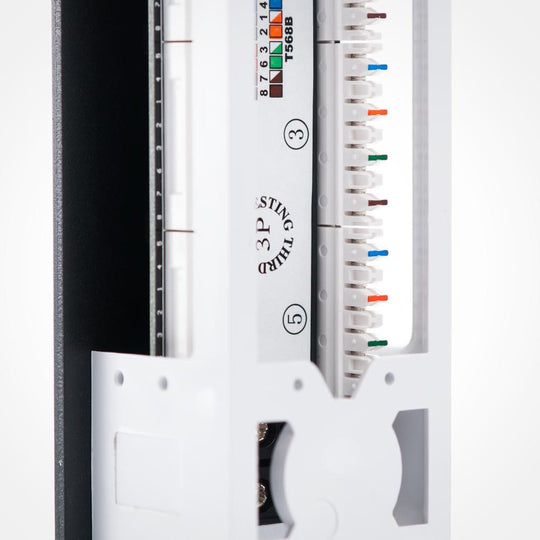

  • 110 Type Terminations Accommodate 22-26AWG Wire
  • Allows for Top, Bottom or Side Cable Entry
  • Meets or Exceeds EIA/TIA TSB-40 Specifications
  • FireFold Signature Lifetime Warranty

Specs+

  • Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
  • Space saving, high-density 19in panel design
  • Wire Diameter Supported: 22AWG To 26AWG
  • Insulation Diameter Range: 0.70 to 1.40mm
  • 1U Height, Designed to mount to any standard 19" Rack or Cabinet
  • Jack Contacts: Phosphor bronze, 50-micron gold plated
  • IDC Contacts: Phosphor bronze, 50-micron gold plate over nickel plating
  • Flammability: UL 94 VO
  • Size: 1.75x19in
  • Operating Temperature: -40 to +70 degrees Celsius
  • Black electrostatic powder-coated steel
  • Accommodates top, bottom or side cable entry
  • UL Certification
  • TIA/EIA-T568-A & B Wiring configuration
  • SPEC SHEET

Package Contents+

  • (1) Cat5E Patch Panel
