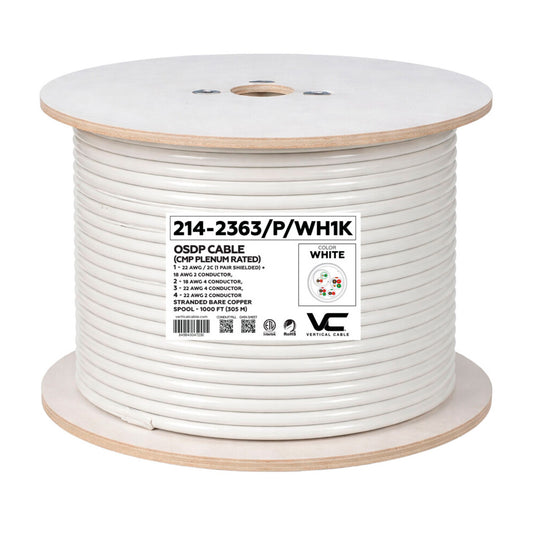

Vertial Cable OSDP Cable, 22/2 Shielded + 18/2 + 18/4 + 22/4 + 22/2, Plenum-Rated (CMP), Stranded Copper - 1000ft Spool
SKU#: 214-2363/P/WH1K
UPC#:845643047230
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
-
Security Panels
-
Card Readers and Keypad Circuits
-
Door Contact Sensors and Power Locks
-
Alarm Triggers and REX Motion Sensors
- Microphones, Audio Paging, and Speakers
-
Four Cables in One: Reduces installation time and material clutter.
-
Shielded and Unshielded in One Run: Perfect for signal integrity and noise isolation.
-
Pre-Marked Components: Eliminates guesswork during installation.
-
Plenum Rated Safety: Approved for use in plenum ceilings and HVAC spaces.
- Trusted by Pros: Meets electrical, mechanical, and environmental standards across multiple industries.
- Features+

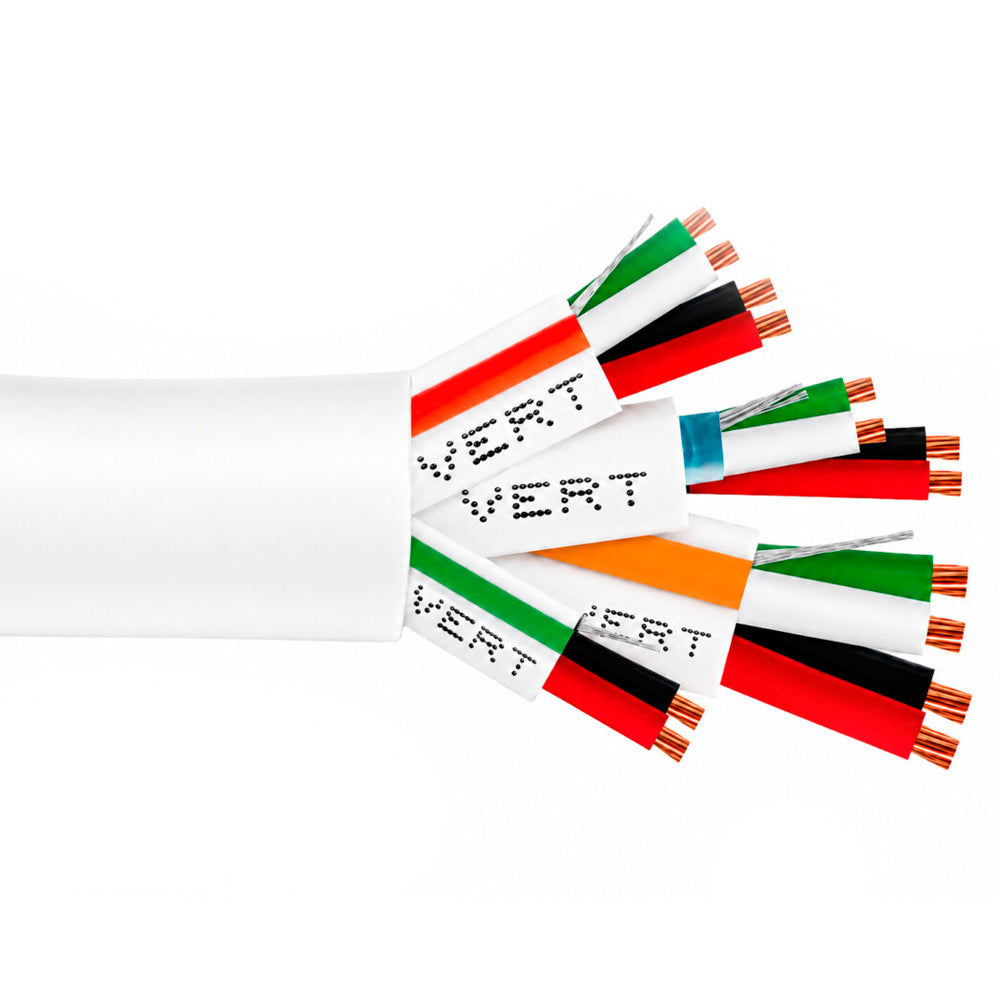

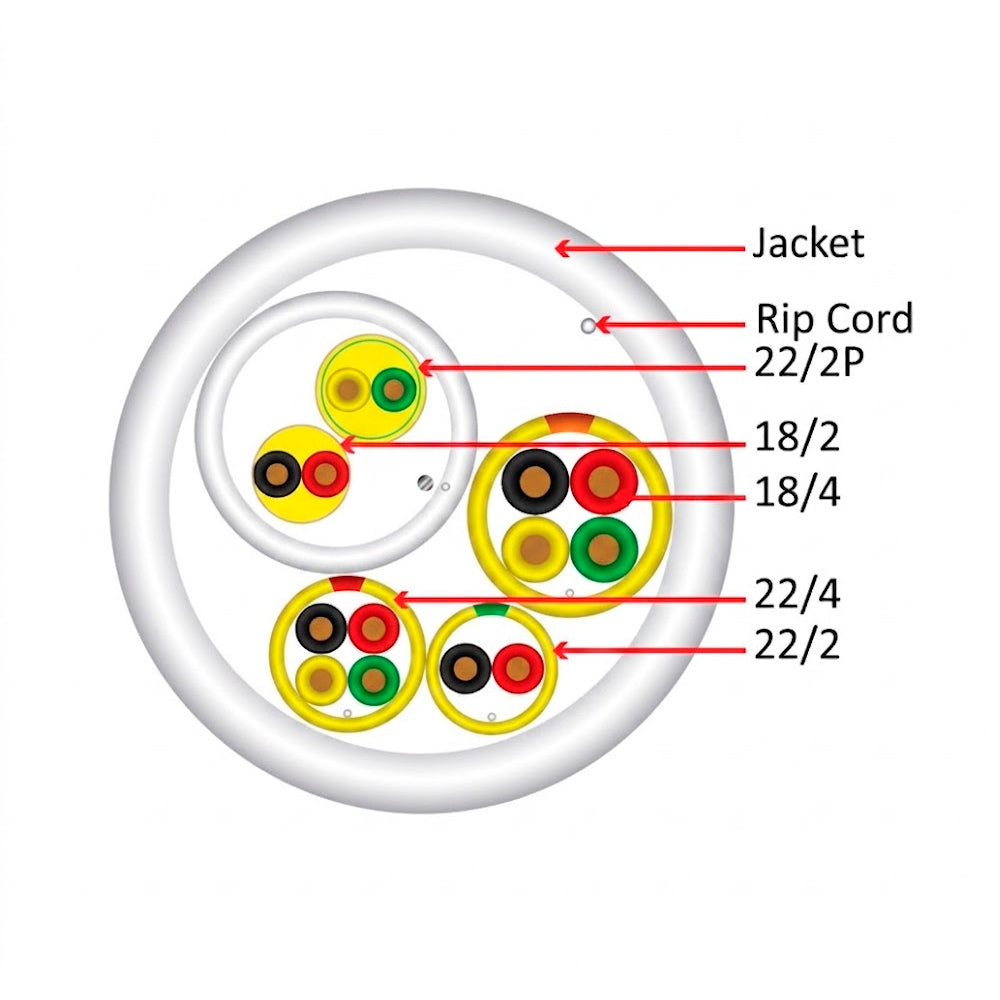

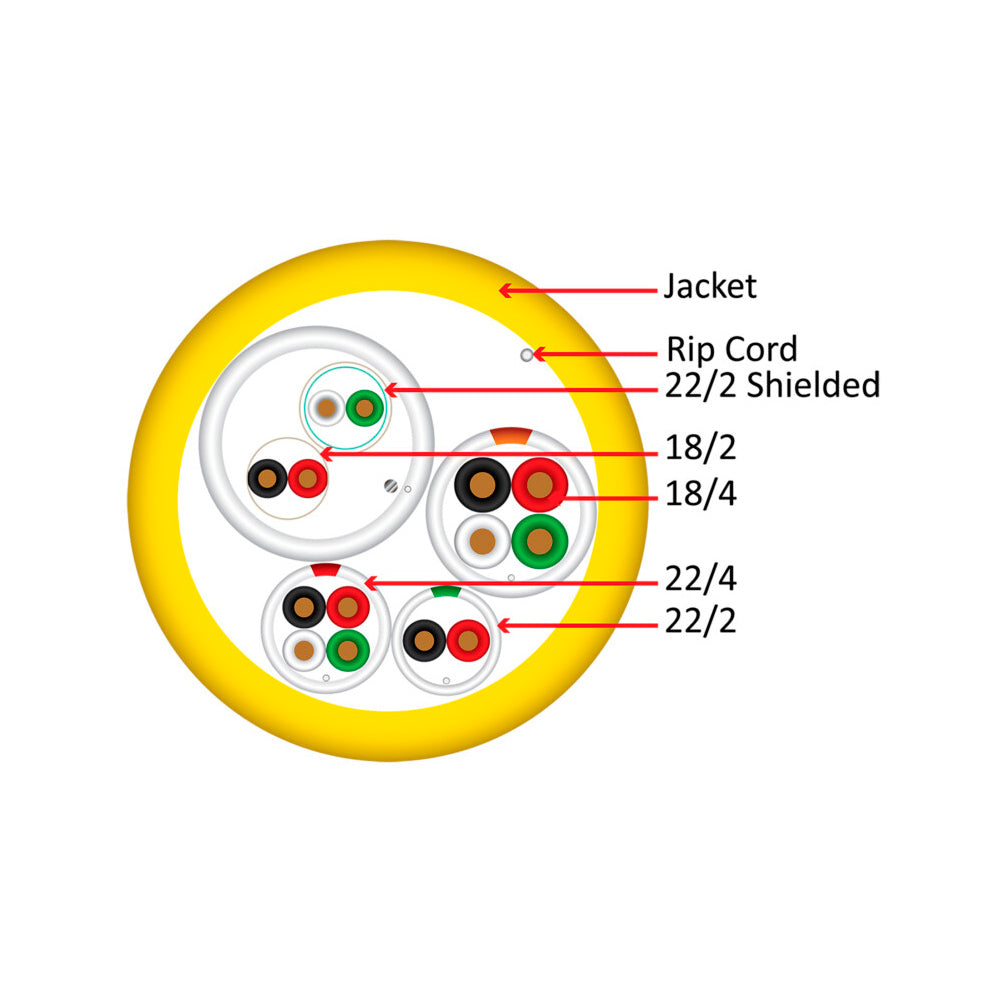

- 4-Component Composite Cable: Includes 22/2 Shielded & 18/2 + 18/4 +22/4 + 22/2 conductors.
- Plenum Rated: Compliant for installation in air-handling spaces and commercial buildings.
- Enhanced Security: Creates a more secure and modern access control connection, with encrypted communication.
- Stranded Bare Copper Conductors: Improves flexibility and conductivity across all components.

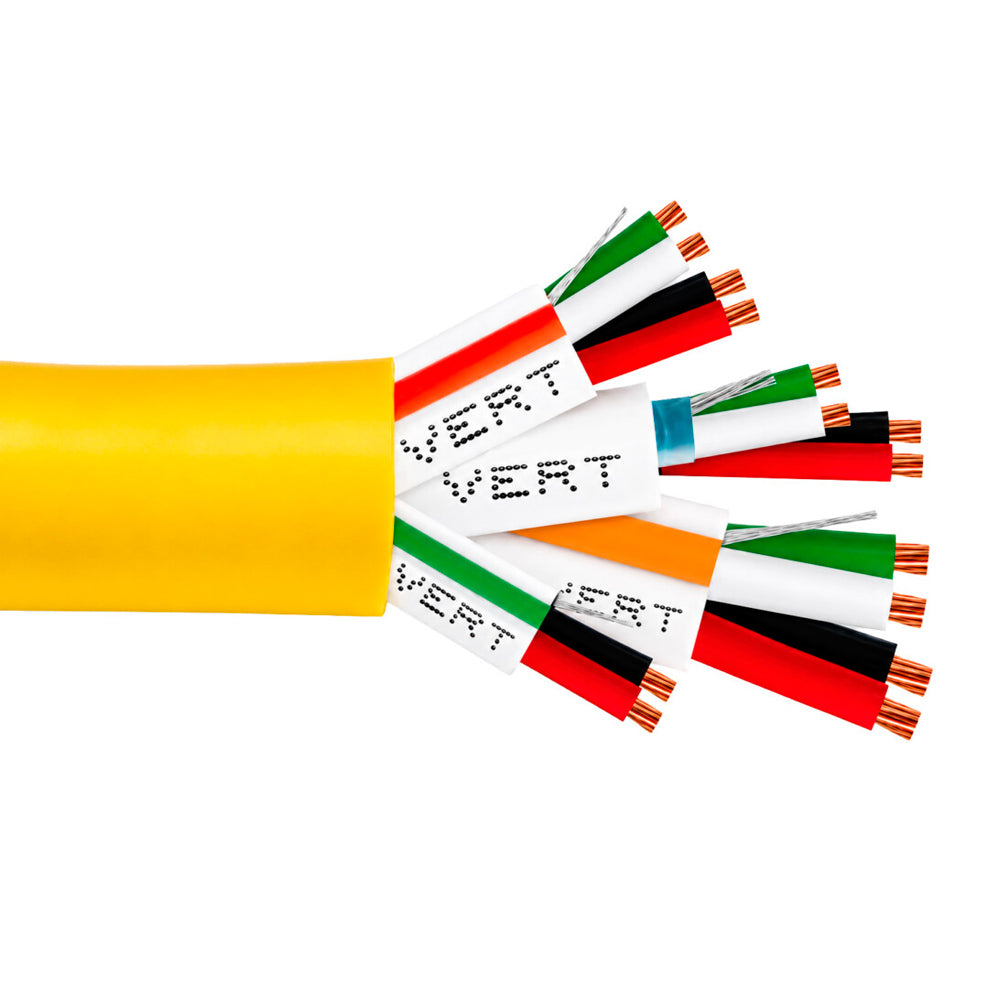

- Color-Coded Jackets: Printed component markings for easy identification—card reader, power, REX, and door contact.
- Foil Shielded Pair: The 22/2P component features a foil shield and drain wire for enhanced noise protection.
- Rip Cords Included: Each component features its nylon rip cord, and there’s an overall ripcord for simplified jacket stripping.
- Meets ANSI/TIA-568.2-D & ISO/IEC 11801: Designed to exceed industry performance standards.
- ETL Listed & RoHS Compliant: Ensures environmental safety and regulatory approval.

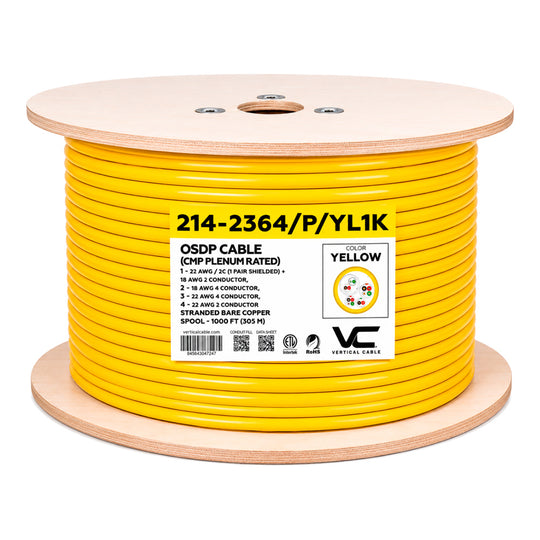

- Available Jacket Colors: Choose from White or Yellow to suit your site’s identification needs.

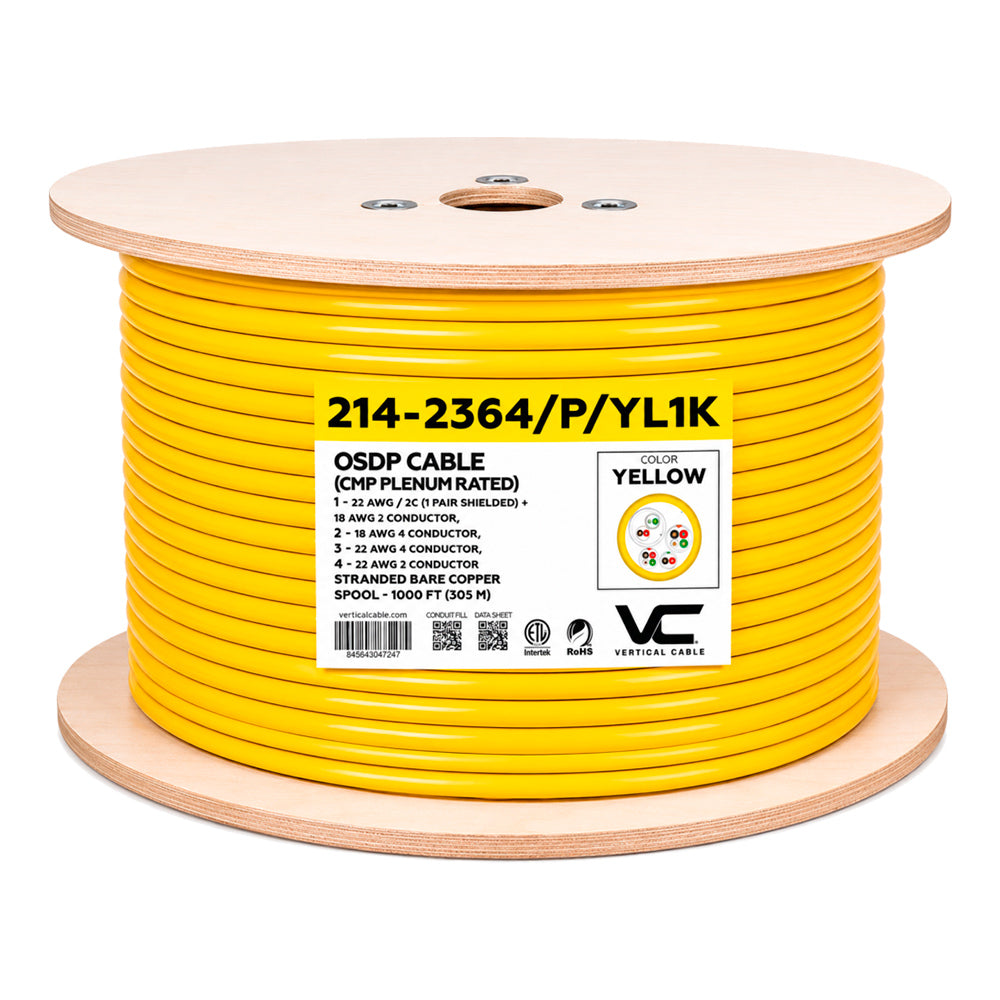

- Packaged on a Wooden Spool: Comes in a 1000 ft (304.8 m) spool for large-scale installations.
- Specs+
- Reviews+
-
Security Panels
-
Card Readers and Keypad Circuits
-
Door Contact Sensors and Power Locks
-
Alarm Triggers and REX Motion Sensors
- Microphones, Audio Paging, and Speakers
-
Four Cables in One: Reduces installation time and material clutter.
-
Shielded and Unshielded in One Run: Perfect for signal integrity and noise isolation.
-
Pre-Marked Components: Eliminates guesswork during installation.
-
Plenum Rated Safety: Approved for use in plenum ceilings and HVAC spaces.
- Trusted by Pros: Meets electrical, mechanical, and environmental standards across multiple industries.
- 4-Component Composite Cable: Includes 22/2 Shielded & 18/2 + 18/4 +22/4 + 22/2 conductors.
- Plenum Rated: Compliant for installation in air-handling spaces and commercial buildings.
- Enhanced Security: Creates a more secure and modern access control connection, with encrypted communication.
- Stranded Bare Copper Conductors: Improves flexibility and conductivity across all components.
- Color-Coded Jackets: Printed component markings for easy identification—card reader, power, REX, and door contact.
- Foil Shielded Pair: The 22/2P component features a foil shield and drain wire for enhanced noise protection.
- Rip Cords Included: Each component features its nylon rip cord, and there’s an overall ripcord for simplified jacket stripping.
- Meets ANSI/TIA-568.2-D & ISO/IEC 11801: Designed to exceed industry performance standards.
- ETL Listed & RoHS Compliant: Ensures environmental safety and regulatory approval.
- Available Jacket Colors: Choose from White or Yellow to suit your site’s identification needs.
- Packaged on a Wooden Spool: Comes in a 1000 ft (304.8 m) spool for large-scale installations.

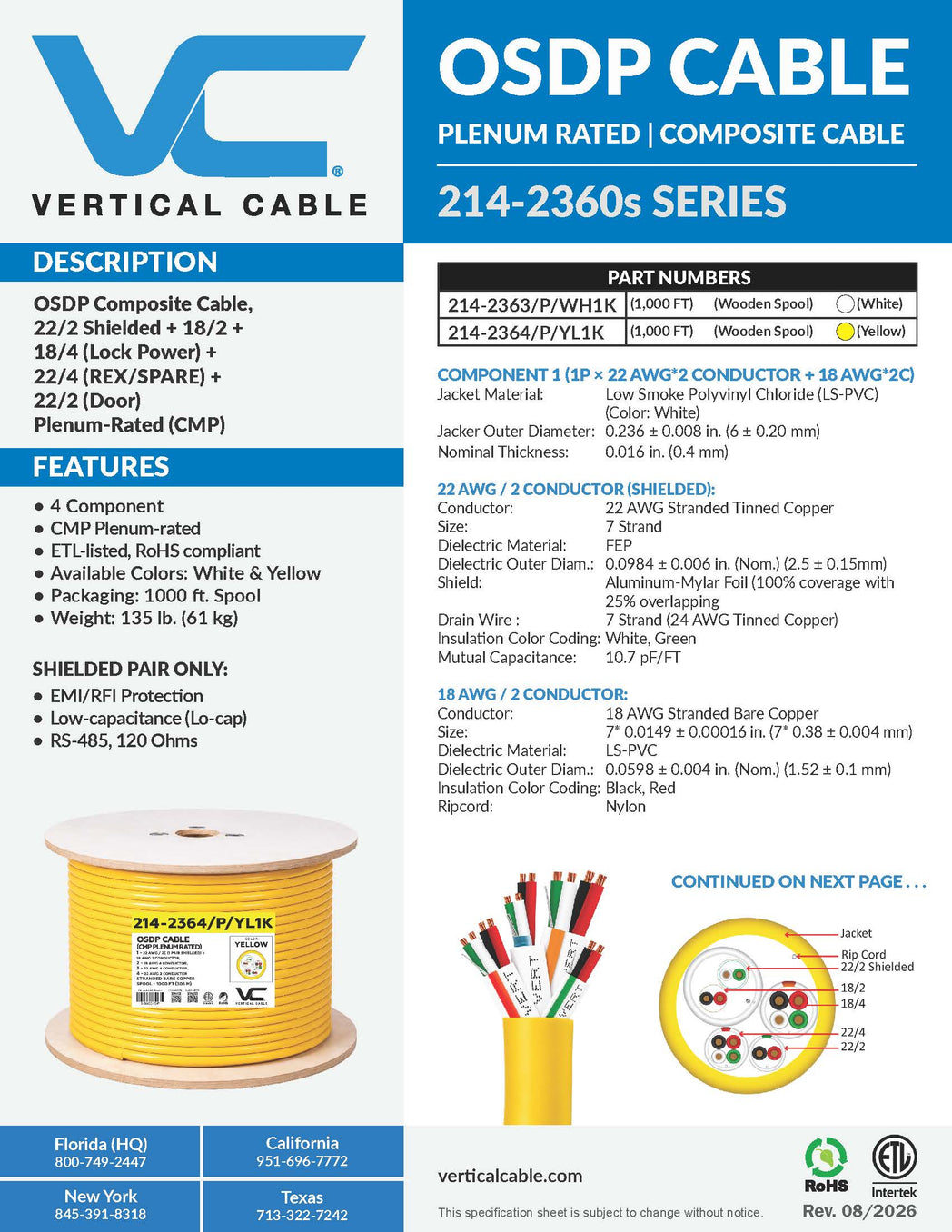

VERTICAL CABLE 214-2360s SERIES – OSDP CABLE
The OSDP plenum Cable is a high-performance cable designed for plenum-rated security, control, speaker and motion sensor applications. Built with multiple shielded and unshielded components, this low-voltage cable ensures reliable two-way data transmission, device supervision, and secure encrypted connectivity between access control panels and readers.
APPLICATIONS
The OSDP Cable is engineered for multi-function access and control systems, including:
| Feature | 214-2300s Access Control | 214-2360s OSDP |
|---|---|---|
| Reader Communication | Traditional Wiegand | OSDP (RS-485) |
| Data Flow | One-way | Two-way |
| Cybersecurity | No encryption | Supports AES-128 Secure Channel |
| Reader Pair | 22/3P shielded (3 twisted pairs) | Dedicated 22/2 shielded OSDP pair |
| Characteristic Impedance | Not specified | 120Ω (RS-485 optimized) |
| Capacitance | Standard access control | 12.5 pF/ft for OSDP pair |
| Shielding | Shielded reader component | Dedicated shielded communication pair |
| Future Readiness | Legacy systems | Modern access control systems |
| Maximum Distance | ~500 ft (Wiegand typical) | Up to 4,000 ft (1,200 m) |
Installers choose the 214-2360s Series for efficiency, performance, and compliance:
VERTICAL CABLE 214-2360s SERIES – OSDP CABLE
The OSDP plenum Cable is a high-performance cable designed for plenum-rated security, control, speaker and motion sensor applications. Built with multiple shielded and unshielded components, this low-voltage cable ensures reliable two-way data transmission, device supervision, and secure encrypted connectivity between access control panels and readers.
APPLICATIONS
The OSDP Cable is engineered for multi-function access and control systems, including:
| Feature | 214-2300s Access Control | 214-2360s OSDP |
|---|---|---|
| Reader Communication | Traditional Wiegand | OSDP (RS-485) |
| Data Flow | One-way | Two-way |
| Cybersecurity | No encryption | Supports AES-128 Secure Channel |
| Reader Pair | 22/3P shielded (3 twisted pairs) | Dedicated 22/2 shielded OSDP pair |
| Characteristic Impedance | Not specified | 120Ω (RS-485 optimized) |
| Capacitance | Standard access control | 12.5 pF/ft for OSDP pair |
| Shielding | Shielded reader component | Dedicated shielded communication pair |
| Future Readiness | Legacy systems | Modern access control systems |
| Maximum Distance | ~500 ft (Wiegand typical) | Up to 4,000 ft (1,200 m) |
Installers choose the 214-2360s Series for efficiency, performance, and compliance:
