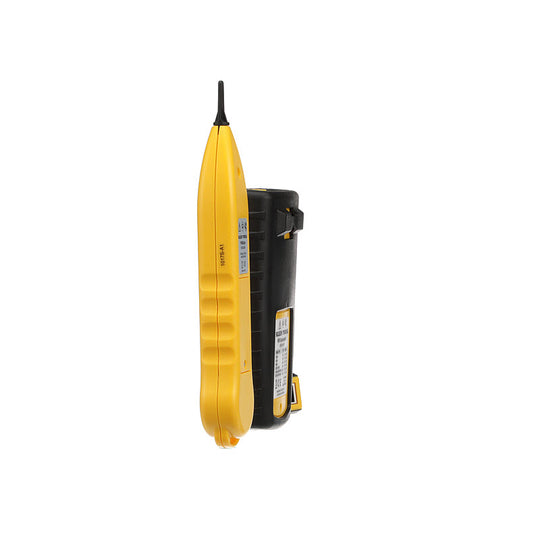

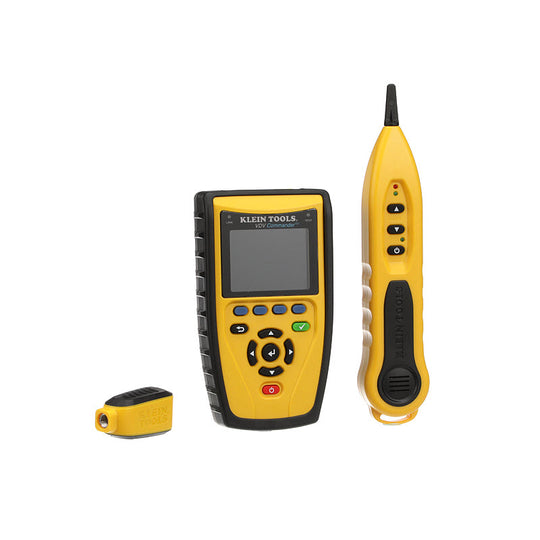

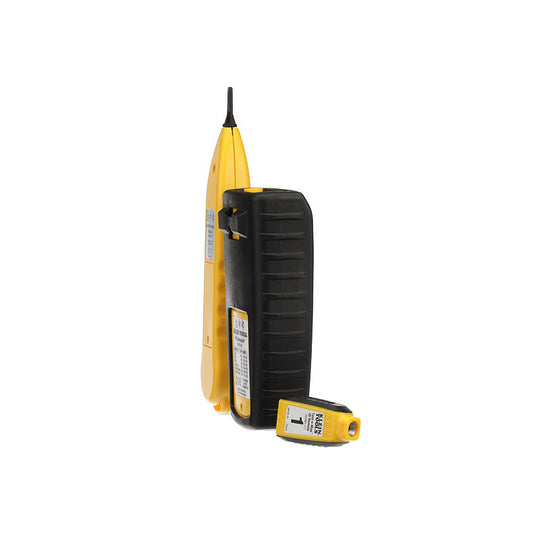

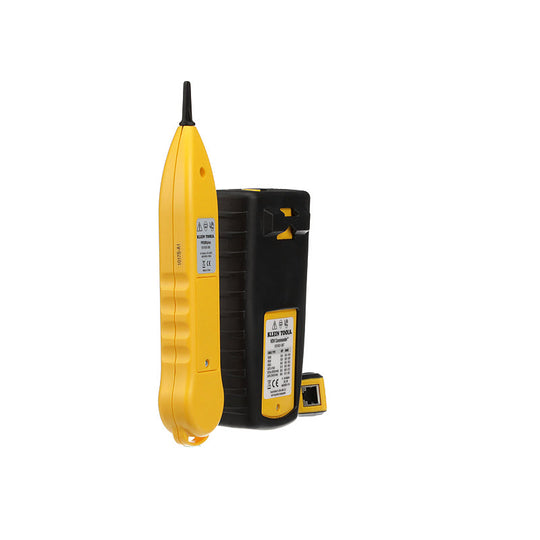

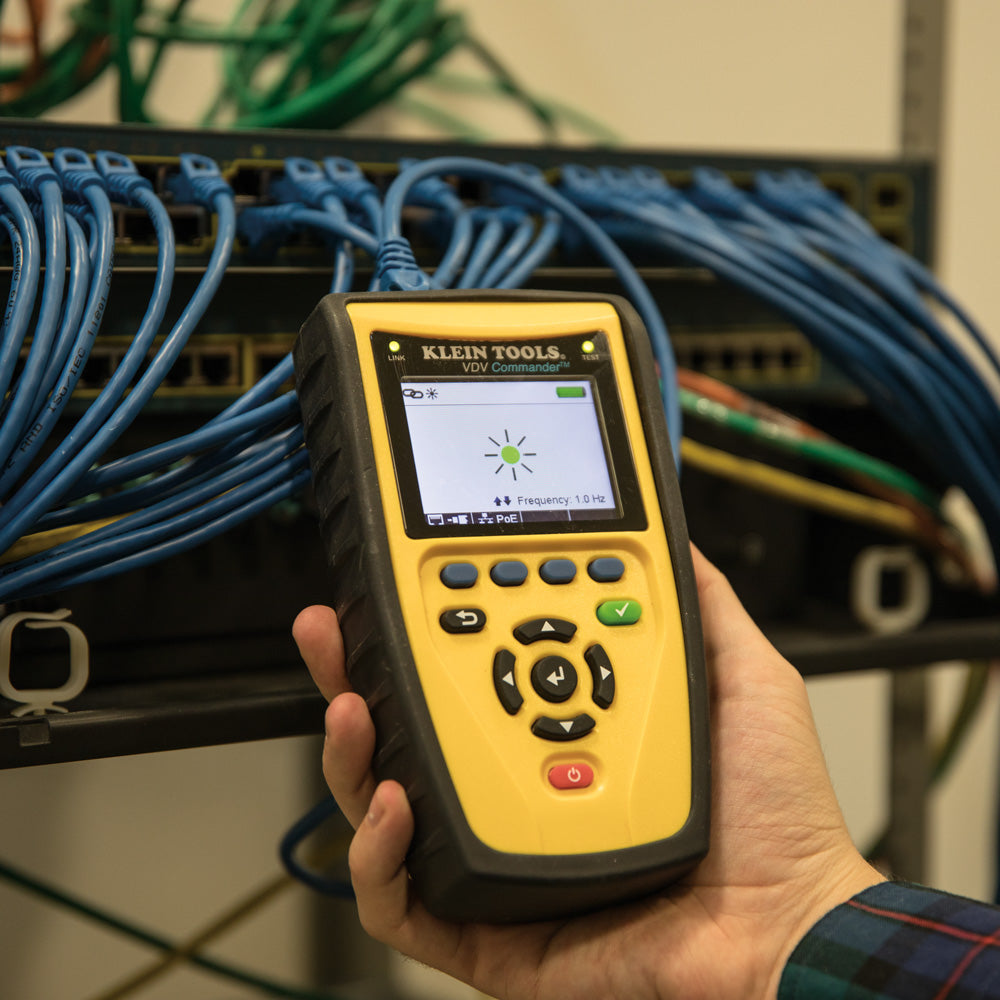

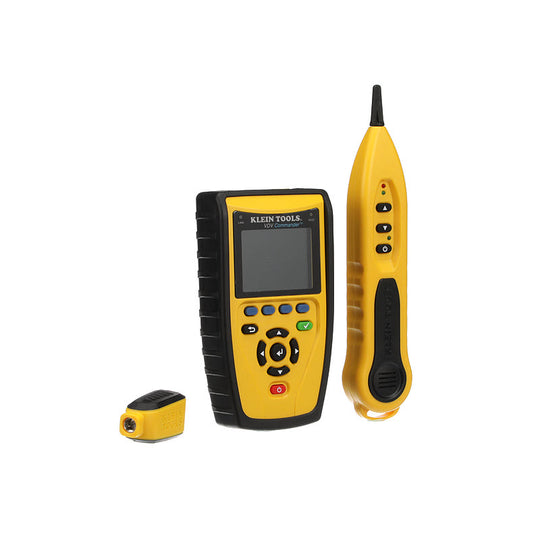

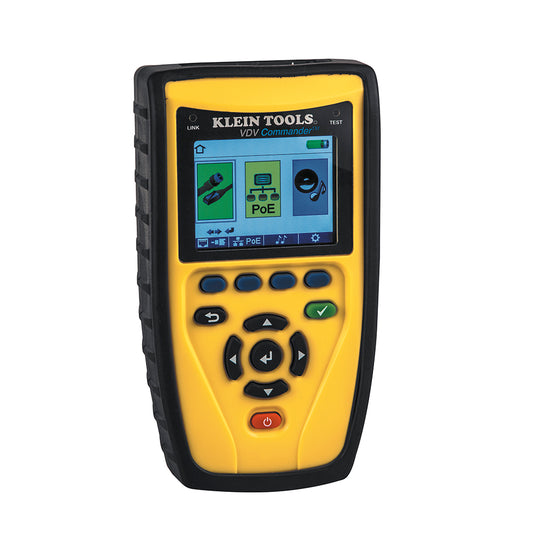

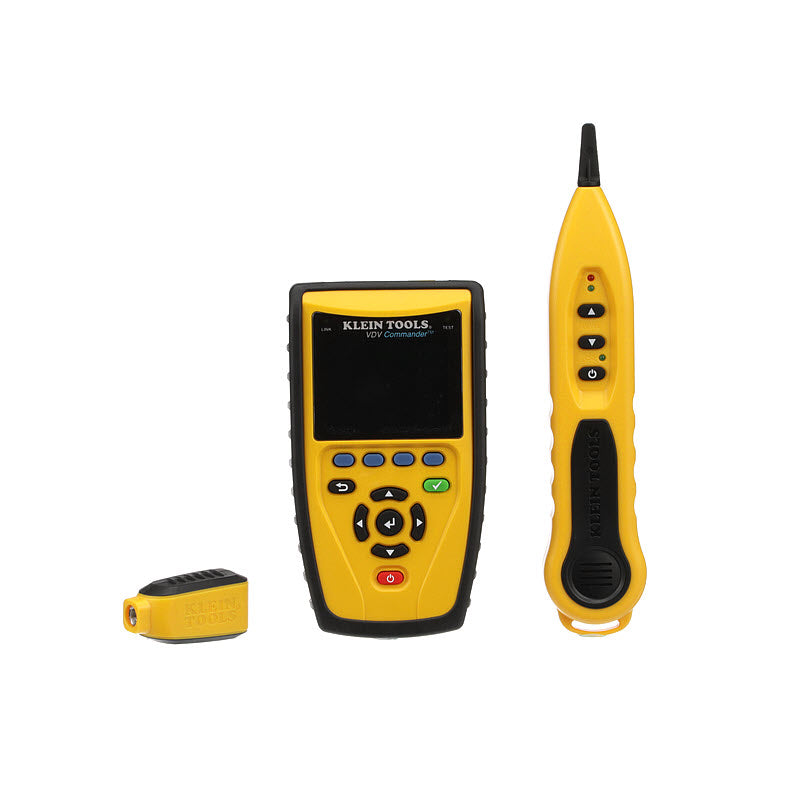

Klein Tools VDV501-829 VDV Commander Test and Tone Kit
SKU#: VDV501-829
UPC#:92644582127
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+
Klein Tools' VDV Commander™ with Test-n-Map Remote Kit locates, tests and measures coax, data and telephone cables to ensure fast and accurate installations. In addition, the Commander detects Power over Ethernet (PoE) and can store and output test results for easy report management.
- Wiremap per TIA-568A/B Industry Standard
-
Identify Wiring Faults:
- Miswire
- Open
- Short
- Split-pair
- Reverse-pair
- Verify shielding
- Single-end cable testing or complete cable testing with Test-n-Map™ ID Remotes
- Detect the presence of PoE
- Detect class and test loads up to 25.5 watts
- Test to ensure adequate power for PoE device
- Test IEEE802.3af and IEEE 802.3at (PoE Plus) compliant Power over Ethernet systems
- Identify modes A or B (Ethernet pairs with power)
- Detect the presence of PoE
- Detect class and test loads up to 25.5 watts
- Test to ensure adequate power for PoE device
- Test IEEE802.3af and IEEE 802.3at (PoE Plus) compliant Power over Ethernet systems
- Identify modes A or B (Ethernet pairs with power)
- Detect active Ethernet current link speed, up to 1 Gbps
- Indicates advertised speeds 10/100/1000BASE-T half/full duplex
- Save up to 256 cables or network tests
- Customize reporting with user defined names
- Export and print color reports
Features+
- Locate, test and measure coaxial, data (RJ45) and telephone (RJ11) cables
- Identify wiring faults including miswire, open, short, split-pair, reverse-pair and verify shielding
- Detect, identify and test Power over Ethernet (PoE)
- Measure cable length and distance to a fault with Time Domain Reflectometry (TDR) technology
- Measure paired-conductor cables up to 1,500 ft. (457 m) with accuracy of up to ±(5% and 1 ft./0.3 m)
- Single-end cable testing or complete two-end cable testing with Test-n-Map ID Remotes
- Perform active network (Ethernet) testing -- detect capabilities and connection speeds
- Visually identify a hub or switch and locate cable runs with Link Light
- Save up to 256 cable or network tests, export and print reports
Reviews+
Klein Tools' VDV Commander™ with Test-n-Map Remote Kit locates, tests and measures coax, data and telephone cables to ensure fast and accurate installations. In addition, the Commander detects Power over Ethernet (PoE) and can store and output test results for easy report management.
- Wiremap per TIA-568A/B Industry Standard
-
Identify Wiring Faults:
- Miswire
- Open
- Short
- Split-pair
- Reverse-pair
- Verify shielding
- Single-end cable testing or complete cable testing with Test-n-Map™ ID Remotes
- Detect the presence of PoE
- Detect class and test loads up to 25.5 watts
- Test to ensure adequate power for PoE device
- Test IEEE802.3af and IEEE 802.3at (PoE Plus) compliant Power over Ethernet systems
- Identify modes A or B (Ethernet pairs with power)
- Detect the presence of PoE
- Detect class and test loads up to 25.5 watts
- Test to ensure adequate power for PoE device
- Test IEEE802.3af and IEEE 802.3at (PoE Plus) compliant Power over Ethernet systems
- Identify modes A or B (Ethernet pairs with power)
- Detect active Ethernet current link speed, up to 1 Gbps
- Indicates advertised speeds 10/100/1000BASE-T half/full duplex
- Save up to 256 cables or network tests
- Customize reporting with user defined names
- Export and print color reports
- Locate, test and measure coaxial, data (RJ45) and telephone (RJ11) cables
- Identify wiring faults including miswire, open, short, split-pair, reverse-pair and verify shielding
- Detect, identify and test Power over Ethernet (PoE)
- Measure cable length and distance to a fault with Time Domain Reflectometry (TDR) technology
- Measure paired-conductor cables up to 1,500 ft. (457 m) with accuracy of up to ±(5% and 1 ft./0.3 m)
- Single-end cable testing or complete two-end cable testing with Test-n-Map ID Remotes
- Perform active network (Ethernet) testing -- detect capabilities and connection speeds
- Visually identify a hub or switch and locate cable runs with Link Light
- Save up to 256 cable or network tests, export and print reports
