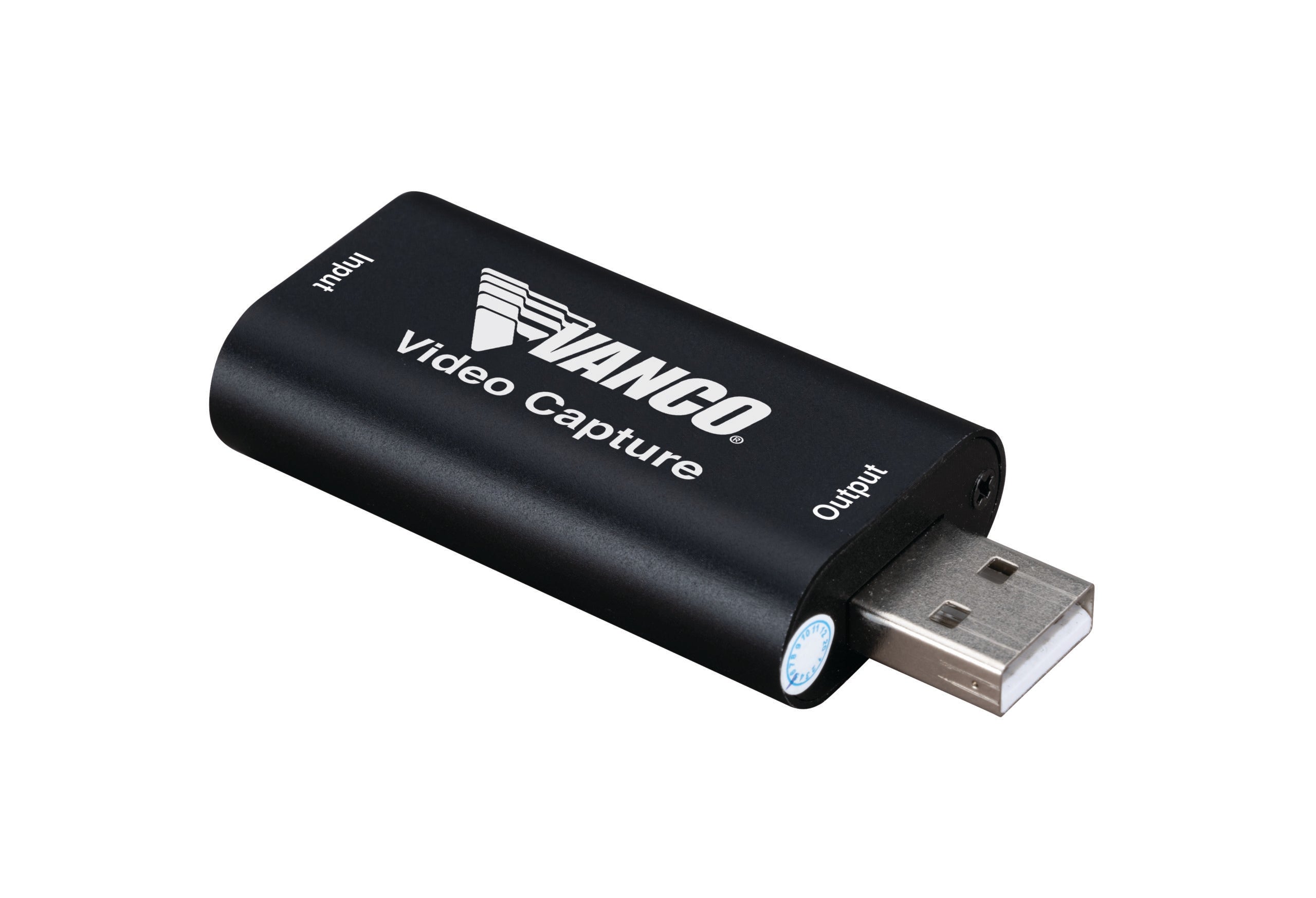

Vanco HDMI-USB Capture, HDCAPT1
SKU#: HDCAPT1
UPC#:741835114394
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- Converts an HDMI signal into content that can be recorded and/or streamed
- Utilize for virtual learning, meetings and more
- Perfect solution for HDMI sources such as video recorders, webcams, game consoles, mobile devices, etc.
- Works with open source software for video recording and live streaming such as OBS, VLC, etc.
- Supports source resolutions up to 4K@30Hz
- Supports USB 2.0
- Compatible with Windows, Android and MacOS
- No external power supply needed
- Compact and portable
- Specs+
- HDMI Resolution Input: 4K@30Hz
- Video Formats: 8/10/12bit Deep color; YUV, JPEG
- Video Resolution: 4K@60Hz, 4:4:4 chroma, HDR
- Video Output Resolution: Up to 1080@60Hz
- Audio Format: . L-PCM
- Input Cable Distance: 15M HDMI
- USB Version: 2.0
- Max Working Current: 0.4A/5VDC
- Operating Temperature Range: -10° to +55°C
- Safety & Emission: CE, FCC, RoHS
- Dimension (LxWxH): (64x28x13mm)
- Weight: 21.4g (0.047 LBS)
- SPEC SHEET
- Package Contents+
- HDCAPT1 HDMI-USB Capture
- Product Manual
- Reviews+
- Converts an HDMI signal into content that can be recorded and/or streamed
- Utilize for virtual learning, meetings and more
- Perfect solution for HDMI sources such as video recorders, webcams, game consoles, mobile devices, etc.
- Works with open source software for video recording and live streaming such as OBS, VLC, etc.
- Supports source resolutions up to 4K@30Hz
- Supports USB 2.0
- Compatible with Windows, Android and MacOS
- No external power supply needed
- Compact and portable
- HDMI Resolution Input: 4K@30Hz
- Video Formats: 8/10/12bit Deep color; YUV, JPEG
- Video Resolution: 4K@60Hz, 4:4:4 chroma, HDR
- Video Output Resolution: Up to 1080@60Hz
- Audio Format: . L-PCM
- Input Cable Distance: 15M HDMI
- USB Version: 2.0
- Max Working Current: 0.4A/5VDC
- Operating Temperature Range: -10° to +55°C
- Safety & Emission: CE, FCC, RoHS
- Dimension (LxWxH): (64x28x13mm)
- Weight: 21.4g (0.047 LBS)
- SPEC SHEET
- HDCAPT1 HDMI-USB Capture
- Product Manual
Vanco HDMI-USB Capture, HDCAPT1
The Vanco HDCAPT1 is a device that allows an HDMI source to be streamed or recorded, resulting in converted content that can be viewed on computers and other commonly found capture software locally and/or remotely. With today’s changing world of virtual attendance, the HDCAPT1 can be utilized for virtual learning, meetings, or to stream a worship service for instance. HDMI signals from video recorders, webcams, game consoles, and mobile devices can be converted to be recorded or live streamed. Easy to install and connect, the HDCAPT1 simply connects HDMI to a source, and USB to a computer with the software available to download from Vanco’s website. With the ability to accept 4K@30Hz resolution, the HDCAPT1 is a great solution to capture HDMI signals and send to a remote audience, or to record for playback.
Vanco HDMI-USB Capture, HDCAPT1
The Vanco HDCAPT1 is a device that allows an HDMI source to be streamed or recorded, resulting in converted content that can be viewed on computers and other commonly found capture software locally and/or remotely. With today’s changing world of virtual attendance, the HDCAPT1 can be utilized for virtual learning, meetings, or to stream a worship service for instance. HDMI signals from video recorders, webcams, game consoles, and mobile devices can be converted to be recorded or live streamed. Easy to install and connect, the HDCAPT1 simply connects HDMI to a source, and USB to a computer with the software available to download from Vanco’s website. With the ability to accept 4K@30Hz resolution, the HDCAPT1 is a great solution to capture HDMI signals and send to a remote audience, or to record for playback.
