- Description+
- Features+

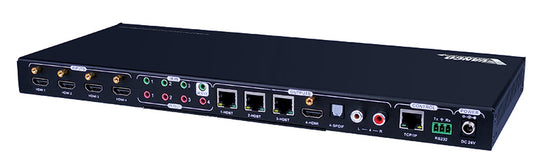

- HDBaseT Matrix that features 3 HDBaseT outputs and 1 HDMI output
- Quick install kit includes 3 HDBaseT PoC receivers- 4 IR Emitter and Receiver sets and IR remote control
- Supports HDCP 2.2- and is backwards compatible with previous version of HDCP and HDMI
- Transmits 4Kx2K @ 60Hz 4:2:0 up to 26 ft (8m) via HDMI port and 131 ft (40m) via HDBaseT port
- 3 HDBaseT outputs with distances up to 230 ft (70m) at 1080p and 131 ft (40m) at 4Kx2K on a single Cat5e/6 cable
- HDBaseT Receivers are powered by the matrix using PoC technology
- LED indicators show real-time switching status
- Controllable via front panel- RS232- IR and TCP/IP
- Supports bi-directional IR & RS232 control
- Built-in GUI for TCP/IP control and setup
- Powerful EDID management
- Features Micro USB port for firmware upgrades
- Easy installation with rack-mounting design- mounting hardware included
- Specs+
- Power Supply : Matrix Unit- DC 24V; Receivers- PoC
- Matrix Dimensions: 14.2” W x 1” H x 5.9” D
- Receiver Dimensions: 2.4” W x .9” H x 4.7” D
- Package Contents+
- 4K HDBaseT Matrix Switcher
- (3) HDBaseT Receivers
- (4) IR Emitters (Optional)
- (3) IR Receivers (Optional)
- IR Receiver(Inserted into IR EYE port)
- IR remote
- RS232 cable (Phoenix to 9-pin D-Sub)
- Mounting ears & Screws
- (4) Trapezoidal Plastic pads (For 4K HDBaseT Matrix Switcher)
- (12) Round Plastic pads (For HDBaseT Receivers)
- Power Adapter (DC 24V 2.71A)
- Power Cord (Optional)
- Product Manual
