- Description+
- Features+
- Wireless N Speed up to 450Mbps
- MIMO™ Technology Provides Robust High Bandwidth Wireless Tx/Rx Capability at Further Range
- CCA™ Improves Wireless Performance While Automatically Avoiding Channel Conflict
- Supports Multiple Operating Modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)
- Easily Setup a WPA Encrypted Secure Connection at a Push of the QSS Button
- Supports Wi-Fi Multimedia (WMM) Assures the Quality of VoIP & Multimedia Streaming
- Supports up to 30 meters of Power over Ethernet capability for flexible performance
- Up to 4 SSIDs & VLAN Support
- Specs+
- Meets IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Specifications
- Frequency Range: 2.4-2.4835GHz
- Wireless Transmit Power: <20dBm(EIRP)
- Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10
- Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge
- Interface
- One 10/100M Ethernet Port(RJ45)
- Support Passive PoE
- CE Certified
- FCC Certified
- RoHS Compliant
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Dimensions: 6.9*4.7*1.1 in.(174*120*28.8mm)
- 11n: Up to 450Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
- 270M: -68dBm@10% PER
- 130M: -68dBm@10% PER
- 108M: -68dBm@10% PER
- 54M: -68dBm@10% PER
- 11M: -85dBm@8% PER
- 6M: -88dBm@10% PER
- 1M: -90dBm@8% PER
- Package Contents+
- Wireless Access Point
- (3) Detachable Omni Directional Antennas
- Power Supply
- PoE Power Injector
- Resource CD
- Quick Installation Guide
- Reviews+
- Wireless N Speed up to 450Mbps
- MIMO™ Technology Provides Robust High Bandwidth Wireless Tx/Rx Capability at Further Range
- CCA™ Improves Wireless Performance While Automatically Avoiding Channel Conflict
- Supports Multiple Operating Modes (Access Point, Client, Universal/WDS Repeater, Point to Point, Point to Multi-point)
- Easily Setup a WPA Encrypted Secure Connection at a Push of the QSS Button
- Supports Wi-Fi Multimedia (WMM) Assures the Quality of VoIP & Multimedia Streaming
- Supports up to 30 meters of Power over Ethernet capability for flexible performance
- Up to 4 SSIDs & VLAN Support
- Meets IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Specifications
- Frequency Range: 2.4-2.4835GHz
- Wireless Transmit Power: <20dBm(EIRP)
- Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10
- Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge
- Interface
- One 10/100M Ethernet Port(RJ45)
- Support Passive PoE
- CE Certified
- FCC Certified
- RoHS Compliant
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Dimensions: 6.9*4.7*1.1 in.(174*120*28.8mm)
- 11n: Up to 450Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
- 270M: -68dBm@10% PER
- 130M: -68dBm@10% PER
- 108M: -68dBm@10% PER
- 54M: -68dBm@10% PER
- 11M: -85dBm@8% PER
- 6M: -88dBm@10% PER
- 1M: -90dBm@8% PER
- Wireless Access Point
- (3) Detachable Omni Directional Antennas
- Power Supply
- PoE Power Injector
- Resource CD
- Quick Installation Guide

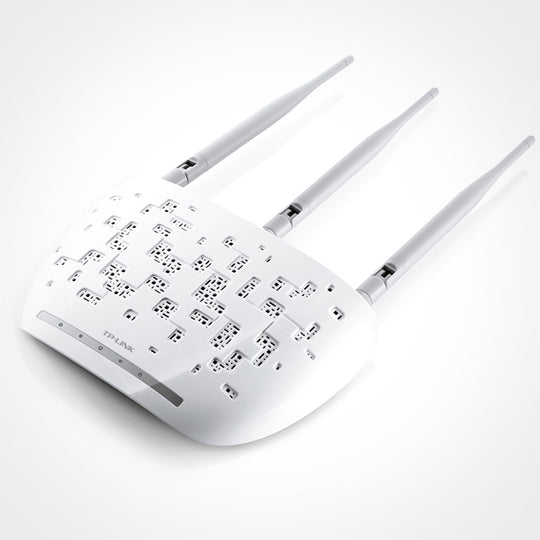

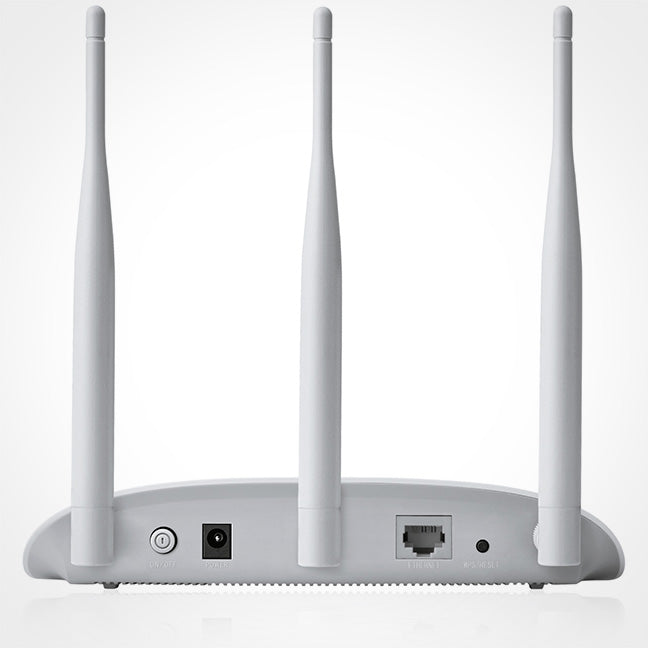

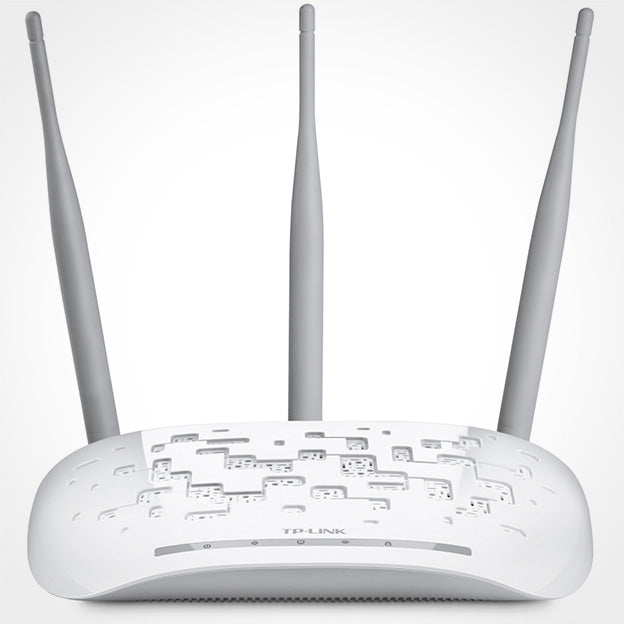

The TP-LINK Wireless N Access Point TL-WA901ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network.
The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.
Wireless Speed
Receiver Sensitivity
The TP-LINK Wireless N Access Point TL-WA901ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network.
The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.
Wireless Speed
Receiver Sensitivity
