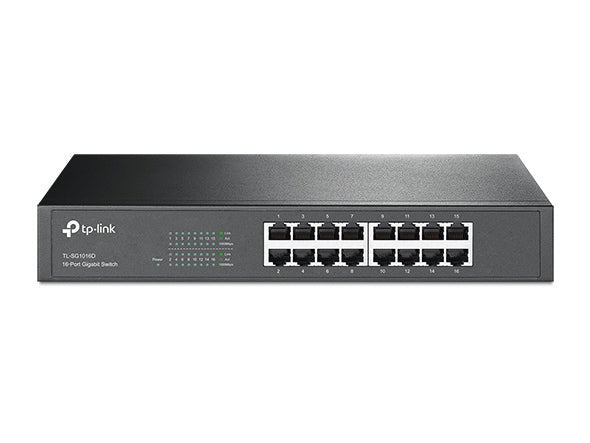

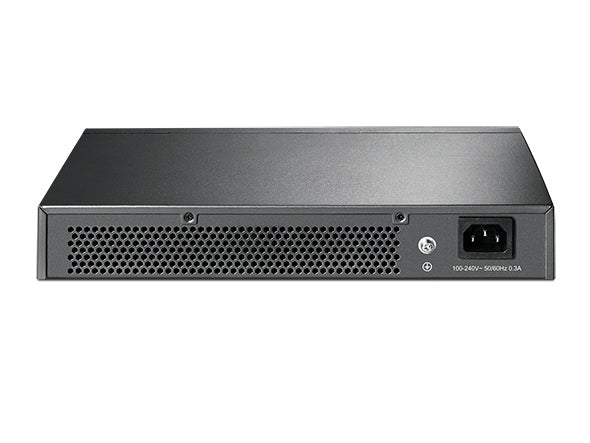

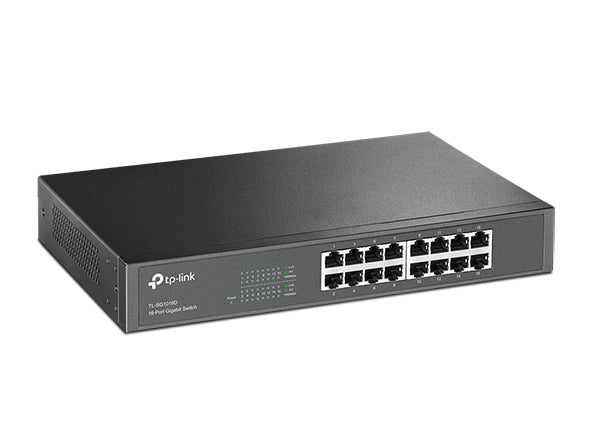

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

SKU#: TL-SG1016D

UPC#: 845973020613

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: TL-SG1016D

UPC#:845973020613
$117.11

SKU#: TL-SG1016D

UPC#:845973020613

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • TP-Link 16-Port Gigabit Desktop/Rackmount Switch

    You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    • Power down Idle Ports
      When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
    • Power Budget According to Cable Length
      Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

    * Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.

    The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

    Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So?power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

  • Features+
    • 16 10/100/1000Mbps ports
    • Innovative energy-efficient technology saves power consumption
    • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
    • Plug & play design
  • Specs+
  • HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
    Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock No
    Power Supply 100-240VAC, 50/60Hz
    Power Consumption Maximum: 9.26W (220V/50Hz)
    Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
    Max Power Consumption 9.26W(220V/50Hz)
    Max Heat Dissipation 31.60BTU/h
    PERFORMANCE
    Switching Capacity 32Gbps
    Packet Forwarding Rate 23.8Mpps
    MAC Address Table 8K
    Jumbo Frame 10KB
    Green Technology Yes
    Transfer Method Store-and-Forward
  • Package Contents+
    • 16-Port Gigabit Desktop/Rackmount Switch
    • Power Cord
    • Installation Guide
    • Rackmount Kits
    • Rubber Feet
  • Reviews+
  • TP-Link 16-Port Gigabit Desktop/Rackmount Switch

    You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    • Power down Idle Ports
      When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
    • Power Budget According to Cable Length
      Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

    * Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.

    The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.

    Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So?power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

    • 16 10/100/1000Mbps ports
    • Innovative energy-efficient technology saves power consumption
    • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
    • Plug & play design
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
    Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock No
    Power Supply 100-240VAC, 50/60Hz
    Power Consumption Maximum: 9.26W (220V/50Hz)
    Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
    Max Power Consumption 9.26W(220V/50Hz)
    Max Heat Dissipation 31.60BTU/h
    PERFORMANCE
    Switching Capacity 32Gbps
    Packet Forwarding Rate 23.8Mpps
    MAC Address Table 8K
    Jumbo Frame 10KB
    Green Technology Yes
    Transfer Method Store-and-Forward
    • 16-Port Gigabit Desktop/Rackmount Switch
    • Power Cord
    • Installation Guide
    • Rackmount Kits
    • Rubber Feet
