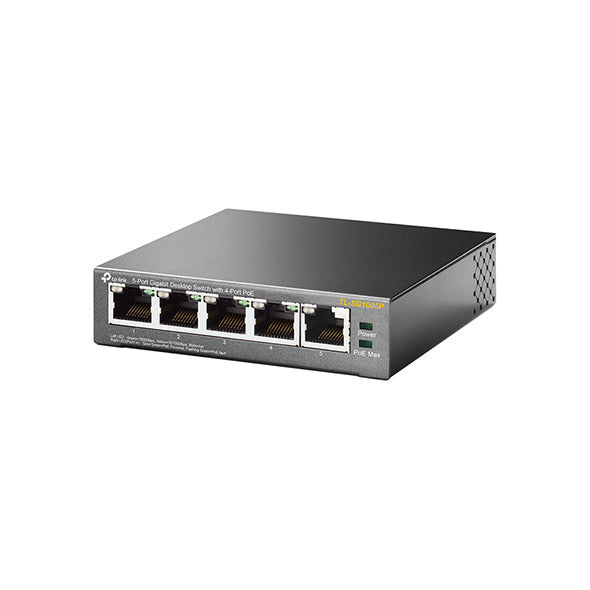

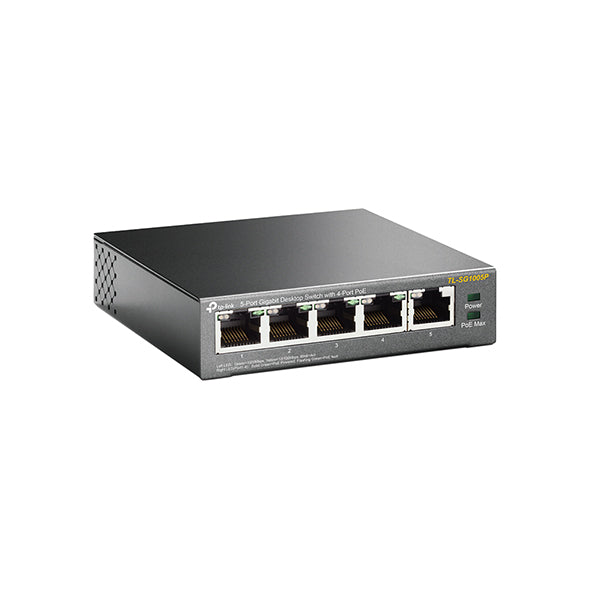

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE

SKU#: TL-SG1005P

UPC#:845973083212

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: TL-SG1005P

UPC#:845973083212
$72.49

SKU#: TL-SG1005P

UPC#:845973083212

SKU#: TL-SG1005P

UPC#:845973083212

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

PoE Switches for Your Ultra Convenience

5-Port Gigabit Desktop Switch with 4-Port PoE, TL-SG1005P

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing

Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.

Features+

  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Requires no configuration and installation

Specs+

HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth 10Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in.
(100 × 98 × 25 mm)
Max Power Consumption 4.0W(no PD load)
64.4W(with 56W PD load)
Max Heat Dissipation 13.5BTU/h(no PD load)
219.9BTU/h(with 56W PD load)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing

Package Contents+

  • TL-SG1005P
  • Power Adapter
  • Installation Guide
