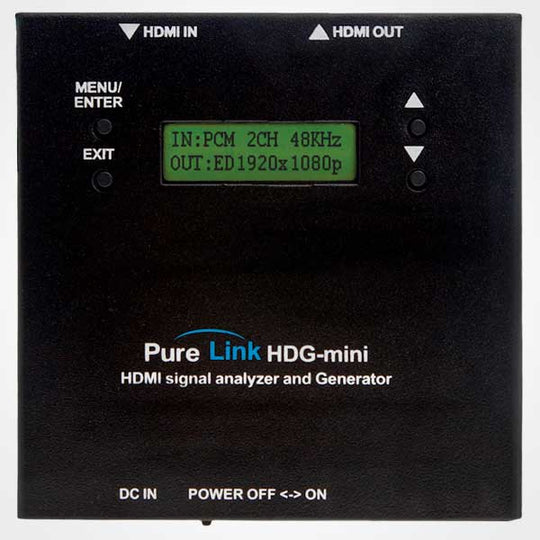

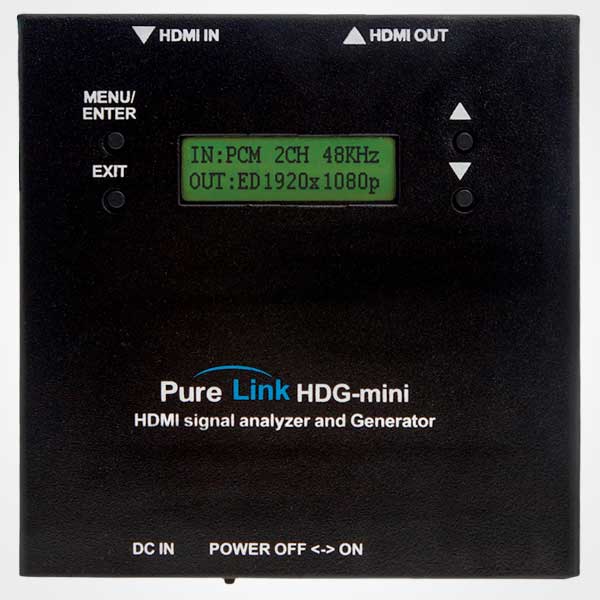

  • PureLink HDG-mini HDMI Signal Generator

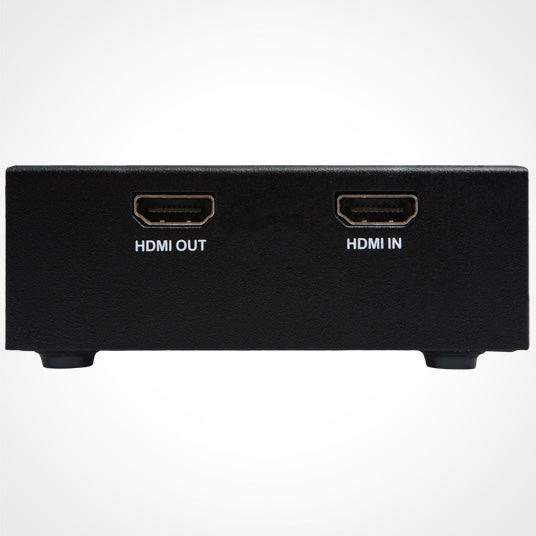

  • PureLink HDG-mini HDMI Signal Generator Front

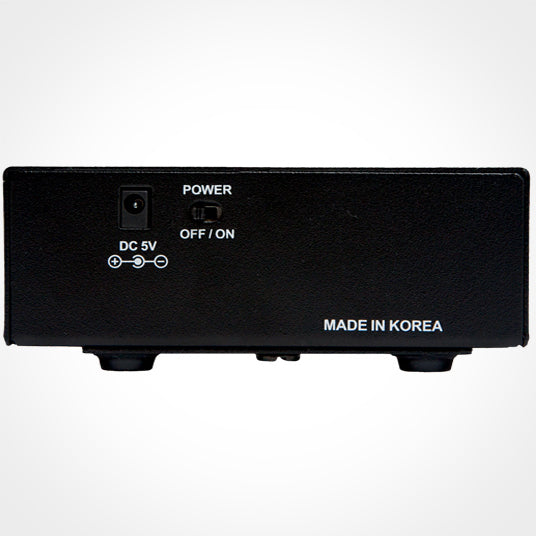

  • PureLink HDG-mini HDMI Signal Generator Back
  • PureLink

PureLink HDG-mini HDMI Signal Generator

SKU#: HDG-mini

60 Day Money Back Guarantee

100% Secure Shopping

$799.99

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

The The PureLink HDG-mini HDMI Signal Generator helps verify basic technical specifications of a connected source device for troubleshooting. It can generate an image from up to five different test pattern still images and transmit that image to the DVI or HDMI monitor.

Features+

  • Offers 5 Different Test Pattern Still Images
  • Input Signal Analyzing Capability
  • Enhanced EDID Management with Built-in Library
  • Compact, Portable Design Makes Transportation Easy

Specs+

  • Input Signal: DVI / HDMI (TMDS)
  • Output Signal: DVI / HDMI (TMDS)
  • Supported Built-in Timing Chart: 720 X 480p @60Hz, 1024 X 768 @60Hz, 1280 X 720p @60Hz, 1920 X 1080p @60Hz, 1920 X 1200 @60Hz
  • Supported Resolutions: VGA ~ WUXGA up to 1920x1200 @ 60Hz, 480i ~ 1080p
  • HDCP Compliant
  • Connector Type: HDMI Female (Rx, Tx) (Rx for source), (Tx for monitor)
  • Certifications: HDMI 1.3
  • Power Rating: DC +5V, Use 3 Watts Max
  • Dimensions: 4.7 x 3.5 x 0.8"
  • Operating Temperature: 50F ~ 104F (10℃~ 40℃)
  • Operating Humidity: 10% ~ 80%
  • Operating Altitude: 3,000m Max
  • Transit Temperature: -13F ~ 140F (-25℃~ 60℃)
  • Transit Humidity: 5% ~ 95%
  • Transit Altitude: 15,000 Max
  • Storage Temperature: -4F ~ -49F (-20℃~ 45℃)
  • Storage Humidity: 5% ~ 95%
  • Storage Altitude: 3,000m Max
  • MTBF: 90% at over 50,000 hours aging test
  • PDF Download Manual

Package Contents+

  • (1) HDG-mini
  • (1) 5V DC Power Supply Adapter
  • (1) Owner's Manual
