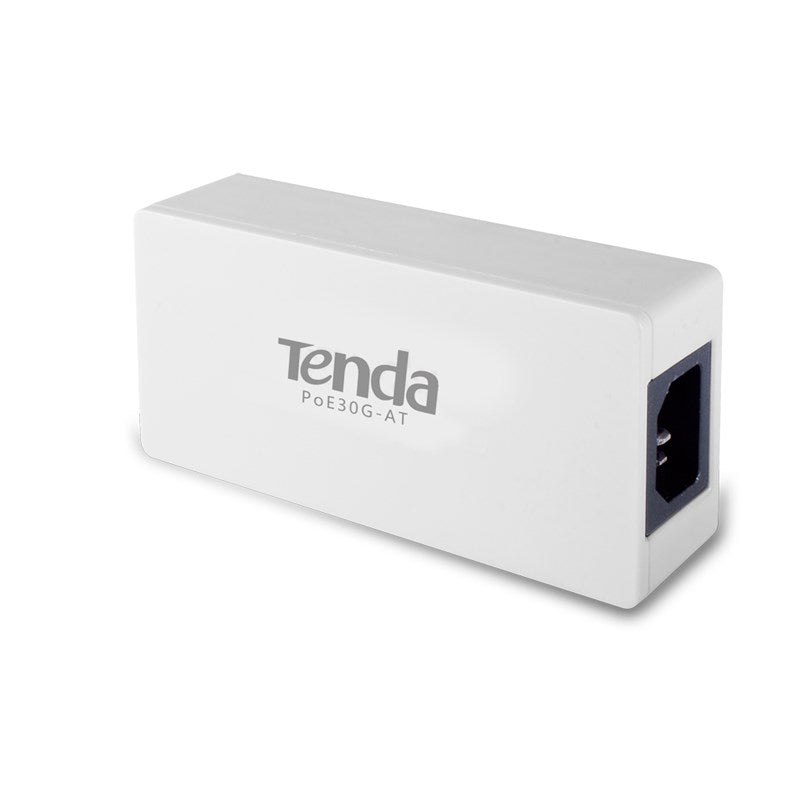

Tenda Gigabit High PoE Injector POE30G-AT

Tenda Gigabit High PoE Injector POE30G-AT

The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.

PoE Performance

PoE ports supports IEEE802.3at and IEEE802.3af standard Supports AT high power(30W)

Power supply distance extension

The standard cat’s power distance can be extended to 100 meters. The device can extend the range of PoE power over long distances, and simplify the deployment of power lines so that PD equipment can supply power.

Gigabit blazing-fast delivery

10/100M/1000Mbps autosensing RJ45 port provides fast data delivery, supports wire speed forwarding and MDI/MDIX, plug and play.

Stable performance

Adopts new chips solution, brings new performance experience, powerful data transfer and power

Network standards

• IEEE802.3? IEEE802.3u ?IEEE802.3ab?IEEE802.3af? IEEE802.3at

LED indicators

• PWR, PoE

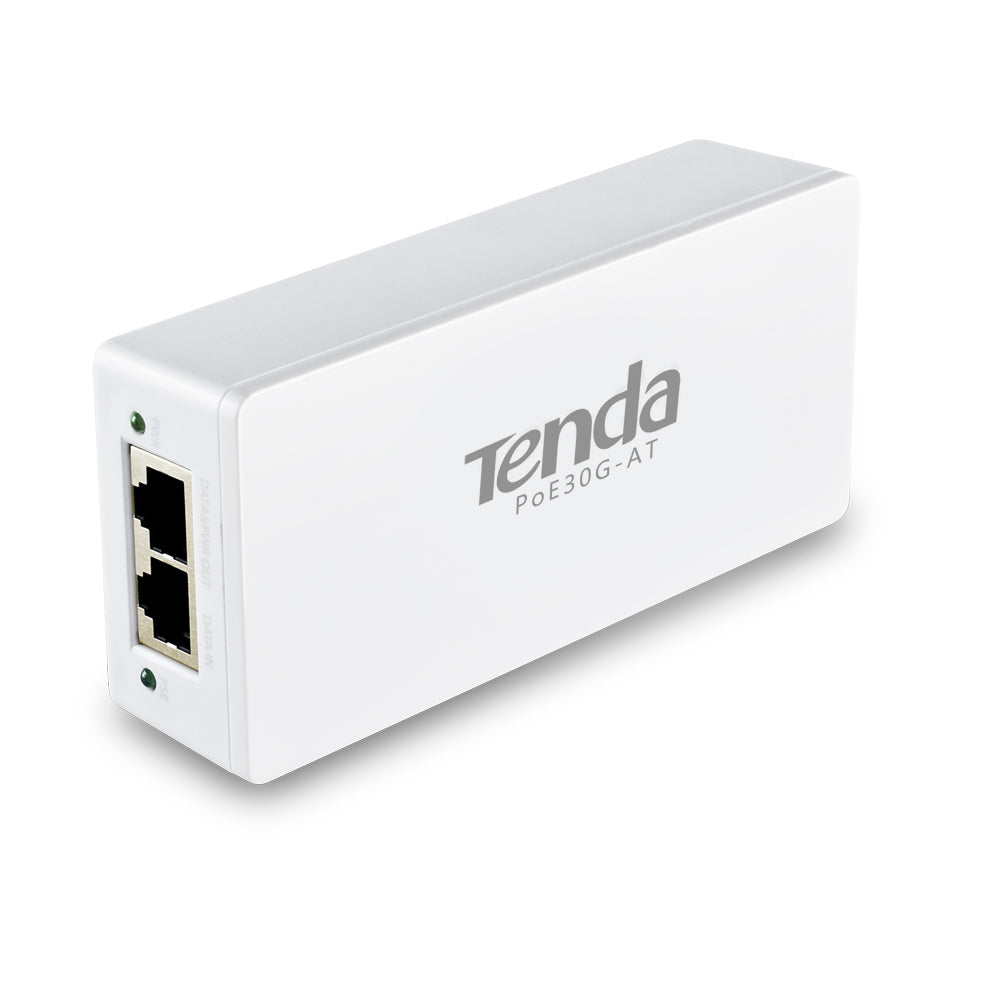

Interfaces

• 1*10/100/1000 Base-T Ethernet Port(Data/PoE)
• 1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media

• Recommended: CAT5/5e UTP or better

Dimensions(L*W*H)

• 132.3mm*60mm*33mm

Level of protection

• ESD:
• Air discharge: ±10kV
• Contact discharge: ±8kV

Forwarding mode

• Store-and-forward

Transmission Rate

• 1000Mbps

PoE budget

• Single port: AF: 15.4W, AT: 30W
• Whole device: 30W

Power consumption

• 30W

Input voltage

• 100?240V AC 50/60Hz
• 51V/0.8A DC?Power Adapter Output?

Mounting

• Desktop mounting: support

Environment

• Operating Temperature: 0?~45?
• Storage Temperature: -40?~70?
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Certificates

• FCC?CE ?RoHS?UL
