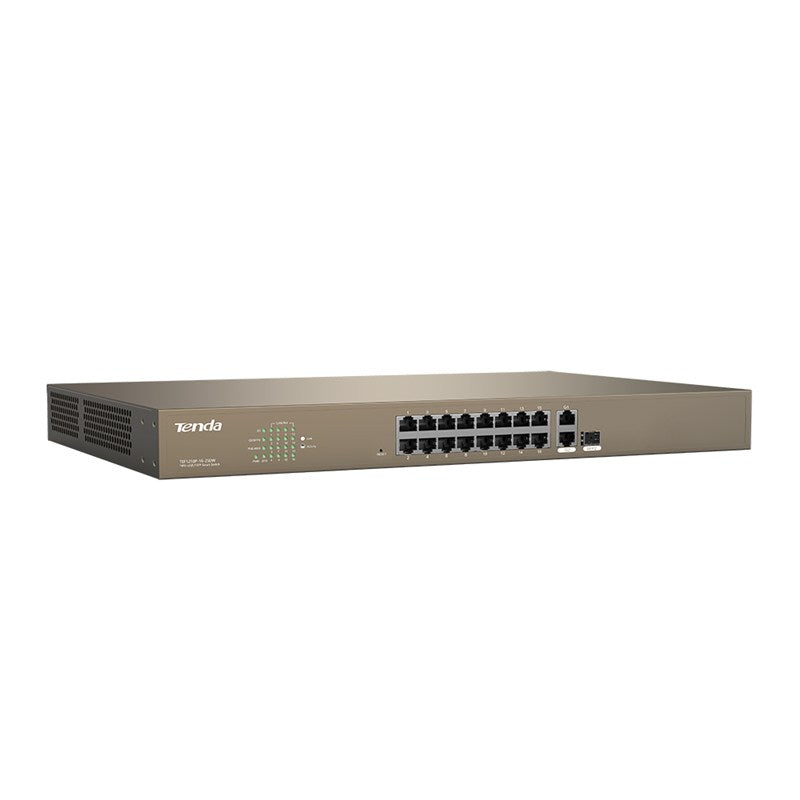

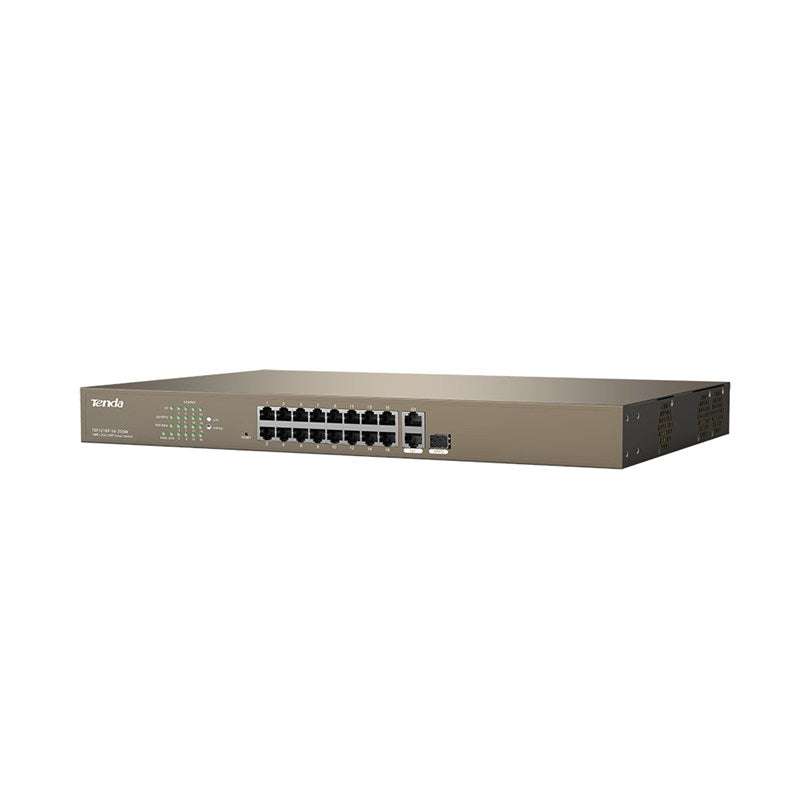

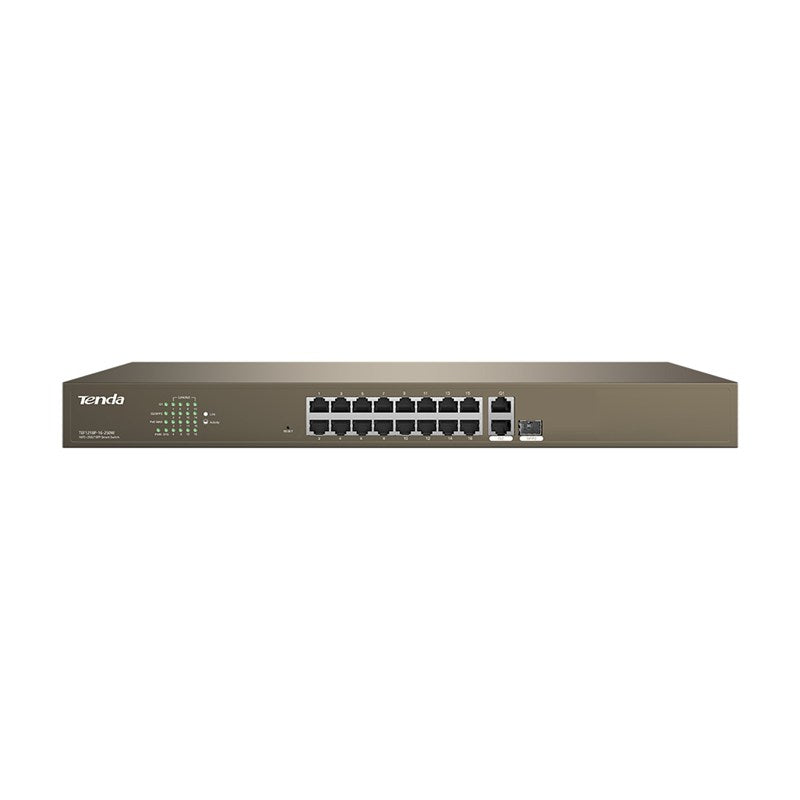

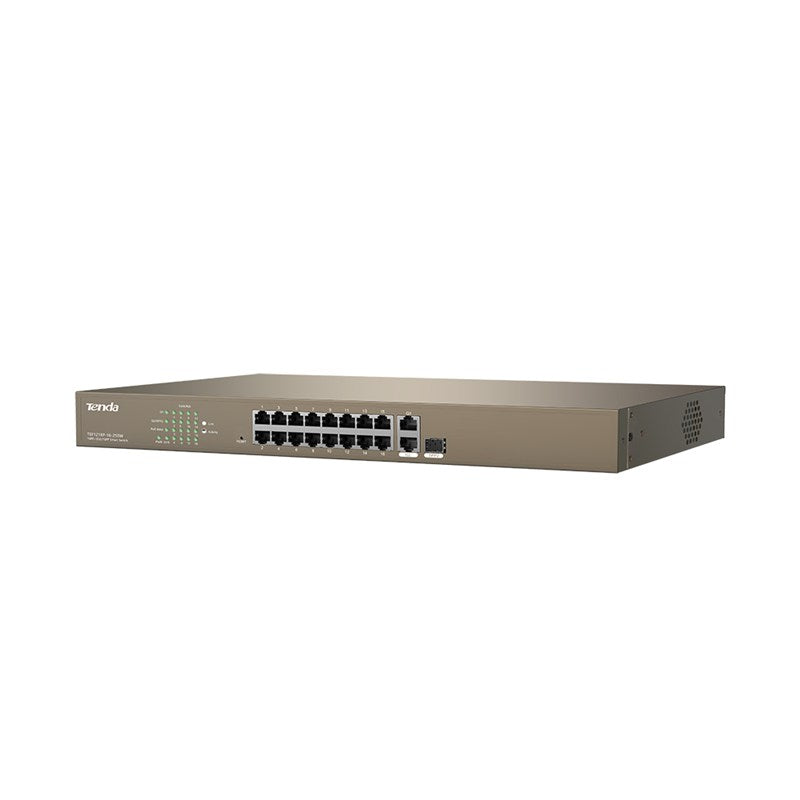

Tenda 16-Port 10/100Mbps + 2 Gigabit Web Smart PoE Switch TEF1218P-16-250W

SKU#: TEF1218P-16-250W

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: TEF1218P-16-250W

UPC#:
$284.29

SKU#: TEF1218P-16-250W

UPC#:

SKU#: TEF1218P-16-250W

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Tenda 10/100Mbps + 2 Gigabit Web Smart PoE Switch

Tenda Gigabit smart PoE switch TEF1218P-16-250W, with intelligent web network management functions, provides a more intuitive and user-friendly interface. It supports 250 meters long distance power supply, QVLAN, link aggregation, QoS, MAC address binding, etc., which greatly reduces construction difficulty and saves time, maximizing cost savings for engineerings.

GE & SFP uplink ports?Large Buffer of Nearly 3M

With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance up to 20km.

6KV Excellent Lightning Protection

The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc., and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC?100-240V~50/60Hz.

Up to 250 meters long distance transmission under the Extend Mode beyond hundred meters transfer limitation

Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1218-16-250W can support 250 meters long distance transmission, which can save the cost of your project with less devices used.

230 W PoE power supply

The switch features 16 RJ45 ports being compliant with IEEE 802.3af/at standard. The entire switch offers a maximum PoE power output of 230 W, and 30 W for a single port, to supply power to data transmission with 16 PoE-devices such as APs and IP cameras.

Specs+

Network standards

  • IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.3af/at

LED indicators

  • 16 * Link/Act LEDs
  • 1 * G1 LED
  • 1 * G2/SFP2 LED
  • 1 * PoE-MAX LED
  • 1 * Power LED
  • 1 * SYS LED

Interfaces

  • 16 * 10/100 Base-TX Ethernet ports (Data/Power)
  • 2 * 10/100/1000 Base-T Ethernet ports (Data)
  • 1 * 10/100/1000 Base-X SFP port (Combo)

Transmission media

  • Recommended: CAT5/5e UTP or better

Fan quantity

  • 1

Level of protection

  • Lightning protection for ports: 6kV
  • Lightning protection for power: 6kV
  • ESD:
  • Air discharge: ±10kV
  • Contact discharge: ±8kV

Forwarding mode

  • Store-and-forward

Switch capacity

  • 7.2 Gbps

Packet forwarding rate

  • 5.36Mpps

Buffer

  • 1.25Mb

MAC address table

  • 4K

Jombo frame

  • N/A

PoE power supply

  • Support

PoE budget

  • Single port: AF: 15.4W, AT: 30W
  • Whole device: 230W

Input voltage

  • 100-240V AC 50/60Hz

Power consumption

  • 250W output the whole device

Dimensions(L*W*H)

  • 440.0mmx178.8mmx44.0mm

Mounting

  • Desktop mounting: support
  • Wall mounting: support
  • Rack mounting:non-support

Energy Efficient

  • Support

Environment

  • Operating temperature: 0°C - 45°C
  • Storage temperature: -40°C - 70°C
  • Operating humidity: (10% - 90%)RH, non-condensing
  • Storage humidity: (5% - 90%)RH, non-condensing

Certificates

  • FCC?CE?RoHS

L3 Features

  • N/A

PoE power supply management

  • Support over temperature protection for PoE module Support graphical management detection of PD equipment

Security features

  • MAC-Port Binding

VLAN

  • Supports Port VLAN Supports 802.1Q VLAN

DHCP

  • N/A

Port aggregation

  • Static Trunk Supports 3 groups of 4-Port trunk support

Spanning tree

  • STP/RSTP

Multicast

  • IGMP (v1/v2) Snooping

Port Mirroring

  • N: 1 port mirroring

QoS

  • 802.1p and DSCP priority re-marking Flow control Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR

ACL

  • N/A

Loading and upgrade

  • N/A

Management and maintenance

  • Support SNMP v1/v2 and WEB-based management
