Tenda 10/100/1000Mbps Gigabit Ethernet Switch

Tenda 10/100/1000Mbps Gigabit Ethernet Switch

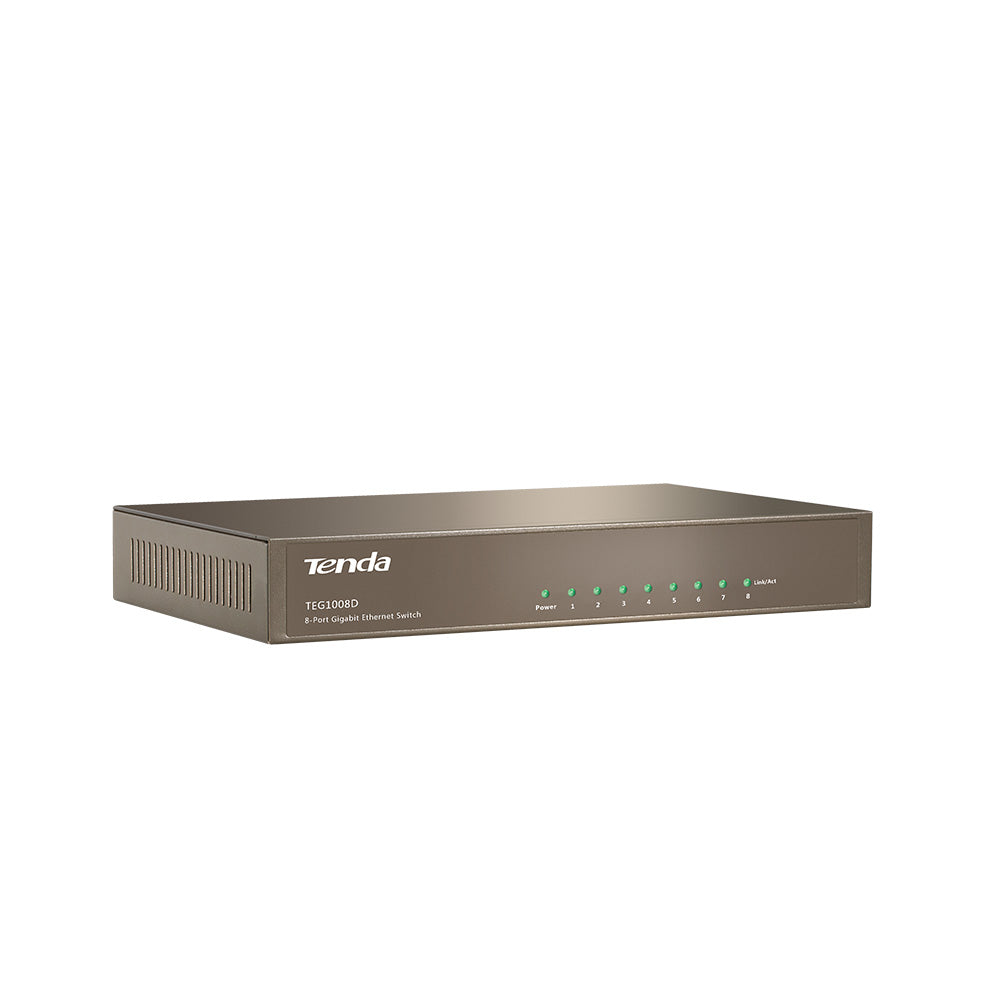

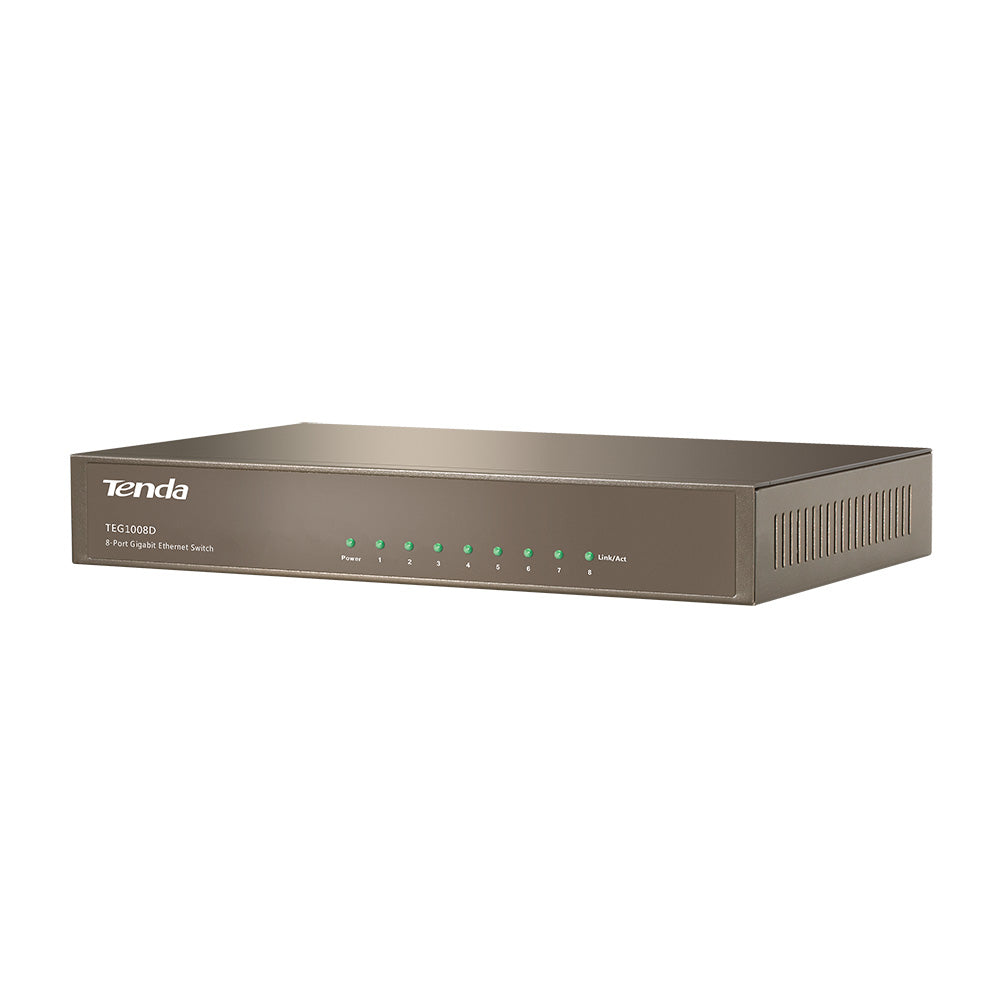

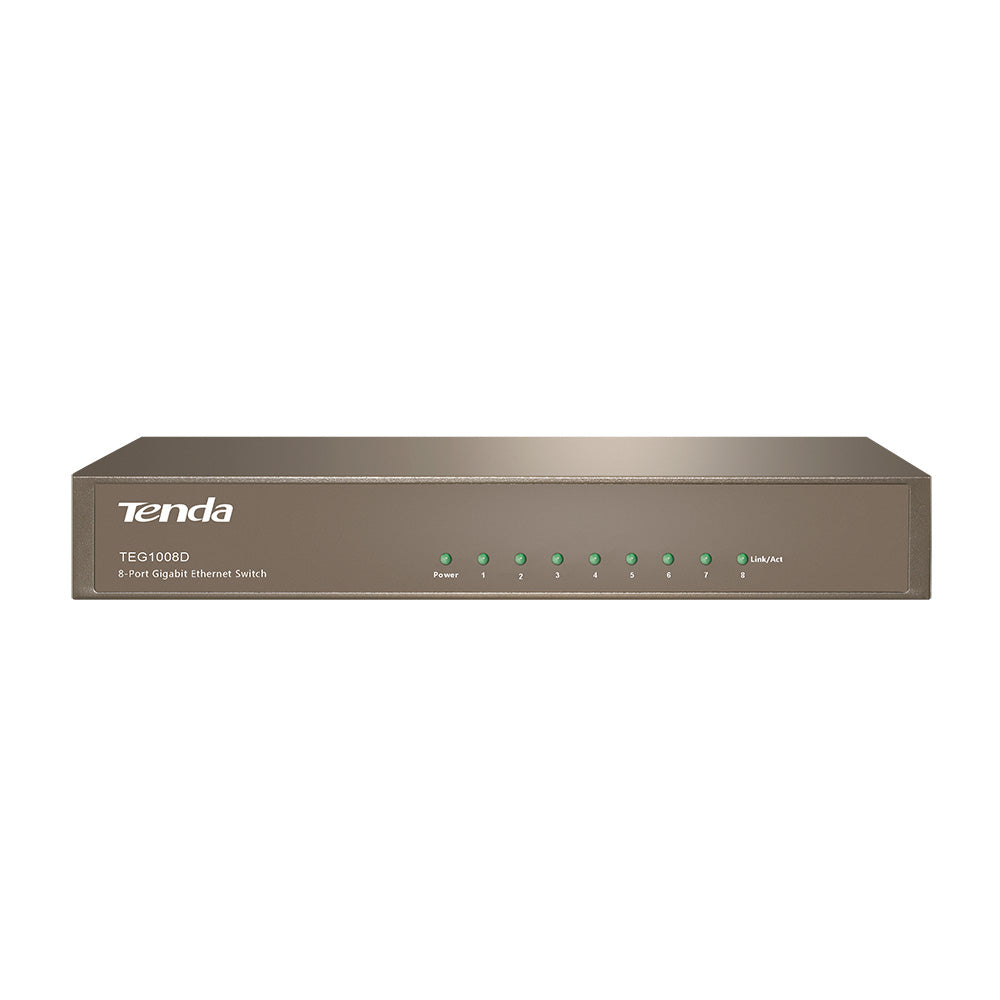

TEG1008D is an unmanaged gigabit switch with 5-8 10/100/1000Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. This switch supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance . Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With bulit -in latest Broadcom chip , fanless and greenlumi design , this switch is the ideal choice for small & medium enterprises?schools , small offices to upgrade gigabit network.

Improve transmission efficiency

Support 9K jumbo Frame to speed up the transmission of large files and improve transmission efficiency.

Network standards

• IEEE802.3? IEEE802.3u?IEEE802.3x? IEEE802.3ab

LED indicators

• 1 * Power?5 * Link/Act

Interfaces

• 5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)

Transmission media

• Recommended: CAT5/5e UTP or better

Fan quantity

• N/A

Dimensions(L*W*H)

• 100.0mmx64.0mmx23.0mm

Material

• Metal

Level of protection

• ESD:
• Air discharge: ±8kV
• Contact discharge: ±6kV

Forwarding mode

• Store-and-forward

Switch capacity

• 1Gbps

Packet forwarding rate

• 7.44Mpps

Buffer

• 1Mb

MAC address table

• 2K

Jombo frame

• 15K

Power

• Input: 100-240V AC 50/60Hz
• Output: 5V 0.6A (External power adapter)

Power consumption

• Max:<2.5W

Mounting

• Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support

Environment

• Operating temperature: 0°C - 45?
• Storage temperature: -40°C - 70°C
• Operating humidity: (10% - 90%) RH, non-condensing
• Storage humidity: (5% - 90%) RH, non-condensing

Certificates

• CE, FCC, RoHS

Protocol

• CDMA/CD

MAC address learning

• Auto-Learning and Auto-Aging

Function

• plug-and-play
