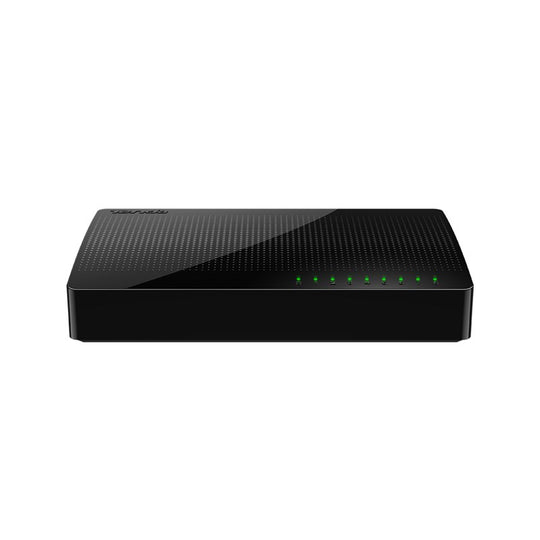

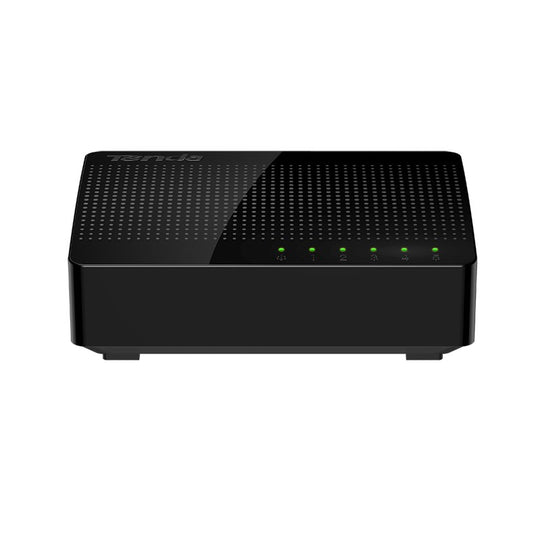

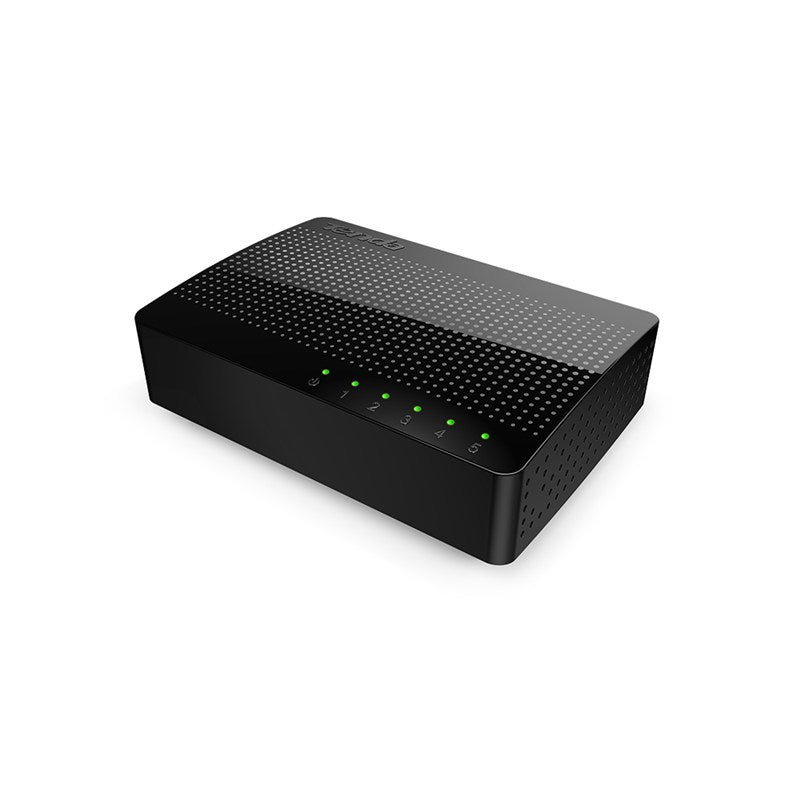

Tenda 10/100/1000Mbps Desktop Gigabit Switch

Gigabit Speed, Video Transmission in Seconds

Gigabit speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast Ethernet , and data packets are forwarded at full wire speed.

Stay Online for 7*24 Hours and No Packet Loss

With store and forwarding mode, MAC address auto learning and auto aging ,this switch can transfer data without loss to ensure stable and blazing fast Wired network performance.

Stylish and Exquisite Design

Tenda SOHO Gigabit switches are nice and small and won't take up much desk or floor space. With desktop or wall-mounting design, you can put Tenda SOHO Gigabit switches anywhere you want and move flexibly. They come in a pretty dome-shaped pattern Plastic case. They will fit equally well in any desktop decor. Not only for Wired network use, but also for a homet.

Plug and Play, No Configuration Required

Wired network is available after plug Ethernet cable in no time effortlessly. Whether you are a tech-savvy enthusiast or a first-time user, Tenda SOHO Gigabit Switches are super easy and intuitive to setup without time-consuming operations. It is easy for us to setup the Internet in order to make you enjoy it with Tenda SOHO Gigabit Switches.

Network standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

LED indicators

• 1 Power, 5-8 Link/Act

Interfaces

• 5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)

Transmission media

• Recommended: CAT5/5e UTP or better

Fan quantity

• N/A

Dimensions(L*W*H)

• 93.0mm×66.0mm×23.0mm (5-port)
• 124.0mmx59.0mmx23.0mm (8-port)

Material

• Plastic

Level of protection

• ESD:
• Air discharge: ±8kV
• Contact discharge: ±6kV

Forwarding mode

• Store-and-forward

Switch capacity

• 10Gbps

Packet forwarding rate

• 7.44Mpps

Buffer

• 1Mb

MAC address table

• 2K

Jombo frame

• N/A

Power

• Input: 100-240V AC 50/60Hz
• Output: 5.0V 0.6A ( External Power Adapter )

Power consumption

• Max:<1.7W

Mounting

• Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support

Environment

• Operating temperature: 0°C - 45?
• Storage temperature: -40°C - 70°C
• Operating humidity: (10% - 90%) RH, non-condensing
• Storage humidity: (5% - 90%) RH, non-condensing

Certificates

• CE, FCC, RoHS

Protocol

• CDMA/CD

MAC address learning

• Auto-Learning and Auto-Aging

Function

• plug-and-play
