Techlogix Networx 4-Port Gigabit Ethernet Unmanaged PoE+ Fiber Switch
SKU#: TL-NS42-POE
UPC#:816927025640
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- 4xGbE PoE + 1xGbE SFP + 1xGbE RJ45/SFP Combo
- 30W IEEE802.3at compliant
- Each PoE port can be manually set for On-Off control
- Completely immune to RF and electromagnetic interference
- 12KV surge protection on each PoE port

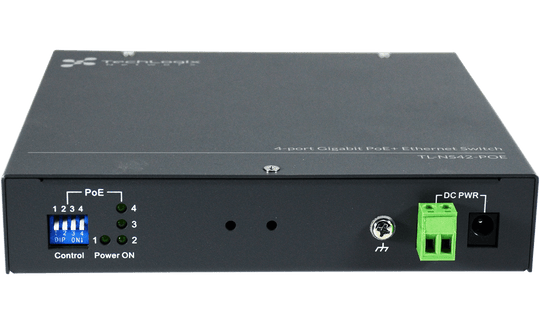

- Redundant power input (48-56VDC) & Reverse power protection
- Single mode and multimode fiber compatible (SFP module dependent)
- SFP module sold separately
- Suggested multimode module: TL-1GSFP-MM550
- Multimode max distance: 550m (1,805 ft.)
- Suggested single mode module: TL-1GSFP-SM20K
- Single mode max distance: 20km (12.4 miles)
- Specs+
- Package Contents+
- [1] TL-NS42-POE
- [1] 48VDC Power Supply
- [1] Wall/DIN Mounting Kit
- Reviews+
- 4xGbE PoE + 1xGbE SFP + 1xGbE RJ45/SFP Combo
- 30W IEEE802.3at compliant
- Each PoE port can be manually set for On-Off control
- Completely immune to RF and electromagnetic interference
- 12KV surge protection on each PoE port
- Redundant power input (48-56VDC) & Reverse power protection
- Single mode and multimode fiber compatible (SFP module dependent)
- SFP module sold separately
- Suggested multimode module: TL-1GSFP-MM550
- Multimode max distance: 550m (1,805 ft.)
- Suggested single mode module: TL-1GSFP-SM20K
- Single mode max distance: 20km (12.4 miles)
- [1] TL-NS42-POE
- [1] 48VDC Power Supply
- [1] Wall/DIN Mounting Kit
Techlogix Networx 4 Port Gigabit Ethernet Switch
This 4-port Gigabit Ethernet switch is the perfect component when tying copper-based networking devices to fiber-based networks. Basically, it is an unmanaged 4-port PoE switch with a couple of media converters built-in.

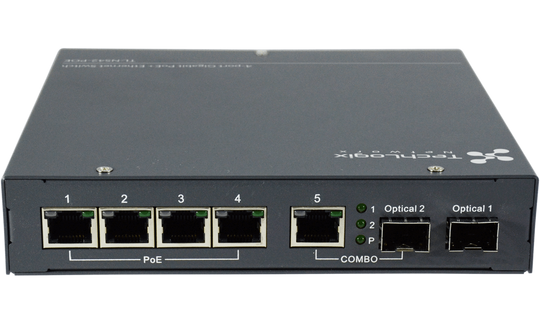

The TL-NS42-POE has four PoE ports that can be configured with or without power to connect a variety of devices, such as security cameras or wireless access points. The COMBO port will connect a fiber- or copper-based network to the copper PoE ports and Optical port 1.
Additionally, the switch can be daisy-chained to another switch via fiber or copper.
| I/O Connections | |
| Total Gigabit Ports | 7 |
| Gigabit PoE Ports | 4 |
| Gigabit Combo (RJ45/SFP) |
1 Preference: SFP First |
| Gigabit SFP Slots |
1 |
| Power |
Dual Input (Coax / Terminal Block) |
| Signal Characteristics | |
| Operating Mode |
Layer 2 |
| Protocols & Standards |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x traffic and back pressure IEEE802.3af for PoE Ethernet Power Supply IEEE802.3at for PoE+ Ethernet Power Supply |
| Switching Capacity |
16Gbps |
| Forwarding Capacity |
11.904Mpps |
| Jumbo Frame |
10Kbyte |
| MAC Table |
1Kbyte |
| Link Support |
Auto-MDI/MDI-X & Auto-Ngtiation Full/Half Duplex |
| Message Switching |
Store and Forward |
| SFP compatibility | IEEE 802.3z/AB 1000Base-T/SX/LX/ZX TLN Part #s: TL-1GSFP-MM550 - Multimode Fiber TL-1GSFP-SM20K - Single Mode Fiber |
| PoE Characteristics |
|
| PoE Power |
PoE IEEE 802.3af (Max 15.4W) per port PoE+ IEEE802.3at (Max 30W) per port |
| Reverse Power Protection |
Yes |
| Overload Power Protection |
Yes |
| Total Power |
120W |
| Surge Protection |
12KV |
| Chassis and Environmental | |
| Enclosure | Painted Steel |
| Dimensions | 160mm x 32mm x 155mm (6.25" x 6.5" x 1.25") |
| Dimensions (Shipping) | 255mm x 205mm x 95mm (10" x 8" x 3.6") |
| Weight (Shipping) | 1.24Kg (2.7lbs) |
| Operating Temperature | -40°C ~ 75°C |
| Operating Humidity | 5%~95% (Non-Condensing) |
| Storage Temperature | -40°C ~ 85°C |
| Storage Humidity | 5%~90% (Non-Condensing) |
| MTBF | >50,000 hour |
| Cooling | Fanless Design IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Regulatory | |
| Certification Compliance | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1, IEC60950-1 |
| EMC | EN61000-4-5 |
| Power Supply | |
| Package Type | Inline Pack (161mm x 68.4mm x 32.5mm) |
| Power Inlet | IEC60320 C14 |
| Outlet Cable |
1500mm (60") Length Center Positive Coax Connector - 5.5mm OD x 2.5mm ID |
| Input Voltage | 100~240v AC, 50~60Hz, 1.4A |
| Output Voltage | 48VDC 2.5A |
| Regulatory | CE, FCC, RoHS, WEE, UL-US, UL-C, CCC, C-TICK, UL-DE/GS |
| Efficiency | Level VI |
| Other | |
| Warranty | 3 Years |
