Shuttle XPC Slim DH02U7 Intel Kabylake i7-7500U, MXM GTX 1050

SKU#: DH02U7

UPC#:887993001463

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: DH02U7

UPC#:887993001463
$1,889.99

SKU#: DH02U7

UPC#:887993001463

SKU#: DH02U7

UPC#:887993001463

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

More Robust than Ever: 1 liter PC with NVIDIA graphics and 4 x HDMI


Compact in size but big on performance, more robust than ever. The DH02U series is Shuttle's first four HDMI output PC that drives up to 4K UHD resolution for every display channel. Equipped with 7th Gen Intel® Core™ processors and NVIDIA GeForce® GTX 1050 graphics, the DH02U series delivers a breakthrough performance for rendering content in 4K/3D. Featuring integrated 4 x HDMI 2.0 that support four 4K UHD displays, it also provides a variety of I/O connectivity includes multiple USB ports, 2 x M.2 slots, as well as RS232 and Gigabit LAN for various options. With its robust performance in only 1.3 liter compact size, the DH02U series is the perfect solution for Menu Boards, Video Walls, Surveillance and other high-end digital signage applications.

Features+

Intel® 7th Generation Processors
The DH02U series is available with the 7th Generation Intel® Core™ i7/i5/i3 & Celeron® dual-core processor for seamless multitasking and incredible energy efficiency. Built-in DirectX 12 compatibility with the Intel® HD Graphics significantly increases CPU or GPU.

NVIDIA GeForce® GTX 1050 Graphics
The DH02U series is powered by NVIDIA GeForce® GTX 1050 with 4GB of GDDR5 memory, enabling stunning detail and dynamic visual experience with exceptional graphics performance.

4K UHD Experience
The DH02U series is built-in HDMI 2.0 outputs to support 4K@60Hz high resolution (3840 x 2160). With four times the clarity of Full HD, viewers can enjoy the vivid detail of true 4K Ultra HD.

Quadruple Display Productivity
With four HDMI outputs built-in, the DH02U series supports four independent displays, providing maximum productivity and dynamic visualization for multitasking and digital signage applications.

Blazing-fast Storage with M.2
With native M.2 2280/2260/2242 Type M and one M.2 2230 Type E slot, the DH02U series offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 supports both SATA and PCIe storage interfaces

Extensive Connectivity
With four HDMI 2.0 ports for multiple displays, the DH02U series also features four USB 3.1 Gen 1 and two USB2.0 ports and a back-mounted RS232 port for convenient, flexible connectivity options.

High-Speed Wired Network
The DH02U series has built-in Intel® i211 Gigabit LAN and supports Wake On LAN to provide high-speed data transfer capability as well as a better compatibility for network environment.

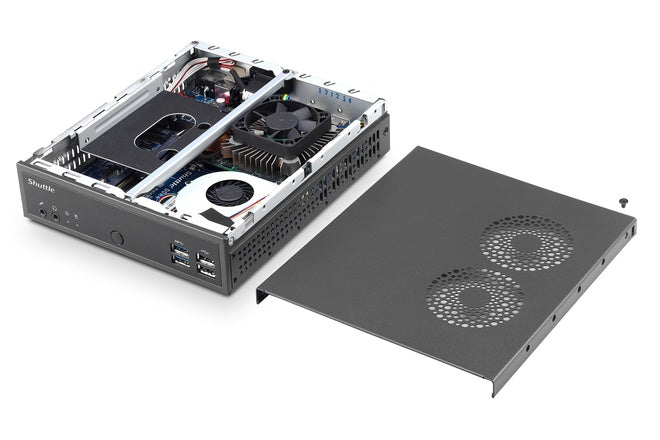

Exclusive Cooling Technology
The DH02U series features Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Operable in 0-50?C
The DH02U series uses industrial capacitors in order to meet the environmental operation demands of commercial applications.

VESA Mount-Ready
The DH02U series is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.

24/7 Nonstop Operation
Officially approved for 24/7 permanent operation. Thanks to Shuttle’s low power consumption design and stable operation, the DH02U series runs highly reliable and meets the long-run demands of computing work.

Support Power on by RTC
Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic ‘Power On’ and ‘Power Off’ times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.

The Watchdog—protecting system security
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.

Operating System Support
-Windows 10 64bit
-Linux

Specs+

FORM FACTOR Shuttle 1.3L Chassis
PROCESSOR Intel Kabylake-U Celeron 3865U 15W CPU
i3 7100U, i5 7200U, i7 7500U (optional)
MEMORY 2 x 260 pin DDR4 SODIMM slots,16GB per DIMM (Max 32GB)
Dual Channel DDR4 2133 Mhz
VIDEO OUTPUT HDMI 2.0 x 4 quad independence video output
4K/2K playback (Dual channel memory recommended)
AUDIO Realtek ALC662 channel High Definition Audio
ETHERNET Intel i211
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) SATA power connector
(2) 4pin fan connectors
(1) Auto power on header
(1) RS232

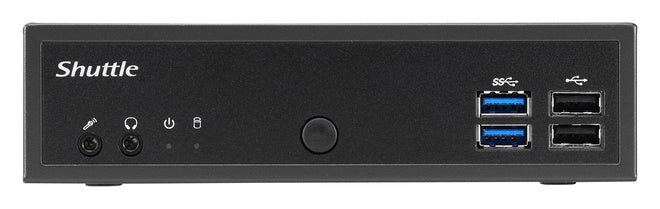

FRONT PANEL (2) USB 3.0 ports
(2) USB 2.0 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

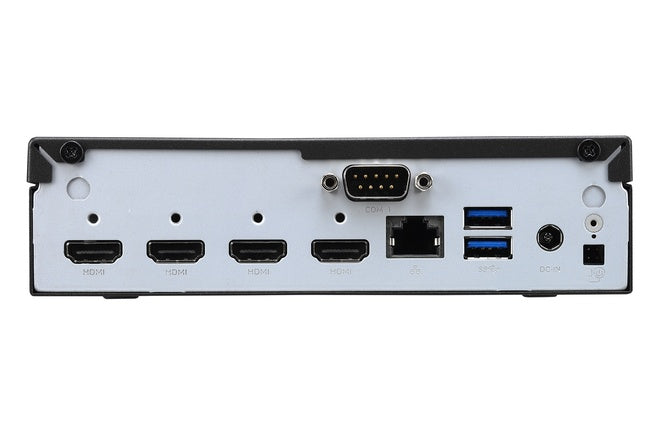

BACK PANEL (1) RJ45 Gigabit LAN port
(4) HDMI port
(2) USB 3.0 ports
(1) RS232*
(1) External power on/Clear CMOS header
(1) Kensington lock
(2) Wireless Antenna fixture
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
Output: 19V 6.32A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA mount quick installation guide
1* Power cord
1* SATA cable
Screws
Optional 802.11ac/b/g/n WLAN module
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
(1) MxM 3.0 Type A
OS SUPPORT Windows 10 64 bit O.S
Linux
REMARK *RS232 ports support totally 500mA, 0/5/12V output. Voltage setting please refer to Quick Guide.
