SCP Simply45 RJ45 Pass Through Modular Plugs For 24Awg (Up To 1.05mm) Cat5E And Hncpro UTP Cables, Ul94 V0 For CMP To Cm, LSZH-B2Ca To Eca - 100 Pieces
SKU#: S45-1500
UPC#:817777016802
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- Specs+
- Reviews+

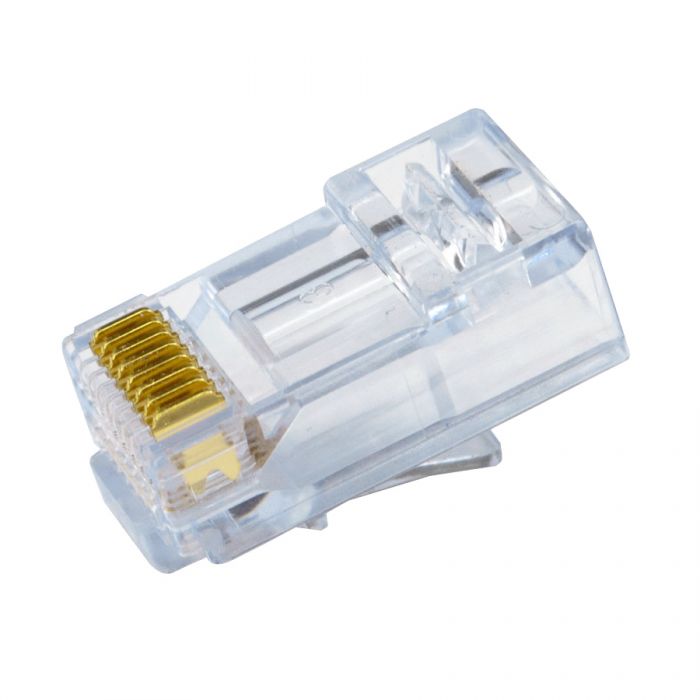

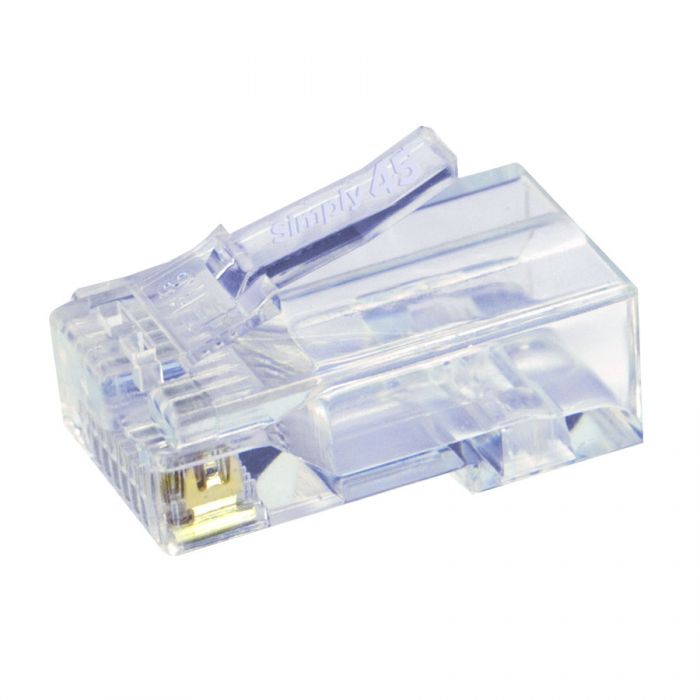

SCP Simply45 Cat5e RJ45 Pass Through Connectors
The SIMPLY45™ is a translucent single-piece RJ45 that allows Cat5e twisted-pair wire conductors to completely pass through the plug and out the front. This allows you to easily see and verify the wire alignment order before crimping.
Simply45 re-engineered the Pass Through RJ45 Modular Plug to be...
• Simply Better Quality
• Simply Easier to Use
• Simply More Affordable
| Performance: | Meets or Exceeds ANSI/TIA 568-C.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Cat5e UTP Wire Cond(s) OD: | 24AWG, Up to 0.039"-0.041" (1.00mm-1.05mm) |
| Max Cable Outer Diamter: | 0.2402'' (6.10mm) |
| Supports PoE/PoH: | Yes |
| Cable Fire Resistance Ratings: | CMP Plenum, CMR, CM, CMX, LSZH EN50575:2014 up to B2ca-s1a,d1,a1 |
| Flame Autoextinguish: | UL94 V0, IEC 60695-11-10 |
| Contact Material: | Phosphor Bronze - .012" thick |
| Contact Plating: | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Plug Material: | Polycarbonate |
| Plug Tolerances & Dimensions: | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Conductor Type(s): | Solid and Stranded |
| Operating Temperature: | -40º C to +70º C |
| Insertion/Extraction Life: | 2000 Minimum Cycles |
| Contact Resistance: | 20 Milli-Ohms max |
| Current/Voltage: | 30 VAC/42 VDC at 1.5 Amps |
| Compliance: | UL Listed, RoHS, FCC, NEC |
