Quest Deluxe Mult-Network Remote Cable Tester (Lan/Coax/USB)
SKU#: TTE-9050
UPC#:800118035181
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+

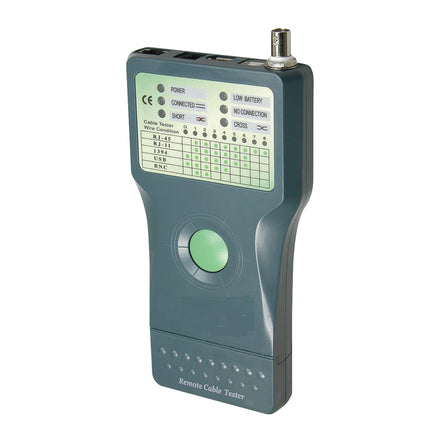

The Cable Tester TTE-9050 comes with RJ 11, RJ 45, IEEE 1394 and USB port on the front panel and is especially suited for quick-testing of connecting and network cables. The conductors of each cable can be tested separately: the LED row indicates line sag/interruption and line termination, as well as short-circuit, ground contact and
crossed conductors. Short connecting cables can be tested on the main unit directly, while cables which have been layed already are tested using a remote receiver. The test sequence can be adjusted to either manual or automatic mode. With integrated BNC port for testing coaxial network cables.
Features+
- Ideal for testing USB, BNC Coax, RJ11, RJ45 & IEEE 1394 cables
- Verifies cable continuity, opens, shorts and mis-wiring
- Built-In audible beeper
- Remote unit attaches to main unit
- Easily visible LED display provides operation status
- Remote module testing up to 600 feet away
- Ethernet 10Base-2 terminator value detection
- Includes zippered carrying case
Specs+
| Testing Interface | RJ11/45, BNC (Coax), USB, IEEE 1394 |
| Remote Testing Range | 600 feet |
| Display Indicator | LED Lights |
| Power Supply | 9V Battery (Est. 100 hour Life) |
| Material | ABS |
| Dimensions | 3.5″ x 8″ x 1″ |
| Weight | 0.9 lbs |
| Color | Gray |
| Case | Black Woven Polester w/ Zipper |
Reviews+
The Cable Tester TTE-9050 comes with RJ 11, RJ 45, IEEE 1394 and USB port on the front panel and is especially suited for quick-testing of connecting and network cables. The conductors of each cable can be tested separately: the LED row indicates line sag/interruption and line termination, as well as short-circuit, ground contact and
crossed conductors. Short connecting cables can be tested on the main unit directly, while cables which have been layed already are tested using a remote receiver. The test sequence can be adjusted to either manual or automatic mode. With integrated BNC port for testing coaxial network cables.
- Ideal for testing USB, BNC Coax, RJ11, RJ45 & IEEE 1394 cables
- Verifies cable continuity, opens, shorts and mis-wiring
- Built-In audible beeper
- Remote unit attaches to main unit
- Easily visible LED display provides operation status
- Remote module testing up to 600 feet away
- Ethernet 10Base-2 terminator value detection
- Includes zippered carrying case
| Testing Interface | RJ11/45, BNC (Coax), USB, IEEE 1394 |
| Remote Testing Range | 600 feet |
| Display Indicator | LED Lights |
| Power Supply | 9V Battery (Est. 100 hour Life) |
| Material | ABS |
| Dimensions | 3.5″ x 8″ x 1″ |
| Weight | 0.9 lbs |
| Color | Gray |
| Case | Black Woven Polester w/ Zipper |
