  • Quest 19" Cat6A UTP Patch Panel w/ Cable Manager - UL Listed
  • Quest 19" Cat6A UTP Patch Panel w/ Cable Manager - UL Listed

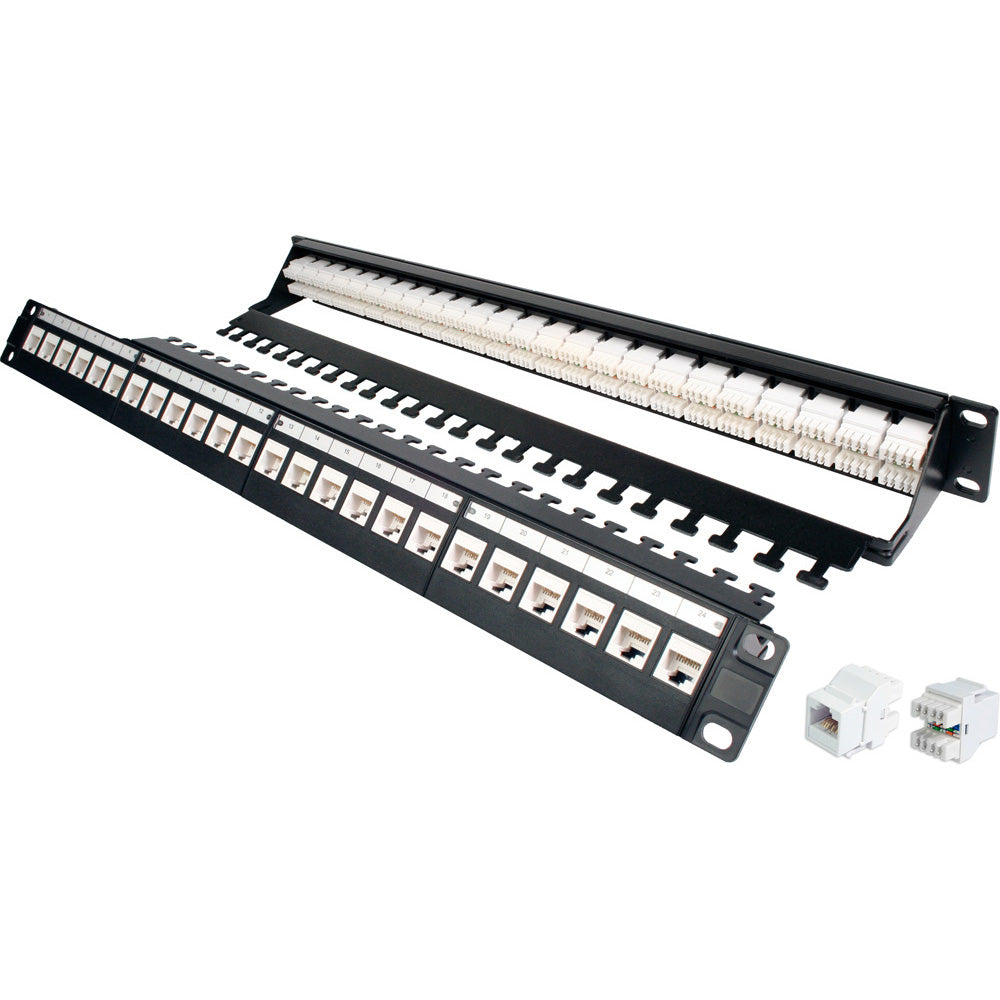

Quest 19" Cat6A UTP Patch Panel w/ Cable Manager - UL Listed

SKU#: NPP-3224

UPC#: 80011805797

60 Day Money Back Guarantee

100% Secure Shopping

warranty 10 year 1

Lifetime Warranty

SKU#: NPP-3224

UPC#:80011805797
$112.99

SKU#: NPP-3224

UPC#:80011805797
Number Of Ports:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • Quest 19" Cat6A UTP Patch Panel

    Quest 19" Cat6A UTP Patch Panel w/ Cable Manager - UL Listed

  • Features+
    • High-speed 10Gbps data transfers
    • 180 degree 110 IDC termination with RJ45 jacks
    • Meets Cat6A ANSI/TIA 568C.2 Standard

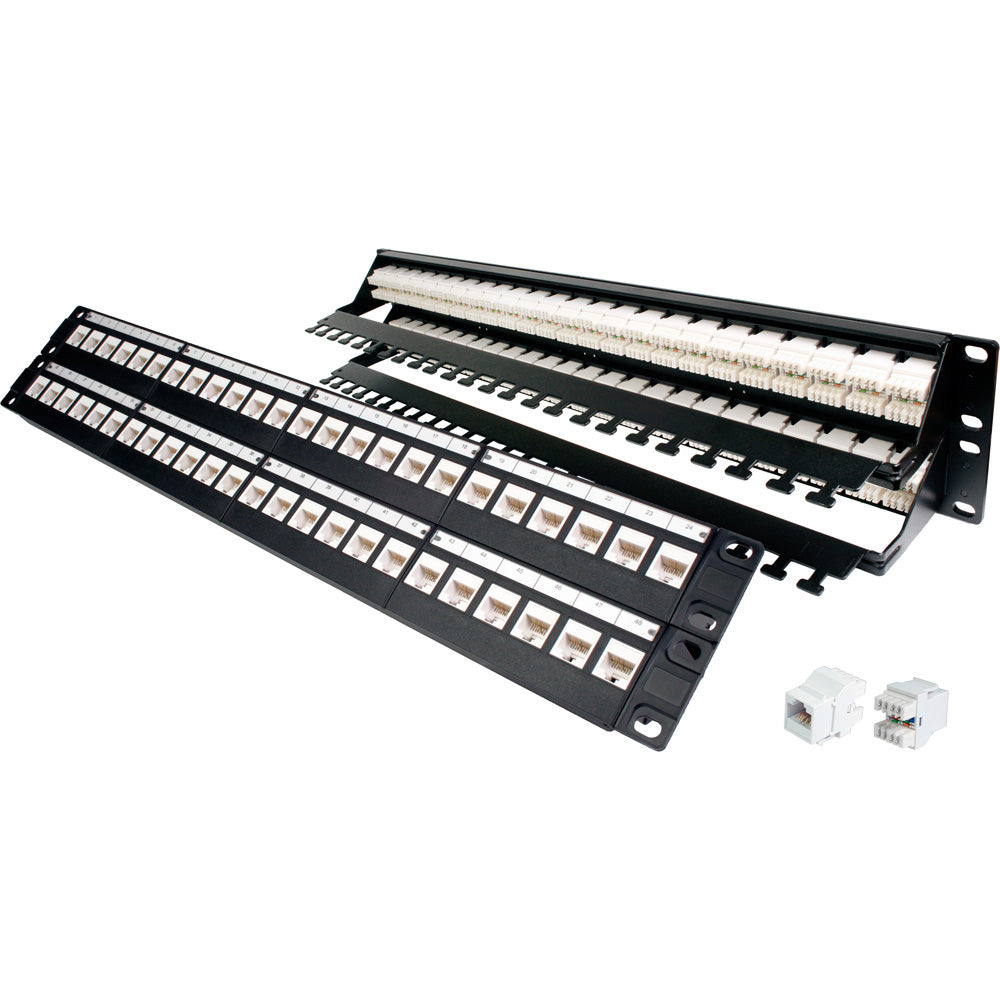

    • Available in 24 and 48 port models
    • Built-in cable management at rear of pane
    • Revolvable cable manager
  • Specs+
  • Category Cat6A
    Styles Rack Mount
    Front Plate Fireproof ABS UL-94V0
    Panel Metal (SPCC)
    Cable Management Metal (SPCC)
    Keystone Body Fireproof ABS UL-94V0
    Jacks 8P8C 50 micro inches gold plated
    PCB FR-4 / UL-94V0
    IDC Cap Fireproof ABS UL-94V0
    IDC Body Fireproof ABS UL-94V0
    IDC Pin Bronze & Tinned
    IDC Description For 22-26 AWG
    Insulation Resistance 500M ohms (min.)
    Contact Resistance 20m ohms (max.)
    Current Rating 1.5 Amps
    DC Resistance 0.1 ohms (max.)
    Withstanding Voltage 1000 VAC RMS @ 60Hz / 1min.
    Compliance ETL, UL, RoHS
    Color Black / White
  • Reviews+
  • Quest 19" Cat6A UTP Patch Panel

    Quest 19" Cat6A UTP Patch Panel w/ Cable Manager - UL Listed

    • High-speed 10Gbps data transfers
    • 180 degree 110 IDC termination with RJ45 jacks
    • Meets Cat6A ANSI/TIA 568C.2 Standard
    • Available in 24 and 48 port models
    • Built-in cable management at rear of pane
    • Revolvable cable manager
    Category Cat6A
    Styles Rack Mount
    Front Plate Fireproof ABS UL-94V0
    Panel Metal (SPCC)
    Cable Management Metal (SPCC)
    Keystone Body Fireproof ABS UL-94V0
    Jacks 8P8C 50 micro inches gold plated
    PCB FR-4 / UL-94V0
    IDC Cap Fireproof ABS UL-94V0
    IDC Body Fireproof ABS UL-94V0
    IDC Pin Bronze & Tinned
    IDC Description For 22-26 AWG
    Insulation Resistance 500M ohms (min.)
    Contact Resistance 20m ohms (max.)
    Current Rating 1.5 Amps
    DC Resistance 0.1 ohms (max.)
    Withstanding Voltage 1000 VAC RMS @ 60Hz / 1min.
    Compliance ETL, UL, RoHS
    Color Black / White
