- Description+
- Features+
- Supports up to 8 total users (single user on screen)
- Full HD/1080p media streaming
- Supports transmission distances up to 20 m. (line-of-sight)
- Plug and Play – switch between users with a simple button press
- Wirelessly extend any HDMI source (Blu-ray player, gaming console, streaming device, etc.)
- ECOH Plus Link Connector powered through HDMI port
- Specs+
- Supported Resolution: 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz
- Compliance: HDMI 1.3, HDCP 1.2
- Max Transfer Rate: 4.95 Gbps
- Transmission Distance: 20 meters (line-of-sight)
- Video Latency: ≤ 200 ms
- Connections:
(1) HDMI output (female)
(1) Wireless antenna
(1) Power input - Max Users On Screen: (1) user
- Max Number of Connections: (8) users/devices
- Power Supply: DC 5V/2A
- Power Consumption: 5 Watts (max)
- Product Dimensions (LxWxH): 5.4" x 3.4" x 0.8" (L x W x H)
- Product Weight: 0.3 lbs.
- Operating Temperature: 32°F- 122°F (0°C - 50°C)
- Operating Humidity: 0% - 90%
- PC System Compatibility: MAC and Windows 7/8/10
- Compliance: CEC, FCC
- Connections:
(1) HDMI male
(1) Micro USB [optional power] - Power Supply: Powered by source's HDMI port (if the source does not provide power through HDMI port, external power can be connected via Micro USB port)
- Power Consumption: 2.5 Watts (max)
- Product Dimensions: 3.5" x 1.5" x 0.6" (L x W x H)
- Reviews+
- Supports up to 8 total users (single user on screen)
- Full HD/1080p media streaming
- Supports transmission distances up to 20 m. (line-of-sight)
- Plug and Play – switch between users with a simple button press
- Wirelessly extend any HDMI source (Blu-ray player, gaming console, streaming device, etc.)
- ECOH Plus Link Connector powered through HDMI port
- Supported Resolution: 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz
- Compliance: HDMI 1.3, HDCP 1.2
- Max Transfer Rate: 4.95 Gbps
- Transmission Distance: 20 meters (line-of-sight)
- Video Latency: ≤ 200 ms
- Connections:
(1) HDMI output (female)
(1) Wireless antenna
(1) Power input - Max Users On Screen: (1) user
- Max Number of Connections: (8) users/devices
- Power Supply: DC 5V/2A
- Power Consumption: 5 Watts (max)
- Product Dimensions (LxWxH): 5.4" x 3.4" x 0.8" (L x W x H)
- Product Weight: 0.3 lbs.
- Operating Temperature: 32°F- 122°F (0°C - 50°C)
- Operating Humidity: 0% - 90%
- PC System Compatibility: MAC and Windows 7/8/10
- Compliance: CEC, FCC
- Connections:
(1) HDMI male
(1) Micro USB [optional power] - Power Supply: Powered by source's HDMI port (if the source does not provide power through HDMI port, external power can be connected via Micro USB port)
- Power Consumption: 2.5 Watts (max)
- Product Dimensions: 3.5" x 1.5" x 0.6" (L x W x H)
DESCRIPTION
No Wire, Less Hassle

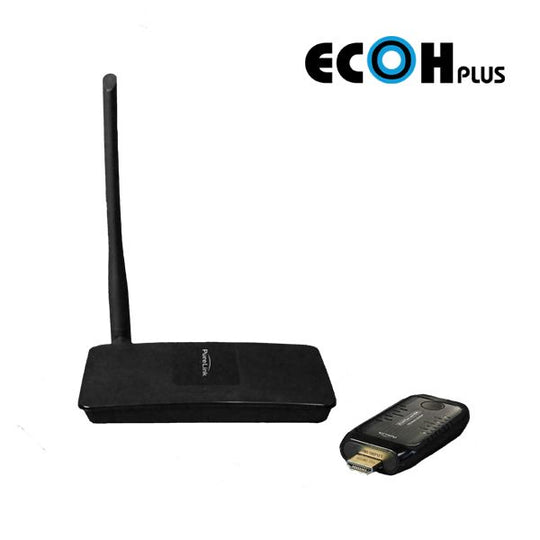

The ECOH Plus Collaboration Hub allows users to wirelessly extend a PC/Mac or HDMI source via the ECOH Plus Linkconnector to a single display for easy connectivity and screen-sharing. The ECOH Plus supports up to eight connections and a single user on screen. Together with its plug and play design, the ECOH Plus offers effortless setup and operation (no app or software) for a convenient, no hassle meeting room solution.
The ECOHPLUS-KIT1-1 includes the ECOH Plus Base Station and (1) pre-paired ECOH Plus-Link connector.
FEATURES
SPECS
Technical Specifications (ECOH Plus Base):
ECOH Plus Base Enclosure:
Technical Specifications (ECOH Plus Link)
DESCRIPTION
No Wire, Less Hassle
The ECOH Plus Collaboration Hub allows users to wirelessly extend a PC/Mac or HDMI source via the ECOH Plus Linkconnector to a single display for easy connectivity and screen-sharing. The ECOH Plus supports up to eight connections and a single user on screen. Together with its plug and play design, the ECOH Plus offers effortless setup and operation (no app or software) for a convenient, no hassle meeting room solution.
The ECOHPLUS-KIT1-1 includes the ECOH Plus Base Station and (1) pre-paired ECOH Plus-Link connector.
FEATURES
SPECS
Technical Specifications (ECOH Plus Base):
ECOH Plus Base Enclosure:
Technical Specifications (ECOH Plus Link)
