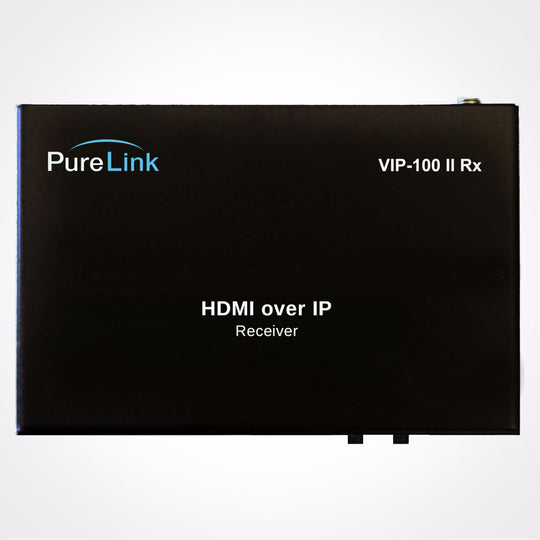

PureLink AV HDMI over IP Distribution System with PoE
SKU#: VIP-100H II Rx
UPC#:817705020123
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+
Tired of being restricted by HDMI distance limitations in complex setups? Say goodbye to that frustration with the VIP-100 II HDMI over IP distribution system from PureLink AV. This transmitter can be combined with a compatible receiver to transmit over distances up to 364 feet, or 120 meters.
Get audio/video, RS-232 and IR extension coupled with matrix switching capability up to a 64x190 system to meet the needs of even the most complex and demanding setup. Point-to-many and many-to-point are also supported.
| Transmitter Package Includes | Receiver Package Includes | Transmitter and Receiver Package Includes |
|---|---|---|
| (1) VIP100H II Tx Transmitter | (1) VIP100H II Rx Receiver | (1) VIP100H II Tx Transmitter and (1) Rx Receiver |
| (1) Infrared Receiver | (1) Infrared Emitter | (1) Infrared Receiver and (1) Infrared Emitter |
| (1) Power Adapter | (1) Power Adapter | (2) Power Adapters |
| Mounting Brackets | Mounting Brackets | Mounting Brackets |
| (1) Remote Control | (1) Remote Control |
| Hardware | |
|---|---|
| Audio | HDMI w/Embedded Audio |
| Cable | Category 5 UTP or Better |
| Input Signal Types | (Tx) HDMI v1.3, RS232; (Rx) RJ-45, H.264 UDP Multicast, RS232, IR |
| Output Signal Types | (Tx) RJ-45, H.264 UDP Multicast, RS232; (Rx) HDMI v1.3, RS232, IR |
| Performance | |
| Supported Distance | 394ft (120m) |
| Data Transfer Rate | 15Mbps (Typical) |
| Supported Resolutions | Up to 1080p (1920x1080) |
| HDCP Compliance | 1.3 |
| RS-232 | 2400-115K Baud, User-Settable |
| IR Extension | Rx to Tx (38-56KHz) |
| Connectors | |
| TX | 2x HDMI 19 Pin Female, 1x RJ-45 Female (LAN), 1x Phoenix 3 Pin (RS232), 1x 1/8" Female (IR) |
| RX | 1x HDMI 19 Pin Female, 1x RJ-45 Female (LAN), 1x Phoenix 3 Pin (RS232), 1x 1/8" Female (IR) |
| Power | |
| Input Power Requirements | 5 VDC, 600mA Typical |
| Power Adapter | 120-240 VAC to 5 VDC, 1A |
| PoE (Power Over Ethernet) | 802.3af |
| Dimensions and Weight | |
| Enclosure Type | All Metal, Black Powder Coat Finish |
| Dimensions | 1.1 x 4.7 x 3.1" (29 x 120 x 79mm) |
| Weight | 0.61lbs (280g) |
Features+
- Surpasses HDMI Limitations, Transmits up to 364 feet
- Supports Matrix Switching for Complex Setups
- Convenient Front Panel Channel +/- Buttons
- Supports Full HD Resolutions up to 1080p
- PoE Support for Streamlined Installations
- Easy to Read LED Channel Display
- 5 Year Manufacturer Warranty
Specs+
- Software Compatible with Windows, Android, Mac, iPad
- Transmitter Only - Transmitter Sold Separately
- PoE from 802.3af PoE Network Switches
- HDMI Loop Out on Transmitter
- RS-232, IR and Matrix Support
- 64 Transmission Channels
- HDCP 1.3 Compliant
- USER MANUAL
