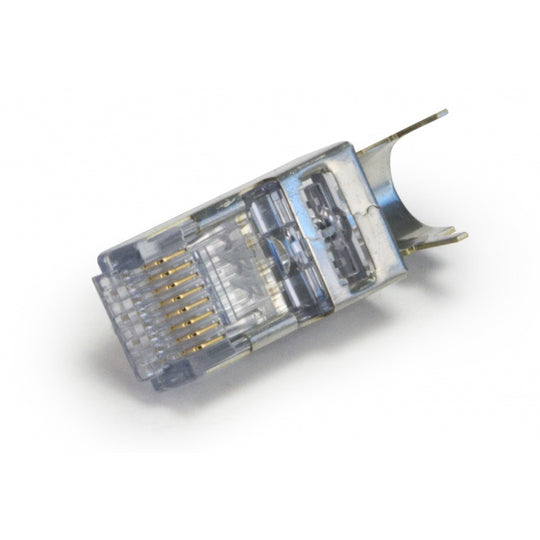

Platinum Tools 202051J ezEX™44 Shielded, External Ground, CAT6 Connector 50 Pack

SKU#: 202051J

UPC#:849160009948

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

SKU#: 202051J

UPC#:849160009948

Regular price Our Price   $97.99

Sale   $97.33

SKU#: 202051J

UPC#:849160009948

SKU#: 202051J

UPC#:849160009948

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Features+

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
