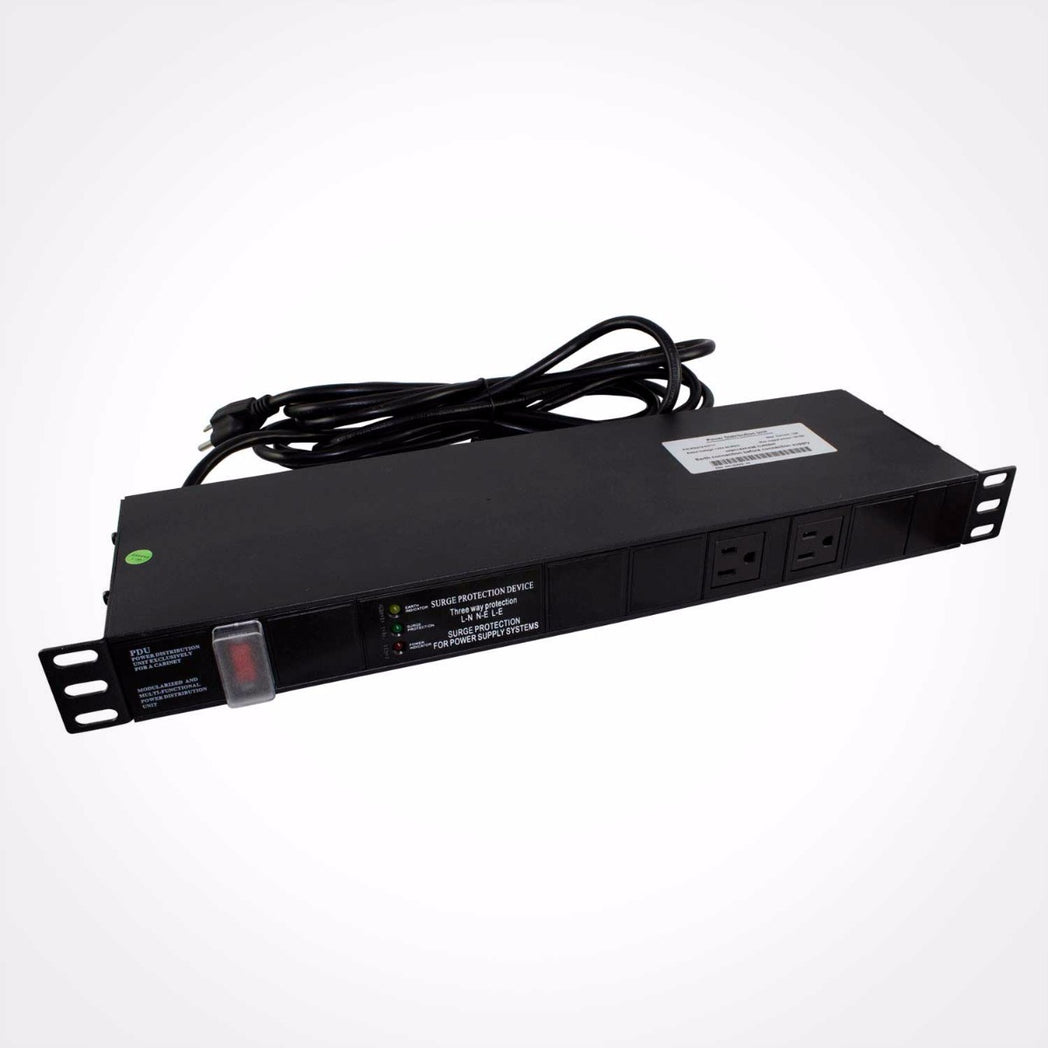

1U Rack Mount Power Distribution Unit PDU with 10+2 AC Outlets

1U Rack Mount Power Distribution Unit with 12 Outlets

Add extra power sources to any standard 19 inch rack or cabinet with this 1U rack mount power distribution unit. This power strip installs easily to provide 2 front panel AC outlets and 10 back panel AC outlets. A lighted on/off switch and 3 status indicator lights.

• 19 Inch Rack Mountable PDU
• Front Panel with 2 AC Outlets + 10 AC Outlets on Back
• Lighted On/Off Switch + 3 Status Indicator Lights
• 15A Circuit Breaker/Overload Protection
• Easily Installs in Cabinets or Racks
• RoHS Compliant
• 1 Year Manufacturer Warranty

Input

• Voltage: 120V
• Frequency: 60Hz
• Maximum Input Current (amps): 15A
• Plug Type: NEMA 5-15P
• Plug Style: Straight
• Cord Length: 5ft
• Cord Specs: 14AWG 3-Wire Grounded SJT

Output

• Voltage: 120V
• Frequency: 60Hz
• Watts: 1800W
• Circuit Breaker/Overload Protection: 15A
• Maximum Continuous Operating Voltage: 130V
• Outlet Quantity: 2 Front/10 Rear
• Outlet Type: NEMA 5-15R

Surge Suppression & Filtering

• Surge Suppression: 700 Joules
• Protection Mode: N-H, N-G, and H-G
• Response Time:
• Maximum Surge Current (amps): 10KA
• Maximum Surge Voltage: 470V
• Clamping Voltage: 775V
• EMI/RFI Filtration(dB @ frequency range): 40~60dB@10MHz

Physical

• Style: Rack Mount (1U)
• Mounting Brackets: Pre-installed for Rackmount Installation; Removable
• Housing Material: PVC and Metal Enclosure
• Item Dimensions (HxWxD): 1.75x17x5 (in) without Ears
• Item Weight: 3.6lbs
• Operating Temperature Range: -40°C to 70°C
• Operating Humidity: ≤95%

Certifications

• UL Power Cord
• RoHS Compliant
