PATCHBOX Plus+ Fiber Optic

SKU#: P60SMAOS21224Y

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

5-year-warranty5

5 Year Warranty

SKU#: P60SMAOS21224Y

UPC#:
$686.00

SKU#: P60SMAOS21224Y

UPC#:
Cable Type:
Connector Type:

SKU#: P60SMAOS21224Y

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

5-year-warranty5

5 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

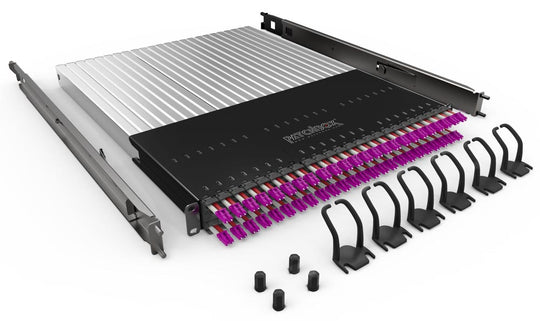

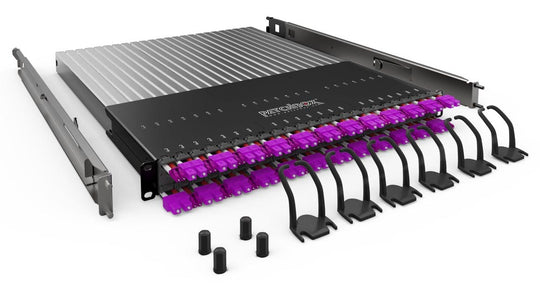

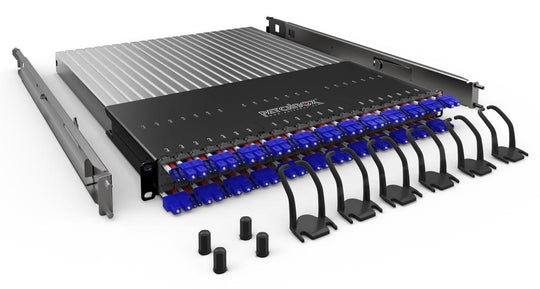

PATCHBOX Plus+ Fiber Optic

PATCHBOX is the state of the art cable management system; fast and neat. It replaces conventional cable management and patch cords completely with an all-in-one solution.

With its retractable cables the PATCHBOX provides the user with the exact cable length needed. No more overly long cables, creating a cabinet full of cable spaghetti. Installation time is dramatically reduced and due to the clean setup maintenance can even be done remotely further reducing costs.

ORGANISED. STRUCTURED.

With PATCHBOX you can achieve the impossible: a forever clean and neat network rack. Save money with faster troubleshooting, maintenance and restructuring messy network racks. PATCHBOX even brings logic to your network rack so you can replace a faulty network switch in 3 minutes. Say goodbye to expensive switches with redundant power supplies and get a PATCHBOX instead.

FASTEST TROUBLESHOOTING. EVER.

Not only replacing a network switch is child's play with PATCHBOX but also daily tasks like changing a network connection. Due to the integrated straight run cables it is much simpler to trace a patch cord - taking a fraction of the time compared to the conventional method. Adding a new connection? The patch cords in a PATCHBOX are always ready and waiting to be patched.

MODULAR. FLEXIBLE.

Have VLAN's or applications you would like to optically separate from each other for faster troubleshooting and interaction or just need a fibre optic uplink? Swap a cassette just by pressing both release buttons and removing it from the PATCHBOX Frame another cassette can then be slid in and secures itself in the frame.

SPACE SAVER & CORD KEEPER.

Save money thanks to the PATCHBOX. It not only stores your unused patch cords safely and ensures they are ready when you need them it also allows a higher density in your network rack compared to conventional methods. That equals more gear in the same space with more overview.

MINIMUM EFFORT FOR MAXIMUM EFFECT.

The PATCHBOX is designed with speed and ease in mind. The installation of a PATCHBOX and patching all 24 patch cords is around 8 times faster than doing the exact same job with traditional patch cords and cable management. Maintenance work like moves, adds and changes or a switch replacement is even 10 times faster.

Features+

  • Retractable patch cords for perfect length patching
  • Cable Stopper to adjust cable length precisely
  • Each Cassette has own labelling option
  • Adjustable Mounting Rails
  • Steel frame that holds up to 24 Cassettes
  • 0RU cable guides included
  • Easy swapping of Cassettes

Specs+

  • OM4 Cable: OM4 RBS 50µ/125µ, LSZH, tested to ISO/IEC 11801
  • OS2 Cable: OS2 RBS 9µ/125µ, G.657.A1, LSZH, tested to ISO/IEC 11801
  • Connectors: LC Duplex – SC Duplex / LC Duplex – LC Duplex, others on request
  • Total Cable Length: 1.7m fully retractable (covers 26RU)
  • Frame: RAL9005 Powder Coated Steel
  • Cassette Profiles: Chrome Steel, laser-welded
  • All Plastic Parts: Polyoxymethylene (POM), black
  • Mounting Rails: Stainless Steel, 500mm to 850mm from 19″ rail to 19″ rail
  • Operating Temperature Range: +10°C to +45°C
  • Ambient Humidity (non-condensing): 10% to 95%
  • PATCHBOX® Plus+ (W x D x H): 482.60mm (19”) x 600mm x 43.69mm (1RU)
  • Pulling Cycles: 300+
  • 5 Years Warranty

Reviews+

PATCHBOX Plus+ Fiber Optic

PATCHBOX is the state of the art cable management system; fast and neat. It replaces conventional cable management and patch cords completely with an all-in-one solution.

With its retractable cables the PATCHBOX provides the user with the exact cable length needed. No more overly long cables, creating a cabinet full of cable spaghetti. Installation time is dramatically reduced and due to the clean setup maintenance can even be done remotely further reducing costs.

ORGANISED. STRUCTURED.

With PATCHBOX you can achieve the impossible: a forever clean and neat network rack. Save money with faster troubleshooting, maintenance and restructuring messy network racks. PATCHBOX even brings logic to your network rack so you can replace a faulty network switch in 3 minutes. Say goodbye to expensive switches with redundant power supplies and get a PATCHBOX instead.

FASTEST TROUBLESHOOTING. EVER.

Not only replacing a network switch is child's play with PATCHBOX but also daily tasks like changing a network connection. Due to the integrated straight run cables it is much simpler to trace a patch cord - taking a fraction of the time compared to the conventional method. Adding a new connection? The patch cords in a PATCHBOX are always ready and waiting to be patched.

MODULAR. FLEXIBLE.

Have VLAN's or applications you would like to optically separate from each other for faster troubleshooting and interaction or just need a fibre optic uplink? Swap a cassette just by pressing both release buttons and removing it from the PATCHBOX Frame another cassette can then be slid in and secures itself in the frame.

SPACE SAVER & CORD KEEPER.

Save money thanks to the PATCHBOX. It not only stores your unused patch cords safely and ensures they are ready when you need them it also allows a higher density in your network rack compared to conventional methods. That equals more gear in the same space with more overview.

MINIMUM EFFORT FOR MAXIMUM EFFECT.

The PATCHBOX is designed with speed and ease in mind. The installation of a PATCHBOX and patching all 24 patch cords is around 8 times faster than doing the exact same job with traditional patch cords and cable management. Maintenance work like moves, adds and changes or a switch replacement is even 10 times faster.

  • Retractable patch cords for perfect length patching
  • Cable Stopper to adjust cable length precisely
  • Each Cassette has own labelling option
  • Adjustable Mounting Rails
  • Steel frame that holds up to 24 Cassettes
  • 0RU cable guides included
  • Easy swapping of Cassettes
  • OM4 Cable: OM4 RBS 50µ/125µ, LSZH, tested to ISO/IEC 11801
  • OS2 Cable: OS2 RBS 9µ/125µ, G.657.A1, LSZH, tested to ISO/IEC 11801
  • Connectors: LC Duplex – SC Duplex / LC Duplex – LC Duplex, others on request
  • Total Cable Length: 1.7m fully retractable (covers 26RU)
  • Frame: RAL9005 Powder Coated Steel
  • Cassette Profiles: Chrome Steel, laser-welded
  • All Plastic Parts: Polyoxymethylene (POM), black
  • Mounting Rails: Stainless Steel, 500mm to 850mm from 19″ rail to 19″ rail
  • Operating Temperature Range: +10°C to +45°C
  • Ambient Humidity (non-condensing): 10% to 95%
  • PATCHBOX® Plus+ (W x D x H): 482.60mm (19”) x 600mm x 43.69mm (1RU)
  • Pulling Cycles: 300+
  • 5 Years Warranty
