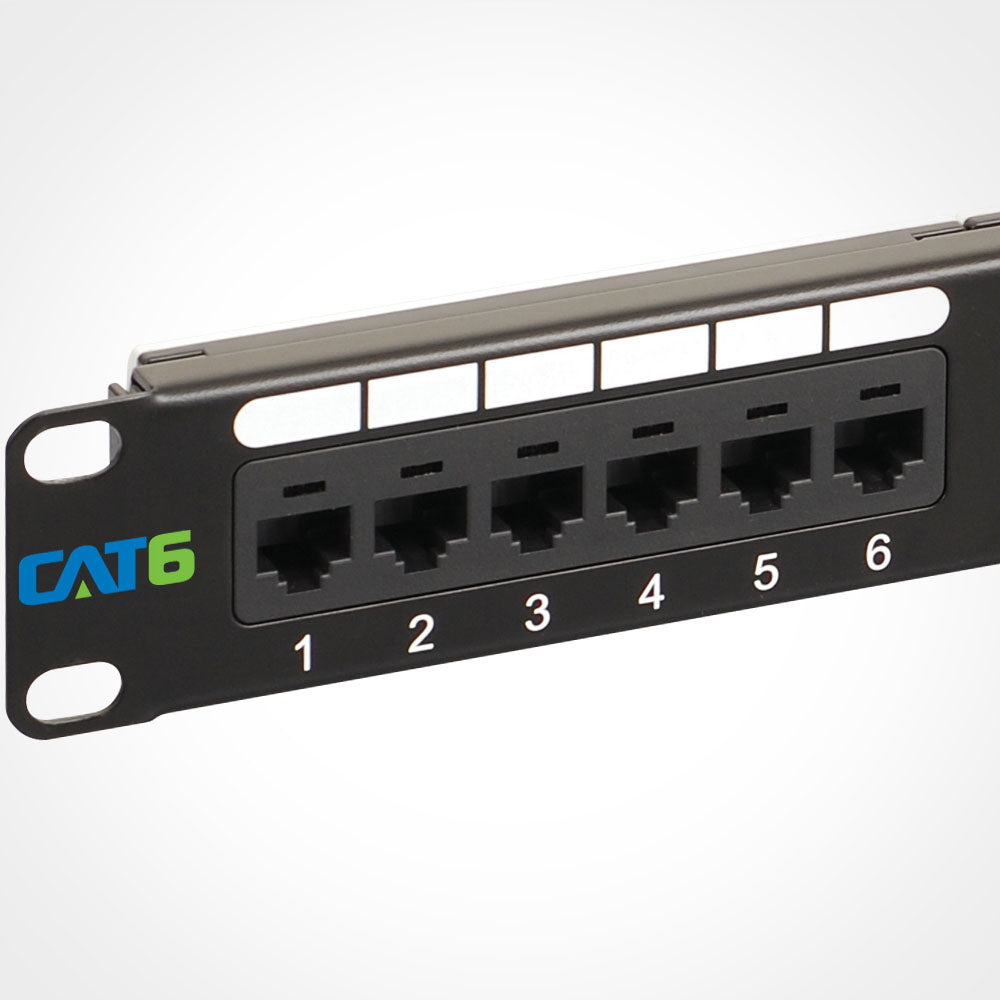

ICC Cat6 Patch Panel
SKU#: ICMPP02460
UPC#:63375801129760 Day Money Back Guarantee
100% Secure Shopping
3 Year Warranty
SKU#: ICMPP02460
UPC#:633758011297
SKU#: ICMPP02460
UPC#:63375801129760 Day Money Back Guarantee
100% Secure Shopping
3 Year Warranty
Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+
The ICC Cat6 Patch Panel offers an economical solution to achieving superior performance in data networks. It comes preconfigured for T568A and T568B wiring and exceeds ANSI/TIA-568 Category 6 standards.
Features+
- Provides Excellent Performance for Data Networks Requiring Maximum Speed and Bandwidth
- Exceeds ANSI/TIA/EIA-568-C.2 Category 6 Requirements

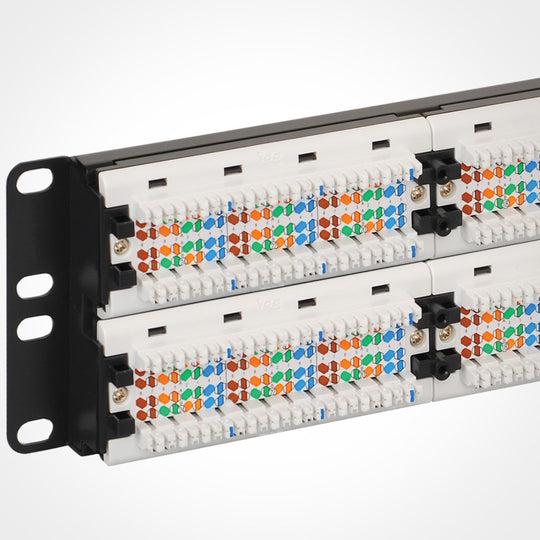

- Provides 110 IDC Termination, Reducing Installation Time
- Includes Both TIA568-A and TIA568-B Color Wiring Diagrams
- Backwards Compatible with All Lower Rated Category Components
- 3 Year Manufacturer Warranty
Specs+
- Patch Panel Construction: 16AWG Cold Rolled Steel
- Jack Housing: High Impact, Flame Retardant Plastic, UL 94V-0
- Spring Wire: Phosphor Bronze
- 110 Connector: Phosphor Bronze Alloy with 100 Micro-Inch Alloy
- Gold Rating: 50 Micro Inches Gold, Over 100 Micro Inches Nickel
- Durable Black Powder Coat Finish
- Mating Force: 100 Grams Min Per Contact
- Temperature Range: -40°C~70°C
- Plug Retention in Jack: 50N (11 lbs sq)
- IDC Wire Gauge: 22-24 AWG
- Electrical Current Rating: 1.5 Amp DC
- Contact Resistance: 2.5 Milohms Max
- Fits Standard 19" Racks and Cabinets
- 1 Rack Mount Space (RMS)
- UL Listed
- SPEC SHEET (24 Port)
- SPEC SHEET (48 Port)
Package Contents+

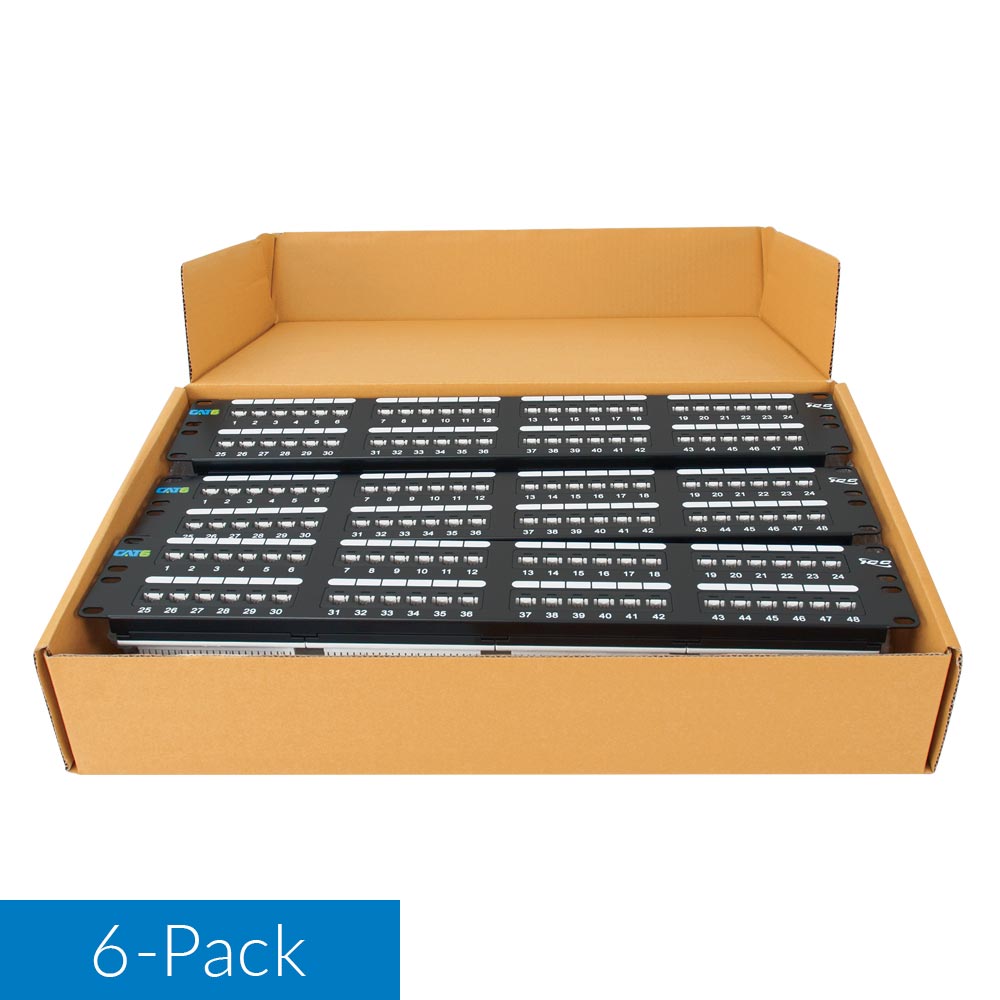

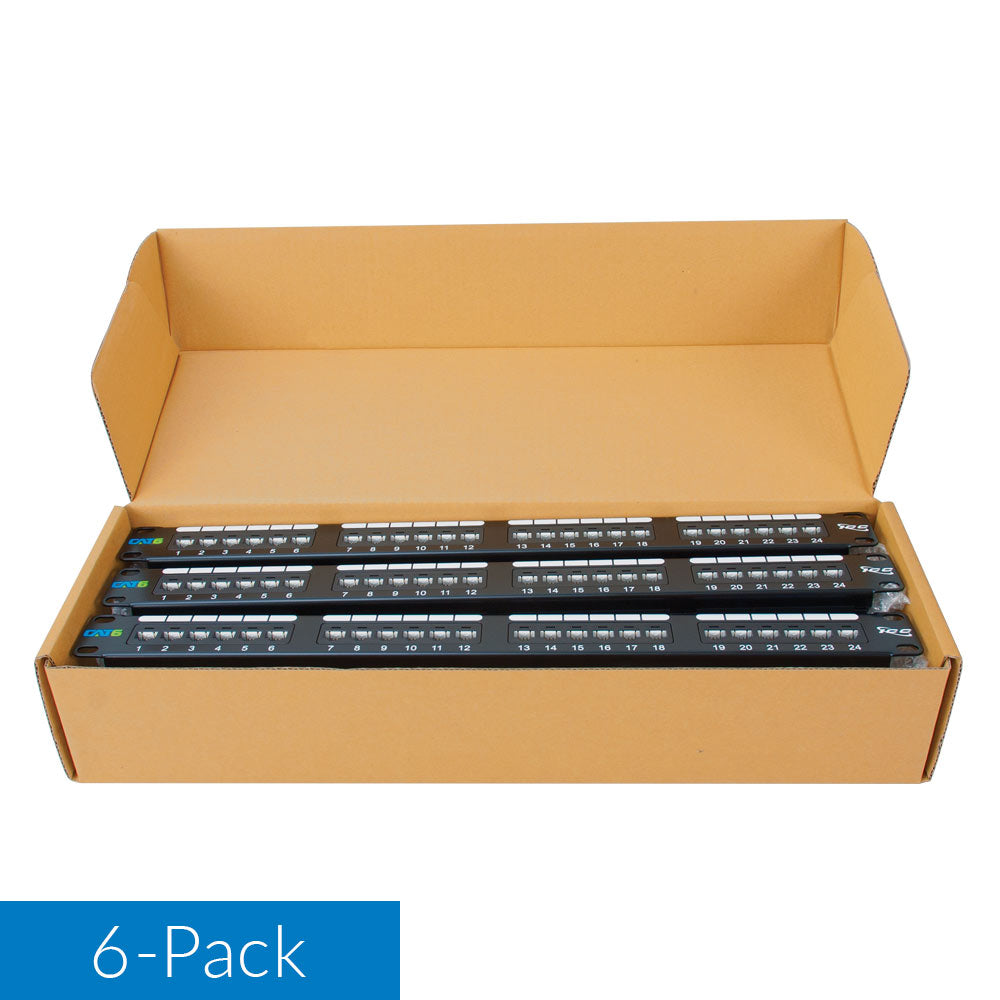

- (1) 24/48 Port Cat6 Patch Panel
- (5) 6" Cable Ties
- (4) #12-24 x 5/8" Pan Head, Pilot Point Machine Screw
- (1) Installation Instructions
